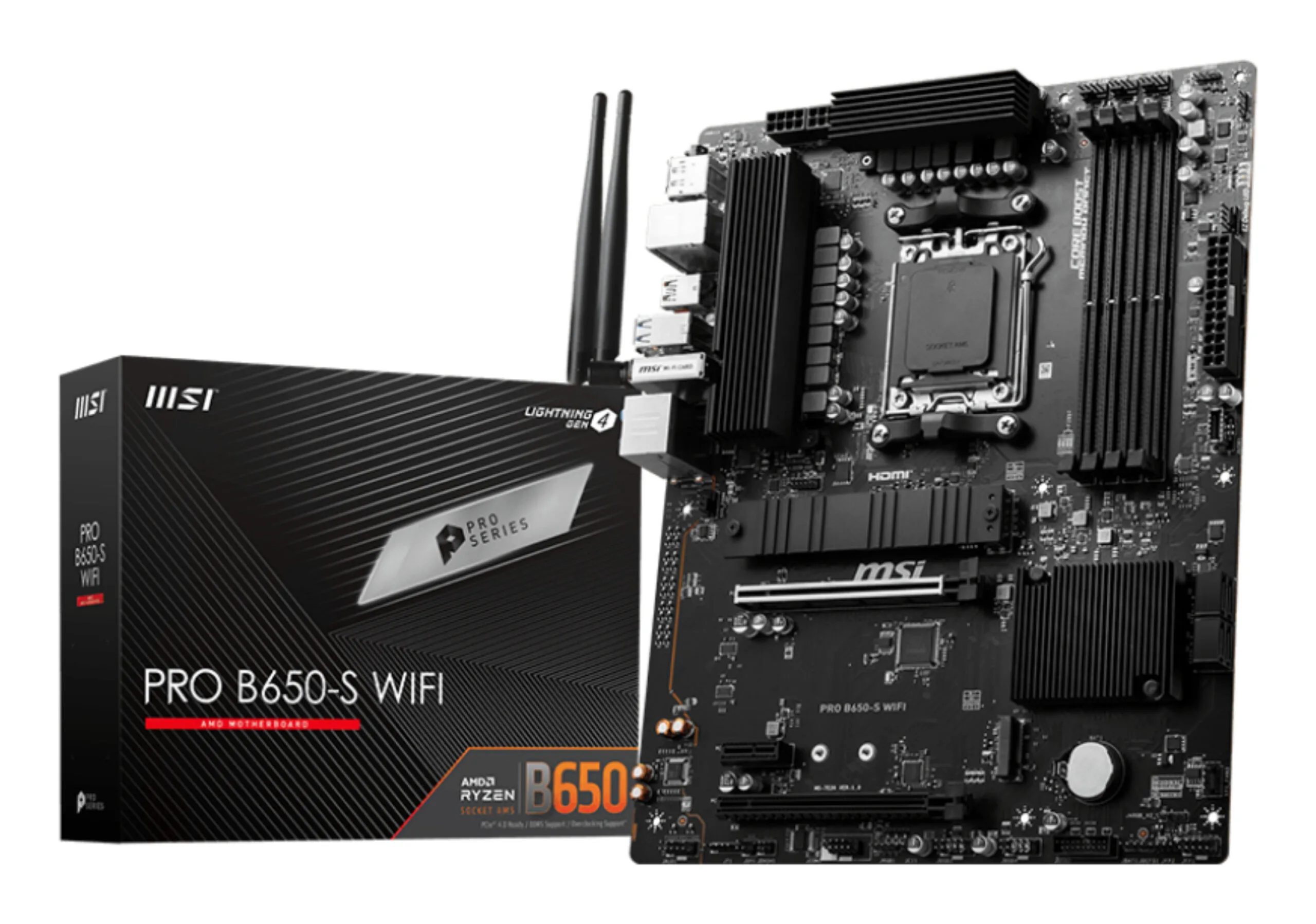

MSI PRO B650-S WIFI AM5 AMD B650 Ryzen 7000 DDR5 ATX Motherboard
The MSI PRO B650-S WIFI is an ATX motherboard for AMD Ryzen 7000 series processors, featuring the AM5 socket and B650 chipset. It supports DDR5 memory up to 7200+ MHz (OC), has dual M.2 slots with PCIe 4.0, 2.5G LAN, and Wi-Fi 6E. With a 12+2 power design and comprehensive connectivity, it’s ideal for high-performance builds. Available with nationwide delivery in Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 53,429
Description
The MSI PRO B650-S WIFI is an ATX motherboard designed for AMD Ryzen 7000 Series processors on the AM5 socket. It supports DDR5 memory with speeds up to 7200+ MHz (OC) and features a robust 12+2 Duet Rail power system with P-PAK, ensuring stable performance for demanding workloads.
Connectivity is a highlight with PCIe 4.0 slots, dual M.2 slots with Shield Frozr, 2.5G LAN, and integrated Wi-Fi 6E. The rear I/O includes USB 3.2 Gen 2×2 Type-C, multiple USB ports, and a Flash BIOS button for easy updates.
- AMD B650 chipset with AM5 socket for Ryzen 7000 Series CPUs
- Dual channel DDR5 memory support, up to 192GB, with AMD EXPO
- 12+2 Duet Rail power system with dual 8-pin CPU power connectors
- 2x PCIe 4.0 x16 slots, 1x PCIe 3.0 x1, 2x M.2 PCIe 4.0 x4 slots
- Realtek 2.5G LAN and AMD Wi-Fi 6E with Bluetooth 5.3
- Rear I/O: DisplayPort, HDMI, USB 3.2 Gen 2×2 Type-C, 3x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 6x audio jacks
Specification
Overview
| Brand | MSI |
|---|---|
| Model | PRO B650-S WIFI |
| Chip | AMD B650 |
| Socket | AM5 |
| RAM | DDR5 |
| Form Factor | ATX |
| Connectivity | Wi-Fi 6E, Bluetooth 5.3 |
| Graphics | PCIe 4.0 x16 |
| Audio | Realtek ALC897 7.1-channel HD |
| Warranty | 2 Years |
| Best Seller Ranking | #6 in AMD Motherboards |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series |
| Chipset | AMD B650 |
| Number of Memory Slots | 4x288pin |
| Memory Standard | Memory Support DDR5 7200+/ 7000/ 6800/ 6600/ 6400/ 6200/ 6000/ 5800/ 5600/ 5400/ 5200/ 5000/ 4800 MHz, Max. overclocking frequency: |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Memory Feature | Supports AMD EXPO |
| PCI Express 4.0 x16 | 2x PCI-E x16 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 |
| PCI Express x1 | 1x PCI-E x1 slot, PCI_E2 Gen PCIe 3.0 supports up to x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 2x M.2, M.2_1 Source supports up to PCIe 4.0 x4 , supports 22110/2280 devices |
| SATA RAID | Supports RAID 0 and RAID 1 for SATA storage devices*, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8125BG 2.5G LAN |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | AMD Wi-Fi 6E, The Wireless module is pre-installed in the M.2 slot |
| Bluetooth | Supports Bluetooth 5.3** |
| Back I/O Ports | 1 x DisplayPort, 1 x 2.5G LAN |
| Onboard USB | 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports |
| Other Connectors | 1x CPU Fan, 1x Pump Fan |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1x Power Connector, 2x Power Connector |
| Windows 11 | Supported |
| Features | Supports AMD Ryzen™ 7000 Series Desktop Processors, Supports DDR5 Memory, Dual Channel DDR5 7200+MHz |
| Form Factor | ATX |
| Memory Type | DDR5 |
