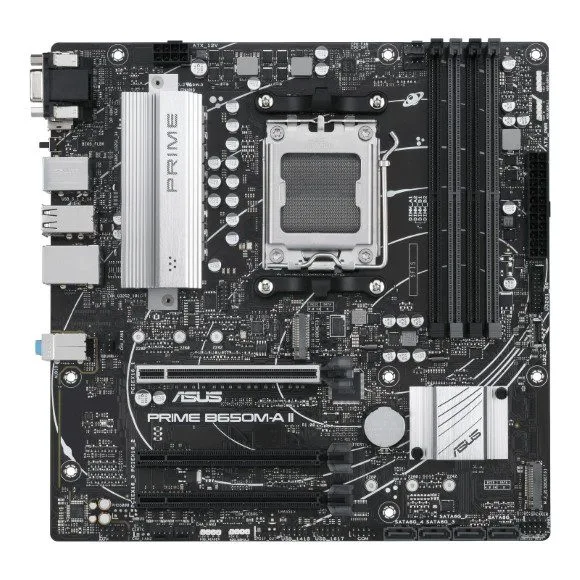

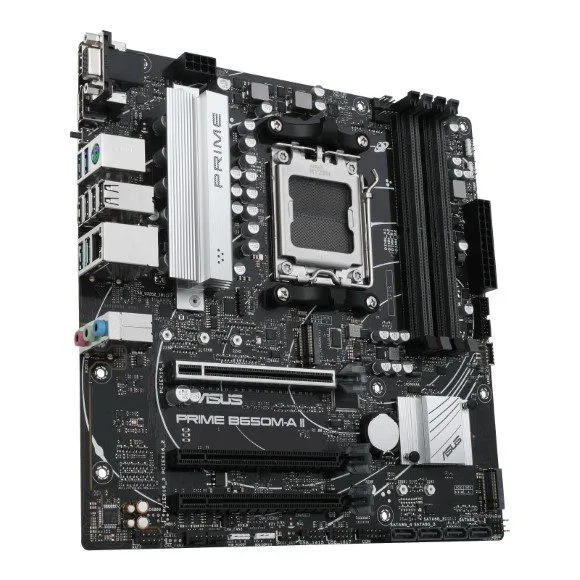

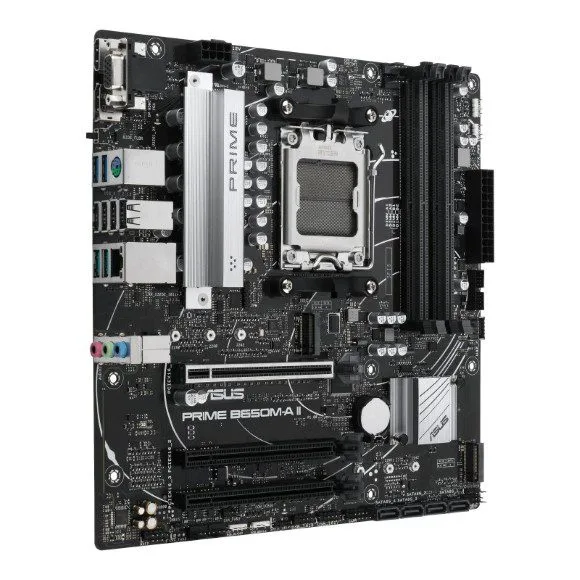

ASUS PRIME B650M-A II Micro-ATX with DDR5, PCIe 5.0 M.2, 2.5Gb Gaming Motherboard
The ASUS PRIME B650M-A II is a Micro-ATX motherboard featuring DDR5 memory, PCIe 5.0 M.2 support, and a 2.5Gb LAN port. Designed for AMD Ryzen 7000 series processors, it offers robust connectivity with HDMI 2.1, DisplayPort 1.4, and USB 10Gb/s ports, along with convenient BIOS FlashBack for easy updates. Perfect for building a high-performance gaming or workstation PC.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 47,999
Description
The ASUS PRIME B650M-A II is a Micro-ATX motherboard built for AMD Ryzen 7000 series processors on the AM5 socket. It features DDR5 memory support, PCIe 5.0 M.2 storage, and a 2.5Gb LAN port, making it a solid foundation for a modern gaming or productivity PC.
With dual M.2 slots (one PCIe 5.0, one PCIe 4.0), HDMI 2.1 and DisplayPort 1.4 outputs, and USB 10Gb/s ports, this motherboard offers high-speed connectivity and future-ready expansion. The BIOS FlashBack button allows easy BIOS updates without a CPU, while the comprehensive cooling headers ensure stable performance.
- AMD Socket AM5 for Ryzen 7000 series processors
- DDR5 memory support up to 6400MHz (OC) and 128GB capacity
- PCIe 5.0 M.2 slot for ultra-fast SSDs
- Realtek 2.5Gb Ethernet for high-speed networking
- HDMI 2.1 and DisplayPort 1.4 outputs for multi-display setups
- BIOS FlashBack button for easy firmware updates
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Brand | ASUS |
| Series | PRIME Series |
| Model | PRIME B650M-A II (90MB1EH0-M0EAY0) |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| AMD Ryzen 7000 Series | 4x DIMM slots, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of 4096×2160 @ 60Hz |
| DisplayPort | 1x DisplayPort 1.4 ports, supporting a maximum resolution of 8K 7680×4320 @ 60Hz, Support for HDCP 2.3 |
| VGA | 1x VGA D-Sub Support maximum resolution of 2048×1536 @ 50Hz, 2048×1280 @ 60Hz, 1920×1200 @ 60Hz |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| AMD B650 Chipset | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| LAN | Realtek 2.5 Gigabit LAN Port 10/100/1000/2500Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Codec | Realtek High Definition Audio |
| Ports | 2x USB 10Gb/s Type-A Ports |
| Buttons | 1x BIOS FlashBack button |
| Internal Connectors | 1x 4-pin CPU Fan header |
| LED Displays | 1x BIOS FlashBack LED |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Remote Management | WOL by PME, PXE |
| Form Factor | Micro-ATX Form Factor, 244 x 244mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Boxed Accessories | 2x SATA 6Gb/s cables |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
