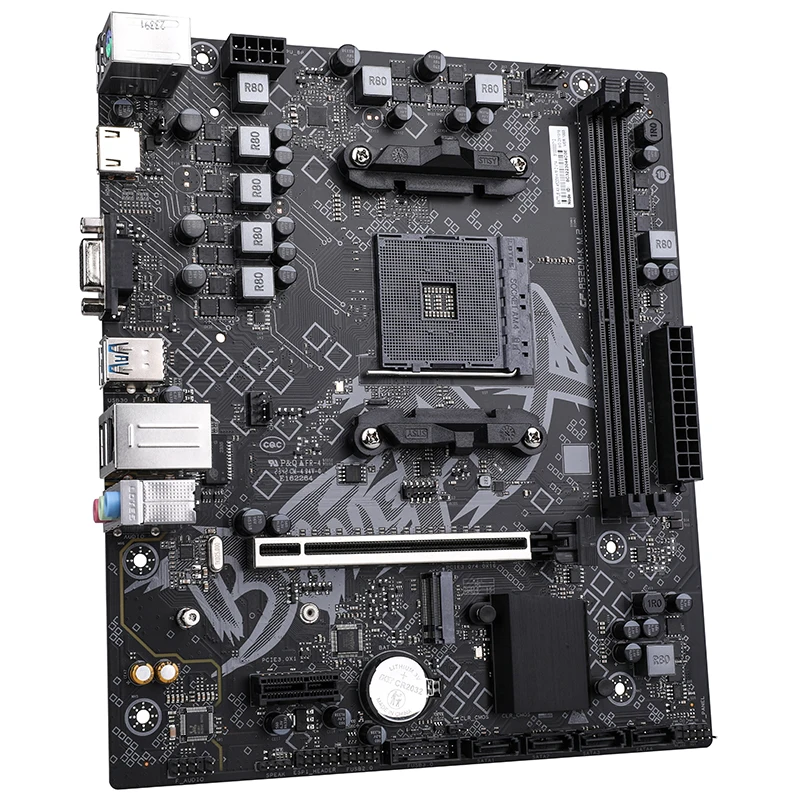

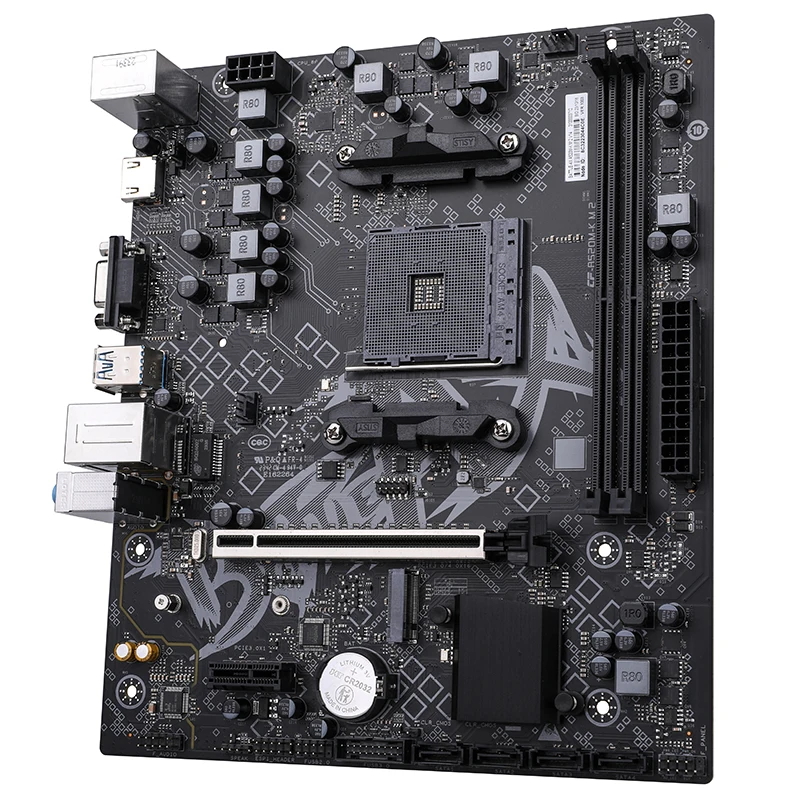

COLORFUL BATTLE-AX A520M-K M.2 V14 AMD AM4 DDR4 mATX Motherboard
The COLORFUL BATTLE-AX A520M-K M.2 V14 is an AMD A520 chipset motherboard for AM4 Ryzen processors, offering dual-channel DDR4 memory support up to 64GB with overclocking to 3600MHz. It features one M.2 slot, four SATA ports with RAID, HDMI 2.0 for 4K output, and Realtek ALC897 audio. Ideal for budget builds with reliable performance.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 22,999
Description
The COLORFUL BATTLE-AX A520M-K M.2 V14 is an AMD A520 chipset motherboard designed for AMD AM4 Ryzen processors. It supports DDR4 memory up to 64GB with overclocking capabilities up to 3600MHz, and features dual-channel memory technology for enhanced performance.
Connectivity options include a PCIe 3.0 x16 slot, one M.2 slot for SSDs (supports both PCIe and SATA modes), and four SATA 6Gb/s ports with RAID support. The rear I/O offers USB 3.2 Gen 1 and USB 2.0 ports, HDMI 2.0 (up to 4K 60Hz), VGA, PS/2, gigabit LAN, and 5.1-channel audio via the Realtek ALC897 codec.
- AMD A520 chipset with AM4 socket for Ryzen processors
- 2 DDR4 slots, up to 64GB, supports XMP and overclocking to 3600MHz
- 1 M.2 slot (PCIe 3.0 x4/SATA) and 4 SATA 6Gb/s with RAID 0/1/10
- Rear I/O: HDMI 2.0 (4K@60Hz), VGA, 4x USB 3.2 Gen 1, 2x USB 2.0, PS/2, gigabit LAN, 3 audio jacks
- Realtek ALC897 audio, 5.1-channel support
- mATX form factor (230mm x 197mm) with comprehensive fan and voltage monitoring
Specification
Overview
| Brand | COLORFUL |
|---|---|
| Model | BATTLE-AX A520M-K M.2 V14 |
| Chip | AMD A520 |
| Socket | AM4 |
| Form Factor | mATX |
| RAM Type | DDR4 |
| Storage | M.2 PCIe 3.0 x4 |
| Connectivity | USB 3.2 Gen 1, Gigabit LAN |
| Graphics Output | HDMI+VGA |
| Warranty | 1 Year |
| Product Series | BATTLE-AX series |
| Chipset | AMD A520 |
| Processor | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard |
| Memory | 2 DDR4 memory sockets are provided, which can support up to 64GB of memory, – Support DDR4-3600/3200/2933/2666/2400MHz memory |
| SATA Ports | 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices, – M.2_1 slot: supports 2242/2280 M.2 SSD |
| Board I/O | Rear I/O :, -2×USB 2.0 interfaces |
| Expansion Slots | 1×PCIe 3.0 x16 slot, 1×PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8111H Gigabit Network Card |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Configuration | M-ATX, 230mm x 197mm |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 |
