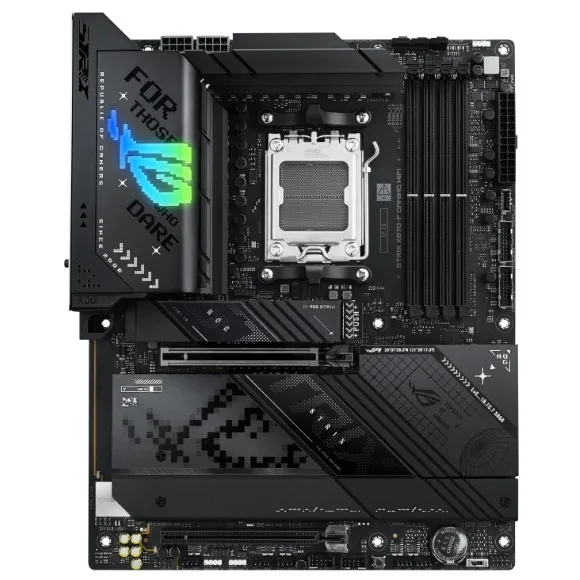

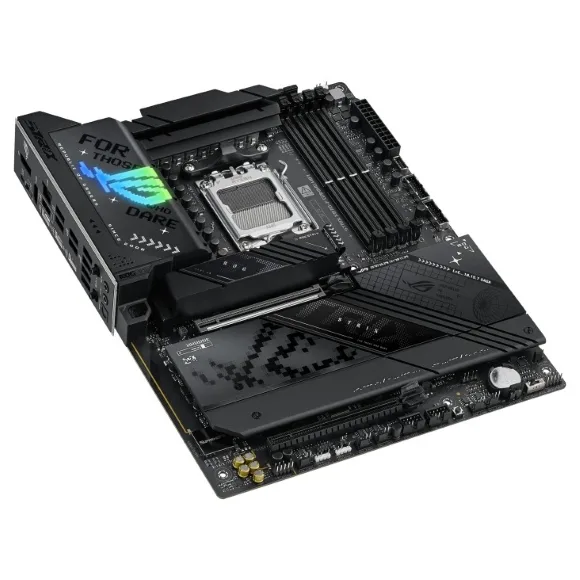

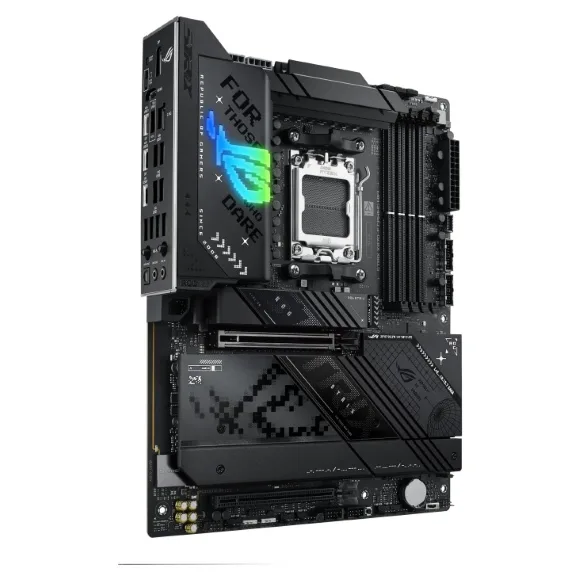

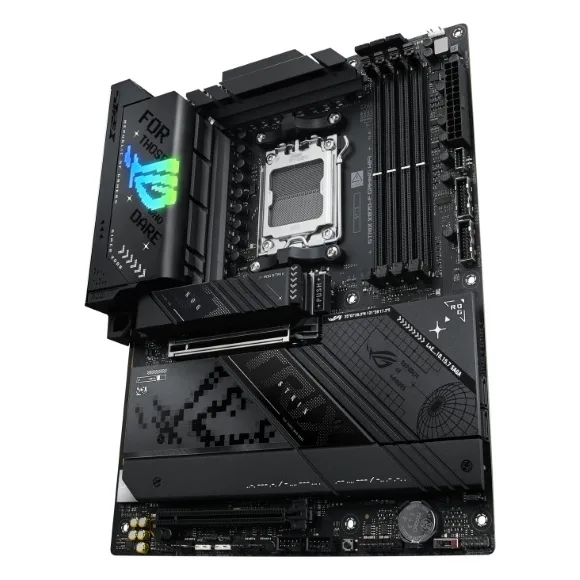

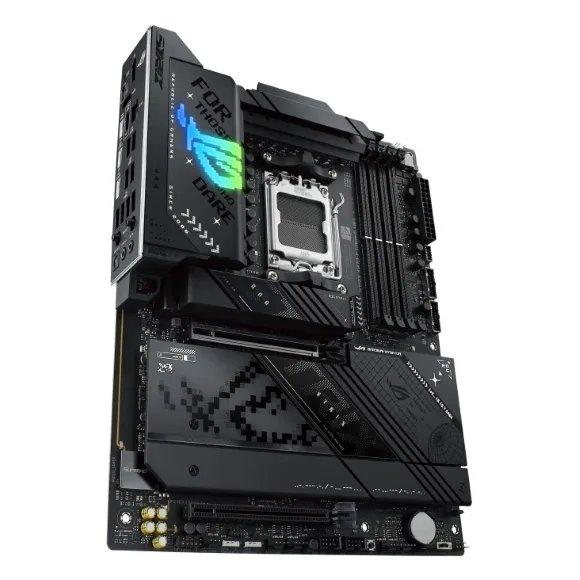

Asus ROG STRIX X870-F GAMING WIFI, AMD Ryzen 9000 Series Motherboard
The Asus ROG STRIX X870-F GAMING WIFI is an AMD AM5 motherboard featuring the X870 chipset, designed for Ryzen 9000 series processors. It supports DDR5 memory up to 8000+ MT/s, PCIe 5.0, Wi-Fi 7, Bluetooth v5.4, dual USB4 ports, and 2.5Gb Ethernet. With 4 M.2 slots and SupremeFX audio, it delivers top-tier performance for gaming and content creation.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 129,280
Description
The Asus ROG STRIX X870-F GAMING WIFI is a premium AMD AM5 motherboard designed for the latest Ryzen 9000, 8000, and 7000 series processors. Built on the AMD X870 chipset, it delivers cutting-edge performance with support for DDR5 memory up to 8000+ MT/s (OC) and PCIe 5.0 for both graphics and storage. This ATX board is packed with advanced connectivity, including Wi-Fi 7, Bluetooth v5.4, Intel 2.5Gb Ethernet, and dual USB4 40Gbps ports with DisplayPort Alt mode.
With robust power delivery, comprehensive cooling options, and ROG SupremeFX 7.1 audio, this motherboard is engineered for gamers and enthusiasts who demand uncompromising performance and reliability. It also features ASUS-exclusive technologies like BIOS FlashBack and Clear CMOS buttons for easy troubleshooting.
- AMD Socket AM5 for Ryzen 9000/8000/7000 series desktop processors
- 4 x DDR5 DIMM slots, max 192GB, supports up to 8000+ MT/s (OC)
- 1 x PCIe 5.0 x16 slot and 4 x M.2 slots (2 x PCIe 5.0, 2 x PCIe 4.0)
- Integrated Wi-Fi 7 (802.11be) and Bluetooth v5.4
- Dual USB4 40Gbps Type-C ports with DP Alt mode and 30W PD fast-charge
- ROG SupremeFX 7.1 audio with ALC4080 codec and 2.5Gb Ethernet
Specification
Overview
| Warranty | 2 Years |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen, ™, 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Mémoire | 4 x DIMM slots, max. 192GB, DDR5, Supports up to 8000+MT/s(OC) with Ryzen™, 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory, Dual channel memory architecture, Supports AMD Extended Profiles for, Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP) |
| Carte graphique | 1 x DisplayPort, 1 x HDMI™ port, 2 x USB4, ®, (40Gbps) ports support USB, Type-C, ®, display outputs |
| Slots d´extension | AMD Ryzen™ 9000 & 7000 Series Desktop Processors, 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors, 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**, AMD X870 Chipset, 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Stockage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports, AMD Ryzen™ 9000 & 7000 Series Desktop Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode), M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports), AMD X870 Chipset, M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 2 x SATA 6Gb/s ports |
| LAN | 1 x Intel, ®, 2.5Gb Ethernet, ASUS LANGuard |
| Sans fil et Bluetooth | Wi-Fi 7, 2×2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate., Bluetooth, ®, v5.4 |
| Ports USB | Rear USB (Total 12 ports), 2 x USB4, ®, (40Gbps) ports(2 x USB Type-C, ®, with DP Alt mode), 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C, ®, with up to 30W PD Fast-charge), 4 x USB 5Gbps ports (4 x Type-A), Front USB (Total 9 ports), 1 x USB 20Gbps connector (supports USB Type-C, ®, ), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*, – Impedance sense for front and rear headphone outputs, – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input, – Supports up to 32-Bit/384 kHz playback on front panel |
| Interface E/S arrière | 2 x USB4, ®, (40Gbps) ports (2 x USB Type-C, ®, with DP Alt mode), 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C, ®, with up to 30W PD Fast-charge)**, 4 x USB 5Gbps ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel, ®, 2.5Gb Ethernet, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button |
| Interface E/S interne | Fan and Cooling Related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Power Related, 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors, Storage Related, 4 x M.2 slots (Key M), 2 x SATA 6Gb/s ports, USB, 1 x USB 20Gbps connector (supports USB Type-C, ®, ), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x Alteration PCIe mode switch, 1 x Chassis Intrusion header, 1 x CPU Over voltage jumper, 1 x Front Panel Audio header (F_AUDIO), 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Format | ATX 30.5 cm x 24.4 cm |
