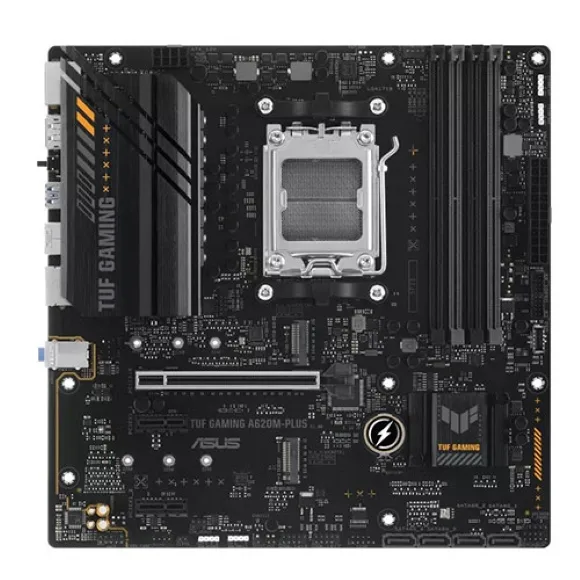

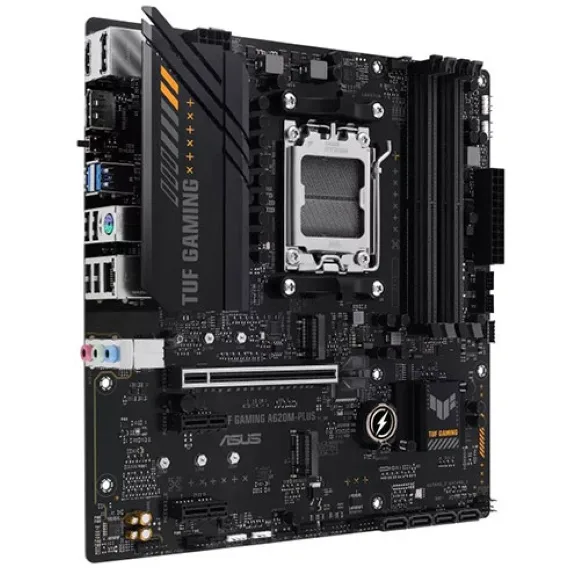

Asus TUF Gaming A620M-Plus DDR5 AMD AM5 MicroATX Motherboard
The Asus TUF Gaming A620M-Plus DDR5 is a microATX motherboard for AMD Ryzen 7000 series CPUs, featuring the AMD A620 chipset. It supports up to 256GB of DDR5 memory with EXPO overclocking, dual M.2 slots with PCIe 4.0, 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth v5.3. Built with TUF components and a VRM heatsink, it ensures reliable performance for gaming and productivity builds.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 37,999
Description
The Asus TUF Gaming A620M-Plus DDR5 AMD AM5 MicroATX Motherboard is built for durability and performance, supporting AMD Ryzen 7000 Series processors. With the AMD A620 chipset, it features DDR5 memory support up to 256GB, dual-channel architecture, and AMD EXPO overclocking. The robust VRM heatsink and TUF protection components ensure stable operation under demanding conditions.
Connectivity options include PCIe 4.0 for graphics, dual M.2 slots with PCIe 4.0 x4, 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth v5.3. The rear I/O offers USB 3.2 Gen 1 and USB 2.0 ports, DisplayPort and HDMI outputs, and a BIOS FlashBack button for easy updates. This microATX board is ideal for building a compact yet powerful gaming or productivity system.
- Supports AMD Ryzen 7000 Series processors on AM5 socket
- 4 x DDR5 slots, dual-channel, up to 256GB with EXPO support
- 1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots
- 2 x M.2 slots (PCIe 4.0 x4) and 4 x SATA 6Gb/s with RAID support
- Realtek 2.5Gb Ethernet, Wi-Fi 6, Bluetooth v5.3
- ASUS TUF Protection: DIGI+ VRM, ESD Guards, SafeSlot Core+, BIOS FlashBack
Specification
Overview
| Brand | Asus |
|---|---|
| Model | TUF Gaming A620M-Plus |
| Form Factor | MicroATX |
| Socket | AMD AM5 |
| Chipset | AMD A620 |
| Memory Type | DDR5 |
| Max Memory Speed | 6400MHz |
| Warranty | 1 Year |
| Part Number | 90MB1F00-M0AAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series |
| Number of Memory Slots | 4x288pin |
| Memory Standard | DDR5 6400+/6200/6000/5800/5600/5400/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory*, * Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Feature | Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking |
| PCI Express 4.0 x16 | AMD Ryzen 7000 Series Desktop Processors*, 1 x PCIe 4.0 x16 slot* Please check the PCIe bifurcation table on the support site. |
| PCI Express x1 | AMD A620 Chipset, 2 x PCIe 3.0 x1 slots |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 7000 Series Desktop Processors, M.2_1 slot, type 2242/2260/2280 |
| SATA RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC*, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio Channels | 7.1 Channels |
| LAN Chipset | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 6, 1×1 Wi-Fi 6 |
| Bluetooth | Bluetooth v5.3 |
| Back I/O Ports | 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0 ports |
| Onboard USB | 1 x USB 3.2 Gen 1 connector, 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
| Other Connectors | Fan and Cooling related, 1 x 4-pin CPU Fan header |
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Power Pin | 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector |
| Windows 11 | Supported |
| Features | ASUS TUF PROTECTION, – DIGI+ VRM |
| Package Contents | Cables, 2 x SATA 6Gb/s cables |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
