ASUS ROG STRIX X670E-E GAMING WIFI 6E Socket AM5 (LGA 1718) Ryzen 7000 ATX Gaming Motherboard
The ASUS ROG STRIX X670E-E GAMING WIFI is a high-end ATX motherboard for AMD Ryzen 7000 series, featuring the X670E chipset, DDR5 support up to 6400MHz, and PCIe 5.0 for both graphics and storage. It offers Wi-Fi 6E, 2.5Gb Ethernet, SupremeFX audio, and comprehensive cooling, making it ideal for enthusiast builds. Available with nationwide delivery and cash-on-delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 169,000
Description
The ASUS ROG STRIX X670E-E GAMING WIFI is a premium ATX motherboard built for AMD Ryzen 7000 series processors on the AM5 socket. Featuring the AMD X670E chipset, it supports DDR5 memory up to 6400MHz (OC) and delivers exceptional performance with PCIe 5.0 support for both graphics and storage.
This motherboard is equipped with three PCIe 5.0 M.2 slots, four SATA ports, and extensive connectivity including Wi-Fi 6E, Bluetooth 5.2, 2.5Gb Ethernet, and multiple USB 3.2 Gen 2 ports. The ROG SupremeFX 7.1 audio with ALC4080 codec ensures immersive sound quality, while robust power delivery with 5K Black Metallic Capacitors and comprehensive cooling solutions keep the system stable under heavy loads.
- AMD X670E chipset with support for Ryzen 7000 series CPUs
- DDR5 memory support up to 6400MHz (OC), 4 slots, max 128GB
- 2 x PCIe 5.0 x16 slots, 1 x PCIe 4.0 x16 slot
- 3 x PCIe 5.0 M.2 slots + 1 x PCIe 4.0 M.2 slot
- Wi-Fi 6E (802.11ax) and Bluetooth 5.2
- ROG SupremeFX 7.1 audio with ALC4080 codec
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Brand | ASUS |
| Series | ROG |
| Model | STRIX X670E-E GAMING WIFI |
| Part Number | 90MB1BR0-M0AAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Supports AMD Ryzen 7000 Series Desktop Processors*, * Refer to www.asus.com for CPU support list. |
| Chipset | AMD X670E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Supports DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800, * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered, * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| PCI Express 5.0 x16 | 2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes) |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 slot (supports x4 mode) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 7000 Series Desktop Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), AMD X670 Chipset, M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, – Impedance sense for front and rear headphone outputs, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input, – Supports up to 32-Bit/384 kHz playback, Audio Features, – Audio Shielding, – Savitech SV3H712 AMP, – Gold-plated audio jacks, – Rear optical S/PDIF out port, – Premium audio capacitors, – Audio cover, * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 6E, 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band*, * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| Bluetooth | Bluetooth v5.2 |

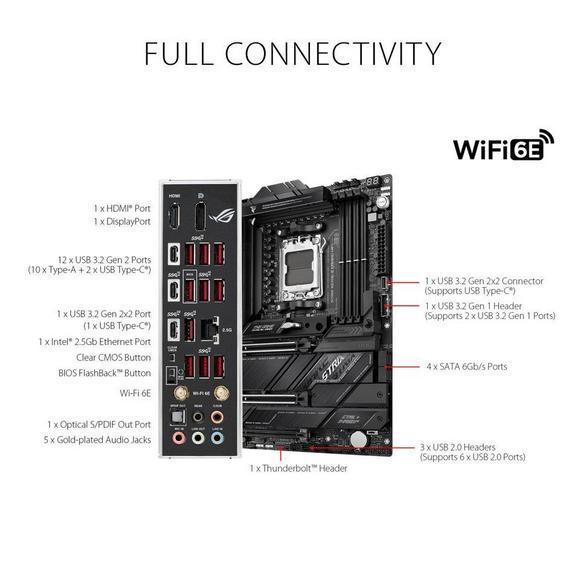

| Back I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x Type-C), 12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB Type-C), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Intel I225-V 2.5Gb Ethernet port, 5 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button |
| Onboard USB | 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Other Connectors | Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan header, Storage related, 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Alteration Mode Switch, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x Start button, 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt header |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector |
| Windows 11 | Supported |

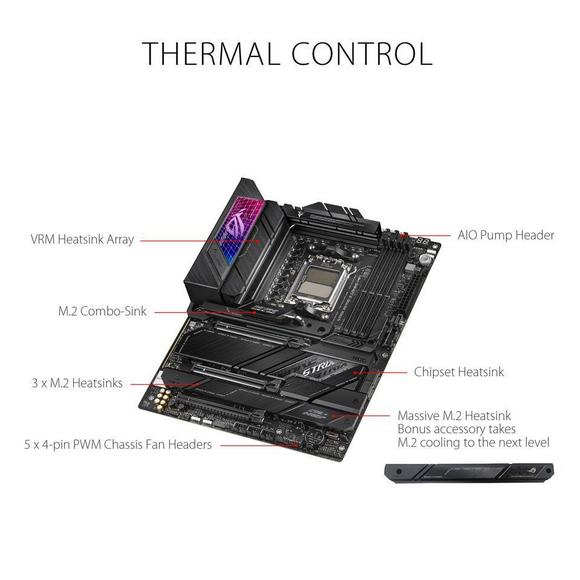

| Features | Extreme Engine Digi+, – 5K Black Metallic Capacitors, ASUS Q-Design, – M.2 Q-Latch, – PCIe Slot Q-Release, – Q-Code, – Q-DIMM, – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), – Q-Slot, ASUS Thermal Solution, – M.2 heatsink backplate, – M.2 heatsink, – VRM heatsink design, – Massive Bundled PCIe 5.0 M.2 Heatsink, ASUS EZ DIY, – BIOS FlashBack button, – BIOS FlashBack LED, – Clear CMOS button, – ProCool II, – Pre-mounted I/O shield, – SafeSlot, – SafeDIMM, AURA Sync, – AURA RGB header, – Addressable Gen 2 headers |
| Package Contents | Cables, 2 x SATA 6Gb/s cables, Additional Cooling Kit, 1 x Thermal pad for M.2, Miscellaneous, 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties pack, 1 x Massive PCIe 5.0 M.2 Bundled Heatsink, 1 x M.2 Q-Latch package for M.2 backplate, 1 x M.2 Q-Latch package, 1 x ROG Graphics card holder, 2 x Rubber Packages for M.2, 1 x Rubber Package for M.2 backplate, 1 x ROG key chain, 1 x ROG Strix sticker, 1 x ROG Strix thank you card, Documentation, 1 x User guide |
| Form Factor | ATX |
