ASUS ROG Strix Z790-F Gaming WiFi 6E LGA 1700(Intel® 13th&12th Gen) ATX Gaming Motherboard

Name: ASUS ROG Strix Z790-F Gaming WiFi 6E LGA 1700(Intel® 13th&amp;12th Gen) ATX Gaming Motherboard
Brand: Asus
SKU: MC-MBD-ASU-0101
Price: 110000 PKR
Availability: InStock

SKU: MC-MBD-ASU-0101 Category: Intel Motherboards Brand: Asus

The ASUS ROG Strix Z790-F Gaming WiFi 6E is an ATX motherboard for Intel 13th and 12th Gen CPUs, featuring the Z790 chipset, DDR5 support up to 7800MHz, PCIe 5.0, four M.2 slots, Wi-Fi 6E, Bluetooth 5.2, and 2.5Gb Ethernet. It offers robust cooling, SupremeFX audio, and comprehensive connectivity for high-performance gaming builds. Available with nationwide delivery and cash-on-delivery across Pakistan.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 110,000

Compare

Add to wishlist

Description

The ASUS ROG Strix Z790-F Gaming WiFi 6E motherboard is engineered for Intel 13th and 12th Gen processors, delivering exceptional performance for high-end gaming and content creation. Built on the Intel Z790 chipset, it supports DDR5 memory up to 7800MHz (OC) and features PCIe 5.0 for the latest graphics cards.

With robust cooling solutions, including VRM heatsinks and M.2 heatsinks, this ATX motherboard ensures stable operation under heavy loads. Connectivity is comprehensive with Wi-Fi 6E, Bluetooth 5.2, 2.5Gb Ethernet, and multiple USB ports including USB 3.2 Gen 2×2 Type-C with 30W PD fast charging.

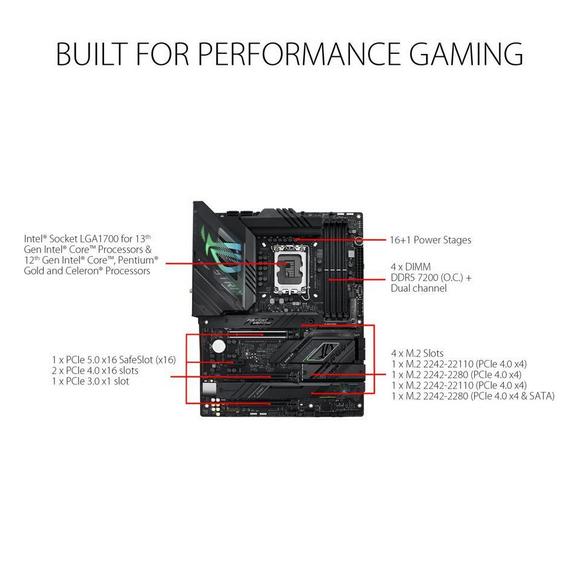

Supports Intel 13th & 12th Gen Core processors (LGA 1700) with Intel Z790 chipset
4x DDR5 slots, up to 192GB, with speeds up to 7800MHz (OC)
1x PCIe 5.0 x16 slot, 2x PCIe 4.0 x16 slots, 1x PCIe 3.0 x1 slot
4x M.2 slots (PCIe 4.0) and 4x SATA 6Gb/s ports with RAID support
Wi-Fi 6E, Bluetooth 5.2, Intel 2.5Gb Ethernet, SupremeFX 7.1 audio
Extensive rear I/O with USB 3.2 Gen 2×2 Type-C, DisplayPort, HDMI, and BIOS FlashBack button

Specification

Overview

Warranty	1 Year
Brand	ASUS
Series	ROG
Model	STRIX Z790-F GAMING WIFI
Part Number	90MB1CP0-M0AAY0
CPU Socket Type	LGA 1700
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipset	Intel Z790
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 , Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
PCI Express 5.0 x16	Intel 13th & 12th Gen Processors, 1 x PCIe 5.0 x16 slot, Please check the PCIe bifurcation table on the ASUS support site
PCI Express 4.0 x16	2 x PCIe 4.0 x16 slots (support x4 mode)
PCI Express x1	1 x PCIe 3.0 x1 slot, – To ensure compatibility of the device installed, please refer to ASUS support website for the list of supported peripherals.
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), Intel Z790 Chipset, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID	Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Audio Chipset	Realtek ALC4080
Audio Channels	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, – Impedance sense for front and rear headphone outputs, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input, – Supports up to 32-Bit/384 kHz playback, Audio Features, – SupremeFX Shielding Technology, – Savitech SV3H712 AMP, – Gold-plated audio jacks, – Rear optical S/PDIF out port, – Premium audio capacitors, – Audio cover
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E, 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band, WiFi 6E 6GHz regulatory may vary between countries.
Bluetooth	Bluetooth v5.2
Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet port, 5 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button
Onboard USB	1 x USB 3.2 Gen 2×2 connector (supports USB Type-C with up to 30W PD), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Storage related, 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x Start button, 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt header
Form Factor	ATX
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector
Windows 11	Supported
Features	Extreme Engine Digi+, – 5K Black Metallic Capacitors, ASUS Q-Design, – M.2 Q-Latch, – PCIe Slot Q-Release, – Q-DIMM, – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), – Q-Slot, ASUS Thermal Solution, – M.2 heatsink backplate, – M.2 heatsink, – VRM heatsink design, ASUS EZ DIY, – BIOS FlashBack button, – BIOS FlashBack LED, – Clear CMOS button, – CPU Socket lever protector, – ProCool II, – Pre-mounted I/O shield, – SafeSlot, – SafeDIMM, AURA Sync, – AURA RGB header, – Addressable Gen 2 headers, Front Panel USB 3.2 Gen 2×2 with PD Fast-charge Support, – Support: up to 30W charging, – Output: 5/9V max. 3A, 12V max 2.5A, – Compatible with PD3.0

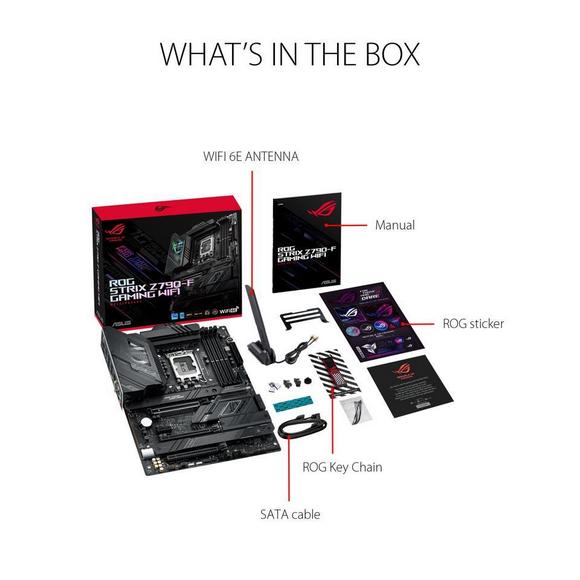

Package Contents	Cables, 2 x SATA 6Gb/s cables, Additional Cooling Kit, 1 x Thermal pad for M.2, 1 x DDR5 Fan holder, Miscellaneous, 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties package, 1 x M.2 backplate Q-Latch package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, 2 x M.2 Rubber Packages, 1 x M.2 backplate Rubber Package, Documentation, 1 x User guide
Form Factor	ATX
