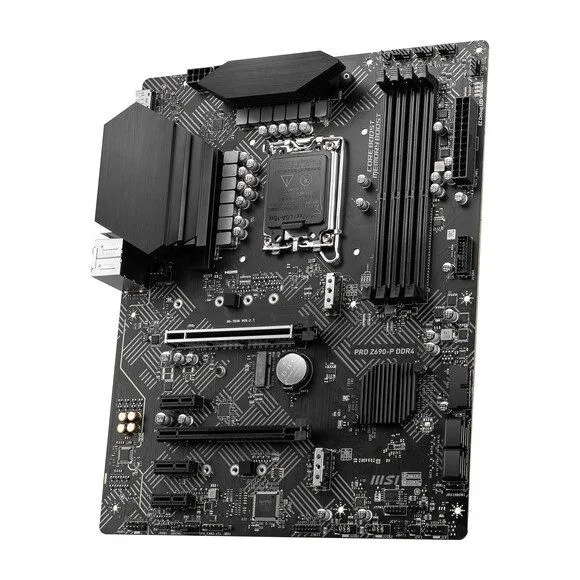

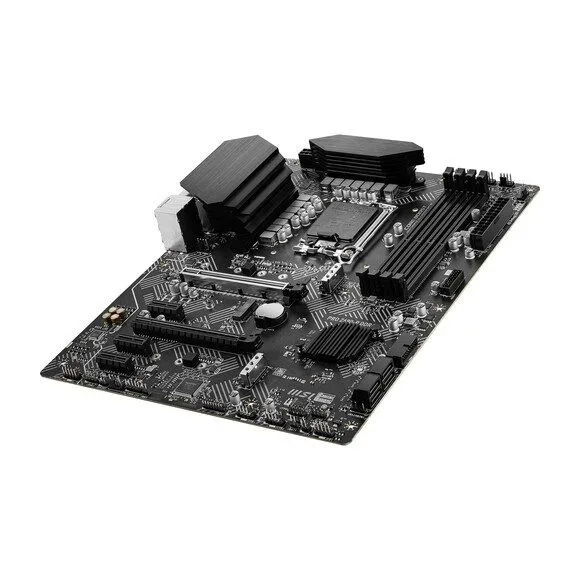

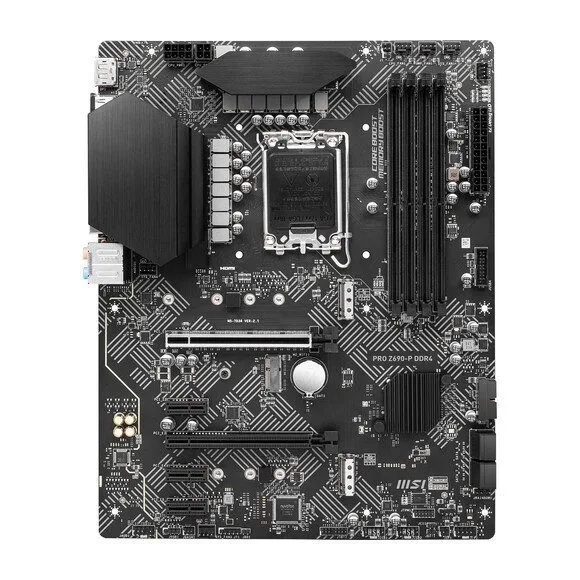

MSI PRO Z690-P DDR4 Motherboard

Name: MSI PRO Z690-P DDR4 Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0003
Price: 55300 PKR
Availability: InStock

SKU: MC-MBD-MSI-0003 Category: Intel Motherboards Brand: MSI

Shipping & Delivery

To pick up today

Free

Applicable to selected areas in Karachi only

1-2 Days

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 55,300

CPU

Back Panel I/O

Memory

Storage Expansion

Internal I/O

Front Panel I/O

Audio

Wireless

Software

Physical

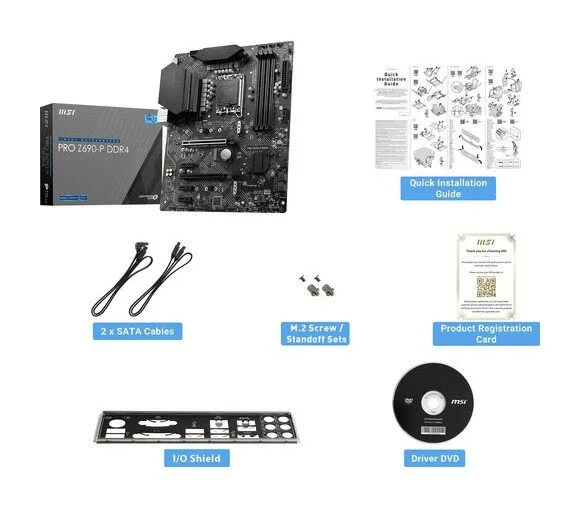

Packaging Info

Chipset	Intel Z690
CPU Socket	LGA 1700
USB	2 x, USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port), 2 x, USB 2.0 Header (Supports 4 USB Type-A Port)
Thunderbolt	None
Display	1 x, HDMI 1.4bOutput, 1 x, DisplayPort 1.4Output
Audio	1 x, S/PDIF, 5 x, 1/8″ / 3.5 mm
Ethernet / Controller	1 x, Realtek RTL8125BG 2.5Gigabit
Memory Slots	4 x, 288-Pin
Memory Support	DDR4 2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered
SATA	4 x, SATA III
M.2	1 x, M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4), 1 x, M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support	Yes
RAID Support	RAID 0, 1, 5, 10 (SATA), RAID 0, 1 (M.2)
Expansion Slots	1 x, PCIe 5.0 x16, 1 x, PCIe 3.0 x16 (x4 mode), 3 x, PCIe 3.0 x1
Multi-GPU Support	AMD CrossFireX
Air Cooling	1 x, 4-Pin CPU, 4 x, 4-Pin System
Liquid Cooling	1 x, 4-Pin Pump
Power Connectors	1 x, 24-Pin Mainboard, 1 x, 8-Pin ATX, 1 x, 4-Pin ATX
Security	Chassis Intrusion, TPM Header
LED Header	2 x, RGB
Diagnostics	Clear CMOS
Add-On	1 x, Thunderbolt Header
I/O Connection Headers	AAFP
Audio Codec	Realtek ALC897 (7.1-Channel)
Bluetooth	None
Wi-Fi	None
Module Support	1 E Key M.2
OS Compatibility	Windows 10, Windows 11, *As of December, 2021: Check with manufacturer for the most up-to-date compatibility
Form Factor	ATX
Dimensions	12 x 9.6″ / 30.5 x 24.4 cm
Package Weight	2.895 lb
Box Dimensions (LxWxH)	14.1 x 10.6 x 2.6″
Memory Type	DDR4
