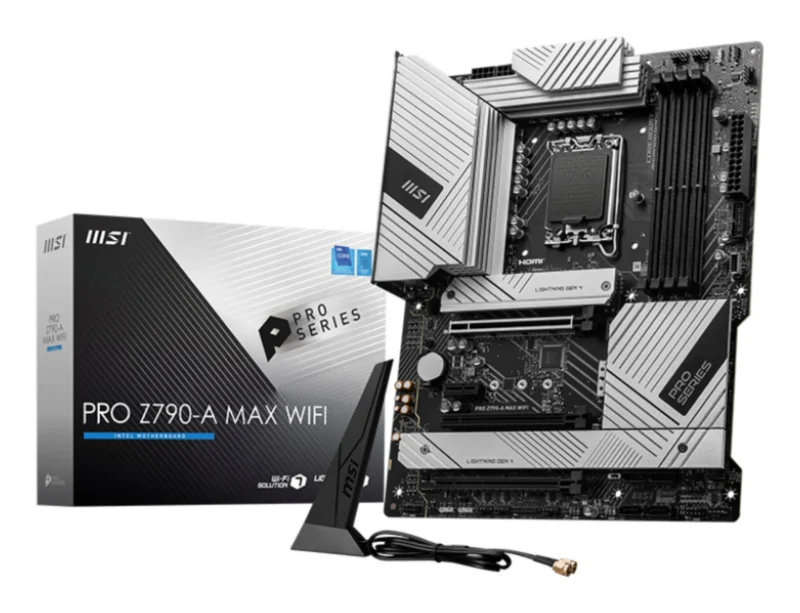

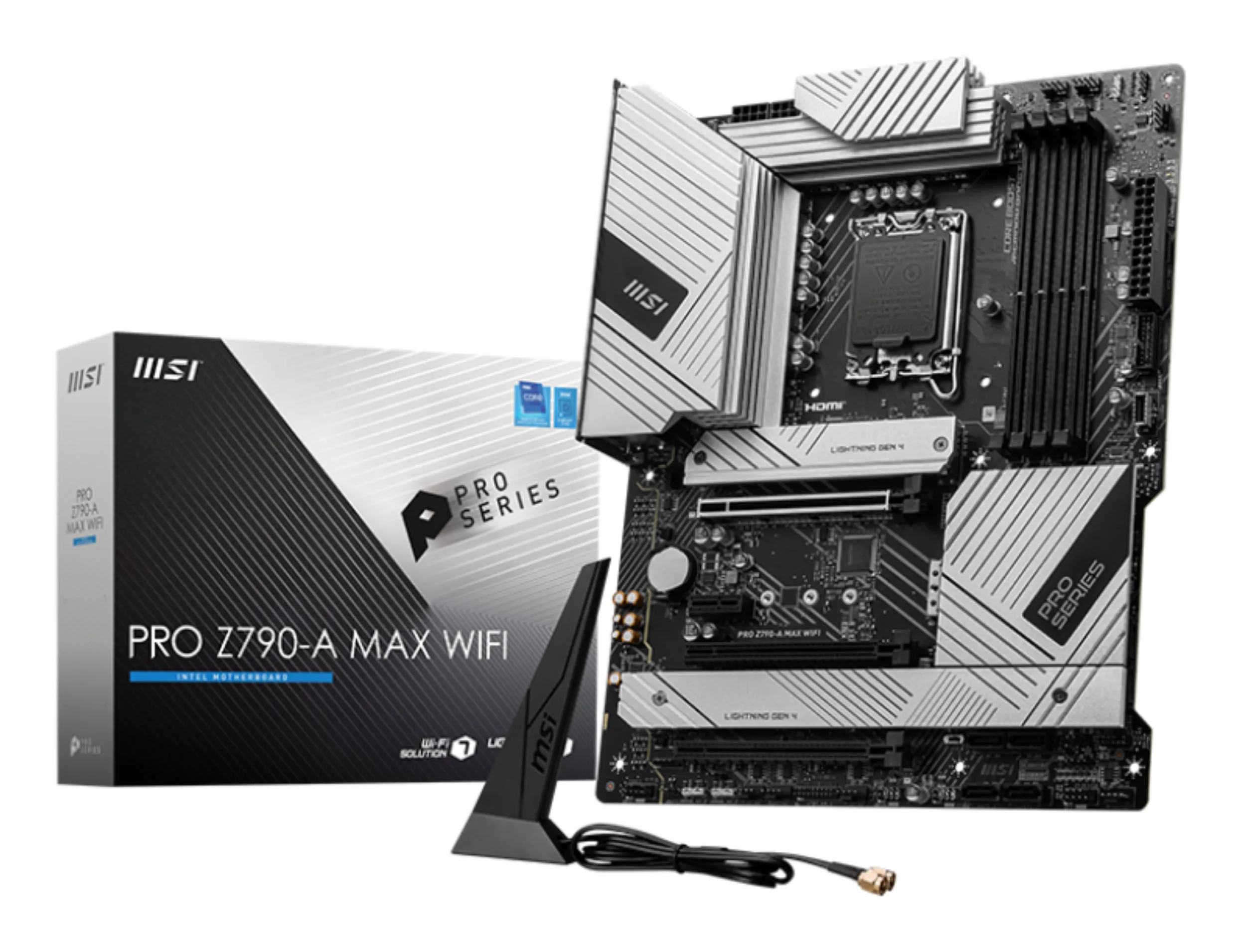

MSI PRO Z790-A MAX WIFI LGA 1700 ATX Motherboard

msi-pro-z790-a-max-wifi-lga-1700-atx-motherboard-2 - MegaComputer.pk

MSI PRO Z790-A MAX WIFI LGA 1700 ATX Motherboard

Name: MSI PRO Z790-A MAX WIFI LGA 1700 ATX Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0019
Price: 86000 PKR
Availability: InStock

SKU: MC-MBD-MSI-0019 Category: Intel Motherboards Brand: MSI

The MSI PRO Z790-A MAX WIFI is an ATX motherboard featuring the Intel Z790 chipset and LGA 1700 socket, supporting 12th/13th Gen Intel Core processors. It offers DDR5 memory up to 7800+ MHz, Wi-Fi 7, Bluetooth 5.4, Intel 2.5G LAN, four M.2 slots, and PCIe 5.0. Ideal for high-performance builds, it comes with a 2-year warranty and nationwide delivery across Pakistan.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 86,000

Compare

Add to wishlist

Description

The MSI PRO Z790-A MAX WIFI is an ATX motherboard built on the Intel Z790 chipset, designed for 12th and 13th Gen Intel Core processors. It supports up to 192GB of DDR5 memory with speeds up to 7800+ MHz (OC), ensuring top-tier performance for demanding applications and gaming.

Connectivity is a highlight with Wi-Fi 7, Bluetooth 5.4, Intel 2.5G LAN, and a comprehensive array of USB ports including a 20Gbps USB-C. The board features four M.2 slots with PCIe 4.0 support and six SATA ports, plus RAID configurations for both. The Realtek ALC4080 codec delivers 7.1-channel audio, while PCIe 5.0 and 4.0 slots provide future-proof expansion.

Intel Z790 chipset with LGA 1700 socket for 12th/13th Gen Intel Core, Pentium Gold, and Celeron processors
DDR5 memory support up to 7800+ MHz (OC), 4 slots, max 192GB, dual-channel with Intel XMP 3.0
Wi-Fi 7 and Bluetooth 5.4 for ultra-fast wireless connectivity; Intel 2.5G LAN
4x M.2 slots (PCIe 4.0 x4) and 6x SATA 6Gb/s with RAID 0/1/5/10 support
PCIe 5.0 x16 slot from CPU, plus PCIe 4.0 x16 and PCIe 3.0 x1 slots
Realtek ALC4080 7.1-channel audio, extensive rear I/O with USB 3.2 Gen 2×2 Type-C, and onboard RGB headers

Specification

Overview

Warranty	2 Years
Best Seller Ranking	#16 in Intel Motherboards
Brand	MSI
Model	PRO Z790-A MAX WIFI
CPU Socket Type	LGA 1700
CPU Type	Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipset	Intel Z790
Number of Memory Slots	4x288pin
Memory Standard	Memory Support 7800+/ 7600/ 7400/ 7200/ 7000/ 6800/ 6600/ 6400/ 6200/ 6000/ 5800/ 5600/ 5400/ 5200/ 5000/ 4800 MHz, Max. overclocking frequency:
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP 3.0 OC, Supports Dual-Controller Dual-Channel mode
PCI Express 5.0 x16	PCI_E1 Gen PCIe 5.0 supports up to x16
PCI Express 4.0 x16	PCI_E3 Gen PCIe 4.0 supports up to x4
PCI Express 3.0 x16	PCI_E4 Gen PCIe 3.0 supports up to x1
PCI Express x1	PCI_E2 Gen PCIe 3.0 supports up to x1
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	4x M.2, M.2_1 Source supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio Chipset	Realtek ALC4080 Codec, 7.1-Channel USB High Performance Audio
Audio Channels	7.1 Channels
LAN Chipset	Intel 2.5Gbps LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 7, The Wireless module is pre-installed in the M.2 slot
Bluetooth	Yes
Back I/O Ports	1 x DisplayPort, 2 x USB 2.0
Onboard USB	4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports
Other Connectors	1x CPU Fan, 1x Pump Fan
Form Factor	ATX
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1x Power Connector, 2x Power Connector
Windows 11	Supported
Form Factor	ATX
