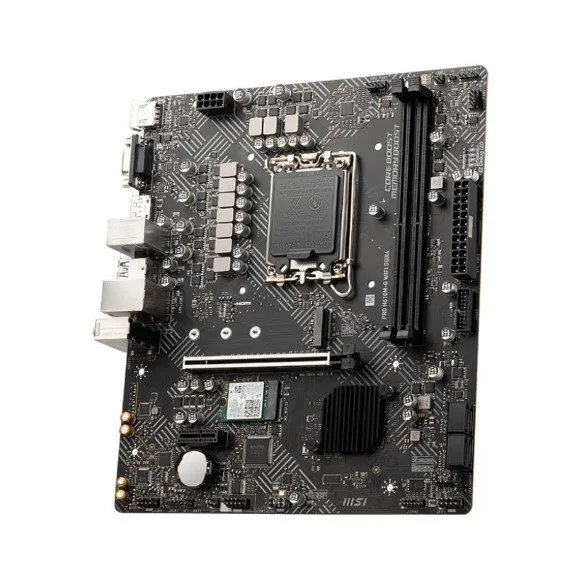

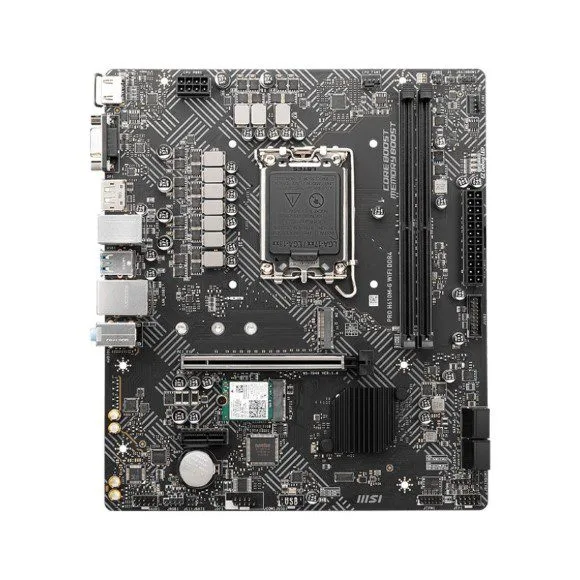

MSI PRO H610M-G DDR4 WIFI LGA 1700 Motherboard

msi-pro-h610m-g-ddr4-wifi-lga-1700-motherboard-2 - MegaComputer.pk

MSI PRO H610M-G DDR4 WIFI LGA 1700 Motherboard

Name: MSI PRO H610M-G DDR4 WIFI LGA 1700 Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0018
Price: 33000 PKR
Availability: InStock

SKU: MC-MBD-MSI-0018 Category: Intel Motherboards Brand: MSI

The MSI PRO H610M-G DDR4 WIFI LGA 1700 Motherboard is a Micro ATX board supporting 12th Gen Intel processors. It features built-in Wi-Fi 802.11ac and Bluetooth 4.2, dual-channel DDR4 memory up to 64GB, and a PCIe 4.0 x16 slot. With MSI’s Core Boost and Memory Boost technologies, it delivers stable performance for everyday computing and gaming. Available nationwide in Pakistan with cash on delivery.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 33,000

Compare

Add to wishlist

Description

The MSI PRO H610M-G DDR4 WIFI LGA 1700 Motherboard is a reliable and feature-rich Micro ATX board designed for 12th Gen Intel Core processors. With Intel H610 chipset, it supports DDR4 memory up to 64GB and offers a PCIe 4.0 x16 slot for high-performance graphics cards.

Built-in Wi-Fi 802.11ac and Bluetooth 4.2 provide seamless wireless connectivity, while the 7.1-channel audio and multiple display outputs (HDMI, VGA, DisplayPort) enhance your multimedia experience. MSI’s exclusive features like Core Boost, Memory Boost, and PCI-E Steel Armor ensure stability and durability.

Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors (LGA 1700)
Dual-channel DDR4 memory, 2 slots, up to 64GB (3200 MHz)
Integrated Intel Dual Band Wireless-AC 3168 (Wi-Fi 802.11ac, Bluetooth 4.2)
1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot, 4x SATA 6Gb/s, 1x M.2 slot (PCIe 3.0 x4/SATA)
Rich I/O: HDMI, VGA, DisplayPort, USB 3.2 Gen 1, USB 2.0, LAN, audio jacks
MSI Center software with Mystic Light, Frozr AI Cooling, and EZ Debug LED

Specification

Overview

Brand	MSI
Model	PRO H610M-G DDR4 WIFI
Chip	Intel H610
Socket	LGA 1700
Memory	DDR4, up to 3200 MHz
Connectivity	WiFi
Warranty	2 Years
Series	PRO
CPU Socket Type	LGA 1700
CPU Type	Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipset	Intel H610
Number of Memory Slots	2x288pin
Memory Standard	Supports 1R 2133/ 2666/ 3200 MHz
Maximum Memory Supported	64GB
Channel Supported	Dual Channel
Memory Feature	Supports non-ECC, un-buffered memory, * Please refer to www.msi.com for more information on compatible memory
PCI Express 4.0 x16	1 x PCIe x16 slot Supports up to PCIe 4.0 x16
PCI Express x1	1 x PCIe x1 slot Supports PCIe 3.0 x1
SATA 6Gb/s	4 x SATA 6Gb/s ports, SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
M.2	1 x M.2 slot*, Supports up to PCIe 3.0 x4
Audio Chipset	Realtek ALC897
Audio Channels	7.1-Channel High Definition Audio
Second LAN Chipset	Intel I219
Max LAN Speed	1Gbps
Wireless LAN	Intel Dual Band Wireless-AC 3168, Supports Wi-Fi 802.11 a/b/g/n/ac, dual band up to 433 Mbps speed.
Back I/O Ports	1 x HDMI port, 1 x VGA port
Onboard USB	1 x USB 3.2 Gen 1 5Gbps connector, Supports additional 2 USB 3.2 Gen 1 5Gbps ports
Other Connectors	1 x 4-pin CPU fan connector, 1 x 4-pin system fan connector
Form Factor	Micro ATX
Dimensions (W x L)	9.6″ x 8.3″
Power Pin	1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
Windows 11	Supported
Features	MSI Center Features, – Mystic Light
Memory Type	DDR4
