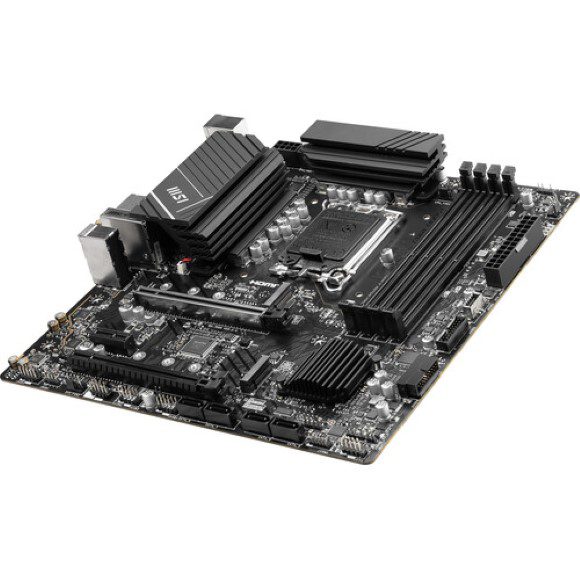

MSI PRO B760M-A WIFI DDR4 Micro-ATX LGA 1700 Motherboard

Name: MSI PRO B760M-A WIFI DDR4 Micro-ATX LGA 1700 Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0080
Price: 54000 PKR
Availability: InStock

SKU: MC-MBD-MSI-0080 Category: Intel Motherboards Brand: MSI

The MSI PRO B760M-A WIFI DDR4 is a Micro-ATX motherboard for Intel 12th/13th Gen CPUs (LGA 1700) with Intel B760 chipset. It supports DDR4 memory up to 5333+ MHz (OC), dual M.2 PCIe 4.0 slots, and integrated Wi-Fi 6E and Bluetooth 5.3. With 2.5G LAN, multiple USB ports, and robust cooling, it delivers reliable performance for work and play.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 54,000

Compare

Add to wishlist

Description

The MSI PRO B760M-A WIFI DDR4 is a feature-rich Micro-ATX motherboard designed for Intel 12th and 13th Gen processors (LGA 1700). It combines solid performance with modern connectivity, making it ideal for both productivity and everyday computing. With support for DDR4 memory up to 5333+ MHz (OC) and dual M.2 slots with PCIe 4.0, this board offers fast storage and smooth multitasking.

Built on the Intel B760 chipset, it includes integrated Wi-Fi 6E and Bluetooth 5.3 for wireless connectivity, plus a 2.5G LAN port for wired networking. The motherboard features comprehensive cooling with extended heatsinks, M.2 Shield Frozr, and multiple fan headers. It also offers a range of rear I/O ports including HDMI, DisplayPort, USB 3.2 Gen 2 Type-A, and USB-C front panel support.

Supports Intel 12th/13th Gen Core, Pentium Gold, and Celeron processors (LGA 1700)
4x DDR4 slots, dual-channel, up to 128GB, with XMP support and overclocking up to 5333+ MHz
2x M.2 slots (PCIe 4.0 x4) with M.2 Shield Frozr, 4x SATA 6Gb/s, and RAID 0/1/5/10
Integrated Intel Wi-Fi 6E and Bluetooth 5.3 for high-speed wireless
Rear I/O: 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0, 2x HDMI 2.1, 2x DisplayPort, 2.5G LAN, and audio jacks
Micro-ATX form factor with extended heatsink, PCIe Steel Armor, EZ Debug LED, and Mystic Light RGB support

Specification

Overview

Warranty	1 Year
Brand	MSI
Model	PRO B760M-A WIFI DDR4
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipset	Intel B760
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	Supports 1R 2133/2666/3200 MHz (by JEDEC & POR), Max overclocking frequency:, – 1DPC 1R Max speed up to 5333+ MHz, – 1DPC 2R Max speed up to 4800+ MHz, – 2DPC 1R Max speed up to 4400+ MHz, – 2DPC 2R Max speed up to 4000+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP), * Please refer to www.msi.com for more information on compatible memory
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express x4	1 x PCI Express 4.0 x4
PCI Express x1	1 x PCI Express 3.0 x1
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	2 x M.2 slots (Key M), M2_1 slot (From CPU), – Supports up to PCIe 4.0 x4, – Supports 2242/ 2260/ 2280 storage devices, M2_2 slot (From B760 chipset), – Supports up to PCIe 4.0 x4, – Supports SATA 6Gb/s, – Supports 2242/ 2260/ 2280 storage devices
SATA RAID	0/1/5/10
Audio Chipset	Realtek ALC897
Audio Channels	7.1-Channel High Definition Audio
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E
Bluetooth	Bluetooth 5.3
Back I/O Ports	1 x PS/2 keyboard/Mouse combo port, 2 x USB 2.0 Type-A ports (From B760 chipset), 2 x DisplayPort, 2 x HDMI 2.1 ports, 2 x USB 3.2 Gen 1 5Gbps Type-A ports (From B760 chipset), 1 x 2.5G LAN (RJ45) port, 2 x USB 3.2 Gen 2 10Gbps Type-A ports (From B760 chipset), 2 x WiFi Antenna connectors, 3 x audio jacks
Onboard USB	2 x USB 3.2 Gen 1 5Gbps connectors (From GL3523), – Supports additional 4 USB 3.2 Gen 1 5Gbps Type-A ports, 1 x USB 3.2 Gen 1 5Gbps Type-C front panel connector (From B760 chipset), 2 x USB 2.0 connectors (From B760 chipset), – Supports additional 4 USB 2.0 Type-A ports
Other Connectors	1 x 4-pin CPU fan connector, 1 x 4-pin water-pump fan connector, 2 x 4-pin system fan connectors, 1 x Front panel audio connector, 2 x System panel connectors, 1 x Chassis Intrusion connector, 1 x TPM module connector
Form Factor	Micro ATX
LED Lighting	1 x 4-pin RGB LED connector, 2 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors, 4 x EZ Debug LED
Dimensions (W x L)	243.84 mm x 243.84 mm
Power Pin	1 x 24-pin ATX main power connector, 1 x 8-pin +12V power connector, 1 x 4-pin ATX 12V power connector
Windows 11	Supported
Features	MSI Center, – Mystic light, – Ambient Link, – Frozr AI Cooling, – User Scenario, – True Color, – Live Update, – Hardware Monitoring, – Super Charger, – Devices Speed Up, – Smart Image Finder, – MSI Companion, – System Diagnosis, Thermal Features, – Extended Heatsink Design, – M.2 Shield Frozr, – K7 MOSFET thermal pad / Extra choke pad, – Fan headers (CPU + PUMP + SYSTEM), Performance, – Core Boost, – VRM Power Design (VCPU / VGT / AUX), – Dual CPU Power, – Memory Boost, – Lightning Gen 4 PCI-E / M.2 Slot, – Front USB Type-C, – 2oz Copper thickened PCB, DIY Friendly, – PCI-E Steel Armor, – EZ M.2 Clip, – EZ DEBUG LED, – EZ LED Control, Audio, – Audio Boost, RGB, – Mystic Light Extension (RGB), – Mystic Light Extension (A-RAINBOW V2), – Ambient Link, BIOS, – Click BIOS 5
Form Factor	Micro-ATX
Memory Type	DDR4
