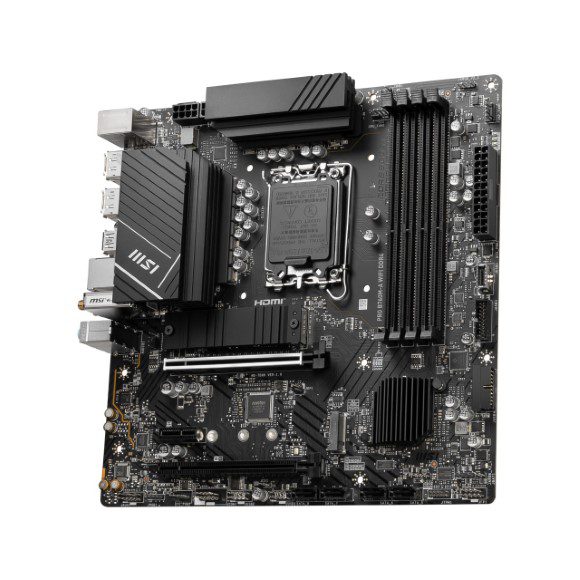

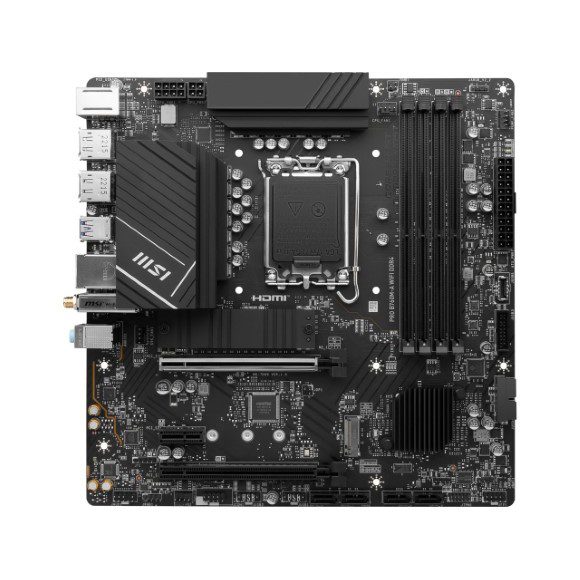

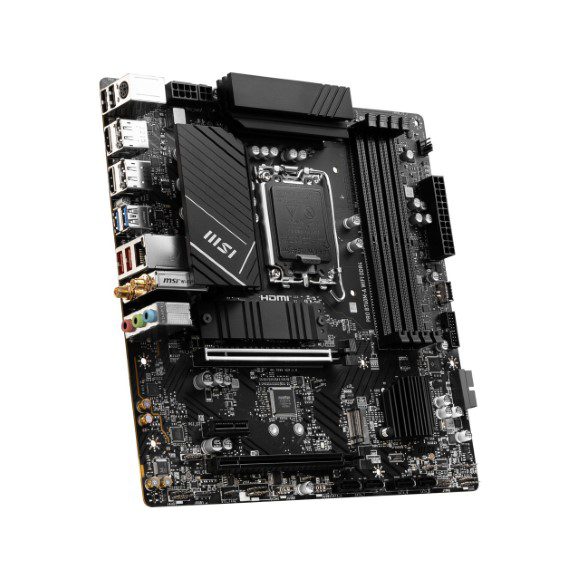

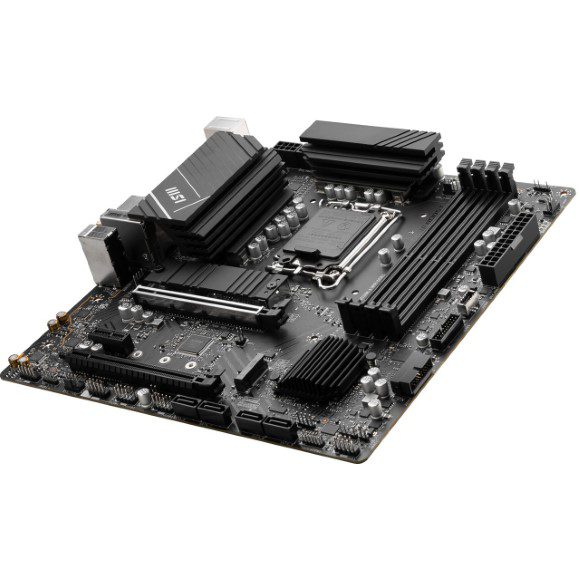

MSI PRO B760M-A WIFI DDR5 Micro-ATX LGA 1700 Motherboard
The MSI PRO B760M-A WIFI DDR5 Micro-ATX motherboard supports Intel LGA 1700 processors and features DDR5 memory up to 6800 MHz, Wi-Fi 6E, Bluetooth 5.3, and 2.5G LAN. With dual M.2 slots, four SATA ports, and multiple display outputs, it offers a solid foundation for a high-performance build. Available with nationwide delivery and cash-on-delivery in Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 64,640
Description
The MSI PRO B760M-A WIFI DDR5 is a Micro-ATX motherboard built on the Intel B760 chipset, supporting 12th, 13th, and 14th Gen Intel Core processors via the LGA 1700 socket. It features four DDR5 memory slots with support for speeds up to 6800 MHz and a maximum capacity of 192 GB, ensuring high-performance computing for gaming and productivity tasks.
Connectivity is robust with Wi-Fi 6E, Bluetooth 5.3, and a 2.5G LAN port. The board includes dual PCIe 4.0 x16 slots (one running at x4), one PCIe 3.0 x1, two M.2 slots (both PCIe 4.0 x4, one also supports SATA III), and four SATA III ports with RAID 0/1/5/10 support. Display outputs include two DisplayPort 1.4 and two HDMI 2.1 ports, supporting multi-monitor setups.
- Intel B760 Chipset with LGA 1700 Socket for 12th/13th/14th Gen CPUs
- 4 x DDR5 Slots, up to 6800 MHz, 192 GB Max Capacity
- Wi-Fi 6E + Bluetooth 5.3 + 2.5G LAN
- 2 x M.2 PCIe 4.0 x4 (one also supports SATA III) + 4 x SATA III
- Dual DisplayPort 1.4 & Dual HDMI 2.1 Outputs
- Micro-ATX Form Factor with Comprehensive Cooling & RGB Headers
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Memory Slots | 4 x, 288-Pin |
| Memory Support | DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MHz |
| M.2 | 1 x, M Key 2242, 2260, 2280 (PCIe 4.0 x4), 1 x, M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
| Expansion Slots | 1 x, PCIe 4.0 x16, 1 x, PCIe 4.0 x16 (x4 mode), 1 x, PCIe 3.0 x1 |
| Wi-Fi | Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support |
| Form Factor | Micro-ATX |
| USB | 1 x, 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port), 2 x, 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port), 2 x, 2.0 Header (Supports 4 USB-A Port) |
| Thunderbolt | No |

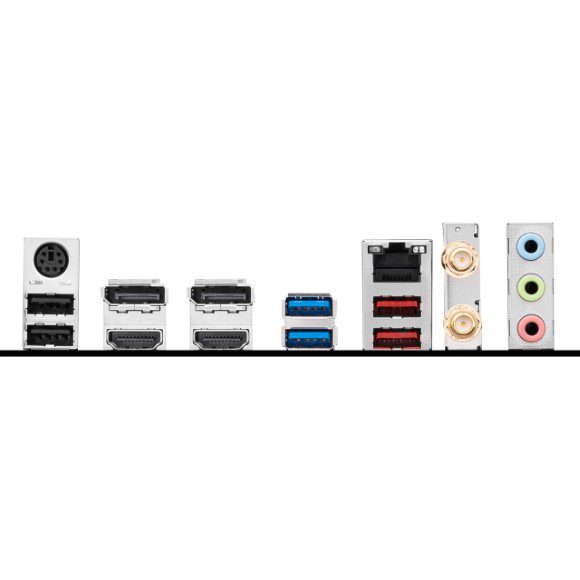

| Display | 2 x, DisplayPort 1.4 Output, 2 x, HDMI 2.1 Output |
| Audio | 3 x, 1/8″ / 3.5 mm |
| Ethernet / Controller | 1 x, 2.5Gigabit |
| PS/2 | 1 x, Combo |
| Wi-Fi Antenna | 2 x, Connector |
| Maximum Capacity | 192 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 4 x, SATA III |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
| Air Cooling | 1 x, 4-Pin CPU, 2 x, 4-Pin System |
| Liquid Cooling | 1 x, 4-Pin Pump |
| Power Connectors | 1 x, 24-Pin Mainboard, 1 x, 8-Pin ATX, 1 x, 4-Pin ATX |
| Security | Chassis Intrusion, TPM Module |
| LED Header | 7 x, RGB |
| Diagnostics | Clear CMOS |
| Legacy | 1 x, Serial |
| Audio Codec | Realtek ALC897 (7.1-Channel) |
| DAC | No |
| Bluetooth | 5.3 |
| OS Compatibility | Windows 10 to 11 (64-Bit Only), *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Dimensions | 9.6 x 9.6″ / 243.8 x 243.8 mm |
| Package Weight | 2.705 lb |
| Box Dimensions (LxWxH) | 12.7 x 10.7 x 2.2″ |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
