Gigabyte Z690 Aorus Elite Intel® Z690 Motherboard Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Name: Gigabyte Z690 Aorus Elite Intel® Z690 Motherboard Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Brand: Gigabyte
SKU: MC-MBD-GIG-0122
Price: 66500 PKR
Availability: InStock

SKU: MC-MBD-GIG-0122 Category: Intel Motherboards Brand: Gigabyte

The Gigabyte Z690 Aorus Elite is an Intel Z690 ATX motherboard with LGA1700 socket for 12th Gen processors. It supports DDR5 memory up to 6000MHz OC, PCIe 5.0 graphics, and triple M.2 slots. Features include Q-Flash Plus for BIOS updates without CPU, and high-definition audio. Ideal for high-performance builds with nationwide delivery in Pakistan.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 66,500

Compare

Add to wishlist

Description

The Gigabyte Z690 Aorus Elite motherboard is built for 12th Gen Intel Core processors, featuring the LGA1700 socket and Intel Z690 chipset. It supports DDR5 memory up to 6000MHz (OC) and offers extensive connectivity with PCIe 5.0 for graphics and multiple M.2 slots for ultra-fast storage.

With Q-Flash Plus, you can update the BIOS without installing a CPU, memory, or graphics card. The motherboard also includes high-quality audio with Realtek ALC1220 codec and robust USB options including USB 3.2 Gen 2×2 Type-C.

Intel LGA1700 socket: Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors
Intel Z690 chipset with DDR5 memory support up to 6000MHz (OC)
1 x PCIe 5.0 x16 slot for graphics, 2 x PCIe 3.0 x4 slots
3 x M.2 connectors (PCIe 4.0 x4) and 6 x SATA 6Gb/s
Q-Flash Plus: Update BIOS without CPU, memory, or GPU installed

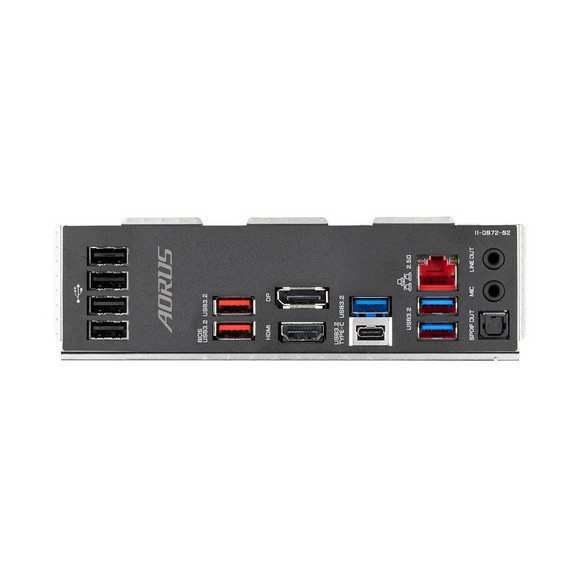

Rear USB: 1 x USB-C 3.2 Gen 2×2, 2 x USB-A 3.2 Gen 2, 3 x USB 3.2 Gen 1

Specification

Overview

Warranty	1 Year Warranty
Brands	Gigabyte
Model	Z690 Aorus Elite
CPU	LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Motherboad Chipset	Intel Z690
Memory	Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
Expansion Slot	1 x PCI Express x16 slot, running at x16 (PCIEX16), * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot., (The PCIEX16 slot conforms to PCI Express 5.0 standard.), 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2), (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Storage	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB), 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB), 6 x SATA 6Gb/s connectors
Lan	Yes
Audio	Realtek® ALC1220-VB CODEC, * The back panel line out jack supports DSD audio., High Definition Audio, 2-channel analog output, Support for S/PDIF Out
USB Port	1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support, 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header, 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
