COLORFUL H610M-E M.2 V20 LGA 1700 DDR4 mATX Motherboard
The COLORFUL H610M-E M.2 V20 is an mATX motherboard for 12th/13th/14th Gen Intel LGA 1700 CPUs. It features dual DDR4 slots (up to 64GB, 3200MHz), one M.2 PCIe 3.0 x4 slot, four SATA ports, HDMI 2.0 and VGA outputs, PCIe 4.0 x16, Gigabit LAN, and 5.1 audio. Ideal for building a reliable and affordable PC with nationwide delivery and cash-on-delivery available across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 24,999
Description

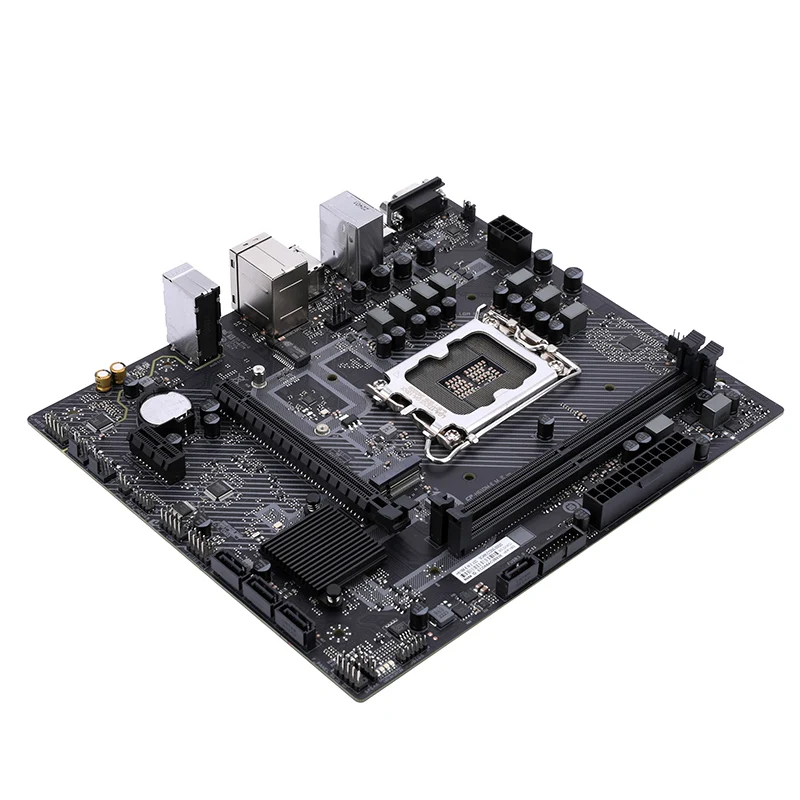

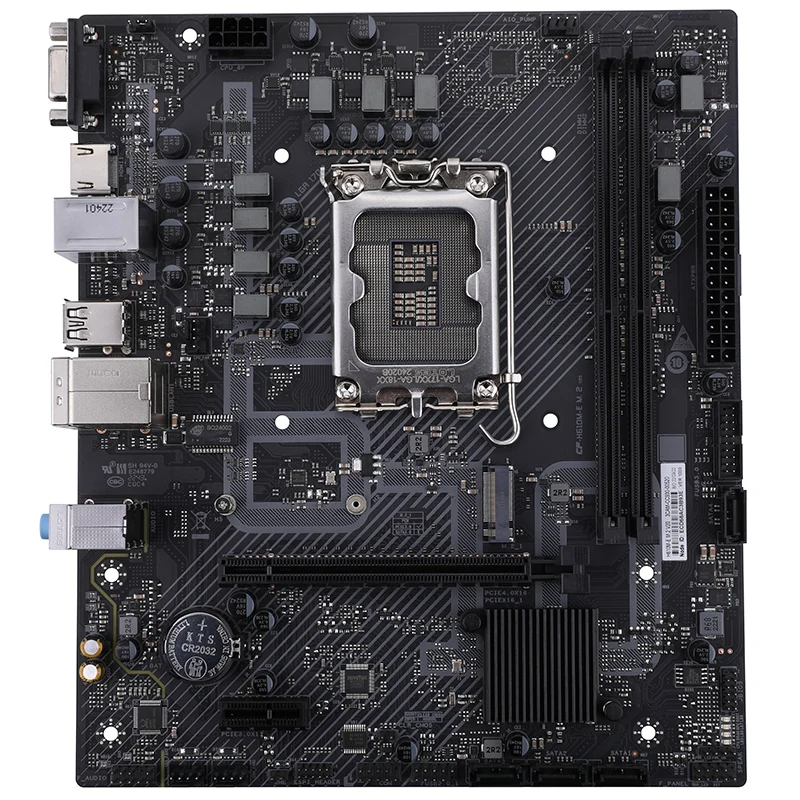

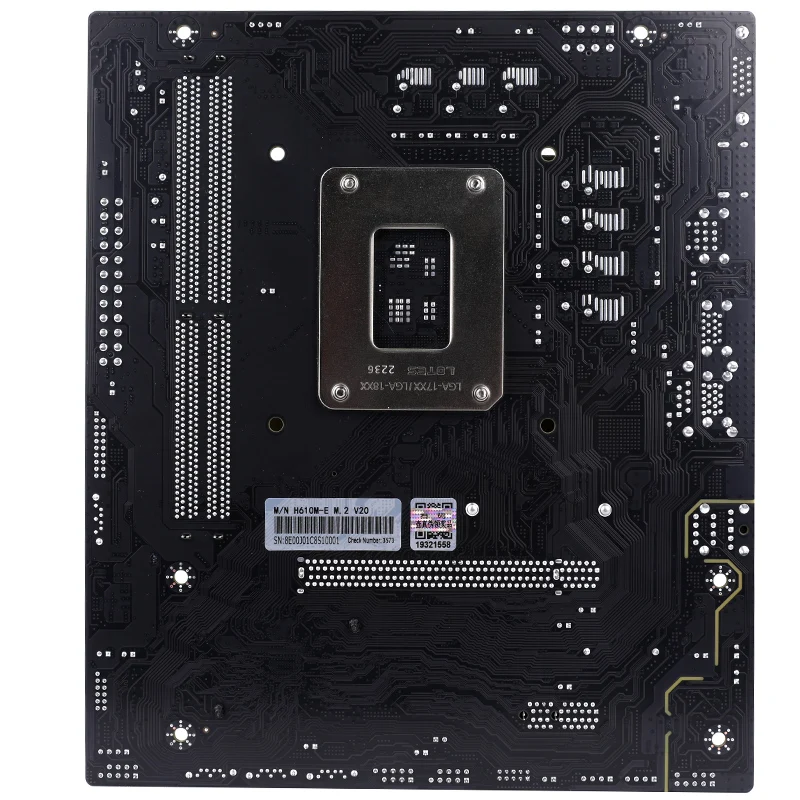

The COLORFUL H610M-E M.2 V20 is a micro-ATX motherboard built on the Intel H610 chipset, supporting 12th, 13th, and 14th Gen Intel Core/Pentium/Celeron processors (LGA 1700). It features two DDR4 memory slots with dual-channel support, up to 64GB capacity, and speeds up to 3200MHz.
Storage options include one M.2 slot (PCIe 3.0 x4) for 2242/2280 SSDs and four SATA 6Gb/s ports. The rear I/O offers HDMI 2.0 (4K@60Hz), VGA, USB 3.1 Gen1, USB 2.0, Gigabit LAN, and 3 audio jacks. Expansion includes one PCIe 4.0 x16 and one PCIe 3.0 x1 slot.
- Supports 12th/13th/14th Gen Intel LGA 1700 processors
- Dual DDR4 slots, up to 64GB, 3200MHz (OC)
- 1x M.2 PCIe 3.0 x4 & 4x SATA 6Gb/s
- HDMI 2.0 (4K@60Hz) + VGA output
- PCIe 4.0 x16 slot for graphics cards
- Gigabit LAN, 5.1 audio, multiple USB ports
Specification
Overview
| Brand | COLORFUL |
|---|---|
| Model | H610M-E M.2 V20 |
| Chip | Intel H610 |
| Socket | LGA 1700 |
| RAM | DDR4-3200 |
| Form Factor | mATX |
| Graphics | HDMI+VGA |
| Connectivity | Gigabit LAN |
| Audio | 5.1 channel |
| Warranty | 1 Year |
| Chipset | Intel H610 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor |
| Memory | Two DDR4 memory slots are provided, which can support up to 64 GB of memory, – DDR4-3200/2933/2666/2400MHz memory |
| SATA Ports | A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported, – M2_ 1 slot: supports 2242/2280 specification M.2 SSD |
| Board I/O | Rear I/O interface:, – 1 PS/2 interface |
| Expansion Slots | 1 PCIe 4.0 x16 slot, 1 PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, supporting multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support timed startup, call startup |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8111H Gigabit network card |
| Configuration | M-ATX, 225mm x 194mm |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 |
