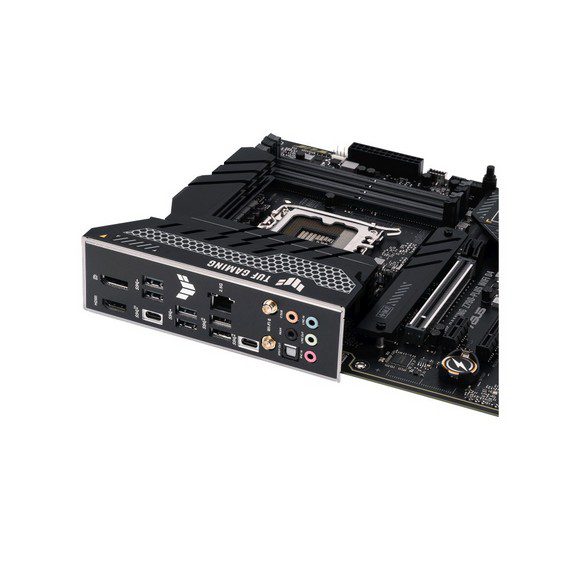

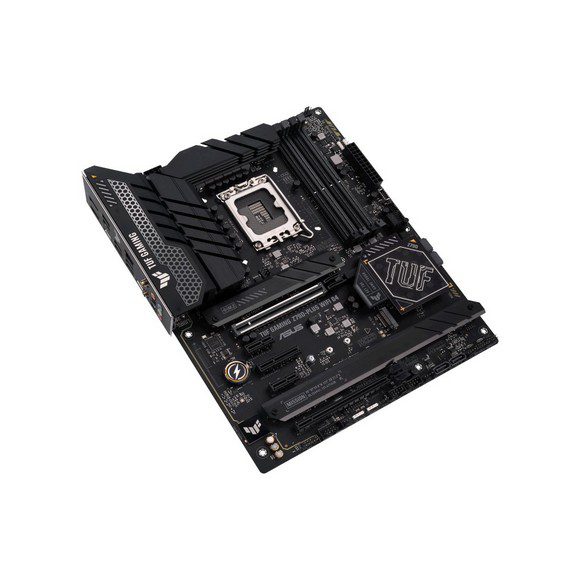

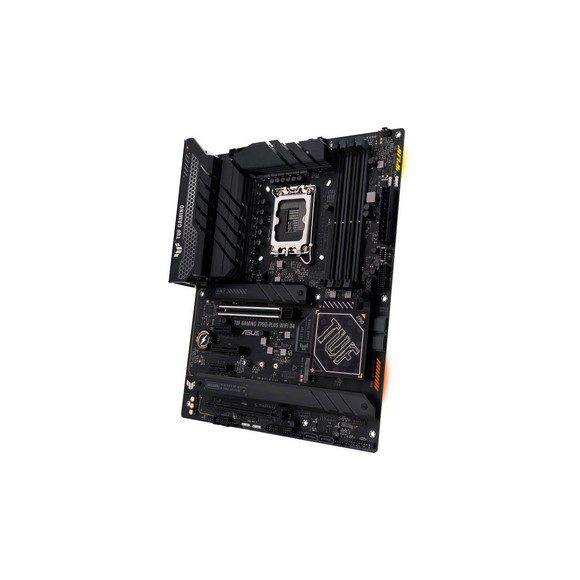

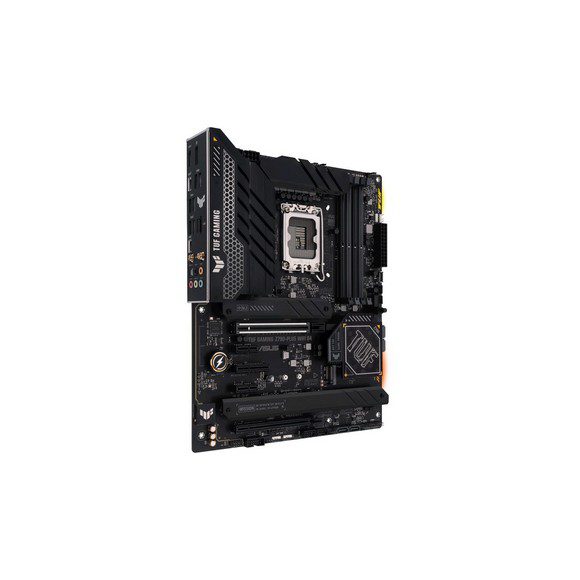

ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700 (Intel 12th&13th Gen) ATX Gaming Motherboard

Name: ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700 (Intel 12th&amp;13th Gen) ATX Gaming Motherboard
Brand: Asus
SKU: MC-MBD-ASU-0096
Price: 117000 PKR
Availability: InStock

SKU: MC-MBD-ASU-0096 Category: Intel Motherboards Brand: Asus

The ASUS TUF Gaming Z790-Plus WiFi D4 is a durable ATX motherboard for Intel 12th and 13th Gen CPUs, featuring the Z790 chipset and DDR4 memory support up to 5333MHz. It offers PCIe 5.0, four M.2 slots, Wi-Fi 6, Bluetooth 5.2, and Intel 2.5Gb Ethernet. Built with TUF Protection and ASUS Q-Design, it ensures reliability and ease of use for gaming and productivity builds.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 117,000

Compare

Add to wishlist

Description

The ASUS TUF Gaming Z790-Plus WiFi D4 is a robust ATX motherboard designed for Intel 12th and 13th Gen processors. Built on the Intel Z790 chipset, it supports DDR4 memory up to 128GB with overclocking speeds reaching 5333MHz. This board is engineered for durability and performance, featuring TUF Protection components like DIGI+ VRM, ESD Guards, and TUF LANGuard.

Connectivity is comprehensive with PCIe 5.0 for graphics, four M.2 slots (all PCIe 4.0), Wi-Fi 6, Bluetooth 5.2, and Intel 2.5Gb Ethernet. The Realtek S1220A audio codec delivers high-fidelity 7.1-channel sound. ASUS Q-Design features like M.2 Q-Latch and PCIe Slot Q-Release simplify installation, while AURA Sync RGB headers allow customization.

Supports Intel 12th & 13th Gen LGA 1700 CPUs with Intel Z790 chipset
4x DDR4 DIMM slots, up to 128GB, overclockable to 5333MHz
PCIe 5.0 x16 slot, PCIe 4.0 x16 (x4 mode), PCIe 4.0 x4, and 2x PCIe 3.0 x1
4x M.2 slots (all PCIe 4.0) and 4x SATA 6Gb/s with RAID support
Intel 2.5Gb Ethernet, Wi-Fi 6, Bluetooth 5.2
Realtek S1220A 7.1-channel audio with optical S/PDIF out

Specification

Overview

Warranty	1 Year
Brand	ASUS
Series	TUF
Model	TUF GAMING Z790-PLUS WIFI D4
Part Number	90MB1CR0-M0AAY0
CPU Socket Type	LGA 1700
CPU Type	Supports 13th Gen Intel Core & 12th Gen Intel Core Processors, Pentium Gold , Celeron Processors, Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z790
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Supports DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory, Supports Intel Extreme Memory Profile (XMP), OptiMem II, Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
PCI Express 5.0 x16	1 x PCIe 5.0 x16 slot, Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/)., – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x16	1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x4	1 x PCIe 4.0 x4 slot
PCI Express x1	2 x PCIe 3.0 x1 slots
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280/22110, – Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode, Intel Z790 Chipset, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID	0/1/5/10
Audio Chipset	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC, – Impedance sense for front and rear headphone outputs, – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in), – Supports up to 32-Bit/192 kHz playback, Audio Features, – Audio Shielding, – Rear optical S/PDIF out port, – Premium audio capacitors, – Dedicated audio PCB layers, – Audio Cover, * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Audio Channels	7.1 Channels
LAN Chipset	1 x Intel 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6, 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band
Bluetooth	Bluetooth v5.2
Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port
Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Storage related, 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt header
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector
Windows 11	Supported
Features	ASUS TUF PROTECTION, – DIGI+ VRM (- Digital power design with DrMOS), – ESD Guards, – TUF LANGuard, – Overvoltage Protection, – Safeslot, – Stainless-Steel Back I/O, ASUS Q-Design, – M.2 Q-Latch, – PCIe Slot Q-Release, – Q-DIMM, – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), – Q-Slot, ASUS Thermal Solution, – M.2 heatsink, – VRM heatsink design, ASUS EZ DIY, – CPU Socket lever protector, – ProCool, – Pre-mounted I/O shield, – SafeDIMM, AURA Sync, – Aura RGB header, – Addressable Gen 2 headers
Package Contents	Cables, 2 x SATA 6Gb/s cables, Miscellaneous, 1 x ASUS Wi-Fi moving antenna, 1 x TUF GAMING sticker, 2 x M.2 Rubber Packages, 1 x Screw package for M.2 SSD, Documentation, 1 x TUF Certification card, 1 x User guide
Form Factor	ATX
