ASUS TUF GAMING B550-PLUS WIFI II AM4 AMD B550 SATA 6Gb/s ATX AMD Gaming Motherboard
The ASUS TUF GAMING B550-PLUS WIFI II is an ATX motherboard for AMD AM4 processors, featuring the B550 chipset, PCIe 4.0 support, dual M.2 slots, and 6 SATA ports. It includes integrated Wi-Fi 6, Bluetooth 5.2, and 2.5Gb Ethernet for fast networking, plus military-grade TUF components and Aura Sync RGB lighting for durability and customization. Available with nationwide delivery and cash-on-delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 44,000
Description

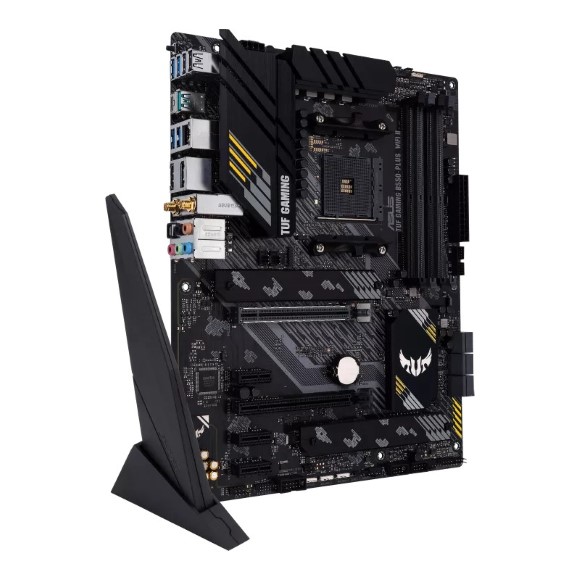

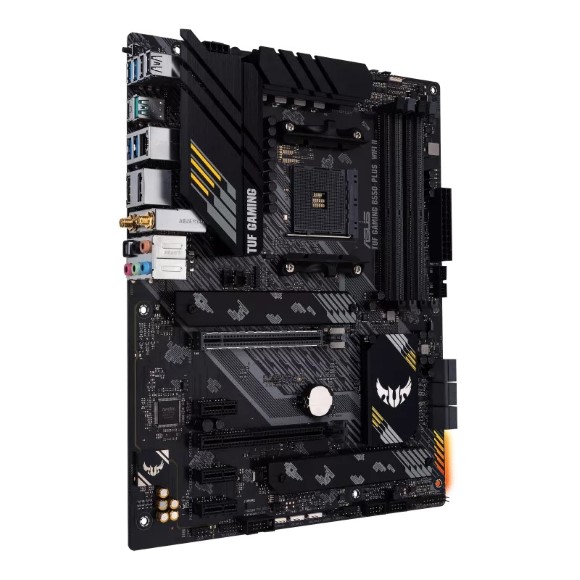

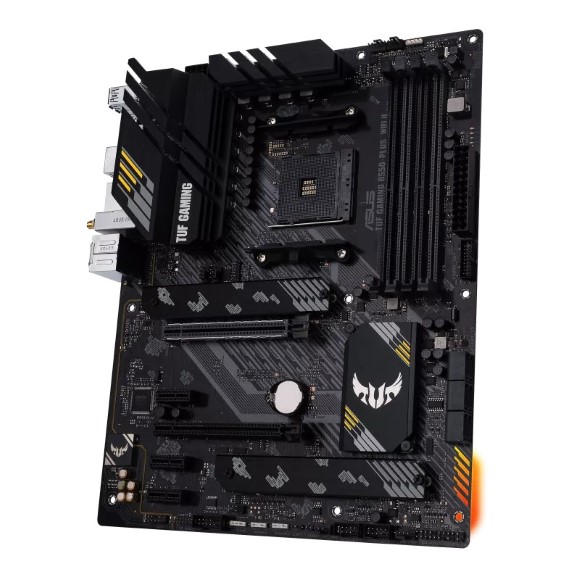

The ASUS TUF GAMING B550-PLUS WIFI II is a durable ATX motherboard built for AMD Ryzen 5000, 4000 G-Series, and 3000 series processors on the AM4 socket. With the AMD B550 chipset, it supports PCIe 4.0 on the primary M.2 slot and graphics card slot when paired with compatible CPUs, ensuring high-speed data transfers and gaming performance.
This motherboard features robust power delivery with Dr. MOS, comprehensive cooling options including multiple fan headers and an M.2 heatsink, and military-grade TUF protection components for long-term reliability. It also comes with integrated Wi-Fi 6 and Bluetooth 5.2, Realtek 2.5Gb Ethernet, and a full suite of ASUS-exclusive software for system tuning and noise cancellation.
- Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series processors
- Dual M.2 slots: one PCIe 4.0 x4 (with Ryzen 5000/3000) and one PCIe 3.0 x4 via B550 chipset
- 6 SATA 6Gb/s ports with RAID 0/1/10 support
- Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for wireless connectivity
- Realtek 2.5Gb Ethernet for high-speed wired networking
- ASUS Aura Sync RGB lighting with two addressable Gen 2 headers and two AURA RGB headers
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Brand | ASUS |
| Model | TUF GAMING B550-PLUS WIFI II |
| CPU Socket Type | AM4 |
| CPU Type | Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors *, * Refer to www.asus.com for CPU support list. |
| Chipset | AMD B550 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*, * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16*, * Actual support may vary by CPU.. |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16*, * Supports x4 mode. |
| PCI Express x1 | 3 x PCIe 3.0 x1 *, * PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied. |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | AMD Ryzen 5000 Series / 3000 Series Desktop Processors:, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), AMD Ryzen 5000 G-Series / 4000 G-Series Desktop Processors:, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes), AMD B550 Chipset:, M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*, * M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 2.5Gb Ethernet |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 6, 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

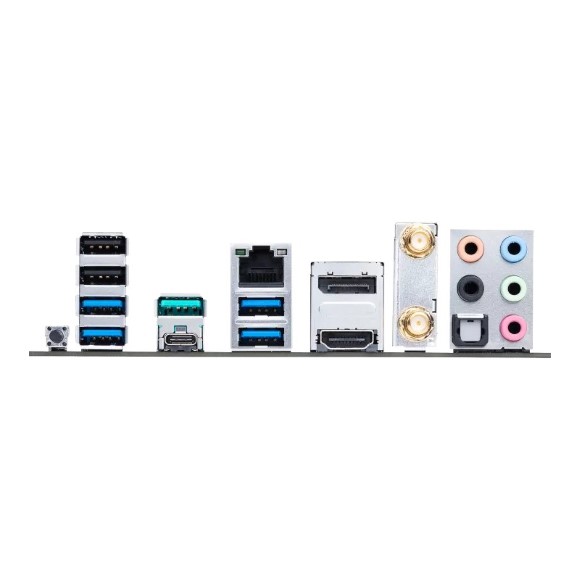

| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x ASUS Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button |
| Onboard USB | 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Other Connectors | Fan and Cooling related, 1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 1 x 4-pin AIO Pump header(s), 3 x 4-pin Chassis Fan header(s), Miscellaneous, 2 x AURA Addressable Gen 2 header(s), 2 x AURA RGB header(s), 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header, 1 x Thermal Sensor header, 1 x Thunderbolt header |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector |
| Windows 11 | Ready |
| Features | Special Features:, ASUS TUF PROTECTION, – ASUS DIGI+ VRM (Digital power design with Dr. MOS), – ASUS Enhanced DRAM Overcurrent Protection, – ASUS ESD Guards, – TUF LANGuard, – ASUS Overvoltage Protection, – ASUS SafeSlot, – ASUS Stainless-Steel Back I/O, ASUS Q-Design, – ASUS Q-DIMM, – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), – ASUS Q-Slot, ASUS Thermal Solution, – Aluminum M.2 heatsink, ASUS EZ DIY, – BIOS FlashBack button, – BIOS FlashBack LED, – Procool, AURA Sync, – AURA RGB header(s), – Addressable Gen 2 RGB header(s), Software Features:, ASUS Exclusive Software, Armoury Crate, – Aura Sync, – Two-Way AI Noise Cancelation, AI Suite 3, – Performance And Power Saving Utility, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4, PC Cleaner, – EZ update, – System Information, Aura Creator, TUF GAMING CPU-Z, DTS Custom for GAMING Headsets, Norton Anti-virus software (Free Trial for 60 days), WinRAR, UEFI BIOS, ASUS EZ DIY, – ASUS CrashFree BIOS 3, – ASUS EZ Flash 3, – ASUS UEFI BIOS EZ Mode, BIOS:, 256 Mb Flash ROM, UEFI AMI BIOS, Manageability:, WOL by PME, PXE, Operating System:, Windows 10 64-bit, Windows 11 64-bit |
| Package Contents | Accessories:, Cables, 2 x SATA 6Gb/s cables, Miscellaneous, 1 x I/O Shield, 1 x M.2 Rubber Package(s), 1 x M.2 SSD screw package(s), 1 x TUF Gaming sticker, 1 x ASUS 2×2 dual-band Wi-Fi moving antennas, Installation Media, 1 x Support DVD, Documentation, 1 x TUF Certification card, 1 x User manual |
| Form Factor | ATX |
