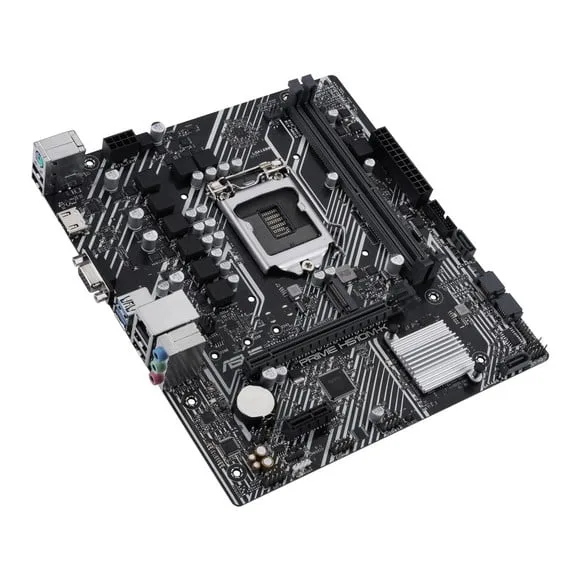

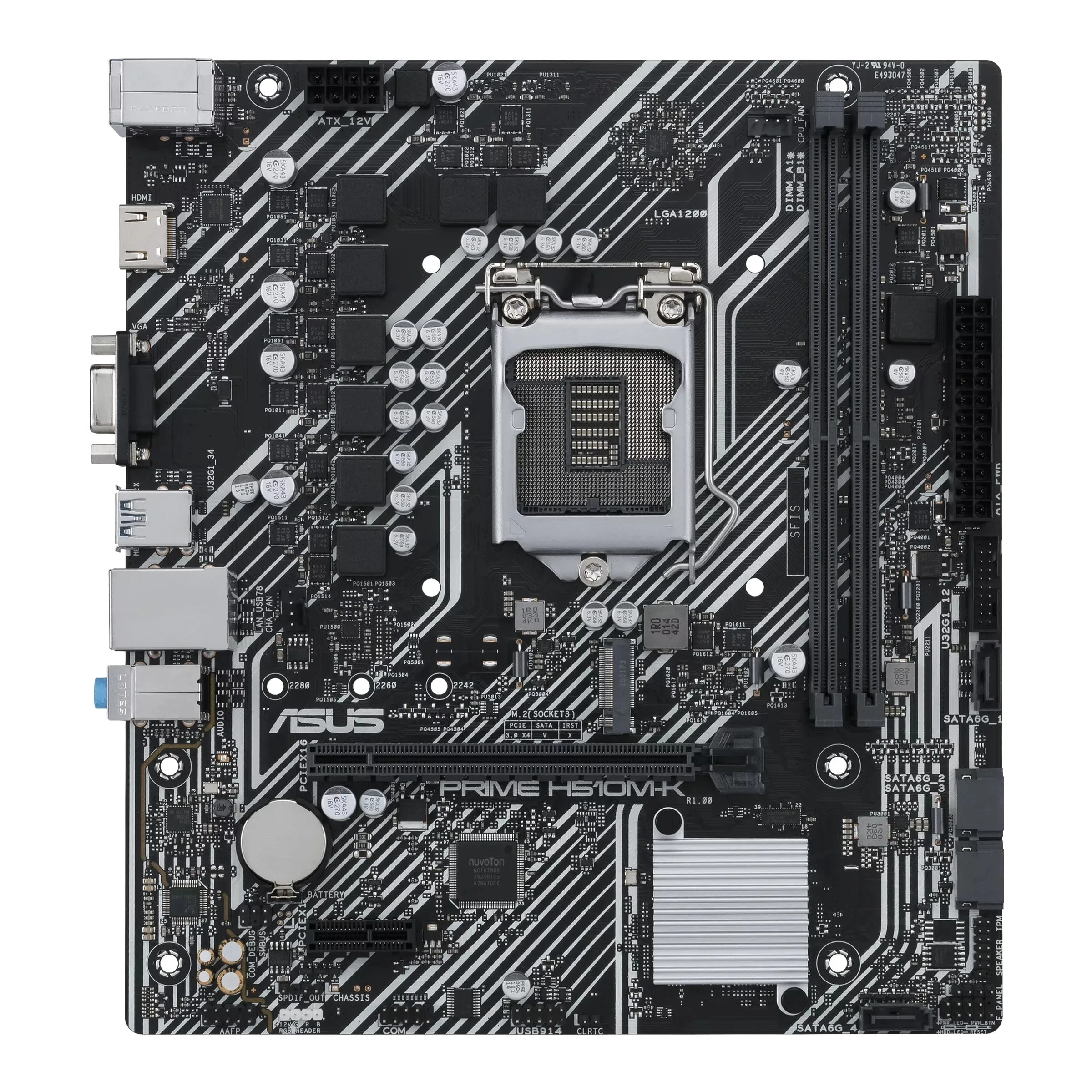

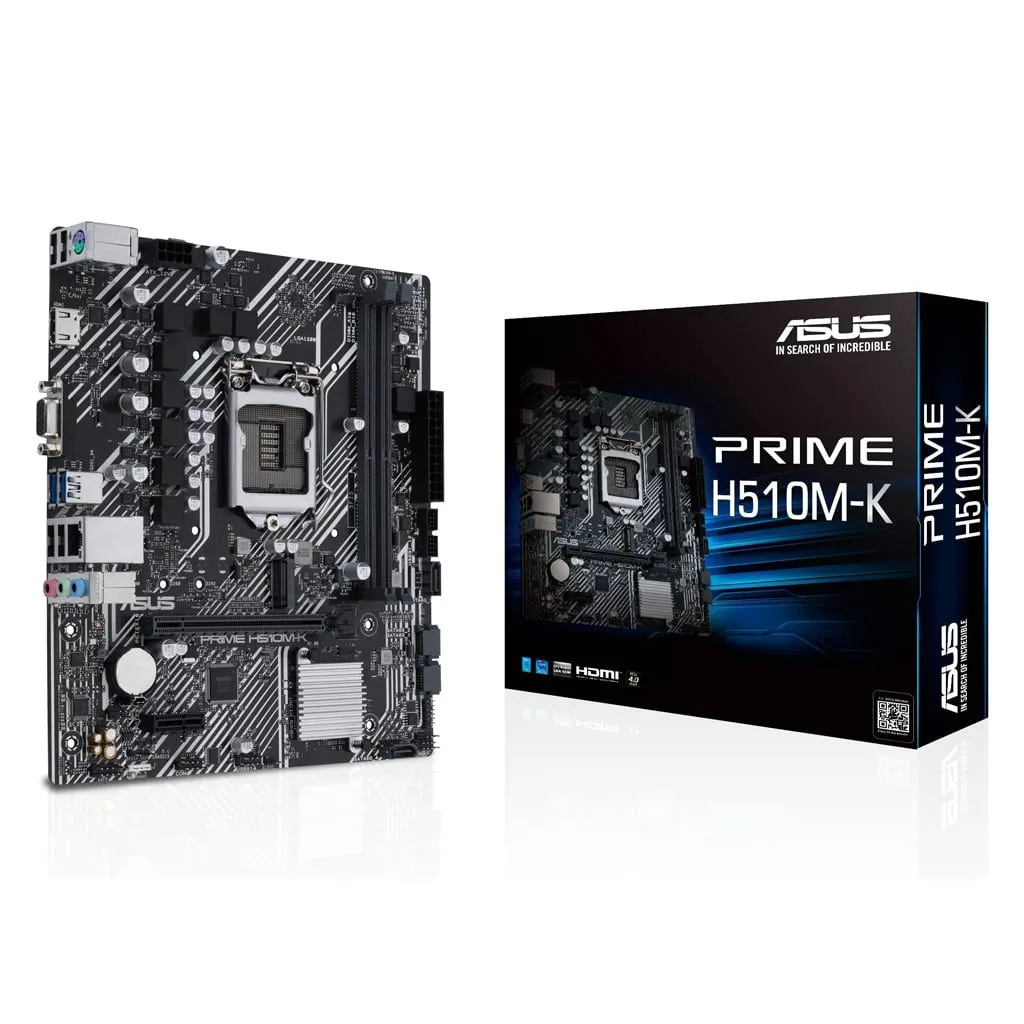

ASUS PRIME H510M-K (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM header, and RGB header

ASUS PRIME H510M-K (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM header, and RGB header

SKU: MC-MBD-ASU-0004 Category: Intel Motherboards Brand: Asus

Intel^® LGA 1200 socket: Ready for 11^th and 10^th Gen Intel^® Processors
Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel^® 1 Gb Ethernet and USB 3.2 Gen 1
Comprehensive cooling: PCH heatsink and Fan Xpert
5X Protection III: Multiple hardware safeguards for all-round protection

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 24,999

Compare

Add to wishlist

Description

ASUS Prime H510M-K (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM header, and RGB header Price in Pakistan Specs

Wide Range of Motherboard / Chipset Asus, MSI, Gigabyte, Palit GameRock, Palit GamingPro , PNY, Asus ROG, Asus Tuf, Asus Cerberus, Colorful, XFX, Zotac, Sapphire, Motherboard and Chipset Price in Pakistan, Best Deals Price in Pakistan, ALL GPU and Graphics Cards Best Lowest Price, Rates in Pakistan, Karachi, Lahore, Islamabad, Multan, Peshawar. ASUS ROG STRIX B550-XE GAMING (WIFI) AMD B550 Ryzen AM4 ATX Gaming Motherboard ASUS ROG STRIX B460-H GAMING LGA 1200 ATX Motherboard

Specification

Overview

Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H510
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX: 22.6cm x 20.3cm
PCI	Intel 11th & 10th Gen Processors, 1 x PCIe 4.0/3.0 x16 slot, – Intel 11th Gen processors support PCIe 4.0 x16, – Intel 10th Gen processors support PCIe 3.0 x16, Intel H510 Chipset, 1 x PCIe 3.0 x1 slot
M.2 Socket	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Type	DDR4
Slots	2 x DIMM
Supported Memory	DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memork, Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Max. 64GB
Graphics	1 x D-Sub, 1 x HDMI 1.4 / 2.0
HDMI	1 x HDMI 1.4
D-Sub (s)	1 x D-Sub
USB (s)	Rear USB: Total 6 ports, 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB: Total 4 ports, 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s)	1 x Intel I219-V 1Gb Ethernet, ASUS LANGuard
Supported Storage	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports, Intel H510 Chipset, M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes), 4 x SATA 6Gb/s ports
Audio	ALC887/ 897, Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, – Supports up to 24-Bit/192 kHz playback”, Audio Features, – Audio Shielding, – Dedicated audio PCB layers
Internal I/O Ports	Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, Power related, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related, 1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports, USB, 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports additional 2 USB 2.0 ports, Miscellaneous, 1 x RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Special Features	ASUS 5X PROTECTION III, – DIGI+ VRM, – LANGuard, – Overvoltage Protection, – SafeSlot Core, – Stainless-Steel Back I/O, ASUS Q-Design, – Q-DIMM, – Q-Slot, ASUS Thermal Solution, – Aluminum heatsink design, ASUS Lighting Control, – RGB header
Form Factor	Micro-ATX
