MSI PRO Z690-A WIFI DDR4 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard

Name: MSI PRO Z690-A WIFI DDR4 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0092
Price: 71500 PKR
Availability: InStock

SKU: MC-MBD-MSI-0092 Category: Intel Motherboards Brand: MSI

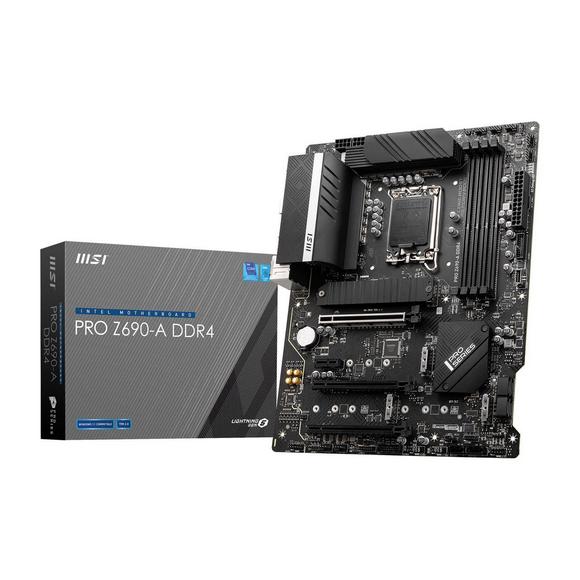

The MSI PRO Z690-A WIFI DDR4 motherboard is an ATX board built for 12th Gen Intel Core processors on the LGA 1700 socket. It features DDR4 memory support up to 5200+ MHz, PCIe 5.0, four M.2 slots, Intel Wi-Fi 6, and 2.5G LAN. With premium thermal solutions and a durable 6-layer PCB, it delivers stable performance for professional and creative workloads.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 71,500

Compare

Add to wishlist

Description

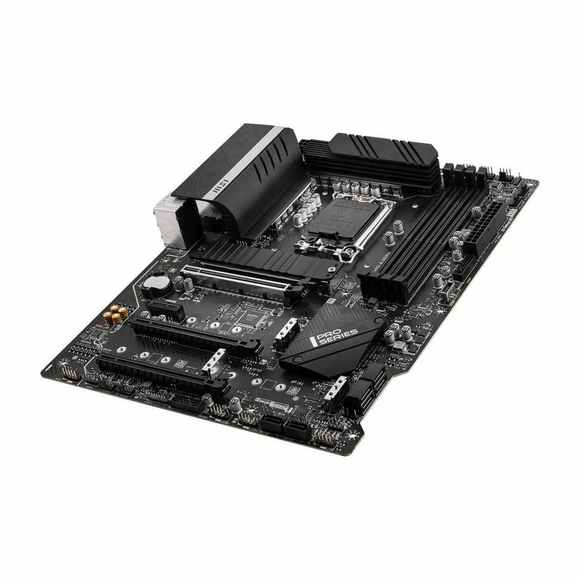

The MSI PRO Z690-A WIFI DDR4 motherboard is built for professionals and creators who demand stability and performance. Based on the Intel Z690 chipset, it supports 12th Gen Intel Core processors via the LGA 1700 socket, with DDR4 memory overclocking up to 5200+ MHz. The board features PCIe 5.0 for next-gen graphics cards, four M.2 slots (including Gen4 x4), and 2.5G LAN with Intel Wi-Fi 6 for fast, reliable connectivity.

Designed for durability, the PRO Z690-A uses a 6-layer PCB with 2oz thickened copper and premium thermal solutions including extended heatsinks and 7W/mk MOSFET pads. Audio Boost delivers studio-grade sound, while USB 3.2 Gen 2×2 Type-C and Turbo USB ensure high-speed data transfers. With RGB lighting and EZ Debug LEDs, this ATX motherboard is ready for demanding workflows.

Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors (LGA 1700)
DDR4 memory support up to 5200+ MHz (OC) with 4 DIMM slots, max 128GB
PCIe 5.0 x16 slot, 4x M.2 slots (PCIe 4.0/3.0), and 6x SATA 6Gb/s with RAID 0/1/5/10
Intel Wi-Fi 6 and 2.5G LAN for fast, stable networking
Premium thermal design with extended heatsinks and M.2 Shield Frozr
Audio Boost, RGB lighting, and comprehensive USB connectivity including USB 3.2 Gen 2×2 Type-C

Specification

Overview

Warranty	1 Year
Brand	MSI
Model	PRO Z690-A WIFI DDR4
CPU Socket Type	LGA 1700, * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors, * Please go to intel.com for compatibility information.
Chipset	Intel Z690
Onboard Video Chipset	Supported only by CPU with integrated graphic
Number of Memory Slots	4×288pin
Memory Standard	DDR4 1R 3200 / 2933 / 2666 / 2133 (by JEDEC & POR), Max overclocking frequency:, 1DPC 1R Max speed up to 5200+, 1DPC 2R Max speed up to 4800+, 2DPC 1R Max speed up to 4400+, 2DPC 2R Max speed up to 4000+, Please refer www.msi.com for more information on compatible memory.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
PCI Express 5.0 x16	1 x PCI Express 5.0 x16, * Actual support may vary by CPU.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16, * Supports up to PCIe 3.0 x4 & 3.0 x1
PCI Express x1	1 x PCI Express 3.0 x1
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	4 x M.2 slots (Key M):, M2_1 slot (from CPU):, Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280/ 22110 storage devices, M2_2 slot (from Z690 chipset):, Support up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280 storage devices, M2_3 slot (from Z690 chipset):, Support up to PCIe 3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices, M2_4 slot (from Z690 chipset):, Support up to PCIe 4.0×4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices
Intel Optane Ready	Intel Optane Memory Ready for M.2 slots that are from Z690 Chipset
SATA RAID	0/1/5/10
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels
LAN Chipset	Intel I225-V
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Intel WIFI 6, 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

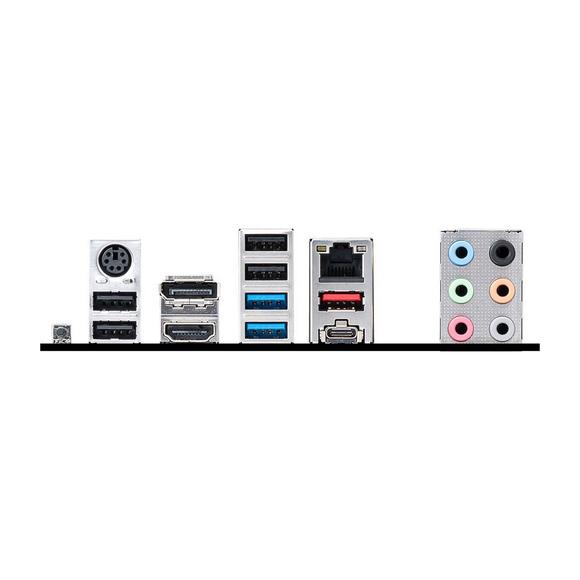

Back I/O Ports	1 x DisplayPort, 1 x HDMI, 1 x Flash BIOS Button, 1 x LAN (RJ45), 2 x Antenna Bracket, 6 x Audio Jacks, 1 x PS/2 Keyboard/Mouse Combo, 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0/1.1

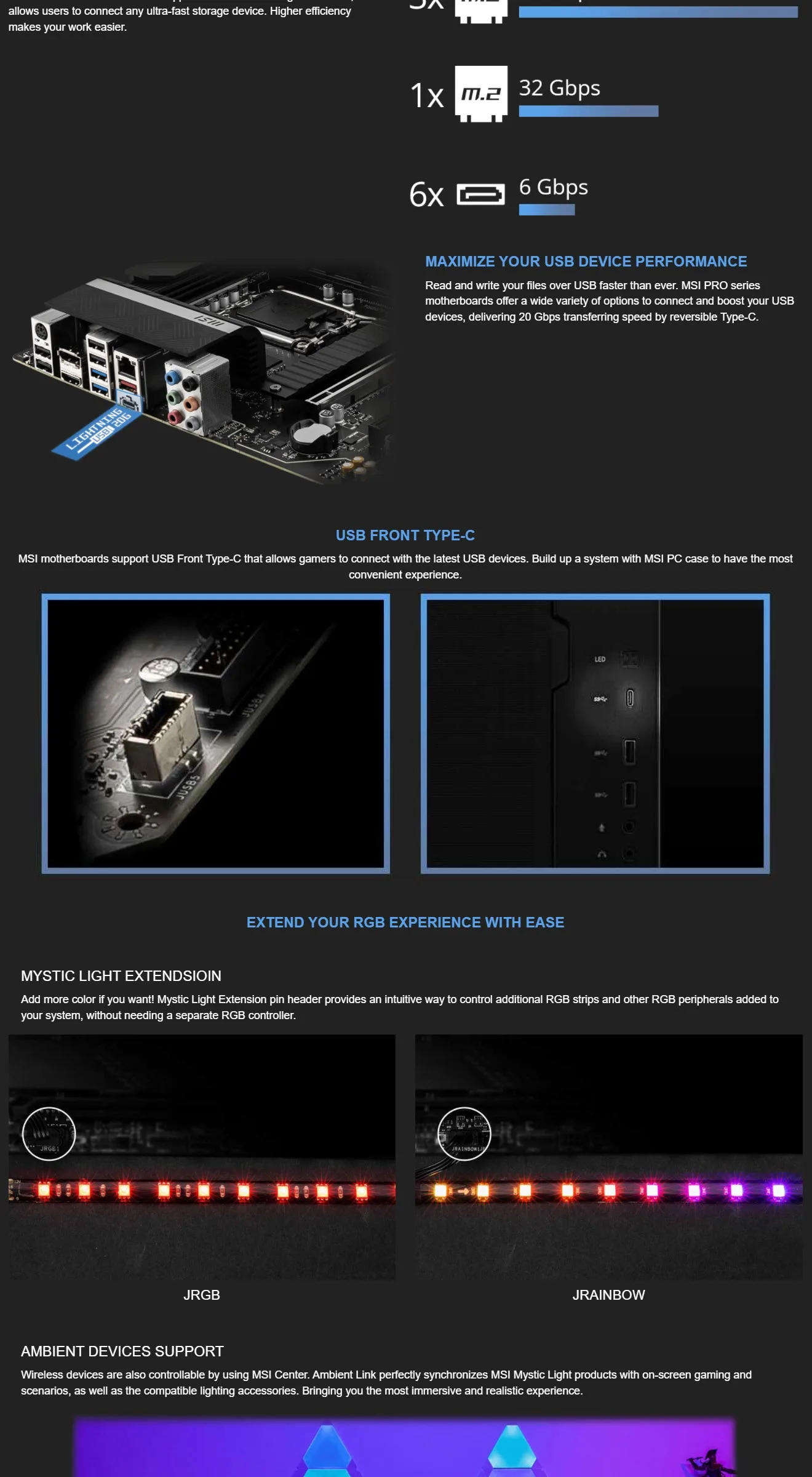

Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port, 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports), 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector, 1 x 4-pin water-pump fan connector, 6 x 4-pin system fan connectors, 1 x Front panel audio connector, 2 x System panel connectors, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper, 1 x TPM module connector, 1 x Tuning controller connector, 1 x TBT connector (Supports RTD3), 1 x 4-pin RGB LED connector, 2 x 3-pin RAINBOW LED connectors, 4 x EZ Debug LED
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connector
Windows 11	Supported
Features	Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, Supports DDR4 Memory, up to 5200+(OC) MHz, Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2, Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works, 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection, Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds, Audio Boost: Reward your ears with studio grade sound quality, High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material, Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire
Form Factor	ATX
Memory Type	DDR4
