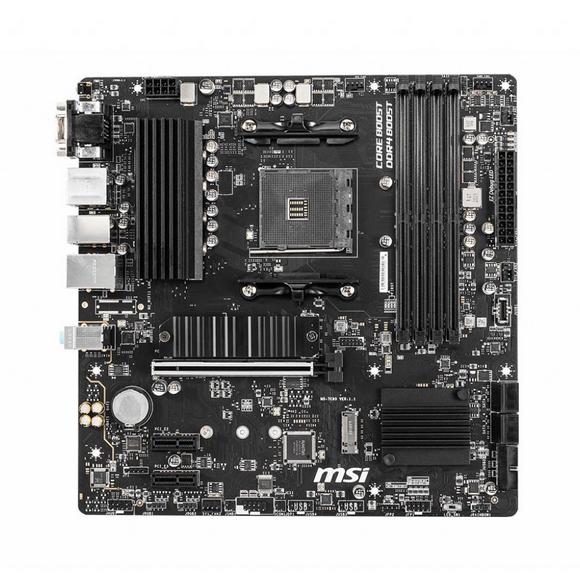

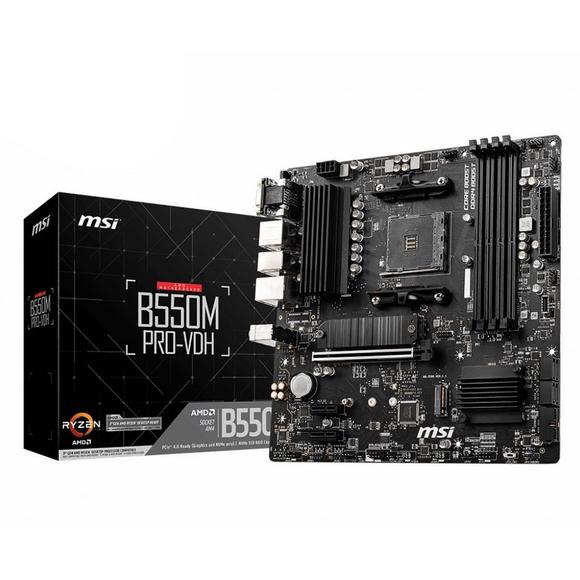

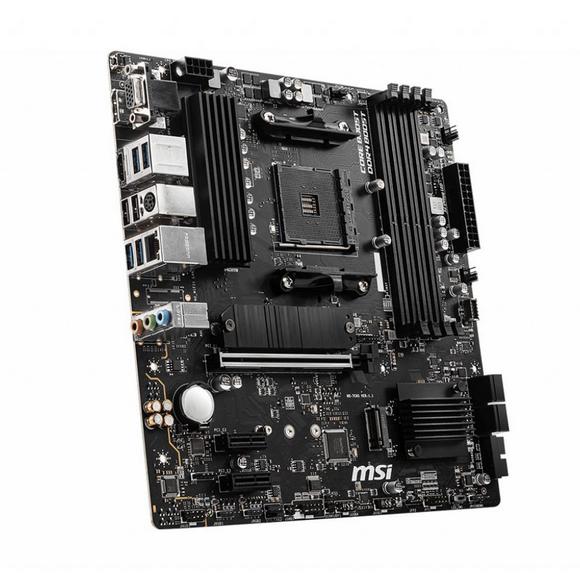

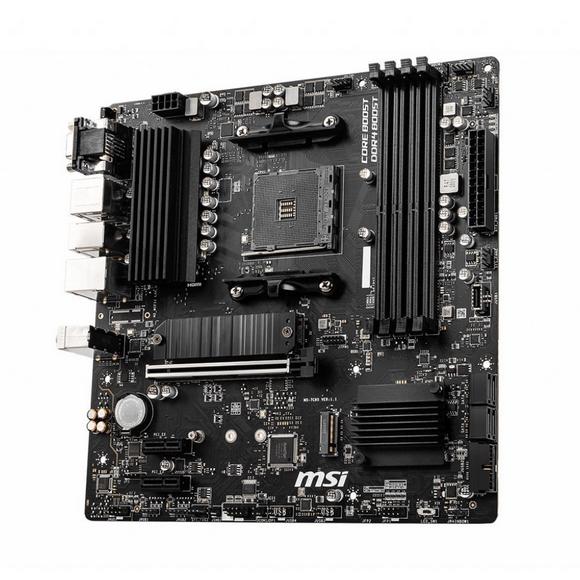

MSI PRO B550M PRO-VDH AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard
The MSI PRO B550M PRO-VDH is a Micro ATX motherboard supporting 3rd Gen AMD Ryzen processors with AM4 socket. It features PCIe 4.0, dual M.2 slots, DDR4 memory up to 4400 MHz, and comprehensive connectivity including HDMI 2.1 and USB 3.2 Gen 1. Built with premium thermal solutions and Audio Boost, it’s ideal for reliable performance in Karachi, Lahore, and Islamabad with nationwide delivery and cash-on-delivery options.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 36,299
Description
The MSI PRO B550M PRO-VDH is a Micro ATX motherboard built for 3rd Gen AMD Ryzen processors on the AM4 socket, with support for future Ryzen CPUs via BIOS update. It features the AMD B550 chipset, offering PCIe 4.0 support on the primary x16 slot and one M.2 slot, ensuring lightning-fast data transfer for graphics cards and NVMe SSDs.
With four DDR4 memory slots supporting up to 128GB and speeds up to 4400 MHz (OC), this motherboard is ready for demanding multitasking and gaming. It includes dual M.2 slots (one PCIe 4.0 x4, one PCIe 3.0 x4), four SATA 6Gb/s ports, and comprehensive rear I/O including HDMI 2.1, DisplayPort, and multiple USB 3.2 Gen 1 ports.
- Supports 3rd Gen AMD Ryzen and future processors with AM4 socket
- DDR4 memory up to 4400 MHz (OC), dual channel, 128GB max
- PCIe 4.0 x16 slot and Lightning Gen4 M.2 with M.2 Shield Frozr
- Premium thermal solution: 7W/mK pad, choke thermal pad, and 2oz thickened copper PCB
- Audio Boost with Realtek ALC892/ALC897 codec for 7.1-channel sound
- RGB LED lighting with 4-pin RGB and 3-pin RAINBOW connectors
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Brand | MSI |
| Series | PRO |
| Model | B550M PRO-VDH |
| CPU Socket Type | AM4 |
| CPU Type | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | Supports DDR4 4400+/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC1DPC 1R max speed 4400 MHZ, 1DPC 2R max speed 3733 MHZ, 2DPC 1R max speed 3866 MHZ, 2DPC 2R max speed 3466 MHZ |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCIe 4.0/3.0 x16 slot (PCI_E1) *, * The supported specification depends on installed processor. |
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 2 x M.2 slots (Key M), M2_1 slot (from AMD Processor), Supports PCIe 4.0/3.0 x4 *, Supports SATA 6Gb/s, Supports 2242/2260/2280 storage devices, M2_2 slot (from AMD B550 chipset), Supports PCIe 3.0 x4, Supports 2242/2260/2280 storage devices* The supported specification depends on installed processor. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic:, 1 x VGA port, supports resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz *, 1 x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz *, 1 x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz *,**, Maximum shared memory of 16GB* Available for the processor with integrated graphics., ** Graphics specifications may vary depending on the CPU installed. |
| Audio Chipset | Realtek ALC892/ALC897 Codec |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111HN |
| Max LAN Speed | 10/100/1000Mbps |
| Back I/O Ports | 1 x DisplayPort / 1 x D-Sub / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.2 Gen 1 Type-A |
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C port, 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
| Other Connectors | 1 x 4-pin CPU fan connector, 1 x 4-pin water-pump fan connector, 3 x 4-pin system fan connectors, 1 x Front panel audio connector, 2 x System panel connectors, 1 x Serial port connector, 1 x Chassis Intrusion connector, 2 x 4-pin RGB LED connectors, 2 x 3-pin RAINBOW LED connectors, 1 x TPM module connector, 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Power Pin | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector |
| Features | Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update, Supports DDR4 Memory, up to 4400(OC) MHz, Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works, Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost, Audio Boost: Reward your ears with studio grade sound quality, Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface |
| Form Factor | Micro-ATX |
