MSI MPG Z690 CARBON WIFI DDR5 LGA 1700 Intel Z690 SATA 6Gbs ATX Intel Motherboard

Name: MSI MPG Z690 CARBON WIFI DDR5 LGA 1700 Intel Z690 SATA 6Gbs ATX Intel Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0066
Price: 110000 PKR
Availability: InStock

SKU: MC-MBD-MSI-0066 Category: Intel Motherboards Brand: MSI

The MSI MPG Z690 CARBON WIFI is an ATX motherboard for 12th Gen Intel processors on LGA 1700, featuring DDR5 memory support up to 6666+ MHz, dual PCIe 5.0 slots, and five M.2 slots. It offers robust power delivery with 18+1+1 phases, Intel Wi-Fi 6E, 2.5G LAN, and Audio Boost 5 for an exceptional gaming experience. Available with nationwide delivery in Pakistan and cash-on-delivery.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 110,000

Compare

Add to wishlist

Description

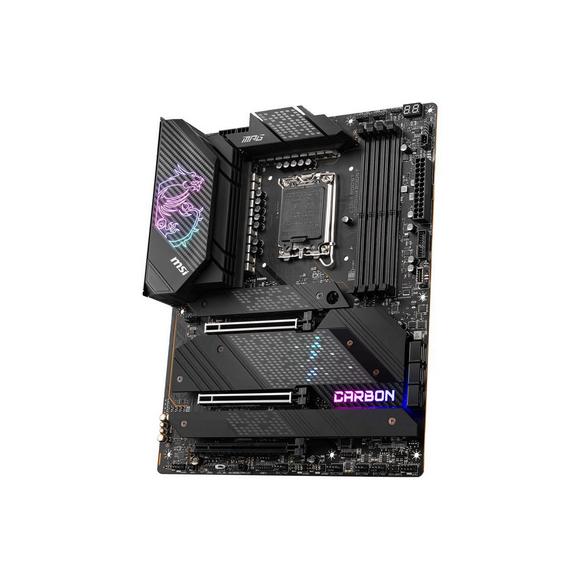

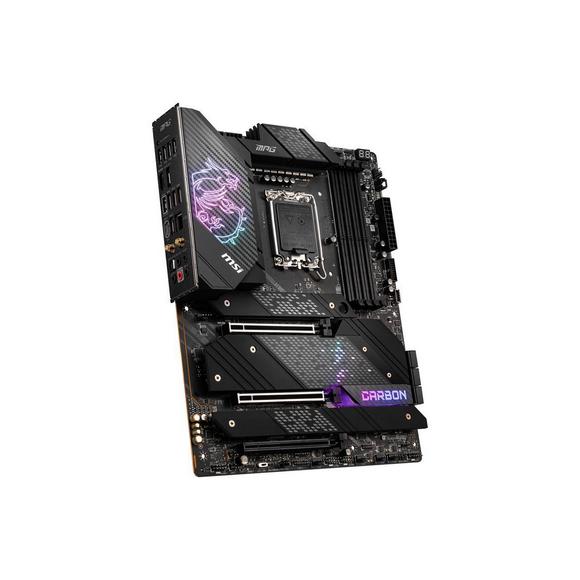

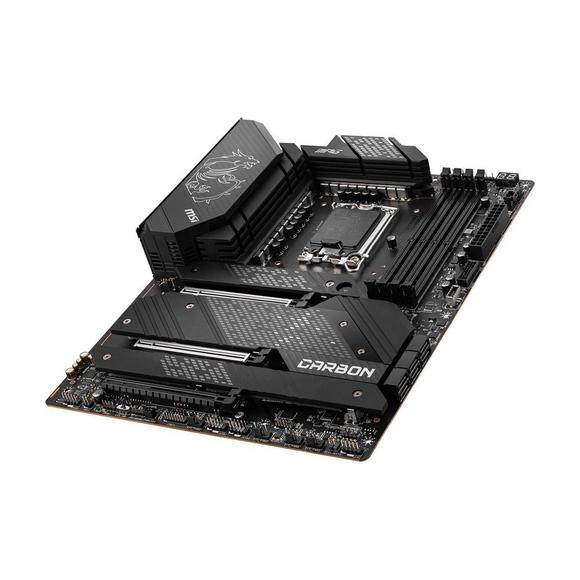

The MSI MPG Z690 CARBON WIFI is a high-performance ATX motherboard designed for 12th Gen Intel Core processors on the LGA 1700 socket. Built on the Intel Z690 chipset, it supports DDR5 memory with speeds up to 6666+ MHz (OC) and features PCIe 5.0 slots for next-gen graphics and storage.

With a robust 18+1+1 phase power design, dual 8-pin CPU power connectors, and an enlarged heatsink with heat-pipe, this motherboard ensures stable performance under heavy loads. It also includes 5 M.2 slots with Shield Frozr, 6 SATA ports, Intel Wi-Fi 6E, 2.5G LAN, and Audio Boost 5 for immersive gaming.

Supports DDR5 memory up to 6666+ MHz (OC) with 4 DIMM slots, max 128GB
Dual PCIe 5.0 x16 slots (x16/x0 or x8/x8) and one PCIe 3.0 x16 slot (x4)
5 M.2 slots: 4x PCIe 4.0 x4 (one supports SATA), 1x PCIe 3.0 x4 (supports SATA)
Intel Wi-Fi 6E and Bluetooth 5.2, plus 2.5G LAN
MYSTIC LIGHT RGB with support for RGB, ARGB, and Corsair LED strips
Pre-installed I/O shield and 8-layer PCB with 2oz thickened copper

Specification

Overview

Brand	MSI
Model	MPG Z690 CARBON WIFI
CPU Socket Type	LGA 1700, * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors, * Please go to intel.com for compatibility information.
Chipset	Intel Z690
Onboard Video Chipset	Supported only by CPU with integrated graphic
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 1R 4800 (by JEDEC & POR), Max. overclocking frequency:, 1DPC 1R Max speed up to 6666+, 1DPC 2R Max speed up to 5600+, 2DPC 1R Max speed up to 4000+, 2DPC 2R Max speed up to 4000+
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
PCI Express 5.0 x16	2 x PCI Express 5.0 x16, * Support x16/x0, x8/x8., * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16, * Supports PCIe 3.0 x4.
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	5 x M.2 slots (Key M):, M2_1 slot (From CPU), Supports PCIe 4.0 x4, Supports 2260/ 2280/ 22110 storage devices, M2_2 slot (From Z690 Chipset):, Supports PCIe 4.0 x4, Supports 2260/ 2280 storage devices, M2_3 slot (From Z690 Chipset), Supports PCIe 4.0 x4, Supports 2242/ 2260/ 2280/ 22110 storage devices, M2_4 slot (From Z690 Chipset):, Supports PCIe 3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices, M2_5 slot (From Z690 Chipset):, Supports PCIe 4.0 x4, Supports SATA 6Gb/s, Supports 2260/ 2280 storage devices, SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.
Intel Optane Ready	M2_2~5 support Intel Optane Memory
SATA RAID	0/1/10
Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels
LAN Chipset	Intel I225-V
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Intel WIFI 6E, 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

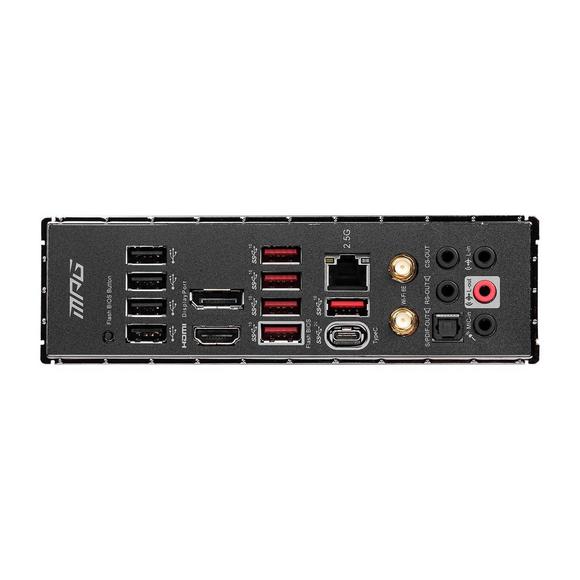

Back I/O Ports	1 x DisplayPort, 1 x HDMI, 1 x Flash BIOS Button, 1 x LAN (RJ45), 2 x Antenna Bracket, 1 x Optical S/PDIF Out, 5 x Audio Jacks, 1 x USB 3.2 Gen 2×2 Type-C, 5 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0/1.1
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C connector, 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector, 1 x 4-pin water-pump fan connector, 6 x 4-pin system fan connectors, 1 x Front panel audio connector, 2 x System panel connectors, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper, 1 x TPM module connector, 1 x TBT connector (supports RTD3), 1 x Tuning Controller connector, 1 x EZ LED Control switch, 4 x EZ Debug LED, 1 x 2-Digit Debug Code LED, 1 x 4-pin RGB LED connector, 2 x 3-pin RAINBOW LED connectors, 1 x 3-pin CORSAIR LED connector
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors
Windows 11	Supported
Features	Supports 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket, Supports DDR5 Memory, up to 6666+(OC) MHz, Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2, Enhanced Power Design: Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost, Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience, MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices, 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection, AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience, High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material, Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Form Factor	ATX
Memory Type	DDR5
