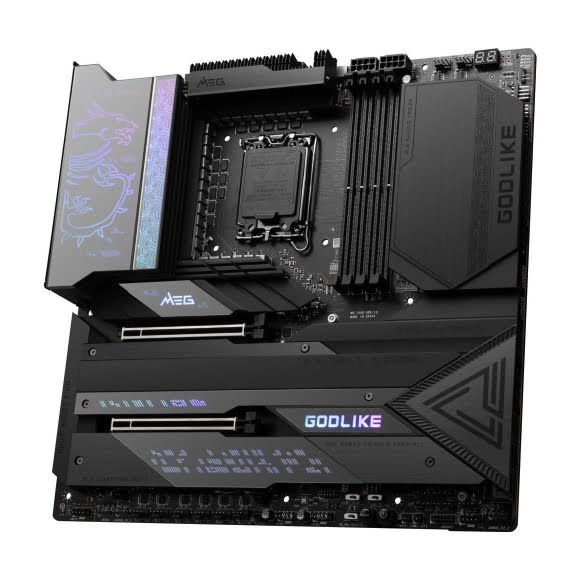

MSI MEG Z790 GODLIKE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard - Image 1

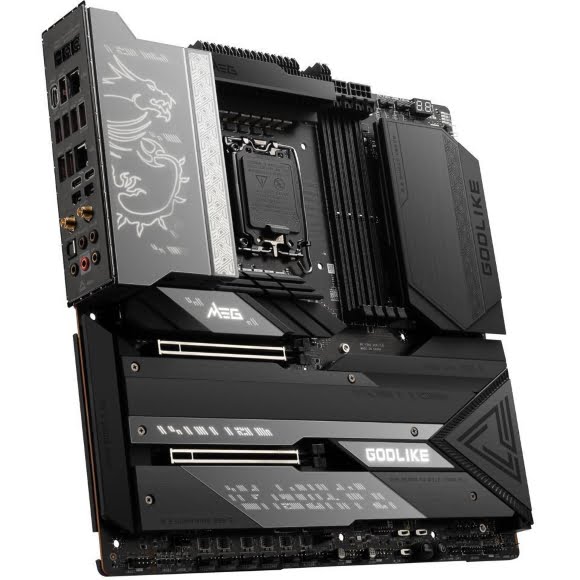

MSI MEG Z790 GODLIKE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard - Image 2

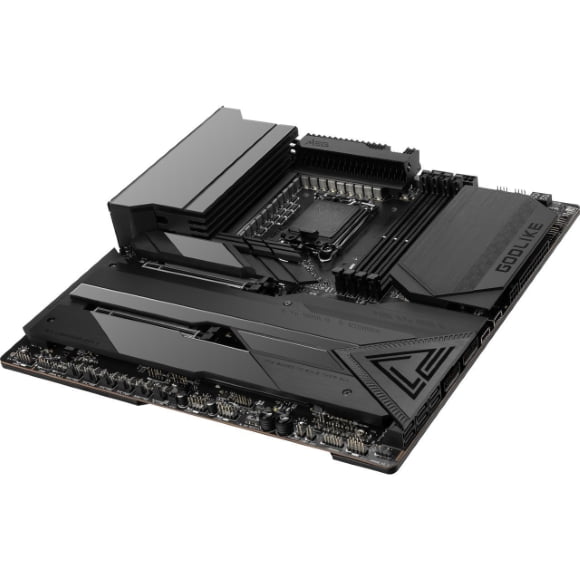

MSI MEG Z790 GODLIKE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

Name: MSI MEG Z790 GODLIKE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0070
Price: 268000 PKR
Availability: InStock

SKU: MC-MBD-MSI-0070 Category: Intel Motherboards Brand: MSI

The MSI MEG Z790 GODLIKE is an Extended ATX motherboard for LGA 1700 Intel 13th/12th Gen CPUs, featuring the Z790 chipset, DDR5 memory support up to 7200+ MHz, dual PCIe 5.0 x16 slots, seven M.2 slots, dual LAN (10Gbps + 2.5Gbps), Wi-Fi 6E, Bluetooth 5.2, and Thunderbolt 4. With extensive cooling, overclocking features, and MSI Center software, it delivers top-tier performance for enthusiasts. Available nationwide in Pakistan with cash-on-delivery.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 268,000

Compare

Add to wishlist

Description

The MSI MEG Z790 GODLIKE is a flagship Extended ATX motherboard built for Intel’s 13th and 12th Gen processors on the LGA 1700 socket. Featuring the Intel Z790 chipset, it supports DDR5 memory with overclocking speeds up to 7200+ MHz and a maximum capacity of 128GB. This board is engineered for extreme performance with dual PCIe 5.0 x16 slots, seven M.2 slots (including one PCIe 5.0), and dual LAN with 10Gbps and 2.5Gbps controllers.

Designed for enthusiasts, the GODLIKE includes Thunderbolt 4 USB-C ports, Wi-Fi 6E, Bluetooth 5.2, and a comprehensive cooling solution with aluminum heatsinks and heat pipes. It also features MSI Center software for system tuning, Mystic Light RGB, and a range of overclocking tools. Available with nationwide delivery in Pakistan and cash-on-delivery.

Supports 13th/12th Gen Intel Core, Pentium Gold, and Celeron processors
Dual PCIe 5.0 x16 slots for multi-GPU configurations (NVIDIA SLI & AMD CrossFire)
7x M.2 slots (1x PCIe 5.0, 5x PCIe 4.0, 1x PCIe 3.0/SATA) and 6x SATA 6Gb/s with RAID support
Dual LAN: 10Gbps Aquantia AQC113 and 2.5Gbps Intel I225-V
Wi-Fi 6E and Bluetooth 5.2 for wireless connectivity
2x Thunderbolt 4 USB-C ports, 7x USB 3.2 Gen 2 Type-A, and front USB 3.2 Gen 2×2 Type-C with 60W PD

Specification

Overview

Warranty	1 Year
Best Seller Ranking	#49 in Intel Motherboards
Brand	MSI
Model	MEG Z790 GODLIKE
CPU Socket Type	LGA 1700
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
Chipset	Intel Z790
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports 1R 5600 MHz (by JEDEC & POR), Max. overclocking frequency:, – 1DPC 1R Max speed up to 7200+ MHz, – 1DPC 2R Max speed up to 6400+ MHz, – 2DPC 1R Max speed up to 6800+ MHz, – 2DPC 2R Max speed up to 5600+ MHz, Supports Intel XMP 3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports non-ECC, un-buffered memory
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
PCI Express 5.0 x16	2x PCIe x16 slots, – Supports x16/x0, x8/x8, – PCI_E1 & PCI_E2 slots (From CPU), – PCI_E1 supports up to PCIe 5.0 x16, – PCI_E2 supports up to PCIe 5.0 x8, Supports NVIDIA SLI Technology, Supports AMD CrossFire Technology
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	2 x Key M (PCIe/SATA) + 5 x Key M (PCIe) + 1 x Key E (WiFi/BT), M2_1 slot (From CPU), – Supports up to PCIe 4.0 x4, – Supports 2260/ 2280/ 22110 storage devices, M2_2 & M2_3 slots (From Z790 chipset), – M2_2 slot supports up to PCIe 4.0 x4, – M2_3 slot supports up to PCIe 4.0 x4 and SATA 6Gb/s, – Supports 2260/ 2280 storage devices, M2_4 slot (From CPU), – Supports up to PCIe 5.0 x4, – Supports 2280/ 22110 storage devices, M2_5, M2_6 & M2_7 slots (From Z790 chipset), – M2_5 supports up to PCIe 3.0 x4 and SATA 6Gb/s, – M2_6 supports up to PCIe 4.0 x4, – M2_7 supports up to PCIe 4.0 x4, – Supports 2260/ 2280 storage devices, PCI_E2 slot will be unavailable when installing M.2 SSD in the M2_4 slot., ** SATA5~8 will be unavailable when installing M.2 PCIe SSD in the M2_5 slot. And SATA7~8 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices, SATA_ A1 and SATA_A2 do not support RAID function.
Audio Chipset	Realtek ALC4082 Codec + ES9280AQ Combo DAC/HPA
Audio Channels	7.1 Channels
LAN Chipset	1x Aquantia AQC113 10Gbps LAN controller
Second LAN Chipset	1x Intel 2.5Gbps LAN controller
Max LAN Speed	10Gbps + 2.5Gbps
Wireless LAN	Intel Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz(160MHz), up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
Bluetooth	Supports Bluetooth 5.2, FIPS, FISMA, Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
Back I/O Ports	1x Clear CMOS button, 1x Flash BIOS button, 1x Smart button, 2x LAN (RJ45) jacks, 7x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset & Hub-GL3590), 1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset), 2x Thunderbolt 4 USB-C ports, 2x Mini DisplayPort Input (for Thunderbolt 4 pass through), 2x Wi-Fi Antenna connectors, 5x OFC audio jacks, 1x Optical S/PDIF Out connector
Onboard USB	2x USB 3.2 Gen 2×2 20Gbps Type-C front panel ports (From Z790 chipset), – JUSB6 supports USB PD 60W fast charging, 2x USB 3.2 Gen 1 5Gbps connectors (From GL3523), – Supports additional 4 USB 3.2 Gen 1 5Gbps ports, 2x USB 2.0 connectors (From Hub-GL850G), – Supports additional 4 USB 2.0 ports, JUSB6 doesn’t support USB 2.0 device., ** To achieve USB PD 60W fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit.
Other Connectors	Fan Connectors:, 1x 4-pin CPU fan connector, 2x 4-pin water-pump fan connectors, 7x 4-pin system fan connectors, System Connectors:, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x 3-pin Water Flow connector, 2x 2-pin Thermal sensor connectors, 1x TPM module connector, 1x Tuning Controller connector, Buttons, 1x Power button, 1x Reset button, 1x Clear CMOS button on the back panel, 1x Flash BIOS button on the back panel, 1x Smart button on the back panel, Jumpers, 1x Clear CMOS jumper, 1x Slow mode jumper, 2x Low temperature booting jumpers, 1x OC Safe Boot BIOS jumper, 1x OC Retry jumper, Switches, 1x EZ LED Control switch, 1x Multi-BIOS switch, 1x M-Vision switch, LED Features:, 1x 4-pin RGB LED connector, 3x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors, 4x EZ Debug LED, 1x 2-Digit Debug Code LED
Form Factor	Extended ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 12.0″
Power Pin	1x 24-pin ATX main power connector, 2x 8-pin +12V power connectors, 1x 6-pin PCIe power connector, To achieve USB PD 60W fast charging, the PD_PWR1 connector needs to be connected to the power supply unit.
Windows 11	Supported
Features	MSI Center, – Gaming Mode, – Smart Priority, – Game Highlights, – Mystic Light, – Ambient Devices, – Frozr AI Cooling, – User Scenario, – True Color, – Live Update, – Hardware Monitoring, – Super Charger, – Speed Up, Cooling, – All Aluminum Design, – Wavy Fin Design, – Cross Heat-pipe Design, – Extended Heatsink Design, – M.2 Shield Frozr, – 7W/mK MOSFET thermal pad, – Choke thermal pad, – Pump Fan, – Smart Fan Control, LED, – Mystic Light Extension (RGB/ARGB), – Mystic Light SYNC, – Ambient Devices Support, Performance, – Lightning Gen 5 (M.2/PCI-E), – Lightning Gen 4 (M.2), – Multi GPU-(SLI/ CrossFire), – M-Vision Dashboard, – Smart Button, – Memory Boost, – Memory Force, – Core Boost, – Game Boost, – OC Engine, – Thunderbolt 4/ USB 4.0, – Lightning USB 20G, – USB 3.2 Gen 2 10G, – USB with Type A+C, – Front USB Type-C, – Dual CPU Power (2x 8 pin), – Server PCB, – 2oz Copper thickened PCB, – Tile
Form Factor	ATX
Memory Type	DDR5
