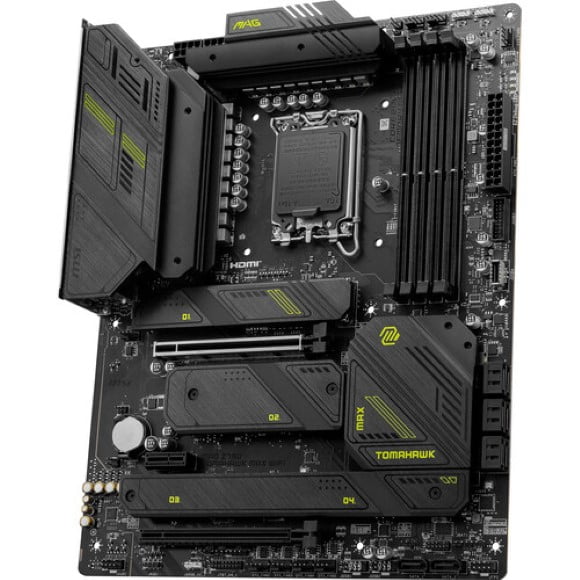

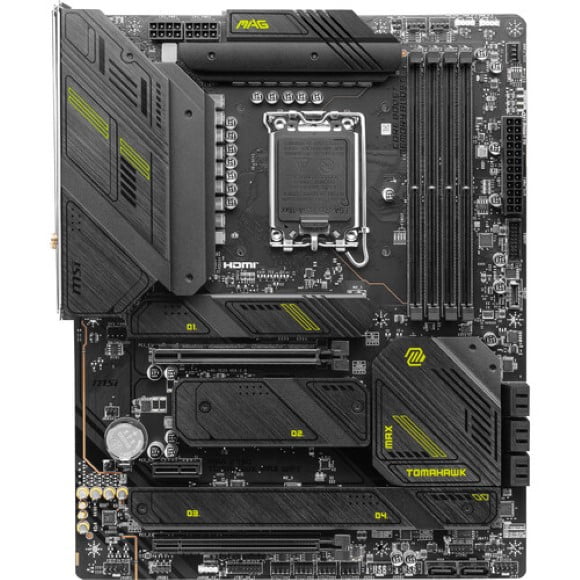

MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

Name: MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0089
Price: 91999 PKR
Availability: InStock

SKU: MC-MBD-MSI-0089 Category: Intel Motherboards Brand: MSI

The MSI MAG Z790 TOMAHAWK MAX WIFI is an ATX motherboard designed for Intel LGA 1700 processors, featuring the Z790 chipset. It supports DDR5 memory up to 7800 MHz, PCIe 5.0 for graphics and storage, and offers Wi-Fi 7, Bluetooth 5.4, and 2.5 Gigabit Ethernet. With four M.2 slots, eight SATA ports, and comprehensive cooling options, it’s ideal for high-performance builds.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 91,999

Compare

Add to wishlist

Description

The MSI MAG Z790 TOMAHAWK MAX WIFI is an ATX motherboard built for Intel LGA 1700 processors, featuring the Intel Z790 chipset. It supports DDR5 memory up to 7800 MHz with a maximum capacity of 192 GB across four slots. With PCIe 5.0 support for both graphics and storage, this board is ready for the latest high-speed components.

Connectivity options include Wi-Fi 7, Bluetooth 5.4, and a 2.5 Gigabit Ethernet port. The motherboard offers four M.2 slots, including one PCIe 5.0 x4, and eight SATA III ports for extensive storage. It also features USB 3.2 Gen 2 and Gen 1 headers, DisplayPort and HDMI outputs, and a Realtek ALC4080 audio codec for 7.1-channel sound.

Intel Z790 chipset with LGA 1700 socket for 12th, 13th, and 14th Gen Intel Core processors
Supports DDR5 memory up to 7800 MHz (OC) with a maximum capacity of 192 GB
PCIe 5.0 x16 slot for graphics and one PCIe 5.0 M.2 slot for ultra-fast SSDs
Integrated Wi-Fi 7 (802.11be) and Bluetooth 5.4 for advanced wireless connectivity
Realtek ALC4080 audio codec with 7.1-channel HD audio
BIOS Flashback and Clear CMOS buttons for easy troubleshooting

Specification

Overview

Warranty	2 Years
Chipset	Intel Z790
CPU Socket	LGA 1700
USB	1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port), 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port), 2x USB 2.0 Header (Supports 4 USB-A Port)
Thunderbolt	No
Display	1x DisplayPort, 1x HDMI
Audio	No
Ethernet / Controller	1x Intel 2.5Gigabit
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback, Clear CMOS
Memory Slots	4x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MHz
Maximum Capacity	192 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered
SATA	8x SATA III
M.2	1x M Key 2260, 2280, 22110 (PCIe 5.0 x4), 1x M Key 2260, 2280 (PCIe 4.0 x4), 1x M Key 2242, 2260, 2280 (PCIe 4.0 x4), 1x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
RAID Support	RAID 0, 1, 5, 10 (SATA), RAID 0, 1, 5, 10 (M.2)
Expansion Slots	1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 1x PCIe 3.0 x1
Air Cooling	1x 4-Pin CPU, 6x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard, 2x 8-Pin ATX
Security	Chassis Intrusion, TPM Header
LED Header	4x RGB
Diagnostics	2-Digit Debug LED, Clear CMOS
Add-On	1x Thunderbolt Header, 1x Tuning Controller
Front Panel I/O	AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio Codec	Realtek ALC4080 (7.1-Channel)
DAC	No
Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth	5.4
OS Compatibility	Windows 10 to 11 (64-Bit Only)
Form Factor	ATX
Dimensions	9.6 x 12.0″ / 243 x 304 mm
Form Factor	ATX
