MSI MAG Z690 TORPEDO LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard

Name: MSI MAG Z690 TORPEDO LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0065
Price: 63000 PKR
Availability: InStock

SKU: MC-MBD-MSI-0065 Category: Intel Motherboards Brand: MSI

The MSI MAG Z690 TORPEDO is an ATX Intel motherboard featuring the Z690 chipset and LGA 1700 socket for 12th Gen Core processors. It supports DDR5 memory up to 6400+ MHz, has four M.2 slots and six SATA ports, PCIe 5.0, Intel 2.5G LAN, and a full set of USB 3.2 Gen 2 ports. Available with nationwide delivery in Pakistan.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 63,000

Compare

Add to wishlist

Description

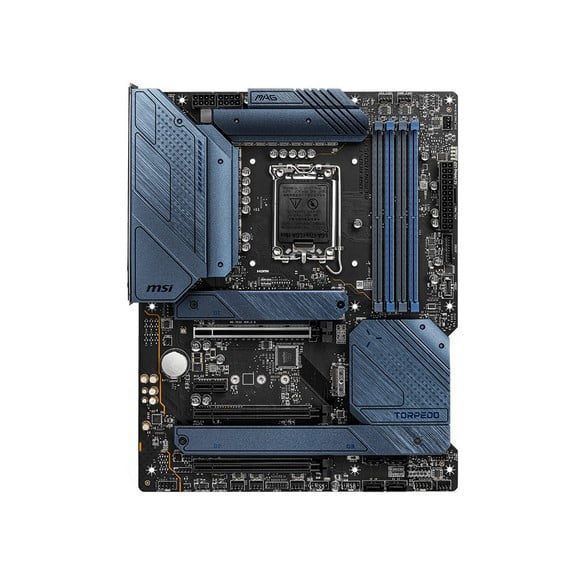

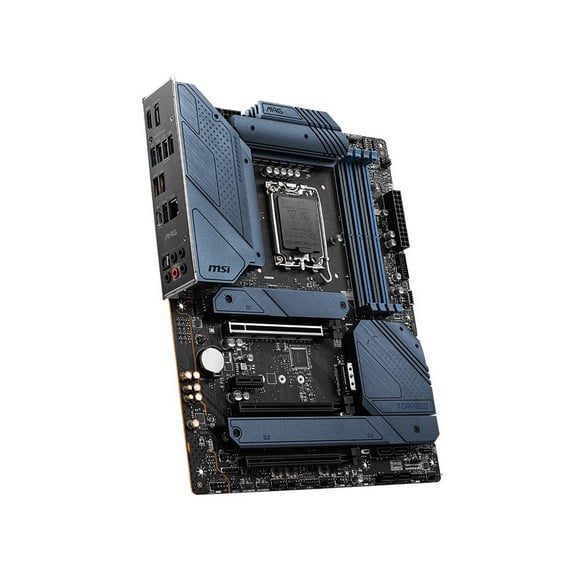

The MSI MAG Z690 TORPEDO is an ATX motherboard built on the Intel Z690 chipset, designed to support 12th Gen Intel Core processors via the LGA 1700 socket. It features DDR5 memory support with overclocking capabilities up to 6400+ MHz, and provides extensive storage options with four M.2 slots and six SATA 6Gb/s ports, supporting RAID 0/1/5/10 configurations.

Connectivity is robust with PCIe 5.0 for the primary graphics slot, Intel 2.5G LAN, and a comprehensive rear I/O including USB 3.2 Gen 2×2 Type-C, DisplayPort, and HDMI. The motherboard also includes RGB lighting, multiple fan headers, and EZ Debug LEDs for easy troubleshooting.

Intel Z690 chipset with LGA 1700 socket for 12th Gen Intel processors
4x DDR5 memory slots, dual channel, up to 128GB, overclockable to 6400+ MHz
1x PCIe 5.0 x16, 2x PCIe 3.0 x16, 1x PCIe 3.0 x1
4x M.2 slots (PCIe 4.0/3.0) and 6x SATA 6Gb/s with RAID support
Intel I225-V 2.5G LAN, Realtek ALC4080 7.1-channel audio
Rear I/O: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2 Type-A, DisplayPort, HDMI, optical S/PDIF

Specification

Overview

Brand	MSI
Model	MAG Z690 TORPEDO
CPU Socket Type	LGA 1700, * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors, * Please go to msi.com to get the newest support status as new processors are released.
Chipset	Intel Z690
Onboard Video Chipset	Supported only by CPU with integrated graphic
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR5 1R 4800 (by JEDEC & POR), Max overclocking frequency:, 1DPC 1R Max speed up to 6400+, 1DPC 2R Max speed up to 5400+, 2DPC 1R Max speed up to 4000+, 2DPC 2R Max speed up to 4000+
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
PCI Express 5.0 x16	1 x PCI Express 5.0 x16, * Actual support may vary by CPU.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16, * PCI_E3 Support up to PCIe 3.0 x4., * PCI_E4 Support up to PCIe 3.0 x1.
PCI Express x1	1 x PCI Express 3.0 x1
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	4 x M.2 slots (Key M):, M2_1 slot (From CPU):, Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280/ 22110 storage devices, M2_2 slot (From Z690 chipset):, Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280 storage devices, M2_3 slot (From Z690 chipset):, Supports up to PCIe 3.0 x4, Supports up to SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices, M2_4 slot (From Z690 chipset):, Supports up to PCIe 4.0 x4, Supports up to SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices
Intel Optane Ready	Intel Optane Memory Ready for M.2 slots from Z690 Chipset
SATA RAID	0/1/5/10
Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels
LAN Chipset	Intel I225-V
Max LAN Speed	10/100/1000/2500Mbps

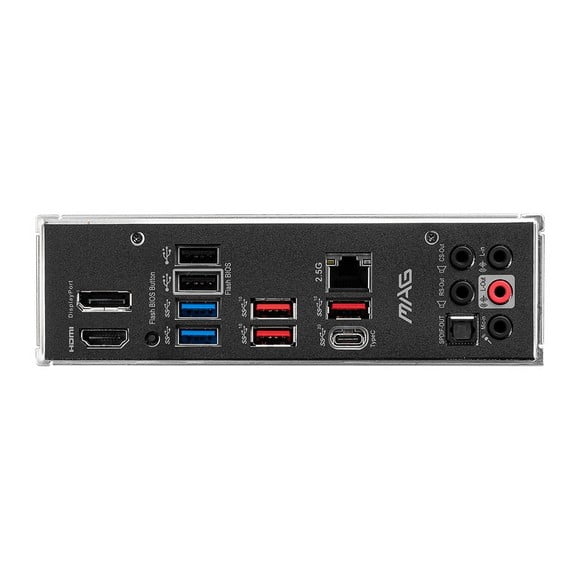

Back I/O Ports	1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x Flash BIOS Button, 1 x LAN (RJ45), 1 x Optical S/PDIF Out, 5 x Audio Jacks, 1 x USB 3.2 Gen 2×2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0/1.1
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port, 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector, 1 x 4-pin water-pump fan connector, 6 x 4-pin system fan connectors, 1 x Front panel audio connector, 2 x System panel connectors, 1 x Chassis Intrusion connector, 1 x TPM module connector, 1 x Clear CMOS jumper, 1 x TBT connector (supports RTD3), 1 x Tuning Controller connector, 1 x EZ LED Control switch, 1 x 4-pin RGB LED connectors, 3 x 3-pin RAINBOW LED connectors, 4 x EZ Debug LED
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors
Windows 11	Supported
Form Factor	ATX
