MSI B860M GAMING WIFI PCIe 5.0 Wi-Fi 7 & 5G LAN Gaming Motherboard for Intel Core Ultra
The MSI B860M GAMING WIFI is a micro-ATX motherboard for Intel Core Ultra processors, featuring PCIe 5.0, Wi-Fi 7, and 5G LAN. It supports dual DDR5 memory up to 128GB with speeds over 9066 MT/s, and includes a PCIe 5.0 M.2 slot for ultra-fast SSDs. With extensive connectivity and gaming-grade audio, it’s an ideal choice for high-performance builds. Available nationwide with cash on delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 52,015
Description
The MSI B860M GAMING WIFI is a micro-ATX motherboard built for Intel Core Ultra processors (LGA 1851). It features PCIe 5.0 support for next-gen graphics and storage, along with Wi-Fi 7 and 5G LAN for ultra-fast connectivity. With dual DDR5 memory slots supporting speeds up to 9066+ MT/s (OC), this board is ready for high-performance gaming and multitasking.
Designed for gamers and enthusiasts, the B860M GAMING WIFI includes advanced cooling options, RGB lighting headers, and EZ Debug LEDs for easy troubleshooting. It offers a comprehensive I/O with USB 20Gbps Type-C, HDMI 2.1, and DisplayPort 1.4, ensuring seamless integration with modern peripherals and displays.
- Intel B860 chipset with LGA 1851 socket for Intel Core Ultra processors
- 2× DDR5 UDIMM slots, dual-channel, up to 128GB, with Intel XMP 3.0 support
- PCIe 5.0 x16 slot for graphics and PCIe 5.0 M.2 slot for lightning-fast storage
- Wi-Fi 7 (2.9Gbps) and Bluetooth 5.4 with Realtek 5G LAN

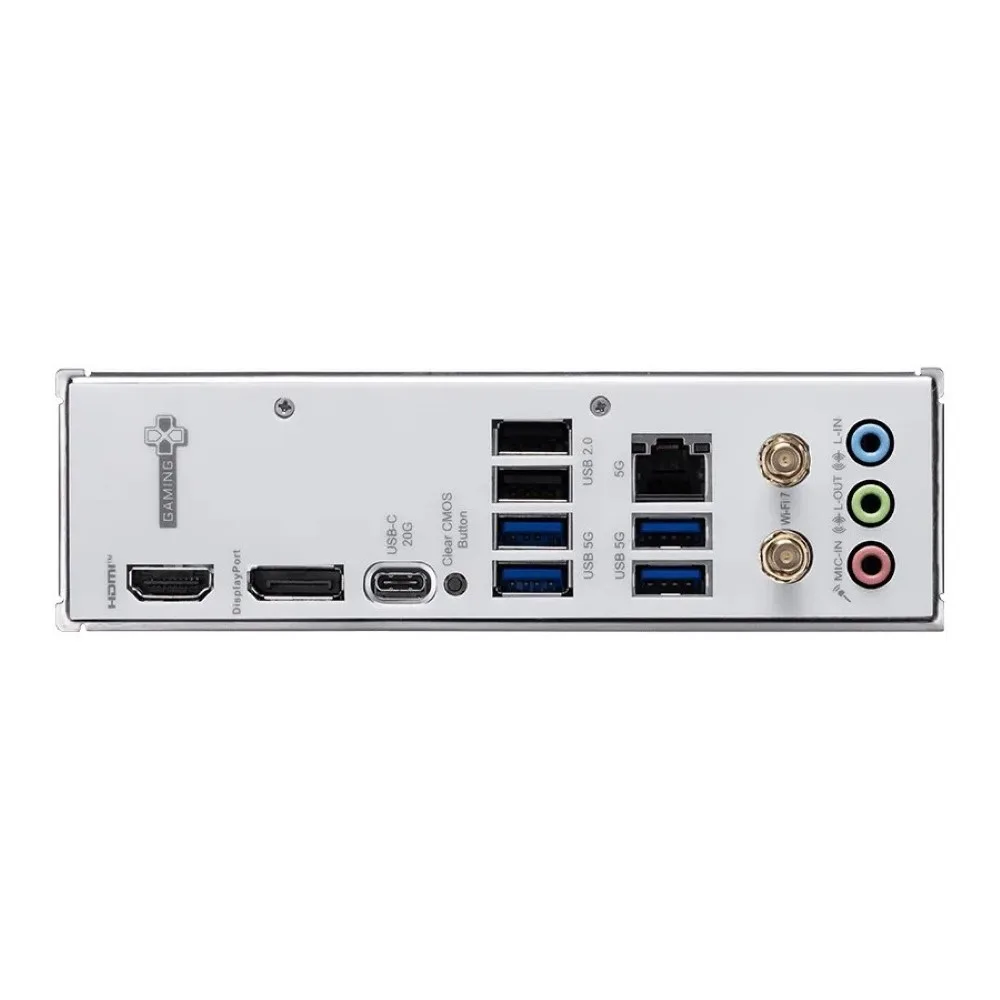

- Rear USB 20Gbps Type-C, HDMI 2.1, and DisplayPort 1.4
- Realtek ALC897 7.1-channel HD audio and 4× SATA 6Gb/s with RAID support
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Chipset | Intel B860 |
| CPU Support | Intel Core Ultra Processors (Series 2), LGA 1851 |
| Memory Slots | 2× DDR5 UDIMM |
| Max Memory | 128GB |
| Memory Speed (OC) | 9066 – 6400 MT/s |
| Memory Speed (JEDEC) | 6400 – 4800 MT/s |
| Max OC (1DPC 1R) | Up to 9066+ MT/s |
| Max OC (1DPC 2R) | Up to 7200+ MT/s |
| Memory Features | Intel XMP 3.0, Dual-Channel, Non-ECC, Unbuffered, CUDIMM |
| Onboard Graphics | 1× HDMI 2.1 (4K 60Hz), 1× DisplayPort 1.4 (4K 60Hz)* |
| PCIe Slots | 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4 (Chipset) |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| M.2 Slots | 2× M.2 (1× PCIe 5.0 x4, 1× PCIe 4.0 x4) |
| SATA | 4× SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| Rear USB | 2× USB 2.0, 4× USB 5Gbps Type-A, 1× USB 20Gbps Type-C |
| Front USB | 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C |
| LAN | Realtek 8126 5Gbps LAN |
| Wireless | Wi-Fi 7 (2.4/5/6GHz up to 2.9Gbps), MU-MIMO |
| Bluetooth | Bluetooth 5.4 |
| Internal Power | ATX_PWR, CPU_PWR, 8-pin PCIe_PWR |
| Cooling Headers | 1× CPU Fan, 1× Pump/System Fan, 2× System Fan |
| RGB Headers | 3× ARGB Gen2 (JARGB_V2), 1× RGB (JRGB) |
| Security | TPM 2.0 Header, Chassis Intrusion |
| LED Features | 4× EZ Debug LED, 1× EZ Memory Detection LED |
