Maxsun MS-iCraft B850 AIGA ATX Motherboard
The Maxsun MS-iCraft B850 AIGA ATX Motherboard is a feature-rich platform for AMD Ryzen 7000/8000/9000 processors, offering DDR5 memory support up to 8400 MHz (OC), four M.2 slots with PCIe 5.0, and advanced connectivity including Wi-Fi 7 and 5Gb Ethernet. With a 2-year warranty and nationwide delivery across Pakistan, it’s an excellent choice for high-performance builds.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 60,500
Description
The Maxsun MS-iCraft B850 AIGA ATX Motherboard is built for AMD Ryzen 7000/8000/9000 series processors on the AM5 socket, leveraging the B850 chipset for a balance of performance and features. It supports up to 256GB of DDR5 memory with speeds up to 8400 MHz (OC) and AMD EXPO for easy overclocking.
Storage and expansion are robust with four M.2 slots (two PCIe 5.0 from CPU, two PCIe 4.0 from chipset), two SATA 6Gb/s ports, and two PCIe 5.0 x16 slots for multi-GPU setups. Connectivity includes 5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4, and a full array of USB ports including a USB-C 20G internal header.
- AMD AM5 socket with B850 chipset, supports Ryzen 7000/8000/9000 series
- 4× DDR5 DIMM slots, up to 256GB, speeds up to 8400 MHz (OC) with AMD EXPO
- 2× PCIe 5.0 x16 slots (x16/x8 or x8/x4+x4) and 1× PCIe 3.0 x1
- 4× M.2 slots (2× PCIe 5.0, 2× PCIe 4.0) and 2× SATA 6Gb/s
- 5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4, and Realtek ALC1220 audio
- Rear USB-C 10G, 4× USB-A 10G, 4× USB 2.0; internal USB-C 20G header
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Model | MS-iCraft B850 AIGA |
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen 7000 / 8000 / 9000 |
| Socket | AM5 |
| Form Factor | ATX |
| Dimensions | 305 × 245 mm |
| Memory Slots | 4× DDR5 DIMM |
| Max Memory | 256 GB |
| Memory Speed | 4800–5200 MHz (JEDEC), up to 8400 MHz (OC) |
| Memory Features | Dual-channel, AMD EXPO |
| Graphics Output | HDMI 2.0 (4K@60Hz), DisplayPort 1.4 (4K@60Hz) |
| Expansion Slots (CPU) | 2× PCIe 5.0 x16 (x16/x8 or x8/x4+x4) |
| Expansion Slots (Chipset) | 1× PCIe 3.0 x1 |
| M.2 Slots (CPU) | 2× PCIe 5.0 x4/x2 |
| M.2 Slots (Chipset) | 2× PCIe 4.0 x4/x2 |
| Total M.2 Slots | 4 |
| SATA Ports | 2× SATA 6Gb/s |
| LAN | Realtek RTL8126 (5Gb Ethernet) |
| Wireless | Wi-Fi 7 (MediaTek MT7925), Bluetooth 5.4 |
| Audio | Realtek ALC1220 |

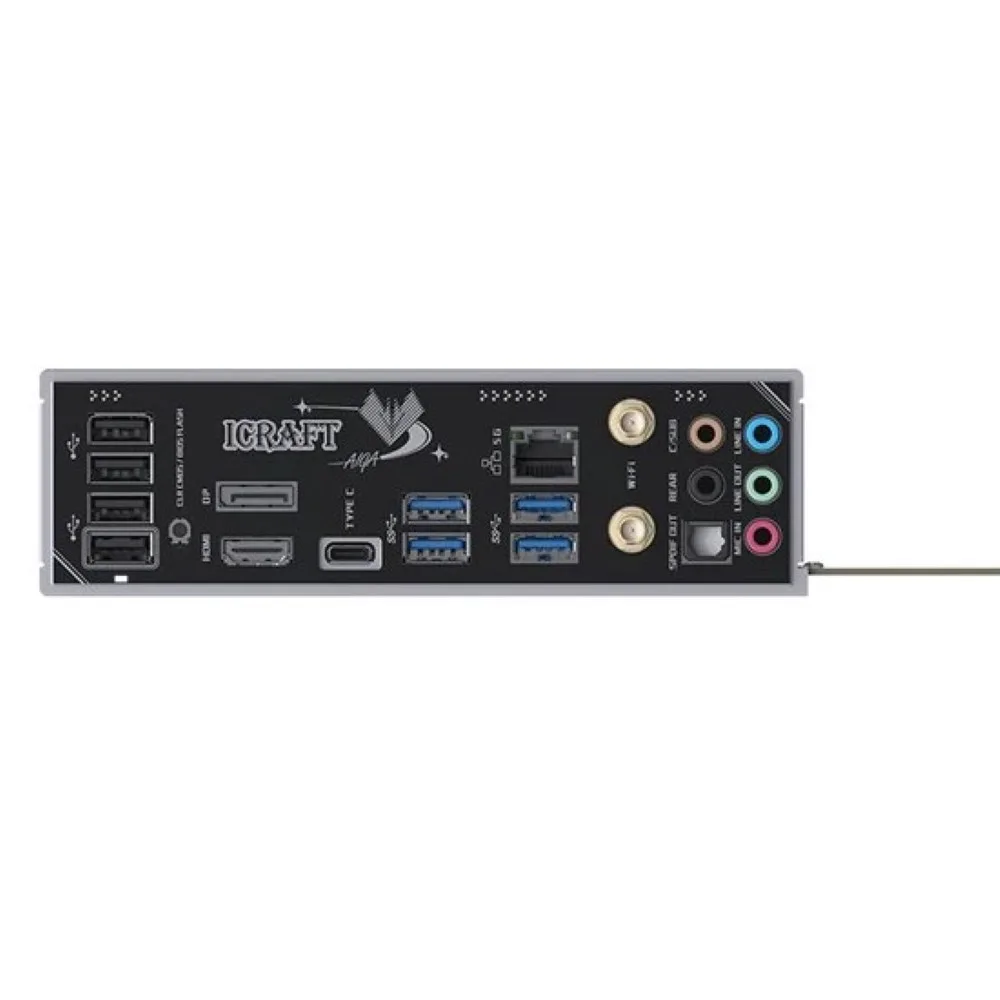

| Rear USB Ports | 1× USB-C 10G, 4× USB-A 10G, 4× USB 2.0 |
| Internal USB Headers | USB-C 20G, USB 3.2 Gen1, USB 2.0 headers |
| Power Connectors | 24-pin ATX, 2× 8-pin CPU |
| Cooling Headers | 1× CPU fan, 4× system fans, 1× pump |
| RGB Headers | 3× ARGB (3-pin), 1× RGB (4-pin) |
| Other Connectors | COM port, CLR_CMOS, front panel |
| Special Feature | USB-C supports DP video output (4K@60Hz) |
| Form Factor | ATX |
