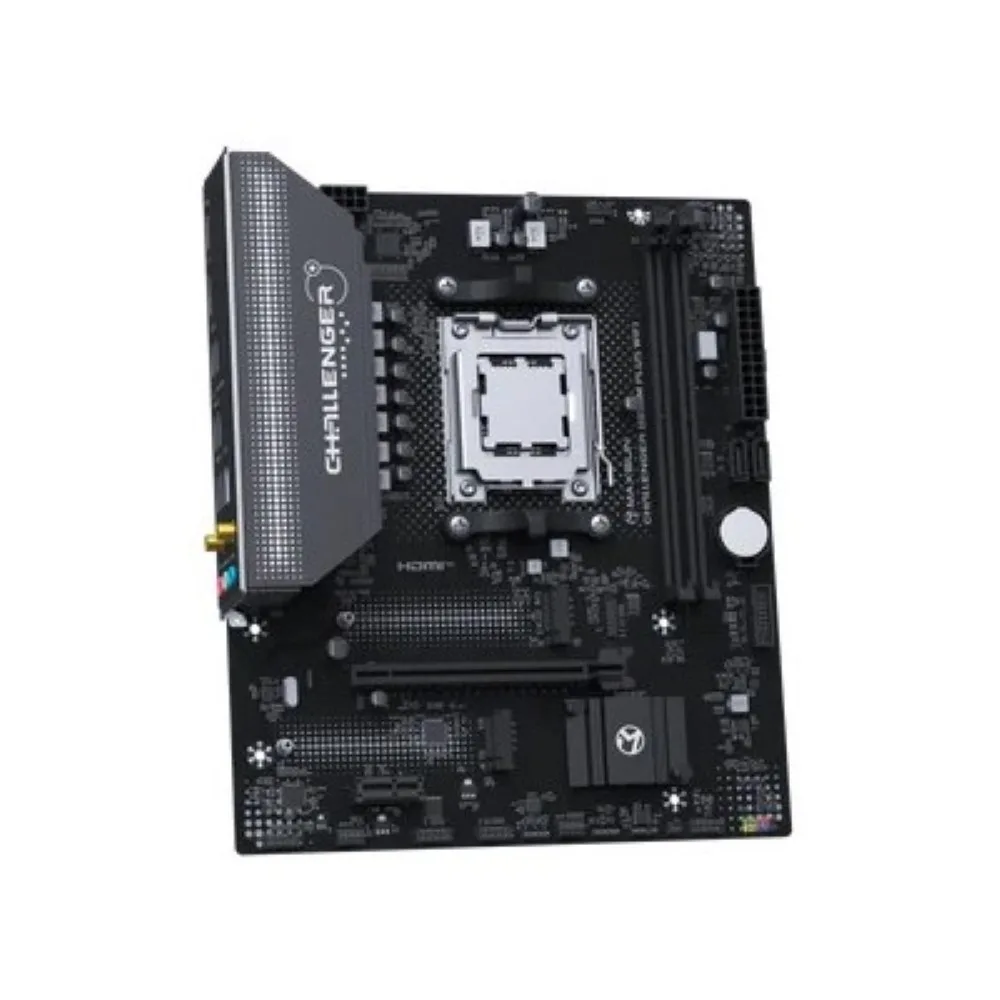

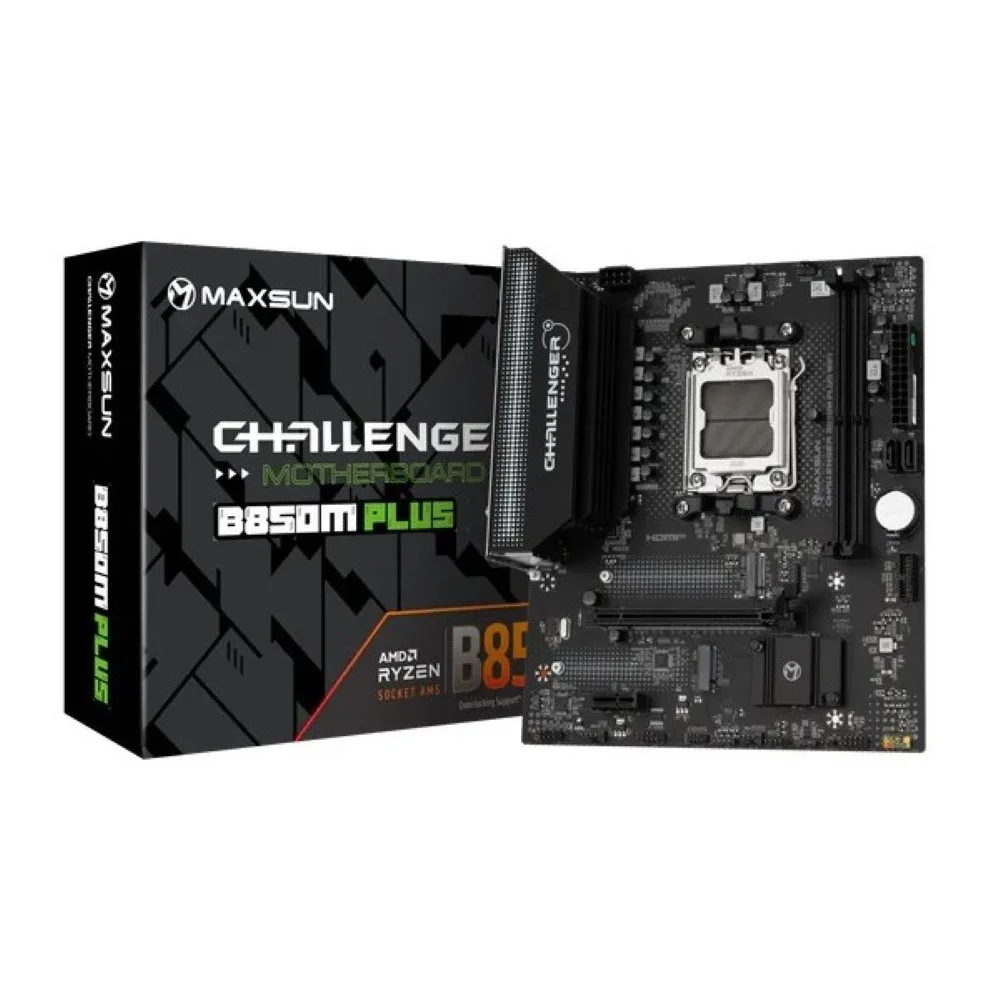

Maxsun Challenger B850M PLUS WIFI AMD AM5 Micro-ATX Motherboard
The Maxsun Challenger B850M PLUS WIFI is an AMD AM5 Micro-ATX motherboard featuring the B850 chipset, supporting Ryzen 7000/8000/9000 series processors. It offers dual-channel DDR5 memory up to 96GB, PCIe 5.0 for graphics and storage, built-in Wi-Fi 6 and Bluetooth 5.2, and a comprehensive set of USB ports. Ideal for compact yet powerful PC builds with nationwide delivery available across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 41,999
Description
The Maxsun Challenger B850M PLUS WIFI is a Micro-ATX motherboard built on the AMD B850 chipset, designed for AMD AM5 socket processors including Ryzen 7000, 8000, and 9000 series. With support for TDP up to 180W (depending on BIOS mode), it delivers robust performance for gaming and productivity builds.
This motherboard features dual-channel DDR5 memory, supporting speeds up to 8000MHz (OC) and capacities up to 96GB. Storage options include one PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot, plus two SATA 6Gb/s ports. Connectivity is enhanced with Realtek Wi-Fi 6 and Bluetooth 5.2, a 1Gbps LAN port, and a comprehensive set of USB ports including four USB 5Gbps Type-A on the rear I/O.
- AMD B850 chipset with AM5 socket for Ryzen 7000/8000/9000 series CPUs
- 2× DDR5 DIMM slots, dual-channel, up to 96GB, speeds up to 8000MHz (OC)
- 1× PCIe 5.0 x16 slot and 1× PCIe 3.0 x1 slot
- 1× M.2 PCIe 5.0 and 1× M.2 PCIe 4.0 slots, plus 2× SATA 6Gb/s
- Realtek Wi-Fi 6 (RTL8852BE) and Bluetooth 5.2, Realtek 1Gbps LAN
- Rear I/O: 4× USB 5Gbps Type-A, 2× USB 2.0 Type-A, HDMI 1.4, DisplayPort, CLR CMOS button
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Model | MS-Challenger B850M PLUS WIFI |
| Chipset | AMD® B850 |
| Form Factor | Micro-ATX (M-ATX) |
| Dimensions | 245 × 210 mm |
| CPU Support | AM5 socket; supports Ryzen 7000 / 8000 / 9000 series |
| TDP Support | 105–180W (depending on BIOS mode) |
| Memory Slots | 2× DDR5 DIMM |
| Max Memory | Up to 96GB |
| Memory Features | Dual-channel |
| Memory Speed | 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz |
| Display Outputs | 1× HDMI 1.4, 1× DisplayPort |
| Max Resolution | HDMI: 4K@30Hz, DP: 4K@60Hz |
| Expansion Slots | 1× PCIe 5.0 x16, 1× PCIe 3.0 x1 |
| Audio | Realtek ALC897 |
| LAN (Wired) | Realtek RTL8111H/M (1Gbps) |
| Wireless | Realtek RTL8852BE Wi-Fi 6, Bluetooth 5.2 |
| Storage (M.2) | 1× M.2 PCIe 5.0 x4/x2 (2280), 1× M.2 PCIe 4.0 x4/x2 (2280) |
| Storage (SATA) | 2× SATA 6Gb/s |
| Front USB | USB 5Gbps header, additional USB 5Gbps ports, USB 2.0 header, additional USB 2.0 ports |
| Rear USB | 4× USB 5Gbps Type-A, 2× USB 2.0 Type-A |
| Power Connectors | 24-pin ATX, 8-pin CPU (12V) |
| Cooling Headers | 1× CPU fan, 2× system fans |
| Internal Headers | IPM header, 2× ARGB (5V), 1× RGB (12V) |
| Special Features | Rear CLR CMOS button |
| Operating System | (Typically Windows 10/11 supported) |
| Form Factor | Micro-ATX |
