Gigabyte B760M H DDR4 Motherboard LGA 1700 Micro ATX SATA3 M.2 PCIe HDMI VGA
The Gigabyte B760M H DDR4 Motherboard is a Micro ATX board for Intel LGA 1700 processors, featuring the B760 chipset. It supports up to 64GB of DDR4 RAM, dual M.2 slots, and four SATA ports for flexible storage. With HDMI and VGA outputs, 1Gbps LAN, and Windows 11 support, it’s a solid foundation for a budget-friendly build. Available nationwide with cash on delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 35,350
Description

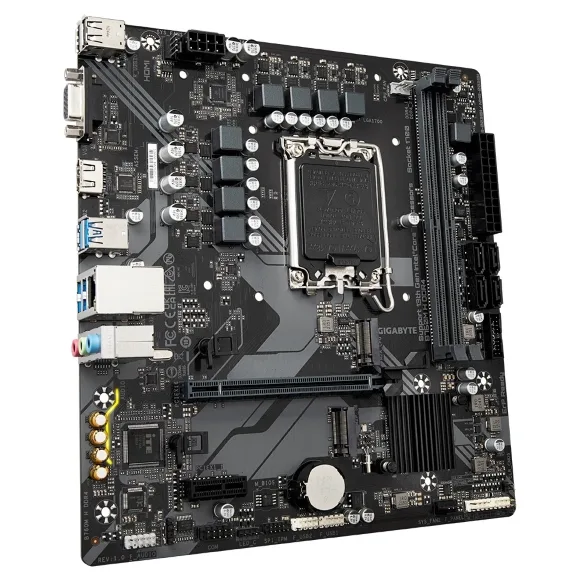

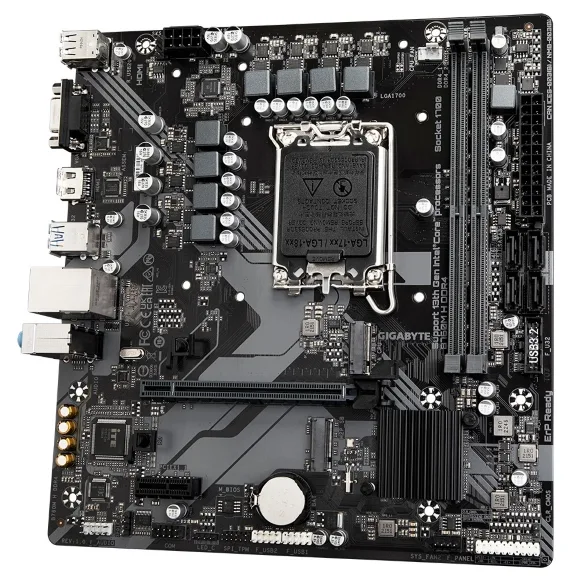

The Gigabyte B760M H DDR4 Motherboard is a reliable Micro ATX board built for Intel LGA 1700 processors. It combines the B760 chipset with DDR4 memory support, offering a cost-effective upgrade path for gaming and productivity builds. With dual M.2 slots and four SATA ports, you get fast storage options, while the 1Gbps LAN ensures stable wired networking.
This motherboard supports up to 64GB of DDR4 RAM across two slots, and includes essential connectivity like HDMI and VGA outputs, plus multiple USB 3.2 Gen 1 ports. Designed for compatibility, it works with Windows 11 and comes with a 1-year warranty.
- Intel LGA 1700 socket supporting 12th, 13th, and 14th Gen Core processors
- Dual M.2 slots (PCIe 4.0 x4 for one) for high-speed SSDs
- Four SATA 6Gb/s ports for additional storage
- One PCIe 4.0 x16 and one PCIe 3.0 x16 slot for graphics and expansion
- Rear I/O: HDMI, D-Sub, 4x USB 3.2 Gen 1, 2x USB 2.0, RJ-45, 3x audio jacks
- Onboard RGB LED strip header for custom lighting
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Form Factor | M-ATX |
| Chipset | B760 |
| Socket Type | LGA 1700 |
| Memory Slot Type | DDR4 |
| Number of Memory Slots | 2 Slot |
| Maximum Memory Supported | 64GB |
| ECC Supported | No |
| SATA | 4 x SATA |
| Number of M.2 | 2 x M.2 |
| PCI Express 4.0 x16 | 1 x Slot |
| PCI Express 3.0 x16 | 1 x Slot |
| Max LAN Speed | 1Gbps |
| WIFI Support | No |
| Bluetooth Support | No |
| Back I/O Ports | 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| Onboard USB | 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
| Other Onboard Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Windows 11 | Supported |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 |
