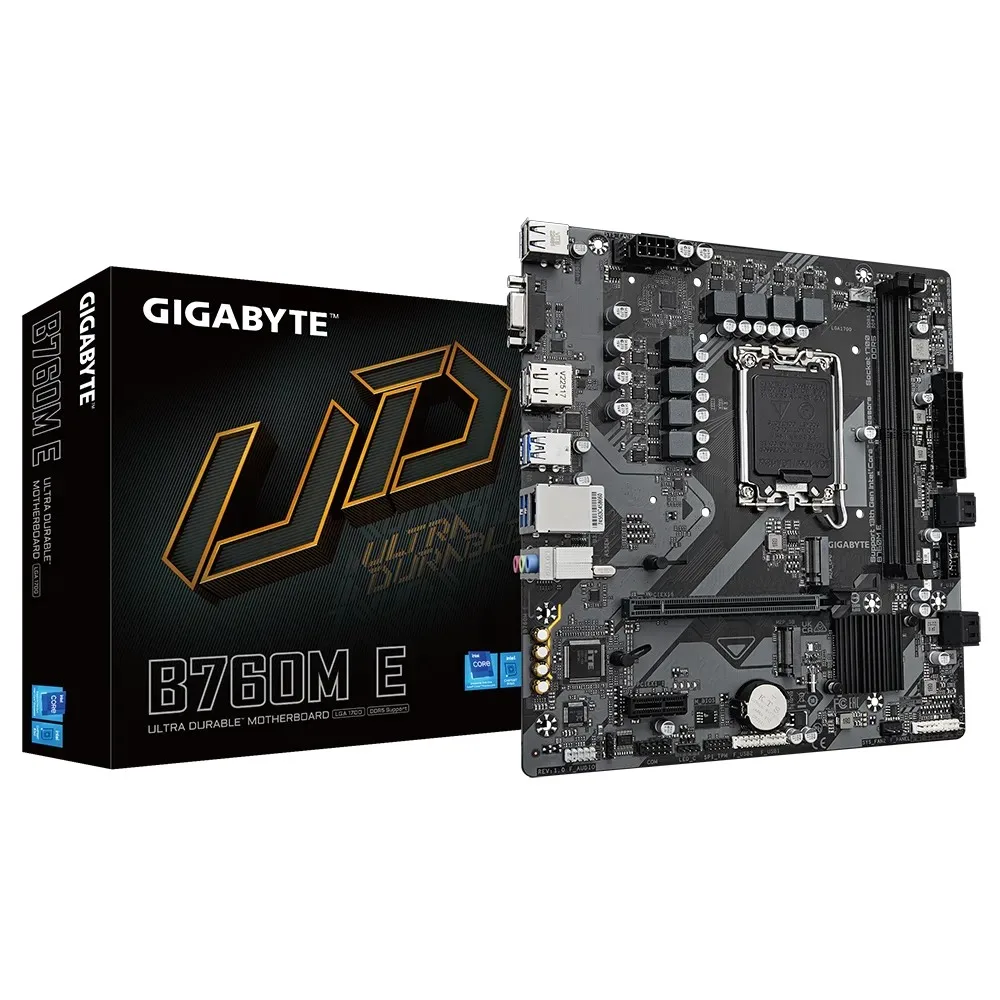

GIGABYTE B760M E DDR5 Intel B760 LGA 1700 Micro ATX Motherboard

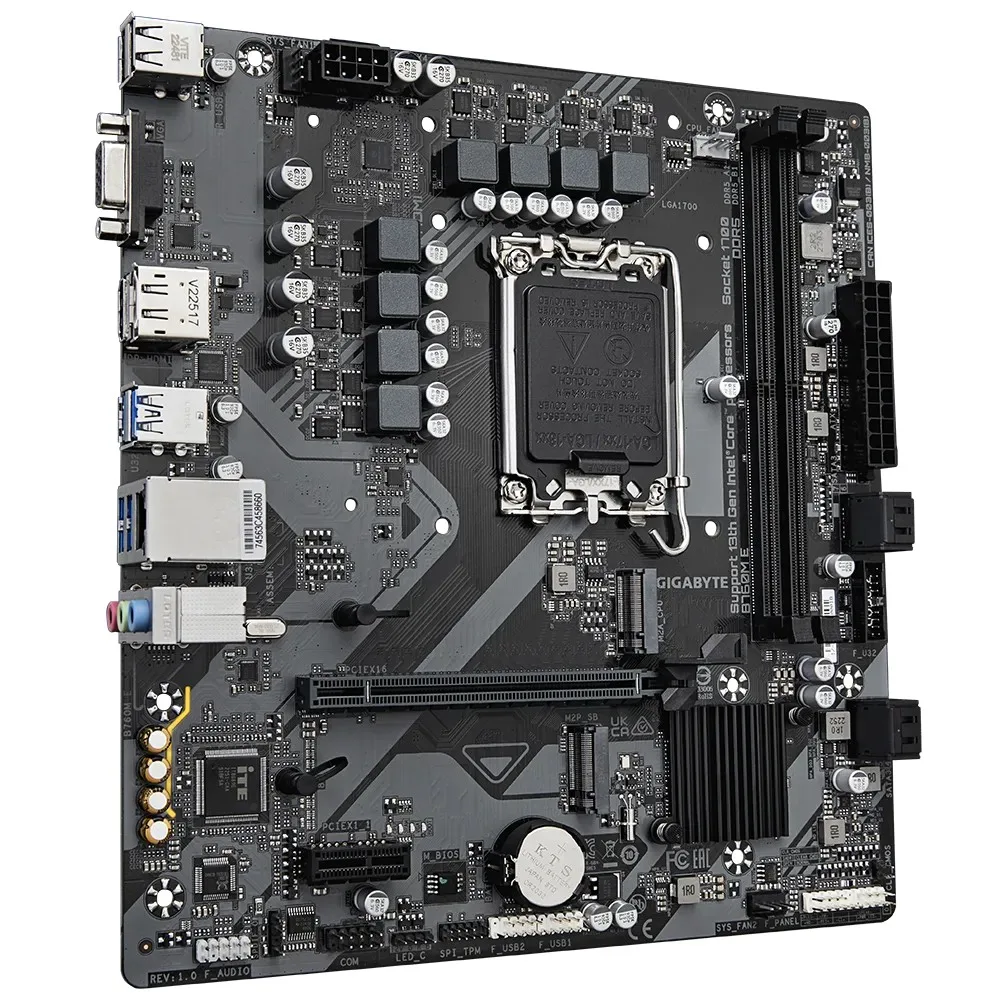

GIGABYTE B760M E DDR5 Intel B760 LGA 1700 Micro ATX Motherboard - Image 2

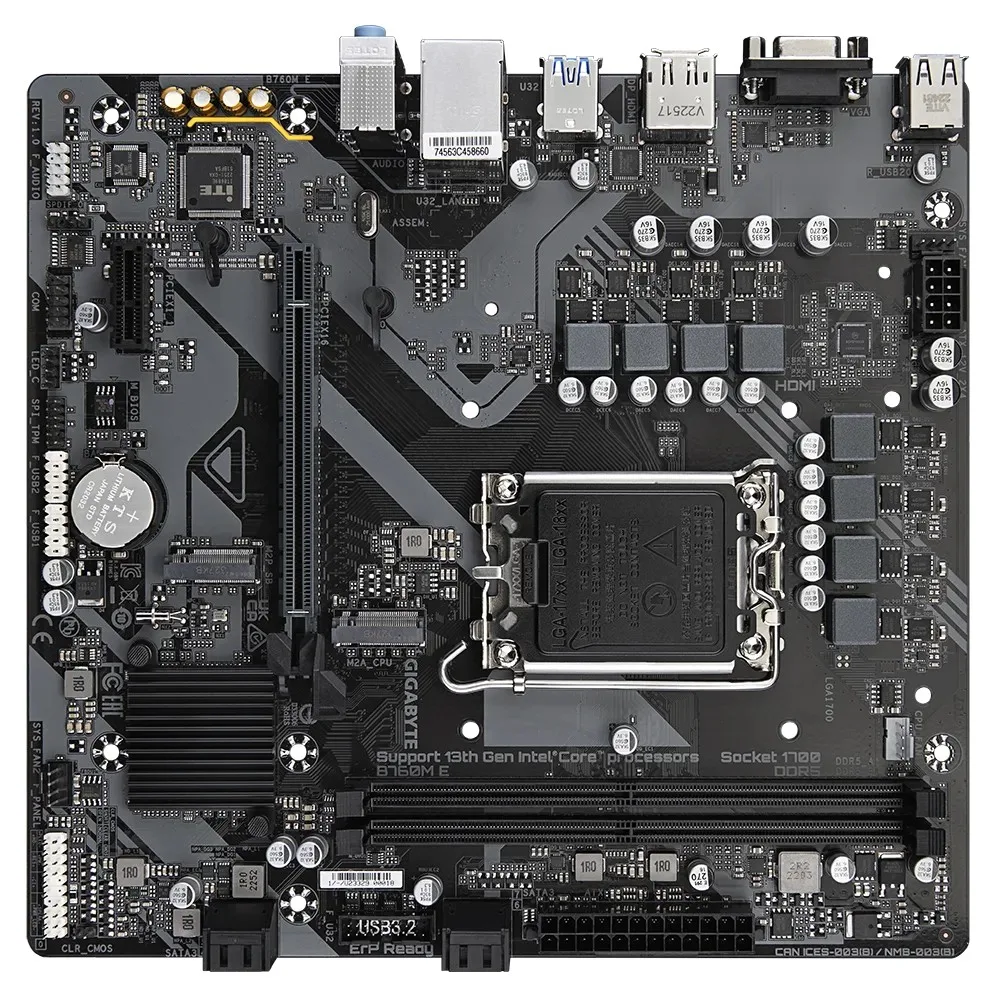

GIGABYTE B760M E DDR5 Intel B760 LGA 1700 Micro ATX Motherboard - Image 3

GIGABYTE B760M E DDR5 Intel B760 LGA 1700 Micro ATX Motherboard

Name: GIGABYTE B760M E DDR5 Intel B760 LGA 1700 Micro ATX Motherboard
Brand: Gigabyte
SKU: MC-MBD-GIG-0046
Price: 33000 PKR
Availability: InStock

SKU: MC-MBD-GIG-0046 Category: Intel Motherboards Brand: Gigabyte

The GIGABYTE B760M E DDR5 is a Micro ATX motherboard featuring the Intel B760 chipset and LGA1700 socket for 14th, 13th, and 12th Gen Intel processors. It supports dual-channel DDR5 memory up to 128 GB, PCIe 4.0 for graphics and storage, and offers versatile connectivity with HDMI 2.1, DisplayPort, and Realtek GbE LAN. Ideal for building a compact yet powerful PC.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 33,000

Compare

Add to wishlist

Description

The GIGABYTE B760M E DDR5 is a Micro ATX motherboard built on the Intel B760 chipset, supporting LGA1700 socket for 14th, 13th, and 12th Gen Intel Core processors. It features dual-channel DDR5 memory architecture with support for up to 128 GB and speeds up to 7200 MT/s (OC), ensuring fast data access and multitasking capabilities.

Equipped with PCIe 4.0 x16 slot, two M.2 connectors (both PCIe 4.0 x4), and four SATA 6Gb/s ports, this motherboard offers flexible storage options. Connectivity includes Realtek GbE LAN, HDMI 2.1, DisplayPort 1.2, D-Sub, multiple USB 3.2 Gen 1 and USB 2.0 ports, and 3 audio jacks.

Supports 14th, 13th, and 12th Gen Intel Core processors (LGA1700)
Dual-channel DDR5 memory, up to 128 GB, 7200 MT/s (OC)
PCIe 4.0 x16 slot and two PCIe 4.0 x4 M.2 slots
Realtek GbE LAN with bandwidth management
HDMI 2.1, DisplayPort 1.2, and D-Sub outputs
GIGABYTE Control Center and Q-Flash for easy BIOS updates

Specification

Overview

Warranty	1 Year
Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors, L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
Audio	3 x audio jacks
PCI	CPU:, – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, * The PCIEX16 slot can only support a graphics card or an NVMe SSD., Chipset:, – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Type	DDR5
Slots	2
Supported Memory	Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory module
Maximum Memory	Supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Graphics	Onboard Graphics, Integrated Graphics Processor-Intel® HD Graphics support:, – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz, – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz, * Support for DisplayPort 1.2 version and HDCP 2.3, – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3., ** Support native HDMI 2.1 TMDS compatible ports.
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
D-Sub (s)	1 x D-Sub port
USB (s)	Chipset:, – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header), – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	CPU:, – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU), Chipset:, – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB), – 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

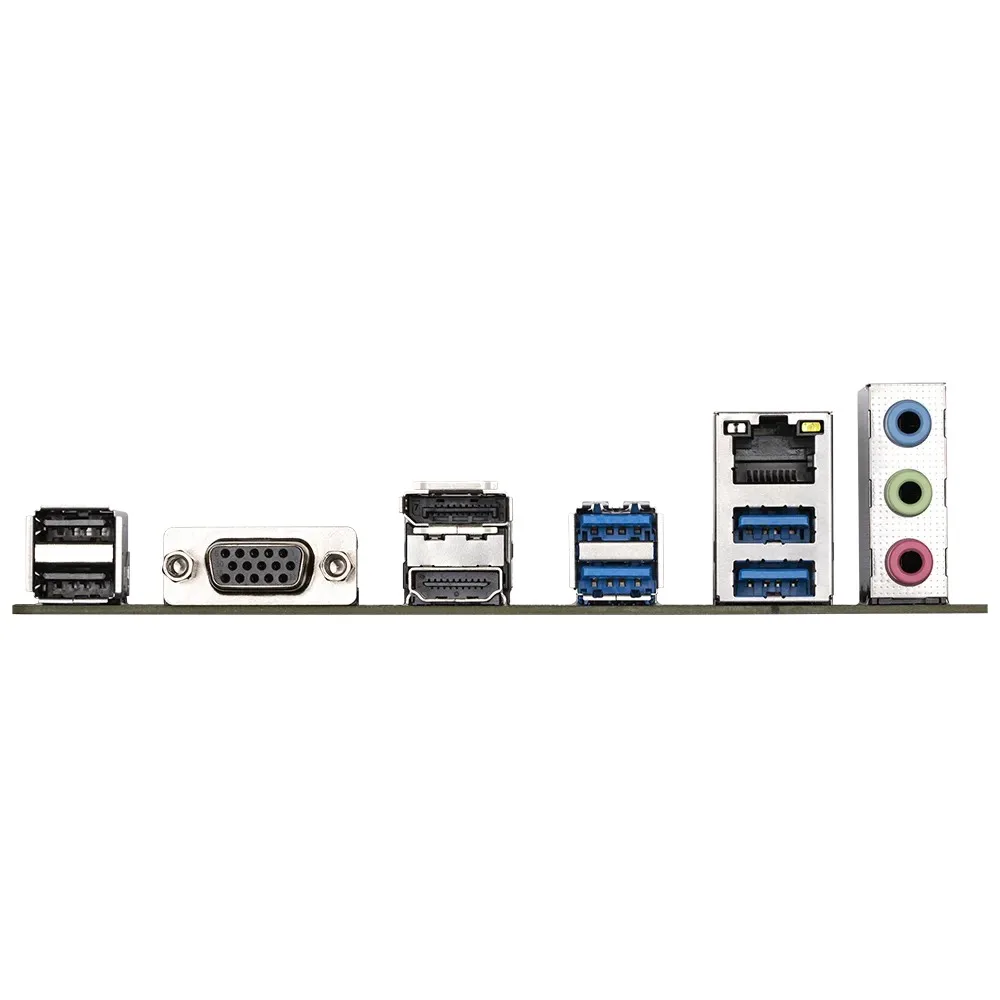

Internal I/O Ports	Internal I/O Connectors, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x serial port header, 1 x Clear CMOS jumper, Back Panel Connectors, 2 x USB 2.0/1.1 ports, 1 x D-Sub port, 1 x DisplayPort, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 1 x RJ-45 port, 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Special Features	Support for GIGABYTE Control Center (GCC), Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version), LAN bandwidth management software
Form Factor	Micro-ATX
Memory Type	DDR5
