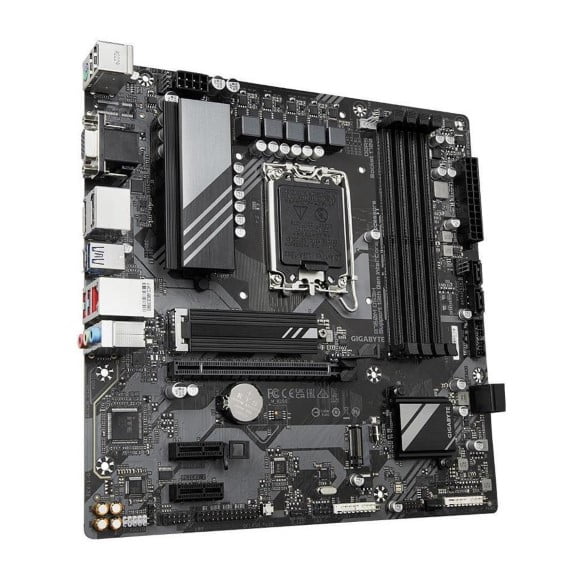

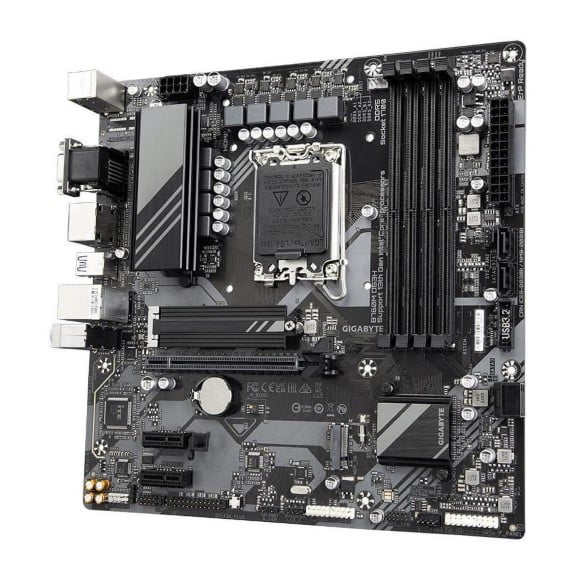

GIGABYTE B760M DS3H DDR5 LGA 1700 Intel B760 Micro ATX Motherboard
The GIGABYTE B760M DS3H DDR5 is a Micro ATX motherboard featuring the Intel B760 chipset and LGA 1700 socket for 12th and 13th Gen processors. It supports dual-channel DDR5 memory up to 7600MHz (OC), four SATA ports, two M.2 slots, and offers 2.5GbE LAN and Realtek 7.1-channel audio. Ideal for building a compact yet powerful PC with nationwide delivery and cash-on-delivery available in Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 39,000
Description
The GIGABYTE B760M DS3H DDR5 is a Micro ATX motherboard built on the Intel B760 chipset, supporting 12th and 13th Gen Intel processors via the LGA 1700 socket. It features four DDR5 memory slots with dual-channel support and speeds up to 7600MHz (OC), accommodating up to 128GB of RAM for demanding applications and multitasking.
Connectivity options include one PCIe 4.0 x16 slot, two PCIe x1 slots, four SATA 6Gb/s ports, and two M.2 slots for fast storage. The motherboard is equipped with a Realtek 7.1-channel audio chip and a 2.5GbE LAN chip for high-quality sound and network performance. Back I/O ports include USB 3.2 Gen2 Type-C, USB 3.2 Gen1, USB 2.0, VGA, HDMI, and DisplayPort interfaces, along with PS/2, RJ45, and audio jacks.
- Intel B760 Chipset with LGA 1700 socket for 12th/13th Gen CPUs
- 4 x DDR5 DIMM slots, dual-channel, up to 7600MHz (OC), max 128GB
- 1 x PCIe 4.0 x16, 2 x PCIe x1, 4 x SATA 6Gb/s, 2 x M.2 slots
- Realtek 7.1-channel audio and 2.5GbE LAN
- Back I/O: USB-C 3.2 Gen2, USB 3.2 Gen1, USB 2.0, VGA, HDMI, 2x DisplayPort, PS/2, RJ45, audio
- Micro ATX form factor (24.4 x 24.4 cm) with 1-year warranty
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Brand | GIGABYTE |
| Model | B760M DS3H D5 |
| CPU Socket Type | LGA 1700 |
| CPU Type | CPU Type Twelfth Generation Thirteenth Generation |
| Chipset | Intel B760 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support dual-channel DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000MHz memory |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express x1 | 2 x PCI Express x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 2 x M.2 |
| Audio Chipset | Audio chip Integrated Realtek 7.1 channel audio chip |
| LAN Chipset | Network card chip Onboard 2.5GbE network card |
| Back I/O Ports | USB (backplane) 1×USB3.2 Gen2 Type-C interface, 3×USB3.2 Gen1 interface, 2×USB2.0 interface, USB (built-in) 1×USB Type-C interface, 1×USB3.2 Gen 1 interface, 2×USB2.0 interface, Video interface 1×VGA interface, 1×HDMI interface, 2×DisplayPort interface, Power interface One 8-pin, one 24-pin power interface, Other interfaces 2×PS/2 common interface for keyboard and mouse, 1×RJ45 network interface, 3×audio interface |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 24 4 × 244 mm |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
