EASE PTZ20X 1080P Video Conferencing Camera
1080P Full HD video conferencing camera with 20x optical zoom, AI auto focus, and low light performance. Ideal for professional meetings.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 162,500
Description
The EASE PTZ20X 1080P Video Conferencing Camera delivers professional-grade video quality for your meetings and presentations. With 1080P Full HD resolution and a new generation ISP image processing algorithm, it ensures sharp, vibrant images even in challenging lighting conditions.
Equipped with a 60° wide-angle lens and 20x optical zoom, this camera captures every detail from across the room. Advanced AI technology and leading auto focus keep subjects clear and in focus, while low illumination capability guarantees clear images in dim environments. AAC audio encoding and exclusive audio processing provide high-quality sound.
- 1080P Full HD video resolution
- New Generation ISP Image Processing Algorithm for improved image quality
- Upgraded AI technology for advanced features
- Leading Auto Focus Technology for clear and sharp images
- 60° Wide-angle Lens + 20x Optical Zoom for versatile viewing
- Low illumination for clear image capture in low light conditions
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Model | PTZ20X |
| Name | 1080P Professional PTZ Camera With AI Technology |
| Sensor | 1/2.8 inches, CMOS, Effective Pixel: 2.07 Megapixels |
| Scanning Mode | Progressive |
| Focal length | 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
| Shutter | 1/30s ~ 1/10000s |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| SNR | ≥ 55dB |
| Horizontal FOV | 60.7° ~ 3.36° |
| Vertical FOV | 34.1° ~ 1.89° |
| Pan Angle | ±170° |
| Tilt Angle | -30° ~ +90° |
| Pan Speed | 1.7° ~ 100° /s |
| Tilt Speed | 1.7° ~ 69.9° /s |
| Image Flip | Support |
| Image Freeze | Support |
| Preset Position | 255 |
| Preset Accuracy | 0.1° |

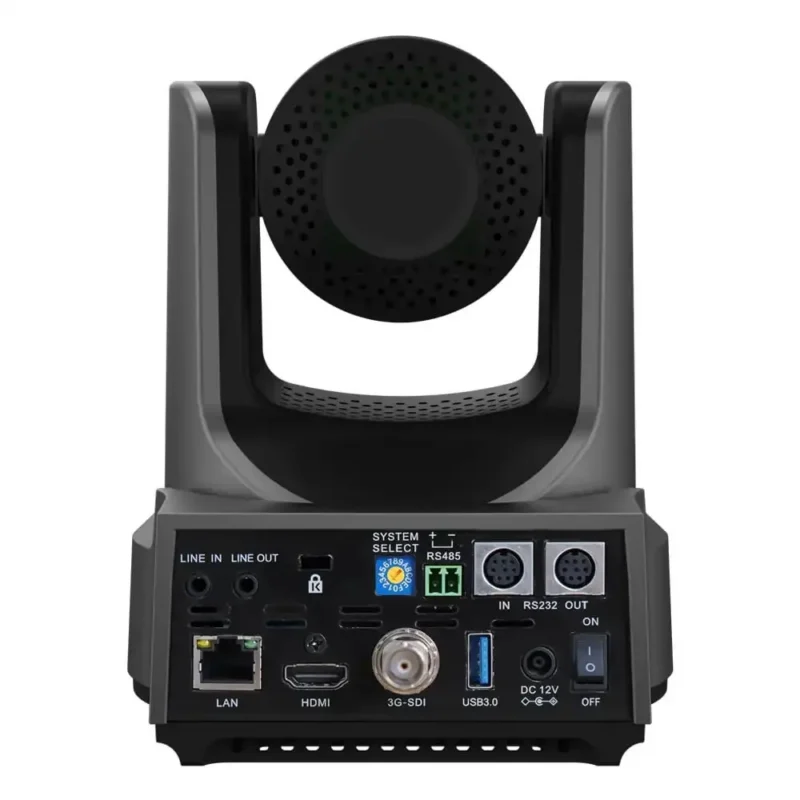

| USB Interfaces | 1 x USB3.0,Type-A |
| HD Output | 1 x HDMI: Version 1.3 ; x3G-SDI: BNC, 800mVp-p, 75Ω, as SMPTE 424M standard |
| Network Interface | 1x RJ45: 10M/100M/1000M adaptive Ethernet, Support PoE |
| Audio Interface | Built-in dual microphones ,1 x Line In, 3.5mm Jack, 1 x Line Out, 3.5mm Jack |
| Control Interface | 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only |
| Power Interface | JEITA type (DC IN 12V) |
| Microphone Array | Built-in dual microphones, 100Hz to 16KHz frequency response. |
| Analog Audio Input/Output | Support 3.5mm Line-In; Support 3.5mm Line-Out |
| Digital Audio Output | Support HDMI, USB, LAN, 3G-SDI etc. |
| Video Compression | H.265 / H.264 |
| Video Stream | First Stream, Second Stream |
| First Stream Resolution | 1920×1080, 1280×720, 1024×576 etc. |
| Second Stream Resolution | 1280×720,1024×576,720×576 etc |
| Video Bit Rate | 32Kbps ~ 102400Kbps |
| Bit Rate Control | Variable Bit Rate, Constant Bit Rate |
| Frame Rate | 1fps ~ 60fps |
| Audio Compression | AAC |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
| Protocol | NDI®, HB, NDI®, HX, NDI®, HX2, TCP/ IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast,SRT, GB/T 28181etc. |
| Operating System Supported | Windows® 7 (only 1080P and below supported), Windows 8.1, Windows 10 or higher macOS ™ 10.10 or higher Google ™ Chromebook ™ Version 29.0.1547.70 or higher Linux (support UVC) |
| Hardware Requirements | 2.4 GHz Intel® Core 2 Duo CPU or higher 2 GB RAM or more USB 2.0 interface |
| Color System / Compression | YUY2 H.264 / MJPEG |
| Signal System | Support variety of video formats with different frame rates and resolutions, up to 1080p/60 YUY2 output. |
| USB Video Communication Protocol | UVC1.1 and UVC1.5 |
| USB Audio | 32K Sampling Rate, Support UAC2.0 |
| UVC PTZ Control | Support |
| Input Voltage | DC 12V / PoE (802.3af) |
| Input Current | 1.0A (Max.) |
| Operating Temperature | -10° C ~ 40° C |
| Storage Temperature | -40° C ~ 60℃ |
| Power Consumption | 12W (Max.) |
| Dimensions | 169mm x 142mm x 164mm |
| Net Weight | 1.35Kg |
