EASE EPC i3-7167u Mini PC
The EASE EPC i3-7167u Mini PC is a fanless, compact desktop powered by an Intel Core i3-7167u processor with Intel Iris Plus Graphics 650. It supports up to 32GB DDR4 memory, dual storage via M-SATA and SATA 3.0, and offers extensive connectivity including USB 3.0, HDMI, VGA, and Gigabit LAN. Ideal for silent, reliable computing, it is available with nationwide delivery and cash-on-delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 42,925
Description
The EASE EPC i3-7167u Mini PC is a compact, fanless computing solution powered by an Intel Core i3-7167u processor with Intel Iris Plus Graphics 650. Its customized 120x120mm motherboard supports up to 32GB DDR4 memory and multiple storage options including M-SATA and SATA3.0 SSDs, delivering efficient performance for business, education, or home use.

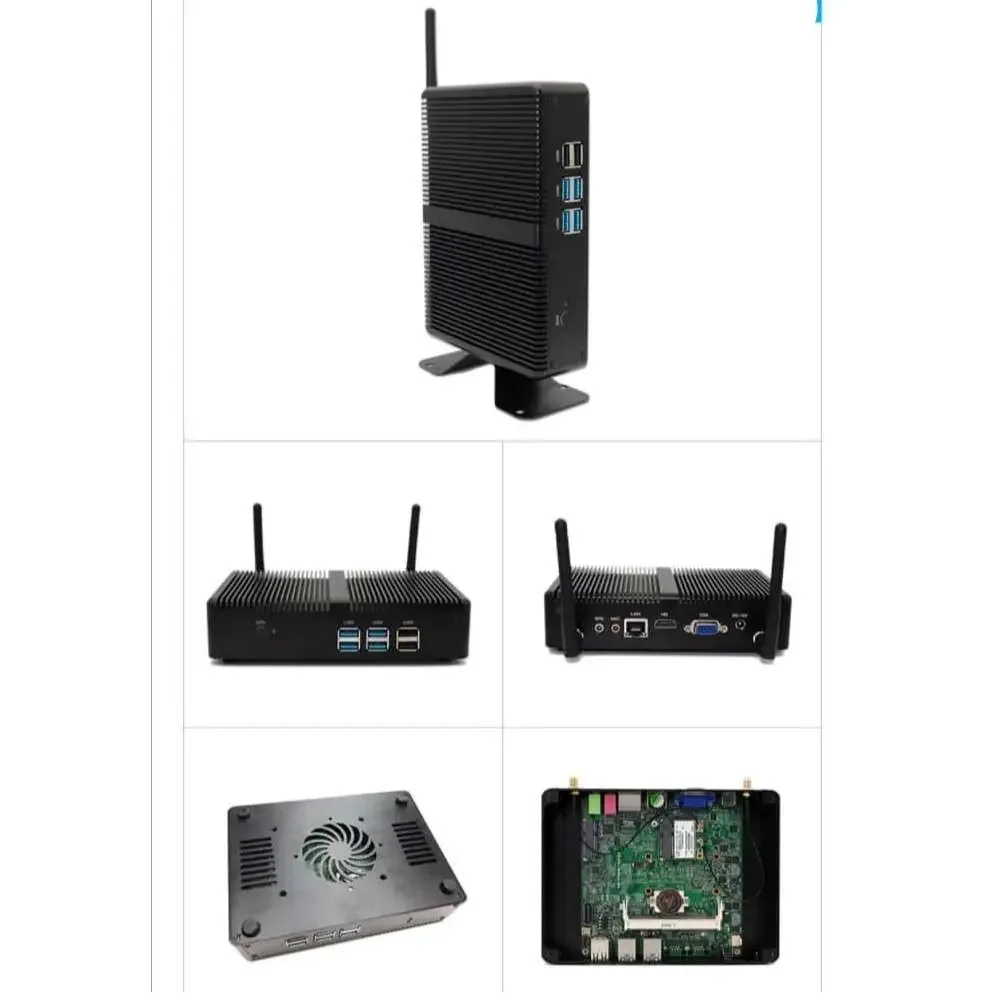

Designed for silent operation, the all-aluminum alloy chassis ensures effective heat dissipation without moving parts. Connectivity is comprehensive with dual USB 3.0 and USB 2.0 ports, HDMI 1.4 and VGA outputs, a Gigabit LAN port, and optional Wi-Fi via mini-PCIe. The system supports Wake-on-LAN, PXE boot, and includes a Kensington lock for security.
- Intel Core i3-7167u processor (15W TDP) with Intel Iris Plus Graphics 650
- Fanless cooling for silent, dust-resistant operation
- Supports up to 32GB DDR4/LPDDR3/DDR3L memory
- Dual storage: M-SATA 3.0 (6Gb/s) and SATA 3.0 (6Gb/s)

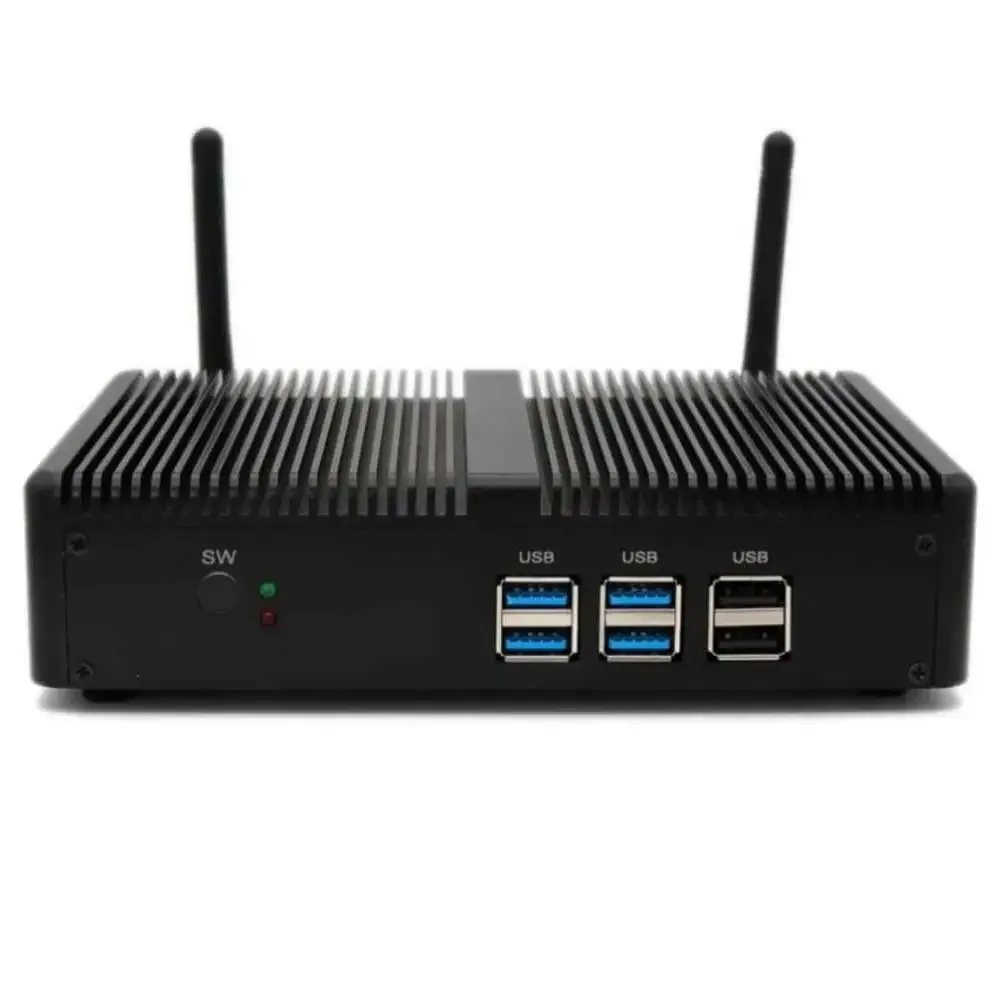

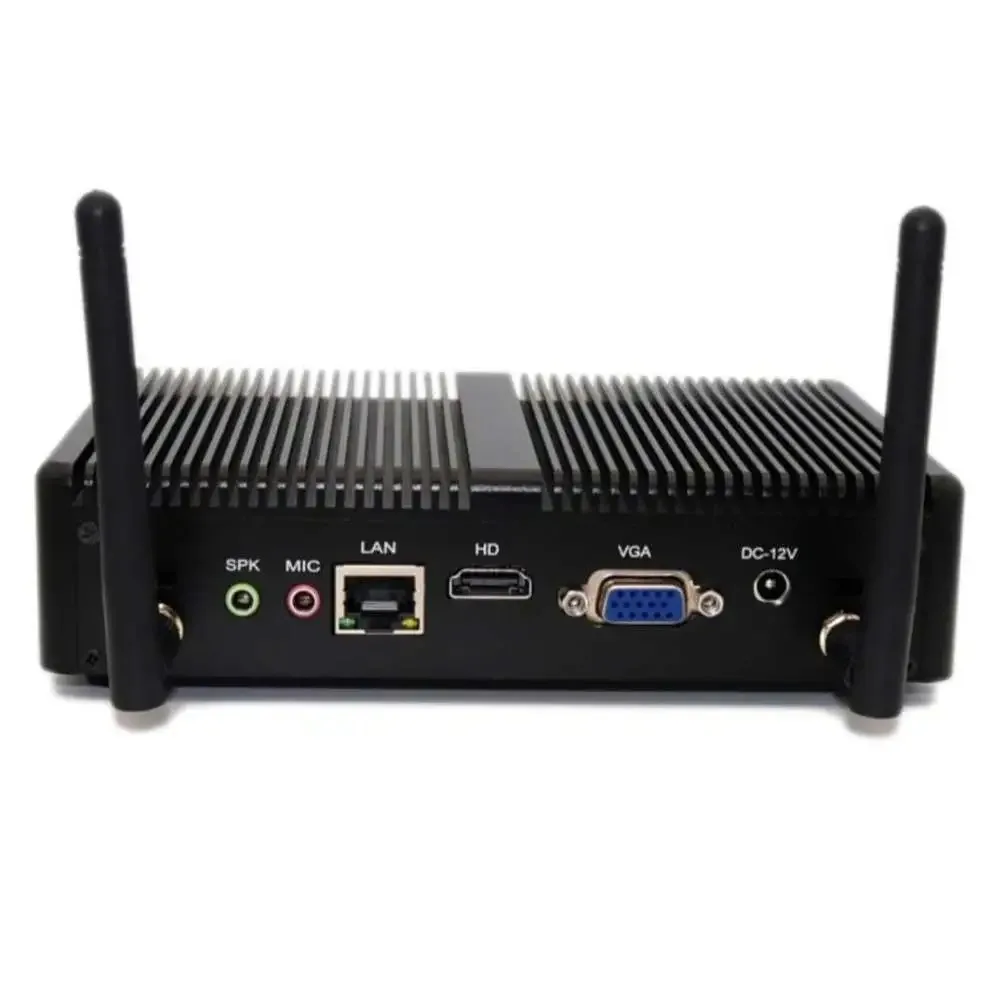

- 4x USB 3.0, 2x USB 2.0, HDMI 1.4, VGA, Gigabit LAN
- Compact size (173x127x39mm) with VESA mount option
Specification
Overview
| Processor | Core i3 |
|---|---|
| CPU | Intel Core i3-7167u |
| TDP | 15W |
| Motherboard | 120 x 120mm customized board |
| BiOS | AMI BiOS, ACPI Supported |
| Chipset | Intel KABYLAKE |
| Memory | 1 * SO-DIMM DDR4 Slot, Support 4/8/16/32GB DDR4- 2123, LPDDR3-1866, DDR3L-1600 |
| OS | Windows 7/Windows 8/Windows10/Linux |
| PXE | YES |
| Audio | 1 x Mic, 1 x SPK |
| Network | Onboard Realtek RTLR168/r1111/r112 PO-E Gigabit Ethernet NoC |
| Video | Intel Iris Plus Graphics 650 |
| Module | 1 x mini PCIE-half port for Wi-Fi module |
| Antenna | 2 x inner RF cables and 2 x external antennas |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +12v”’19V, recommend 12V/5A |
| Operating Temperature | 0/+70 centigrade |
| Storage Temperature | -20/+85 Centigrade |
| Relative Humidity | 0%-90% |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 12V DC in |
| LED | 2 x LED |
| USB | 2 x USB2.0, 4 x USB3.0 |
| Display | 1 x VGA, 1 x HDMI 1.4 |
| LAN | 1 x RJ45 Giga LAN |
| Others | 2 x kennsington lock holes |
| MtSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Size | 173*127*39mm |
| Weight | Net 0.8kg, Gross 1.2kg |
| Shell | Silver/blue/black Color alluminium alloy |
| Cooling Mode | Fanless |
| Functions | Calls on function automatically, Wake-on LAN, Kensington Lock |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1x Bracket |
| Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xVESA mount |
