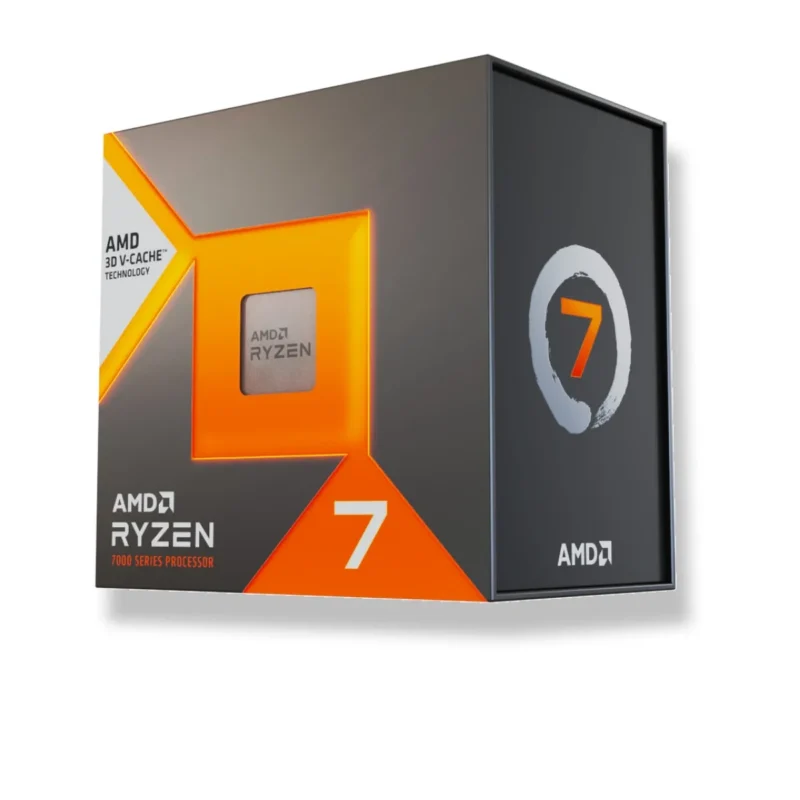

Deal 01 – MSI X670E GAMING PLUS WIFI + 7800X3D Box
The Deal 01 – MSI X670E GAMING PLUS WIFI + 7800X3D Box combines a high-performance motherboard and processor for ultimate gaming and productivity. The MSI X670E motherboard features PCIe 5.0, DDR5 support up to 7800+ MHz, Wi-Fi 6E, and 2.5G LAN, while the Ryzen 7 7800X3D offers 8 cores, 16 threads, and 96MB of L3 cache for exceptional speed. Ideal for enthusiasts across Pakistan, with nationwide delivery available.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 219,990
Description
This Deal 01 bundles the MSI X670E GAMING PLUS WIFI motherboard with the AMD Ryzen 7 7800X3D processor, delivering top-tier performance for gaming and content creation. The motherboard supports AMD Ryzen 7000 series CPUs on the AM5 socket, features PCIe 5.0 for graphics and storage, and offers DDR5 memory support up to 7800+ MHz (OC).
The Ryzen 7 7800X3D includes 8 cores and 16 threads with a boost clock of up to 5.0 GHz, plus 96 MB of L3 cache for exceptional gaming performance. This combo ensures blazing-fast speeds and future-proof connectivity.
- Motherboard: MSI X670E GAMING PLUS WIFI with AMD X670 chipset, 4x DDR5 slots up to 192GB, PCIe 5.0 x16, 4x M.2 slots (1x Gen5), 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3.
- CPU: AMD Ryzen 7 7800X3D (8 cores, 16 threads, up to 5.0 GHz, 96MB L3 cache, 120W TDP, AM5 socket).
- Memory Support: DDR5-7800+(OC) on 1DPC 1R, dual-channel, AMD EXPO.
- Storage: 4x SATA 6Gb/s with RAID 0/1/10, 4x M.2 with RAID 0/1.
- Audio & Connectivity: Realtek ALC897 7.1-channel audio, DisplayPort, HDMI, USB 3.2 Gen 2×2 Type-C, Flash BIOS button.
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Best Seller Ranking | #28 in AMD Motherboards |
| Brand | MSI |
| Model | X670E GAMING PLUS WIFI |
| Part Number | X670E GAMING PLUS WIFI |
| CPU Socket Type | AM5 |
| CPU Type | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Number of Memory Slots | 4x DDR5 UDIMM, Maximum Memory Capacity 192GB |
| Memory Standard | Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz, Max. overclocking frequency:, • 1DPC 1R Max speed up to 7800+ MHz, • 1DPC 2R Max speed up to 6400+ MHz, • 2DPC 1R Max speed up to 6400+ MHz, • 2DPC 2R Max speed up to 5400+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports AMD EXPO™ |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express x16 | 3x PCI-E x16 slot, Supports x16/x1/x4, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 3.0 supports up to x1 (From CPU), PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 4x M.2, M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| SATA RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 for M.2 NVMe storage devices |
| Audio Channels | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Max LAN Speed | Realtek® RTL8125BG 2.5Gbps LAN |
| Wireless LAN | AMD Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3**, * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11., ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Bluetooth | Yes |
| Back I/O Ports | DisplayPort, USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 1 5Gbps (Type-A), USB 2.0 (Type-A), 2.5G LAN, Flash BIOS Button, HDMI™, USB 3.2 Gen 2×2 20Gbps (Type-C), Wi-Fi / Bluetooth, Audio Connectors |
| Other Connectors | 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports, 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
| Form Factor | ATX |
| Dimensions (W x L) | 243.84mmx304.8mm |
| Windows 11 | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Features | Supports AMD Ryzen™ 7000 Series Desktop Processors, Supports DDR5 Memory, up to 7800+(OC) MHz, Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2×2, Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works, High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material, AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience |
| CPU Model | AMD Ryzen 7 7800X3D |
| CPU Socket | AM5 |
| Manufacturing Process | 5 nm |
| Maximum Number of PCIe Lanes | 28 (Revision 5.0) |
| Unlocked | Yes |
| Number of Cores | 8 |
| Number of Threads | 16 |
| Base Clock Speed | 400 MHz |
| Maximum Boost Speed | 2200 MHz |
| L3 Cache | 96 MB |
| Maximum Capacity | 128 GB |
| Memory Support | DDR5 Up to 5200 MHz |
| ECC Memory | Yes |
| Channel Architecture | Dual Channel |
| Thermal Design Power (TDP, Max) | 120 W |
| Included Thermal Solution | No |
| Maximum Temperature | 192.2°F / 89°C |
| Thermal Monitoring Technologies | Yes |
| AES Support | Yes |
| Extension | AVX, AVX 2.0, AVX-512, FMA3, SSE 4.1, SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes: AMD-V |
| Performance Technologies | AMD EXPO, Precision Boost 2 |
| Integrated Graphics | AMD Radeon |
| Output Support | DisplayPort, HDMI |
| Package Weight | 0.6 lb |
| Box Dimensions (LxWxH) | 5.3 x 5.1 x 3.7″ |
