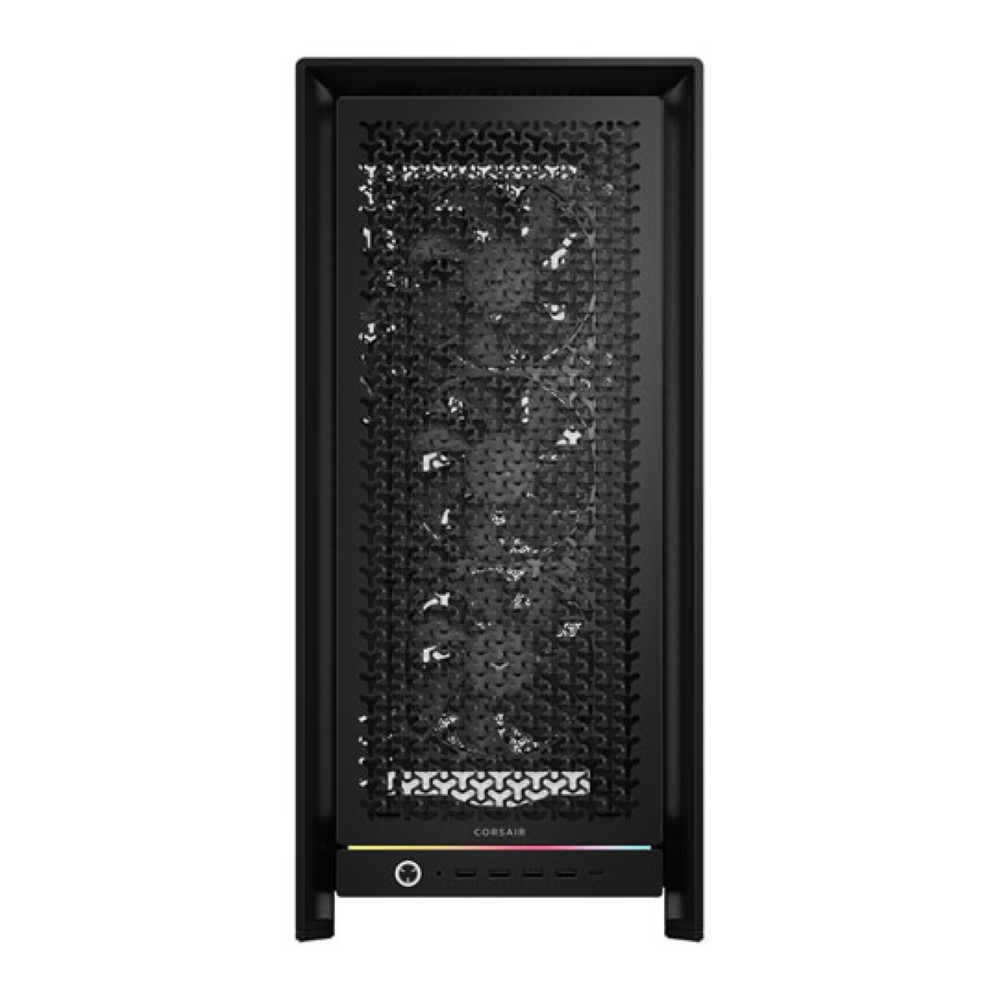

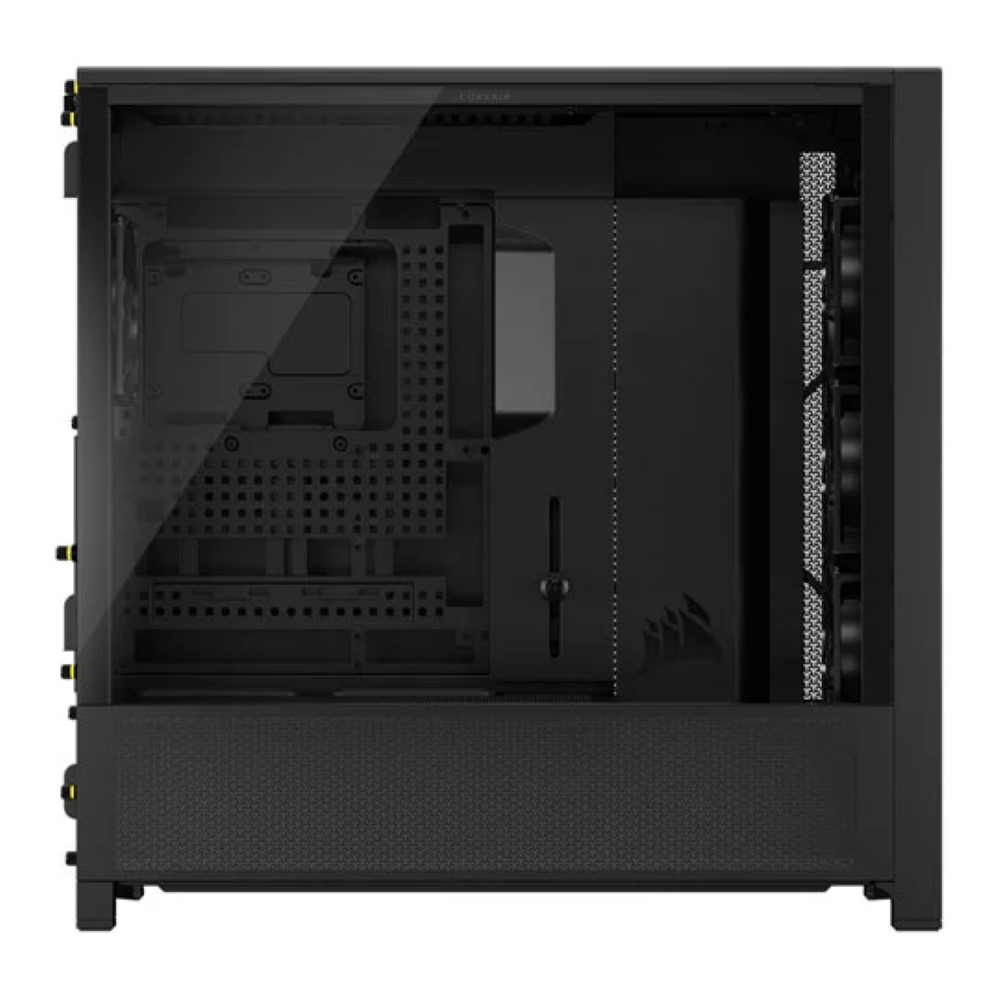

Corsair FRAME 5000D RS High-Airflow Mid-Tower ATX PC Case – Black
The Corsair FRAME 5000D RS is a high-airflow mid-tower ATX PC case in black, featuring a steel and tempered glass design with a 3D-Y airflow front panel for superior cooling. It supports E-ATX motherboards, CPU coolers up to 175mm, and GPUs up to 450mm, with extensive radiator support up to 420mm. The case includes RS Series fans and RapidRoute cable management for easy building. Available with nationwide delivery in Pakistan and cash-on-delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 57,570
Description
The Corsair FRAME 5000D RS is a high-airflow mid-tower ATX case designed for maximum cooling and spacious builds. Its steel and tempered glass construction, combined with a 3D-Y airflow steel front panel, ensures optimal ventilation for high-performance components. The case supports a wide range of motherboards from Mini-ITX to E-ATX, and accommodates CPU coolers up to 175mm tall and GPUs up to 450mm long.
With extensive radiator support including up to 420mm at the top and 360mm at the front, side, and rear, you can build a powerful liquid cooling system. The case includes RS Series fans and features a RapidRoute cable management system with 42mm of routing space. The front I/O offers USB 3.2 Gen 2 Type-C and four USB 3.2 Gen 1 Type-A ports for fast connectivity.
- High-airflow design with 3D-Y airflow steel front panel for superior cooling
- Supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards (up to 305mm x 277mm)
- Ample radiator support: top up to 420mm, front/side up to 360mm, rear up to 140mm
- Generous component clearance: CPU cooler up to 175mm, GPU up to 450mm
- Versatile storage: 2x 3.5″ and 6x 2.5″ drive bays for flexible configurations
- Front I/O with USB 3.2 Gen 2 Type-C and four USB 3.2 Gen 1 Type-A ports
Specification
Overview
| Warranty | No Warranty |
|---|---|
| Case Supported | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Case Height | 542mm |
| Case Length | 556mm |
| Case Width | 250mm |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Color | BLACK |
| Case Size | Mid-Tower |
| Case Window | Tempered Glass |
| Internal 3.5″ Drive Bays | 2 |
| Internal 2.5″ Drive Bays | 6 |
| Maximum CPU Cooler Height | 175mm |
| Case Front IO | (1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out |
| Maximum GPU Length | 450mm |
| Weight | 15.48kg |
| Case Expansion Slots | 8 Horizontal or 3 Vertical |
| Case Power Supply | ATX |
| Radiator Support – Top | 420mm, 360mm, 280mm, 240mm |
| Radiator Support – Front | 360mm, 280mm, 240mm |
| Radiator Support – Bottom | None |
| Radiator Support – Side | 360mm, 280mm, 240mm |
| Radiator Support – Rear | 140mm, 120mm |
| Fan Support – Top | 3x 120mm, 3x 140mm |
| Fan Support – Front | 3x 120mm, 3x 140mm, 2x 200mm |
| Fan Support – Bottom | 4x 120mm |
| Fan Support – Side | 3x 120mm, 3x 140mm |
| Fan Support – Rear | 1x 140mm, 1x 120mm |
| Front IO Motherboard Connections | 1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E, 1x F_PANEL, 1x 5V ARGB |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | RS Series |
| Dust Filtration | Yes |
| Cable Routing Space | 42mm |
| RapidRoute Included | Yes |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
