ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 (13th and 12th Gen) LGA 1700 ATX Motherboard

Name: ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 (13th and 12th Gen) LGA 1700 ATX Motherboard
Brand: Asus
SKU: MC-MBD-ASU-0078
Price: 72500 PKR
Availability: InStock

SKU: MC-MBD-ASU-0078 Category: Intel Motherboards Brand: Asus

The ASUS TUF GAMING B760-PLUS WIFI D4 is an ATX motherboard for Intel 12th and 13th Gen CPUs, featuring the B760 chipset and DDR4 memory support up to 5333MHz. It offers PCIe 5.0, three M.2 slots, 2.5Gb Ethernet, Wi-Fi 6, and comprehensive TUF Protection for durability. Ideal for building a reliable gaming PC with nationwide delivery and cash-on-delivery available across Pakistan.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 72,500

Compare

Add to wishlist

Description

The ASUS TUF GAMING B760-PLUS WIFI D4 is a robust ATX motherboard built for Intel 12th and 13th Gen LGA 1700 processors, featuring the Intel B760 chipset. It supports DDR4 memory up to 5333MHz (OC) with a maximum capacity of 128GB across four slots, ensuring high-speed performance for gaming and multitasking. With PCIe 5.0 support for the latest graphics cards, three M.2 slots with PCIe 4.0, and 2.5Gb Ethernet plus Wi-Fi 6, this board delivers exceptional connectivity and expansion options.

Designed with TUF Protection features including DIGI+ VRM, ESD Guards, and SafeSlot Core+, the motherboard offers enhanced durability and stability. The comprehensive cooling solution includes VRM heatsinks and M.2 heatsinks, while Q-Design elements like Q-LED and M.2 Q-Latch simplify installation. Aura Sync RGB headers allow for customizable lighting, and the rear I/O includes USB 3.2 Gen 2×2 Type-C, DisplayPort, HDMI, and more.

Intel LGA 1700 socket for 12th/13th Gen CPUs with Intel B760 chipset
DDR4 memory support up to 5333MHz (OC), 128GB max, dual-channel
PCIe 5.0 x16 slot for graphics, plus PCIe 3.0 x16 and x1 slots
Three M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s ports with RAID support
Realtek 2.5Gb Ethernet, Wi-Fi 6, Bluetooth v5.2
Rear I/O: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2 Type-A, DisplayPort, HDMI, audio jacks

Specification

Overview

Warranty	1 Year
Brand	ASUS
Model	TUF GAMING B760-PLUS WIFI D4
Part Number	90MB1DF0-M0AAY0
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipset	Intel B760
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	Supports Intel Extreme Memory Profile (XMP), OptiMem II, * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
PCI Express 5.0 x16	Intel 13th & 12th Gen Processors, 1 x PCIe 5.0 x16 slot
PCI Express 3.0 x16	Intel B760 Chipset, 1 x PCIe 3.0 x16 slot (supports x4 mode) *
PCI Express x1	2 x PCIe 3.0 x1 slots, PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2. When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode., – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel B760 Chipset, M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, – Supports up to 24-Bit/192 kHz playback, Audio Features, – Audio Shielding, – Rear optical S/PDIF out port, – Premium audio capacitors, – Dedicated audio PCB layers, – Audio cover
Audio Channels	7.1 Channels
Max LAN Speed	1 x Realtek 2.5Gb Ethernet, TUF LANGuard
Wireless LAN	Wi-Fi 6, 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band
Bluetooth	Bluetooth v5.2, *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

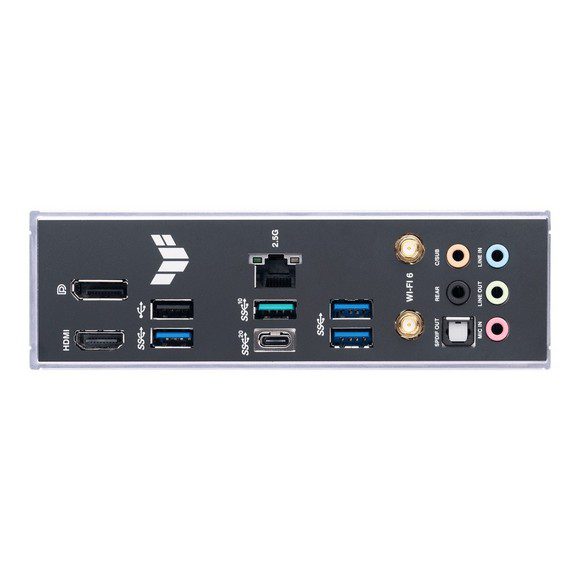

Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C), 1 x USB 3.2 Gen 2 port (1 x Type-A), 3 x USB 3.2 Gen 1 ports (3 x Type-A), 1 x USB 2.0 port (1 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port
Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Storage related, 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt (USB4) header
Form Factor	ATX
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector
Windows 11	Supported
Features	ASUS TUF PROTECTION, – DIGI+ VRM (- Digital power design with DrMOS), – ESD Guards, – TUF LANGuard, – Overvoltage Protection, – SafeSlot Core+, – Stainless-Steel Back I/O, ASUS Q-Design, – M.2 Q-Latch, – Q-DIMM, – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), – Q-Slot, ASUS Thermal Solution, – M.2 heatsink, – VRM heatsink design, ASUS EZ DIY, – CPU Socket lever protector, – ProCool, – Pre-mounted I/O shield, – SafeSlot Core+, – SafeDIMM, Aura Sync, – Aura RGB header, – Addressable Gen 2 headers
Package Contents	Cables, 2 x SATA 6Gb/s cables, Miscellaneous, 1 x ASUS Wi-Fi moving antenna, 1 x TUF Gaming sticker, 2 x M.2 Rubber Packages, 1 x Screw package for M.2 SSD, Documentation, 1 x TUF Certification card, 1 x User guide
Form Factor	ATX
