ASUS TUF Gaming B550-PLUS AM4 ATX Motherboard

Name: ASUS TUF Gaming B550-PLUS AM4 ATX Motherboard
Brand: Asus
SKU: MC-MBD-ASU-0117
Price: 59000 PKR
Availability: InStock

SKU: MC-MBD-ASU-0117 Category: AMD Motherboards Brand: Asus

The ASUS TUF Gaming B550-PLUS is an ATX motherboard supporting AMD Ryzen 5000/4000 G/3000 series processors on the AM4 socket. It features DDR4 memory up to 4800MHz, PCIe 4.0 support, dual M.2 slots, 2.5Gb Ethernet, and TUF durability with military-grade components. Ideal for reliable gaming and productivity builds, available with nationwide delivery in Pakistan.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 59,000

Compare

Add to wishlist

Description

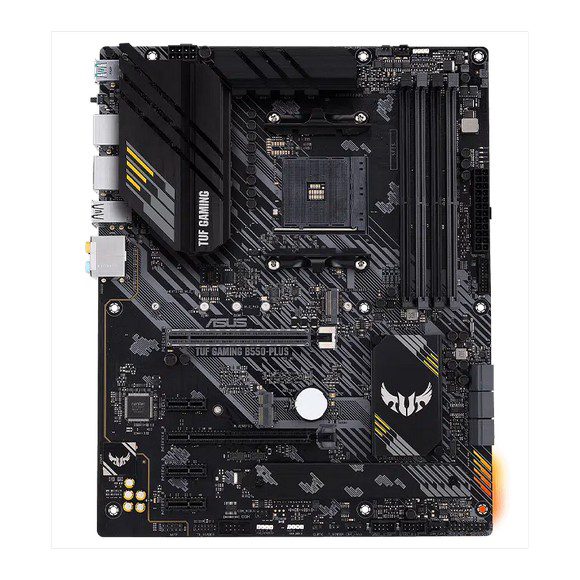

The ASUS TUF Gaming B550-PLUS is an ATX motherboard built for AMD Ryzen 5000/4000 G/3000 series processors on the AM4 socket. It features the AMD B550 chipset, supporting DDR4 memory up to 4800MHz (OC) and dual-channel configurations up to 128GB. With PCIe 4.0 support for the primary x16 slot and M.2 slot, this motherboard delivers high-speed connectivity for modern GPUs and SSDs.

Designed for durability and performance, the TUF Gaming B550-PLUS includes military-grade components, TUF protection features like Digi+ VRM, LANGuard, and SafeSlot. It also offers comprehensive cooling with multiple fan headers, an AIO pump header, and an aluminum M.2 heatsink. Connectivity includes 2.5Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C, HDMI, DisplayPort, and Aura Sync RGB headers for customizable lighting.

Supports AMD Ryzen 5000/4000 G/3000 series processors on AM4 socket
DDR4 memory up to 4800MHz (OC), dual-channel, max 128GB
PCIe 4.0 x16 slot and one M.2 slot with PCIe 4.0 x4 support (with Ryzen 5000/3000 series)
Realtek ALC S1200A 7.1-channel audio and Realtek 2.5Gb Ethernet
Dual M.2 slots (one PCIe 4.0, one PCIe 3.0) and six SATA 6Gb/s ports with RAID 0/1/10
ASUS TUF Protection: Digi+ VRM, LANGuard, SafeSlot, ESD Guards, and stainless-steel back I/O

Specification

Overview

Brand	ASUS
Model	TUF GAMING B550-PLUS
CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 / 4000 G / 3000 Series Processors , Refer to www.asus.com for CPU support list., * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU.
Chipset	AMD B550
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 4000 G-Series Processors), DDR4 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 Series / 3000 Series Desktop Processors) , Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	ECC Memory (ECC mode) support varies by CPU.
Buffer Supported	Un-buffered
PCI Express 4.0 x16	1 x PCI Express 4.0 x16, * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16, x4 mode., * PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.
PCI Express x16	None
PCI Express x1	3 x PCIe 3.0 x1
Other Slots	M.2 slot only (Key E) (Support PCIe interface), Wi-Fi module is sold separately.
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	AMD Ryzen 5000 Series / 3000 Series Desktop Processors:, 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode), AMD Ryzen 4000 G-Series Processors:, 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support, AMD B550 Chipset:, 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support, M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.
SATA RAID	0/1/10
Onboard Video Chipset	Supported only by CPU with integrated graphic
Audio Chipset	Realtek ALC S1200A
Audio Channels	7.1 Channels
LAN Chipset	Realtek RTL8125B
Max LAN Speed	10/100/1000/2500Mbps

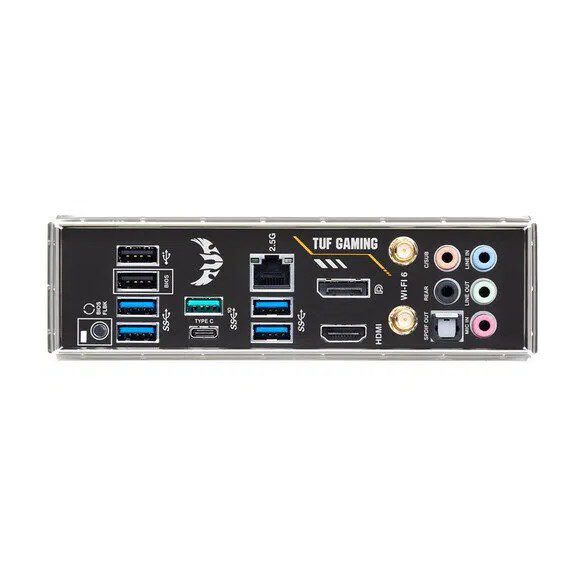

Back I/O Ports	1 x DisplayPort, 1 x HDMI, 1 x LAN (2.5G) port(s), 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C), 4 x USB 3.2 Gen 1 (blue) Type-A, 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack), 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x BIOS FlashBack Button(s)
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0
Onboard USB	1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Other Connectors	1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 2 x Aura RGB Strip Headers, 1 x Addressable Gen 2 header(s), 1 x SPI TPM header, 1 x Thunderbolt header(s), 1 x Front panel audio connector(s) (AAFP), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x COM port header
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector
Windows 11	Supported
Features	Multi-GPU Support:, Supports AMD 2-Way CrossFireX Technology, Software Features:, ASUS Exclusive Software, Armoury Crate, – Aura Creator, – Aura Sync, – AI Noise Cancelling Microphone, AI Suite 3, – Performance And Power Saving Utility, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 2+, – EZ update, TUF GAMING CPU-Z, AI Charger, ASUS Turbo LAN, DAEMON Tools, DTS Custom for GAMING Headsets, Norton Anti-virus software (Free Trial for 60 days), WinRAR, UEFI BIOS, ASUS EZ DIY, – ASUS CrashFree BIOS 3, – ASUS EZ Flash 3, – ASUS UEFI BIOS EZ Mode, ASUS Special Features:, ASUS TUF PROTECTION, – ASUS DIGI+ VRM (Digital power design with Dr. MOS), – ASUS Enhanced DRAM Overcurrent Protection, – ASUS ESD Guards, – TUF LANGuard, – ASUS Overvoltage Protection, – ASUS SafeSlot, – ASUS Stainless-Steel Back I/O, ASUS Q-Design, – ASUS Q-DIMM, – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), – ASUS Q-Slot, ASUS Thermal Solution, – Aluminum M.2 heatsink, ASUS EZ DIY, – BIOS FlashBack button, – BIOS FlashBack LED, – Procool, AURA Sync, – Standard RGB headers, – Addressable Gen 2 RGB header, BIOS:, 256MB Flash ROM, UEFI AMI BIOS, Manageability:, WOL by PXE, Operating System:, Windows 10 64-bit
Package Contents	Accessories:, User’s manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x Supporting DVD, 1 x TUF Gaming Sticker, 1 x TUF Certification card(s), 1 x M.2 SSD screw package(s), 1 x M.2 Rubber Package(s)
Form Factor	ATX
