ASUS ROG Strix Z790-E Gaming WiFi II LGA 1700 Intel 14th, Intel 13th & 12th Gen DDR5 ATX Gaming Motherboard

Name: ASUS ROG Strix Z790-E Gaming WiFi II LGA 1700 Intel 14th, Intel 13th &amp; 12th Gen DDR5 ATX Gaming Motherboard
Brand: Asus
SKU: MC-MBD-ASU-0075
Price: 148000 PKR
Availability: InStock

SKU: MC-MBD-ASU-0075 Category: Intel Motherboards Brand: Asus

The ASUS ROG Strix Z790-E Gaming WiFi II is a high-performance ATX motherboard for Intel 14th, 13th, and 12th Gen CPUs. It features DDR5 support up to 8000+ MHz, PCIe 5.0, five M.2 slots, Intel 2.5Gb Ethernet, Wi-Fi 7, and SupremeFX audio. Built for gamers and enthusiasts, it offers robust cooling and overclocking tools. Available nationwide with cash-on-delivery.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 148,000

Compare

Add to wishlist

Description

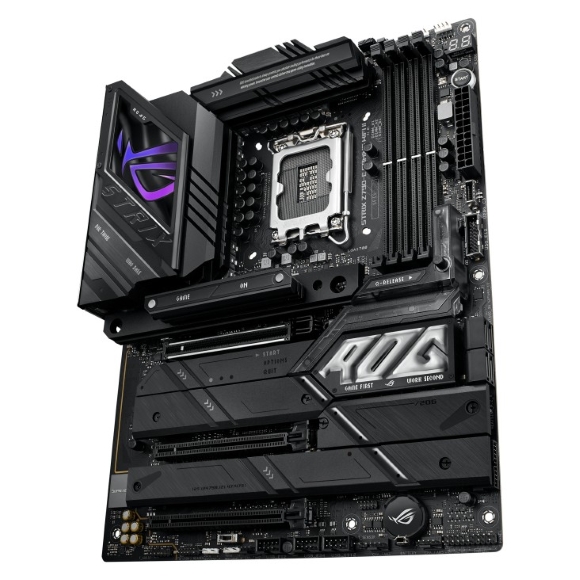

The ASUS ROG Strix Z790-E Gaming WiFi II is a premium ATX motherboard designed for Intel 14th, 13th, and 12th Gen processors on the LGA 1700 socket. Built on the Intel Z790 chipset, it supports DDR5 memory up to 8000+ MHz (OC) with a maximum capacity of 192GB across four DIMM slots, featuring Intel XMP 3.0 and ASUS Enhanced Memory Profile II for optimized performance.

This motherboard offers extensive connectivity with PCIe 5.0 support for the primary x16 slot, five M.2 slots (including one PCIe 5.0), and four SATA 6Gb/s ports. Networking is handled by Intel 2.5Gb Ethernet and Intel Wi-Fi 7 with Bluetooth 5.4. The ROG SupremeFX 7.1 audio codec delivers high-fidelity sound, while a comprehensive set of rear I/O ports includes USB 20Gbps Type-C and multiple USB 10Gbps ports.

Intel LGA 1700 socket compatible with 14th, 13th, and 12th Gen Core processors
DDR5 memory support up to 8000+ MHz (OC) with 192GB max capacity
PCIe 5.0 x16 slot and five M.2 slots (one PCIe 5.0)
Intel 2.5Gb Ethernet and Intel Wi-Fi 7 with Bluetooth 5.4
ROG SupremeFX 7.1 audio with ALC4080 codec and Savitech amplifier
ASUS Q-Design features including Q-Release, Q-Code, and BIOS FlashBack

Specification

Overview

Warranty	1 Year
Best Seller Ranking	#15 in Intel Motherboards
Brand	ASUS
Series	ROG
Model	ROG STRIX Z790-E GAMING WIFI II
Part Number	90MB1FC0-M0AAY0
CPU Socket Type	LGA 1700
CPU Type	Intel® Socket LGA1700 for Intel® Core™ 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*, Refer to www.asus.com for CPU support list., ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z790
Number of Memory Slots	4 x DIMM slots, max. 192GB, DDR5
Memory Standard	DDR5 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Performance Profile	Intel XMP 3.0
Memory Feature	Supports Intel® Extreme Memory Profile (XMP), OptiMem II, ASUS Enhanced Memory Profile II (AEMP II), * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/, * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16	Intel® CoreTM Processors (13th & 12th Gen), 1 x PCIe 5.0 x16 slot (support x16 mode)*
PCI Express 4.0 x16	Intel® Z790 Chipset, 2 x PCIe 4.0 x16 slots (support x4 mode), * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)., ** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only., – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
SATA 6Gb/s	Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
M.2	Intel® CoreTM Processors (13th & 12th Gen), M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® Z790 Chipset, M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports, * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID	* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio Channels	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, – Impedance sense for front and rear headphone outputs, – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input, – Supports up to 32-Bit/384 kHz playback on front panel, Audio Features, – SupremeFX Shielding Technology, – Savitech SV3H712 AMP, – Gold-plated audio jacks, – Rear optical S/PDIF out port, – Premium audio capacitors, – Audio cover, The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Max LAN Speed	1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless LAN	Intel® Wi-Fi 7, 2×2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate., Bluetooth® v5.4*, Compatible with Windows 11 or later., Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later., * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries., **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
Bluetooth	Yes

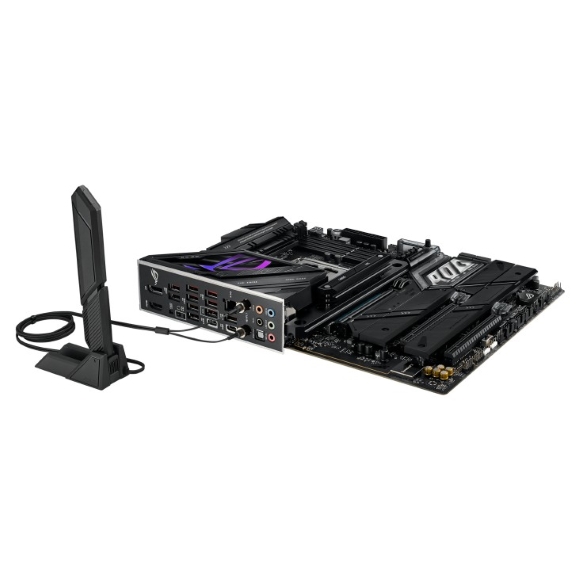

Back I/O Ports	1 x USB 20Gbps port (1 x USB Type-C®), 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C®), 1 x DisplayPort, 1 x HDMITM port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 5 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button
Other Connectors	Fan and Cooling Related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Power Related, 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector, Storage Related, 5 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB, 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge ), 2 x USB 5Gbps headers support 4 additional USB 5G ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x Alteration PCIe Mode Switch, 1 x Aura RGB header, 1 x CPU Over voltage jumper, 1 x Front panel audio header (F_AUDIO), 1 x Start button, 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt™ (USB4®) header
Form Factor	ATX
Dimensions (W x L)	12.0″ x 9.6″
Windows 11	Windows® 11, Windows® 10 64-bit
Features	Extreme Engine Digi+, – 5K Black metallic capacitors, ASUS Q-Design, – M.2 Q-Latch, – PCIe Slot Q-Release, – Q-Antenna, – Q-Code, – Q-DIMM, – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection, – Q-Slot, ASUS Thermal Solution, – M.2 heatsink backplate, – M.2 heatsink, – VRM heatsink design, ASUS EZ DIY, – BIOS FlashBack™ button, – BIOS FlashBack™ LED, – Clear CMOS button, – CPU Socket lever protector, – ProCool II, – Pre-mounted I/O shield, – SafeSlot, – SafeDIMM, Aura Sync, – Aura RGB header, – Addressable Gen 2 headers, Front Panel USB 20Gbps with PD Fast Charge Support, – Support: up to 30W charging, – Support: USB power delivery notification with power output wattage display, – Output: 5V/9V max. 3A, 12V max 2.5A, – Compatible with PD3.0, ROG Exclusive Software, – ROG CPU-Z, – DTS® Sound Unbound, ASUS Exclusive Software, Armoury Crate, – AIDA64 Extreme (60 days free trial), – Aura Creator, – Aura Sync, – Fan Xpert 4 (with AI Cooling II), – GameFirst, – Power Saving, – Sonic Studio, – Two-Way AI Noise Cancelation, AI Suite 3, – Easy Optimization with AI Overclocking, – TPU, – DIGI+ VRM, – Turbo app, – PC Cleaner, MyASUS, USB Wattage Watcher, Intel® Unison™, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial), UEFI BIOS, AI Overclocking Guide, ASUS EZ DIY, – ASUS CrashFree BIOS 3, – ASUS EZ Flash 3, – ASUS UEFI BIOS EZ Mode, – ASUS MyHotkey, FlexKey, MemTest86
Form Factor	ATX
Memory Type	DDR5
