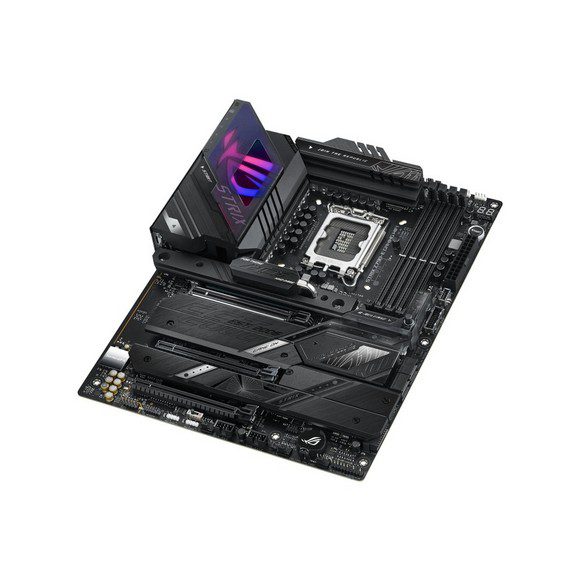

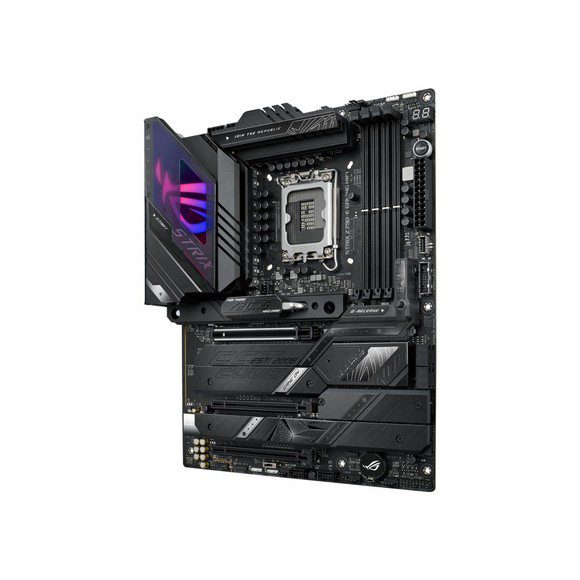

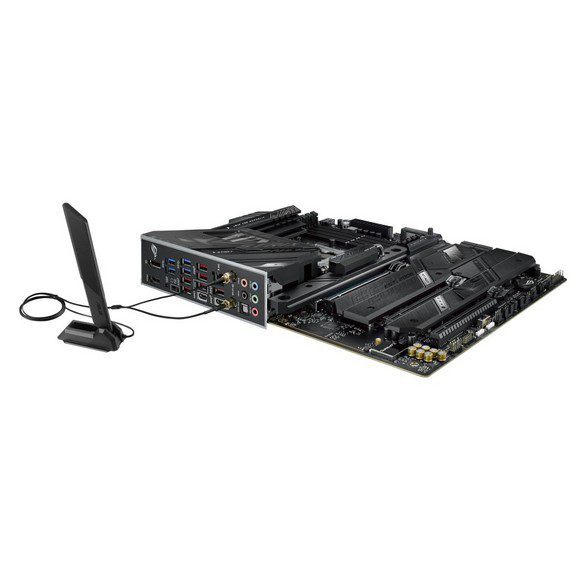

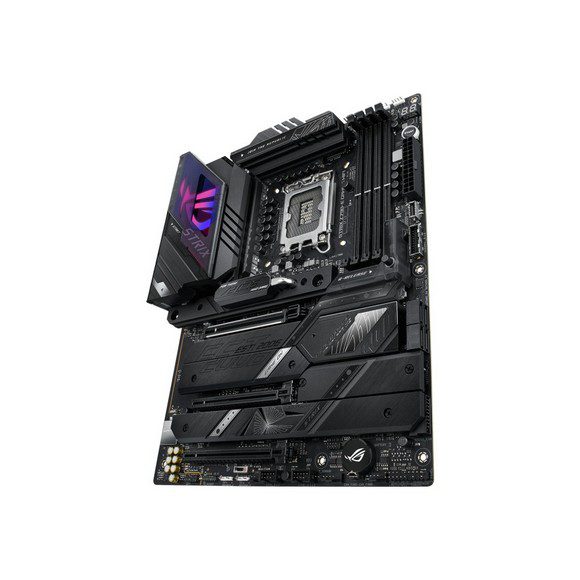

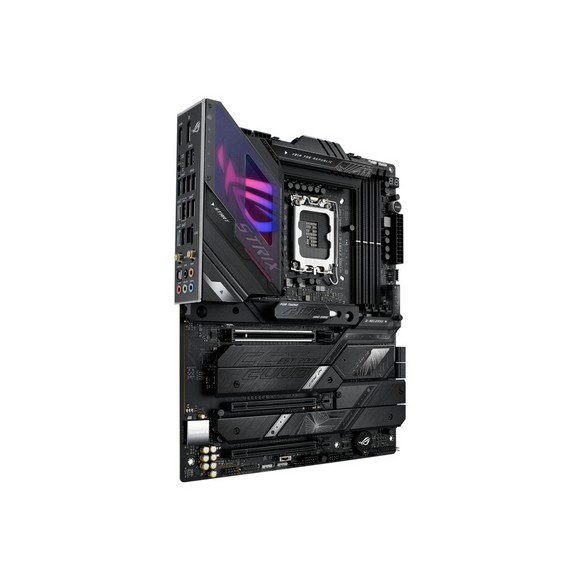

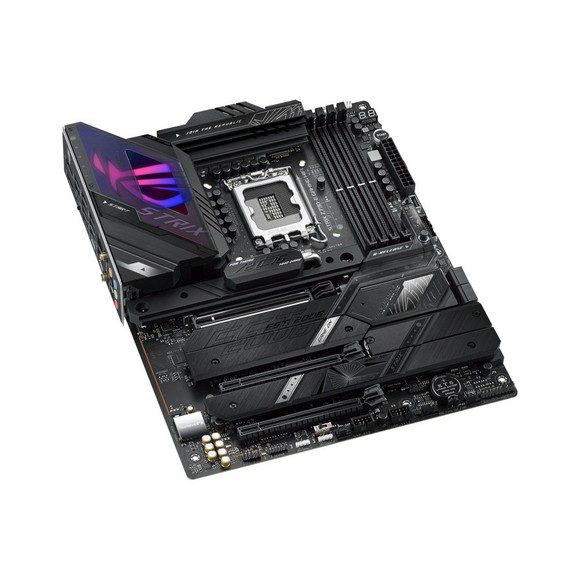

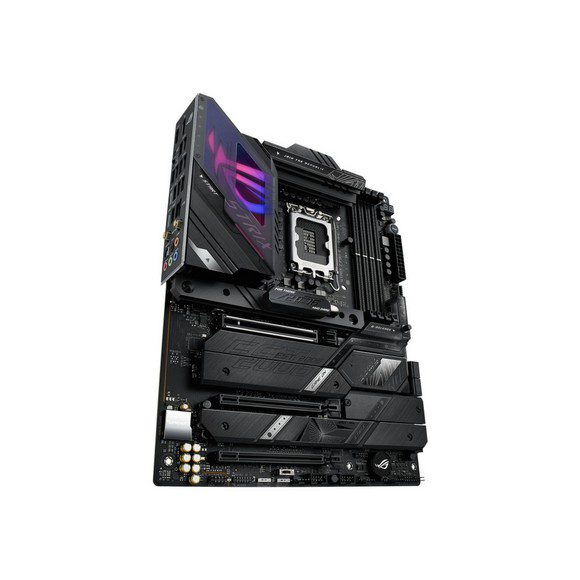

ASUS ROG Strix Z790-E Gaming WiFi 6E LGA 1700 ATX Gaming Motherboard

Name: ASUS ROG Strix Z790-E Gaming WiFi 6E LGA 1700 ATX Gaming Motherboard
Brand: Asus
SKU: MC-MBD-ASU-0072
Price: 147990 PKR
Availability: InStock

SKU: MC-MBD-ASU-0072 Category: Intel Motherboards Brand: Asus

The ASUS ROG Strix Z790-E Gaming WiFi 6E is an ATX motherboard for LGA 1700 sockets, supporting 13th and 12th Gen Intel Core processors. It features DDR5 memory up to 7800MHz, PCIe 5.0, five M.2 slots, Wi-Fi 6E, and 2.5Gb Ethernet. With SupremeFX audio and robust power delivery, it is ideal for high-end gaming builds. Available with nationwide delivery in Pakistan and cash-on-delivery option.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 147,990

Compare

Add to wishlist

Description

The ASUS ROG Strix Z790-E Gaming WiFi 6E motherboard is built for high-performance gaming on LGA 1700 socket, supporting 13th and 12th Gen Intel Core processors. With the Intel Z790 chipset, it delivers PCIe 5.0 support, DDR5 memory up to 7800MHz (OC), and extensive connectivity including Wi-Fi 6E and Bluetooth v5.2.

Designed for enthusiasts, it features a robust 16+1 power stage, VRM heatsinks, and multiple M.2 slots with heatsinks for lightning-fast storage. The onboard SupremeFX audio with ALC4080 codec ensures immersive 7.1-channel sound, while the 2.5Gb Ethernet and Wi-Fi 6E provide lag-free networking.

Supports 13th/12th Gen Intel Core processors with LGA 1700 socket and Intel Z790 chipset
4x DDR5 slots, up to 128GB, with support for XMP and speeds up to 7800MHz (OC)
1x PCIe 5.0 x16 slot, 2x PCIe 4.0 x16 slots, and 5x M.2 slots (1x PCIe 5.0, 4x PCIe 4.0)
Wi-Fi 6E (802.11ax) and Bluetooth v5.2 for high-speed wireless connectivity
SupremeFX 7.1 audio with ALC4080 codec and Savitech amplifier
Extensive rear I/O including USB 3.2 Gen 2×2 Type-C, HDMI, DisplayPort, and BIOS FlashBack button

Specification

Overview

Warranty	1 Year
Brand	ASUS
Series	ROG
Model	ROG STRIX Z790-E GAMING WIFI
Part Number	90MB1CL0-M0AAY0
CPU Socket Type	LGA 1700
CPU Type	Supports 13th Gen Intel Core & 12th Gen Intel Core Processors, Pentium Gold , Celeron Processors, Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z790
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory, Supports Intel Extreme Memory Profile (XMP), OptiMem II, Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
PCI Express 5.0 x16	1 x PCIe 5.0 x16 slot, Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)., When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only., * To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x16	2 x PCIe 4.0 x16 slot (supports x4 mode)
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel Z790 Chipset, M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes), Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID	0/1/5/10
Audio Chipset	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, – Impedance sense for front and rear headphone outputs, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input, – Supports up to 32-Bit/384 kHz playbackAudio Features, – SupremeFX Shielding Technology, – ALC4080 + Savitech SV3H712 AMP, – Gold-plated audio jacks, – Rear optical S/PDIF out port, – Premium audio capacitors, – Audio cover
Audio Channels	7.1 Channels
LAN Chipset	1 x Intel 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E, 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band** WiFi 6E 6GHz regulatory may vary between countries.
Bluetooth	Bluetooth v5.2
Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C), 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C ), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 1 x HDMI port, 1 x DisplayPort, 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet port, 5 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button, The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Onboard USB	1 x USB 3.2 Gen 2×2 connector (supports USB Type-C with up to 30W PD Fast-charge), 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headersStorage related, 5 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x Alternative PCIe Mode Switch, 1 x AURA RGB header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Power button, 1 x Thermal Sensor header, 1 x Thunderbolt header
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector
Windows 11	Supported
Features	Extreme Engine Digi+, – 5K Black Metallic CapacitorsASUS Q-Design, – M.2 Q-Latch, – PCIe Slot Q-Release, – Q-DIMM, – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), – Q-Slot, ASUS Thermal Solution, – M.2 heatsink backplate, – M.2 heatsink, – VRM heatsink design, ASUS EZ DIY, – BIOS FlashBack button, – BIOS FlashBack LED, – Clear CMOS button, – CPU Socket lever protector, – ProCool II, – Pre-mounted I/O shield, – SafeSlot, – SafeDIMM, AURA Sync, – AURA RGB header, – Addressable Gen 2 RGB headers, Front Panel USB 3.2 Gen 2×2 with PD Fast-charge Support, – Support: up to 30W charging, – Output: 5/9V max. 3A, 12V max 2.5A, – Compatible with PD3.0
Package Contents	Cables, 2 x SATA 6Gb/s cablesAdditional Cooling Kit, 1 x DDR5 Fan holder, 1 x Fan holder, 1 x Thermal pad for M.2, Miscellaneous, 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties package, 1 x M.2 backplate Q-Latch package, 1 x M.2 Q-Latch package, 1 x ROG Graphics card holder, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, 2 x M.2 Rubber Packages, 1 x M.2 backplate Rubber Package, Documentation, 1 x User manual
Form Factor	ATX
