MSI B850 Gaming Plus Wifi Motherboard, ATX
The MSI B850 Gaming Plus Wifi Motherboard is an ATX board designed for AMD Ryzen 9000/8000/7000 series CPUs on Socket AM5. It features DDR5 memory support up to 8200+ MT/s, Wi-Fi 7, Bluetooth 5.4, and Realtek 5G LAN. With PCIe 5.0, triple M.2 slots, and HDMI 2.1, it delivers high-speed connectivity and expansion for gaming and productivity. Available nationwide in Pakistan with cash on delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 69,000
Description
The MSI B850 Gaming Plus Wifi Motherboard is an ATX powerhouse built for AMD Ryzen 9000, 8000, and 7000 series processors on the Socket AM5 platform. With the AMD B850 chipset, it supports DDR5 memory up to 8200+ MT/s (OC) and a maximum capacity of 256GB, ensuring blazing-fast performance for gaming and productivity.
Connectivity is future-proof with Wi-Fi 7, Bluetooth 5.4, and a Realtek 5G LAN. Storage options include one M.2 Gen5 x4 slot, one M.2 Gen4 x4, one M.2 Gen4 x2, and four SATA 6Gbps ports, with RAID 0/1 support for NVMe drives. The rear I/O offers dual USB 10Gbps Type-C, multiple USB-A ports, HDMI 2.1 (8K@60Hz), and convenient buttons for Clear CMOS and Flash BIOS.
- Supports AMD Ryzen 9000/8000/7000 series processors on Socket AM5
- 4 x DDR5 DIMMs, up to 256GB, with speeds up to 8200+ MT/s (OC)
- Wi-Fi 7 and Bluetooth 5.4 for ultra-fast wireless connectivity
- Realtek 5G LAN for high-speed wired networking
- 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16, and 2 x PCIe 3.0 x1 slots
- Triple M.2 slots (Gen5 x4, Gen4 x4, Gen4 x2) and 4 x SATA 6Gbps with RAID support
Specification
Overview
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
|---|---|
| Manufacturer Number | B850 GAMING PLUS WIFI |
| Product Condition | New |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors, Socket AM5 |
| Chipset | AMD B850 Chipset |
| CPU Socket | Socket AM5 |
| Form Factor | ATX Form Factor |
| Memory | 4 x DDR5 UDIMM, Maximum Memory Capacity 256GB, Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s, Ryzen™ 9000 Series Processors max. overclocking frequency:, 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 4800+ MT/s, Supports AMD POR Speed and JEDEC Speed, Supports Memory Overclocking and AMD EXPO™, Supports Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM, Clock Driver bypass mode only |
| LAN | Realtek® 8126VB 5G LAN |
| Wireless LAN | Wi-Fi 7 Solution, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Bluetooth | Supports Bluetooth® 5.4, MLO, 4KQAM |
| Audio | Realtek® ALC897, 7.1-Channel High Definition Audio |
| MULTI-GPU | – |
| STORAGE | 1 x M.2 Gen5 x4 128Gbps slot, 1 x M.2 Gen4 x4 64Gbps slot, 1 x M.2 Gen4 x2 32Gbps slot, 4 x SATA 6Gbps ports |
| Onboard Graphics | 1x HDMI™, Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz, Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |

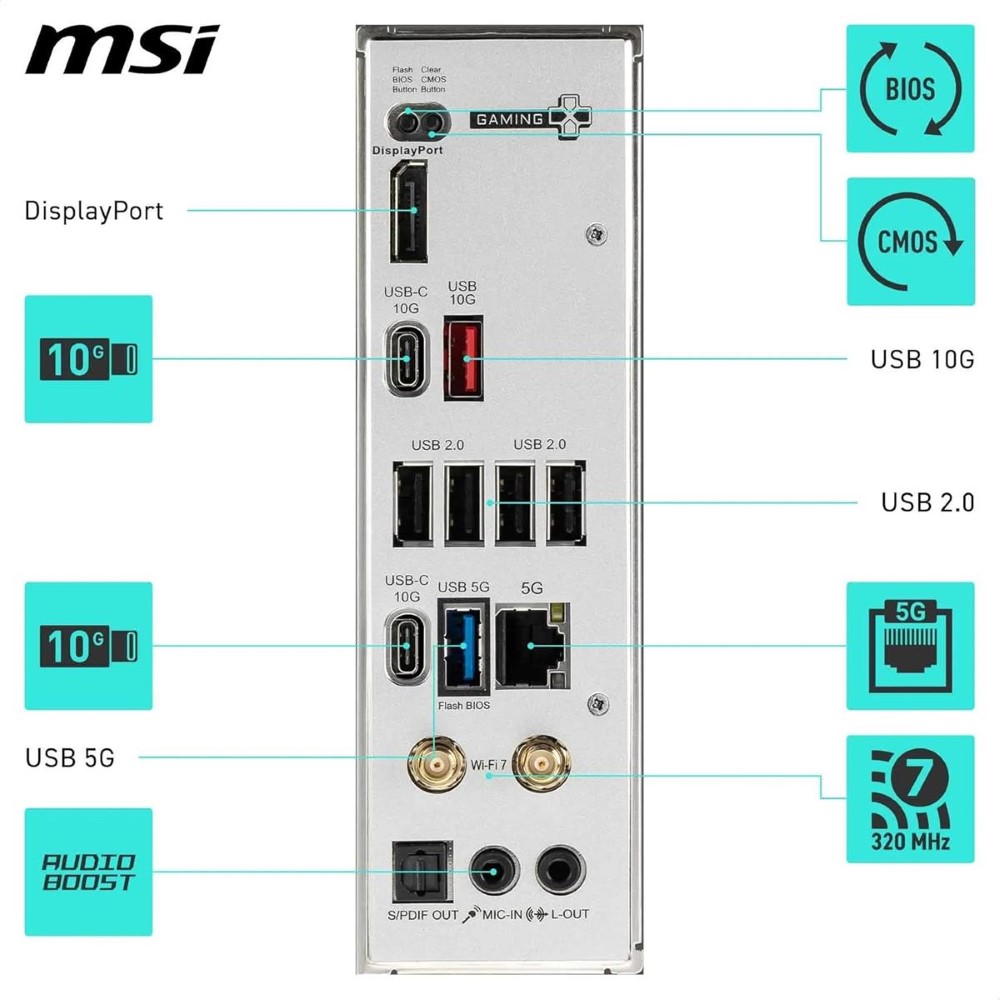

| I/O (Rear) | Clear CMOS Button, USB 10Gbps (Type-A), USB 2.0, 5G LAN, Wi-Fi / Bluetooth, Audio connectors, Flash BIOS Button, DisplayPort, USB 10Gbps (Type-C), USB 10Gbps (Type-C), USB 5Gbps (Type-A), S/PDIF-OUT |
| Expansion Slots | 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots |
| USB (Front) | 4 x USB 5Gbps Type A, 1 x USB 5Gbps Type C, 4 x USB 2.0 |
| USB (Rear) | 1 x USB 5Gbps Type A, 1 x USB 10Gbps Type A, 2 x USB 10Gbps Type C, 4 x USB 2.0 |
| TYPE-C PORT | 1 x USB 5Gbps Type C (Front), 2 x USB 10Gbps Type C (Rear) |
| Internal Connectors | 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x Power Connector(PCIE_PWR 8pin), 1 x CPU Fan, 1 x Combo Fan (Pump_Sys Fan), 4 x System Fan, 1 x ARGB+FAN Header (JAF_1), 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Com Port (JCOM), 1 x Tuning Controller connector(JDASH), 3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports, 4 x USB 5Gbps Type A ports, 1 x USB 5Gbps Type C ports |
| Dimensions | 12.00″ x 9.60 |
| Form Factor | ATX |
