MSI B650M PROJECT ZERO AM5 AMD B650 Ryzen 7000 SATA DDR5 Wi-Fi 6E Bluetooth mATX Back Connect Design Motherboard
The MSI B650M PROJECT ZERO is a Micro ATX motherboard with a unique back-connect design for a clean build. It supports AMD Ryzen 7000/8000/9000 series processors on the AM5 socket, features DDR5 memory up to 7600+ MHz, dual PCIe 4.0 M.2 slots, integrated Wi-Fi 6E and Bluetooth 5.3, and a 2.5G LAN port. Ideal for high-performance PCs with nationwide delivery and cash-on-delivery available.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 62,115
Description
The MSI B650M PROJECT ZERO is a Micro ATX motherboard featuring an innovative back-connect design that hides all cables behind the board for a clean, uncluttered build. Built on the AMD B650 chipset with an AM5 socket, it supports AMD Ryzen 7000, 8000, and 9000 series processors, making it a future-proof foundation for high-performance systems.

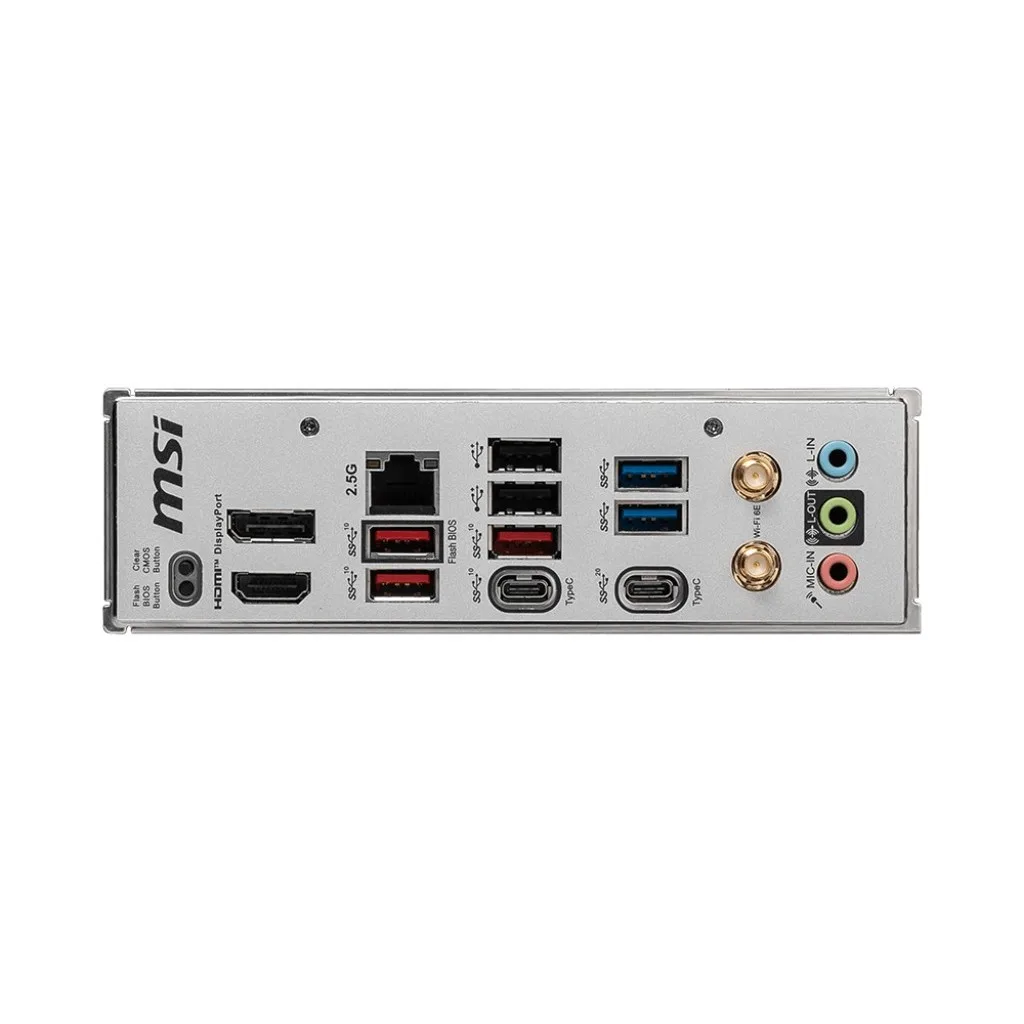

With DDR5 memory support up to 7600+ MHz (OC) and dual PCIe 4.0 M.2 slots, this motherboard delivers lightning-fast data transfer and responsiveness. It includes integrated AMD Wi-Fi 6E and Bluetooth 5.3, along with a 2.5G LAN port for robust wired and wireless connectivity. The back I/O panel offers a wide range of USB ports, including a 20Gbps USB-C, plus DisplayPort and HDMI outputs.

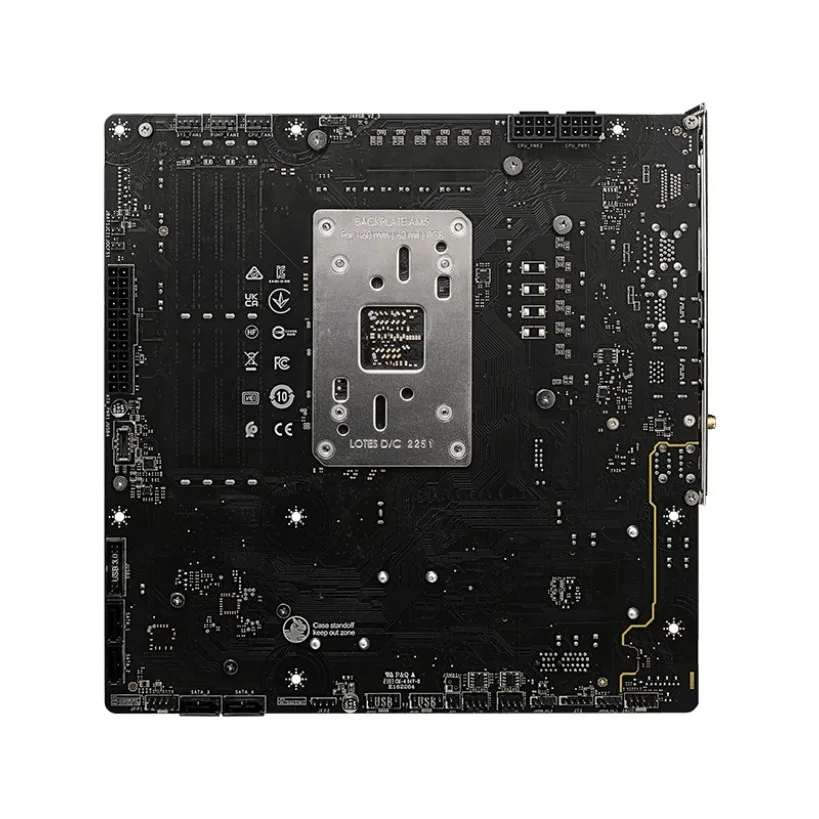

- Back Connect Design: All connectors are on the rear side for a clean, cable-free front view
- Supports AMD Ryzen 7000/8000/9000 series processors on AM5 socket
- DDR5 memory support up to 7600+ MHz (OC), max 128GB
- Dual PCIe 4.0 M.2 slots and four SATA 6Gb/s ports with RAID support
- Integrated AMD Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5G LAN
- Rich connectivity: USB 3.2 Gen 2×2 Type-C (20Gbps), HDMI, DisplayPort, and 7.1-channel audio
Specification
Overview
| Brand | MSI |
|---|---|
| Model | B650M PROJECT ZERO |
| Chip | AMD B650 |
| Socket | AM5 |
| Supported Processors | AMD Ryzen 7000 Series, Ryzen 9000 Series |
| RAM Type | DDR5 |
| Connectivity | Wi-Fi 6E, Bluetooth |
| Form Factor | mATX |
| Special Features | Back Connect Design |
| Warranty | 2 Years |
| Best Seller Ranking | #57 in AMD Motherboards |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B650 |
| Number of Memory Slots | 4x288pin |
| Memory Standard | Memory Support DDR5 7600+/ 7400/ 7200/ 7000/ 6800/ 6600/ 6400/ 6200/ 6000/ 5800/ 5600/ 5400/ 5200/ 5000/ 4800 MHz, Max. overclocking frequency: |
| Maximum Memory Supported | 128GB |
| PCI Express 4.0 x16 | 1x PCI-E x16 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 |
| PCI Express x1 | 1x PCI-E x1 slot, PCI_E2 Gen PCIe 3.0 supports up to x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 2x M.2, M.2_1 Source supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| SATA RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125BG 2.5Gbps LAN |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | AMD Wi-Fi 6E, The Wireless module is pre-installed in the M.2 slot |
| Bluetooth | Supports Bluetooth 5.3** |
| Back I/O Ports | 1 x DisplayPort, 1 x HDMI |
| Onboard USB | 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports |
| Other Connectors | 1x CPU Fan, 1x Pump Fan |
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Power Pin | 1x Power Connector, 2x Power Connector |
| Windows 11 | Supported |
| Features | Supports AMD Ryzen™ 7000 Series Desktop Processors, Supports DDR5 Memory, up to 7600+ MHz |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
