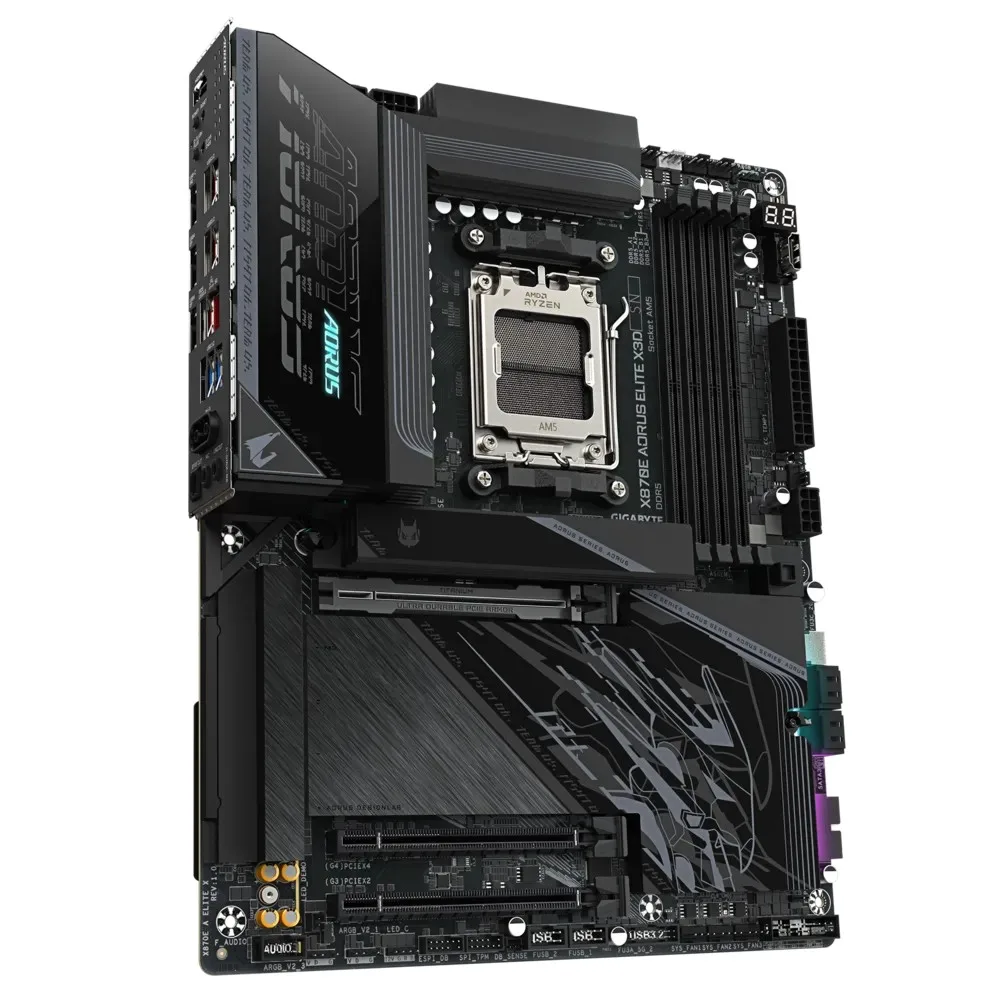

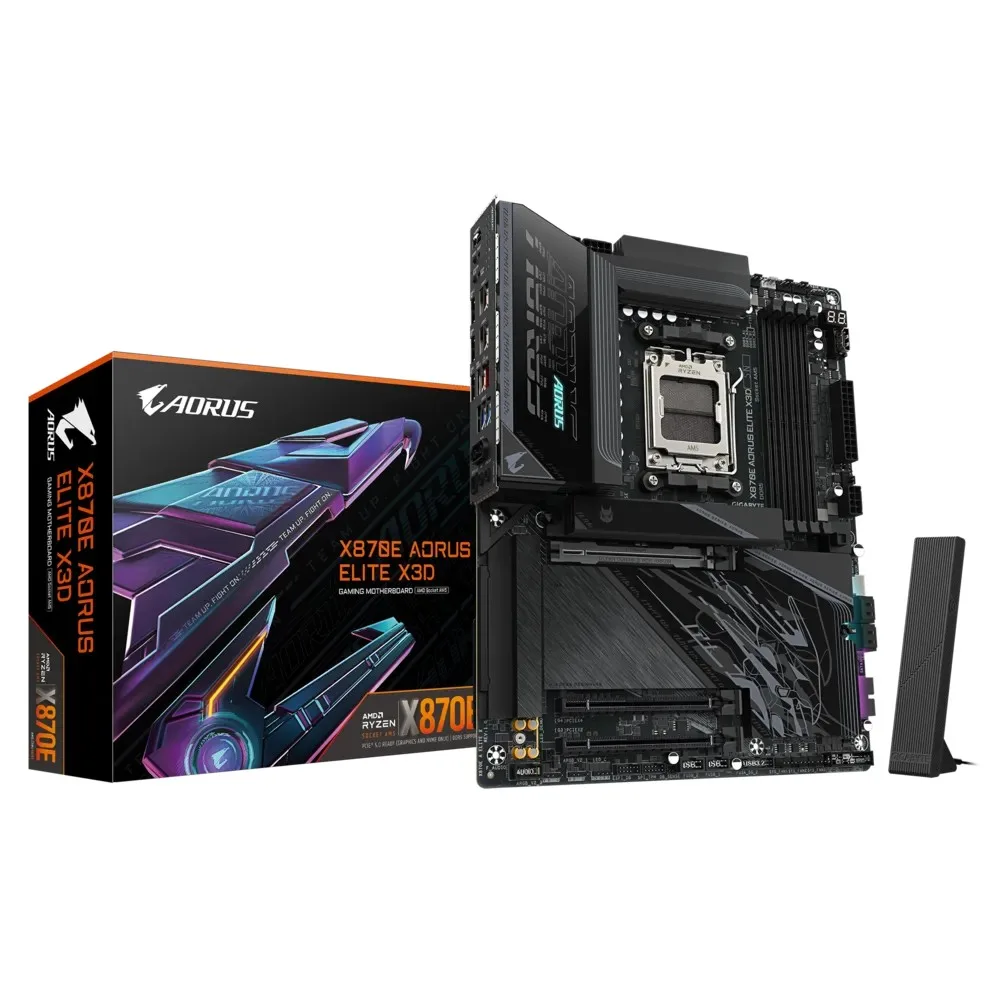

GIGABYTE X870E AORUS Elite X3D AMD AM5 LGA 1718 ATX Motherboard
The GIGABYTE X870E AORUS Elite X3D is an AMD AM5 ATX motherboard featuring the X870E chipset, supporting Ryzen 7000/8000/9000 series CPUs. It offers DDR5 memory up to 9000(O.C), PCIe 5.0, dual USB4, 5Gbps LAN, and Wi-Fi 7 for exceptional performance and connectivity. Ideal for high-end gaming and professional workloads, it delivers nationwide delivery and cash-on-delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 126,250
Description
The GIGABYTE X870E AORUS Elite X3D is an AMD AM5 ATX motherboard designed for Ryzen 7000, 8000, and 9000 series processors. Built on the AMD X870E chipset, it supports DDR5 memory up to 9000(O.C) and features PCIe 5.0 for ultra-fast graphics and storage.
With robust connectivity including dual USB4 Type-C ports, 5Gbps LAN, and Wi-Fi 7, this motherboard is ready for high-performance gaming and content creation. It also offers extensive storage options with multiple M.2 slots and RAID support.
- AMD AM5 socket compatible with Ryzen 7000/8000/9000 series CPUs
- 4x DDR5 slots supporting up to 256GB and speeds up to DDR5 9000(O.C)
- PCIe 5.0 x16 slot for graphics cards and NVMe SSDs
- Dual USB4 Type-C ports with DisplayPort support
- 5Gbps LAN and Wi-Fi 7 (802.11be) with Bluetooth 5.4
- Multiple M.2 slots with PCIe 5.0 and 4.0 support, plus RAID 0/1/5/10
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Brand | GIGABYTE |
| Model | X870E AORUS ELITE X3D |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin |
| Memory Standard | Up to DDR5 9000 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot, integrated in the CPU:, AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode |
| M.2 | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:, AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, * RAID 5 is only available on AMD Ryzen 9000 Series Processors. |
| Audio Chipset | Realtek ALC1220 |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | BLUETOOTH 5.4 |
| Back I/O Ports | 1 x HDMI port, 1 x reset button |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2×2 support, 2 x USB 3.2 Gen 1 headers |
| Other Connectors | 1 x PCIe power connector, 1 x CPU fan header |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors |
| BIOS Feature | 1 x 512 Mbit flash, Use of licensed AMI UEFI BIOS |
| Form Factor | ATX |
