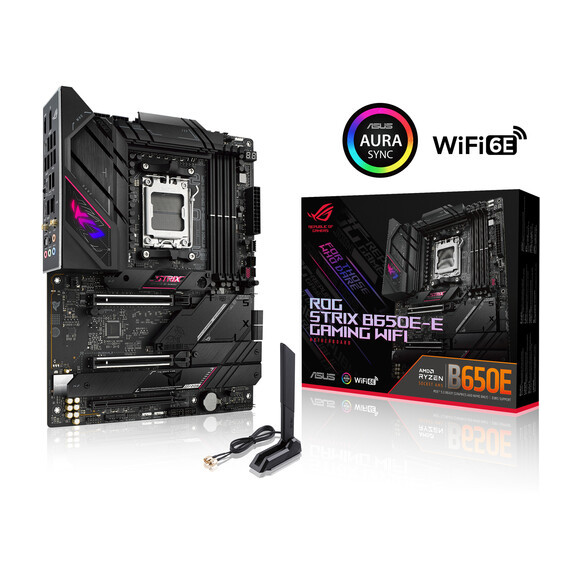

ASUS ROG STRIX B650E-E GAMING WIFI AM5 ATX Motherboard
The ASUS ROG STRIX B650E-E GAMING WIFI is an AM5 ATX motherboard featuring the AMD B650 chipset, designed for high-performance gaming. It supports DDR5 memory up to 6400 MT/s, PCIe 5.0 for graphics and storage, Intel 2.5Gb Ethernet, Wi-Fi 6E, and SupremeFX audio. With robust power delivery and extensive connectivity, it’s ideal for demanding builds. Available nationwide in Pakistan with cash-on-delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 99,990
Description

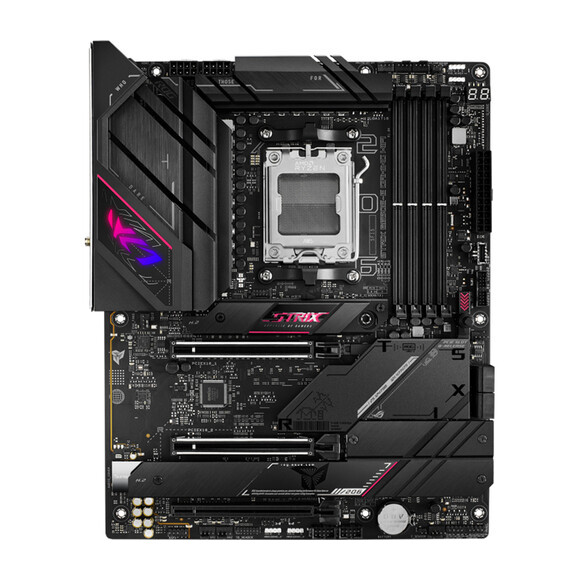

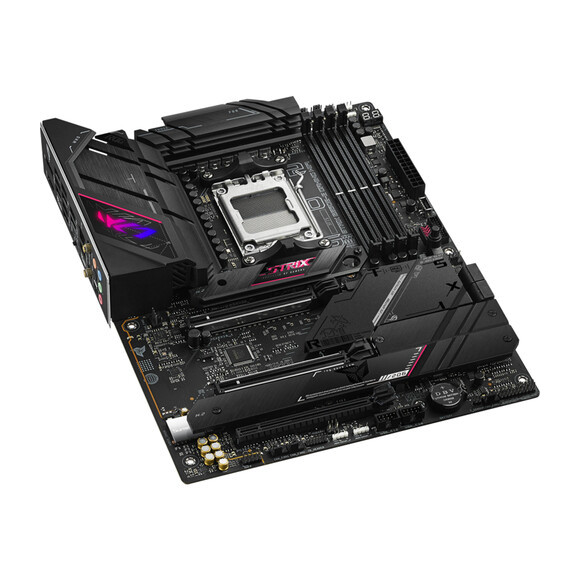

The ASUS ROG STRIX B650E-E GAMING WIFI is a premium ATX motherboard built for AMD Ryzen 7000 series processors on the AM5 socket. Featuring PCIe 5.0 support on both the primary x16 slot and two M.2 slots, it delivers lightning-fast data transfer for the latest GPUs and SSDs. With DDR5 memory support up to 6400 MT/s and a robust 16+2 power stage design, this board is engineered for high-performance gaming and overclocking.
Connectivity is comprehensive with Intel 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.2, and a SupremeFX ALC4080 audio codec with Savitech DAC for immersive sound. The board also includes BIOS Flashback, Clear CMOS buttons, and four RGB headers for customization. With nationwide delivery across Pakistan including Karachi, Lahore, and Islamabad, and cash-on-delivery available, this motherboard is a top choice for enthusiasts.
- AMD B650 chipset with AM5 socket for Ryzen 7000 series CPUs
- PCIe 5.0 support: 2x PCIe 5.0 x16 slots and 2x M.2 slots (1x PCIe 5.0, 1x PCIe 4.0)
- DDR5 memory support up to 6400 MT/s (OC), max 128 GB dual channel

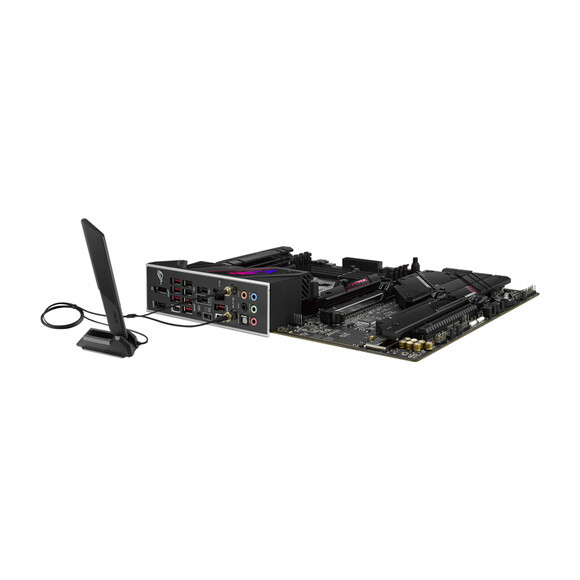

- Intel 2.5Gb Ethernet, Wi-Fi 6E (802.11ax), Bluetooth 5.2
- SupremeFX ALC4080 audio with Savitech SV3H712 DAC
- Four M.2 slots total: 1x PCIe 5.0, 2x PCIe 4.0, 1x PCIe 5.0 (22110)
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Chipset | AMD B650 |
| CPU Socket | AM5 |
| USB | 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port), 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port), 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Thunderbolt | No |

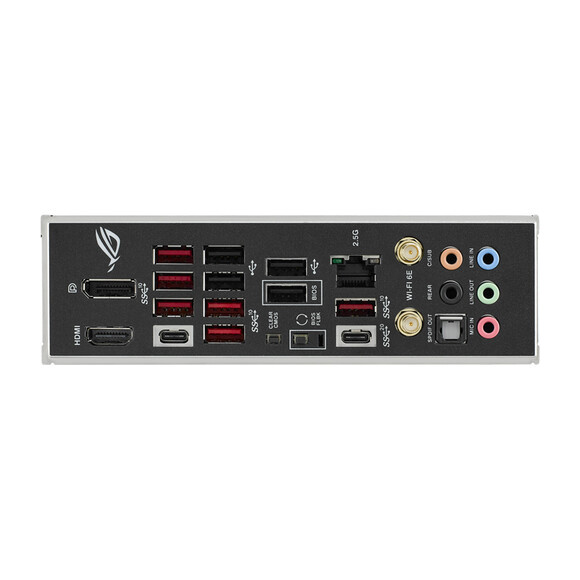

| Display | 1x HDMI, 1x DisplayPort |
| Audio | 5x 1/8″ / 3.5 mm, 1x S/PDIF |
| Ethernet / Controller | 1x Intel 2.5Gigabit |
| Wi-Fi Antenna | 2x Connector |
| Buttons | BIOS Flashback, Clear CMOS |
| Memory Slots | 4x 288-Pin |
| Memory Support | DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MT/s |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC Unbuffered |
| SATA | 4x SATA III |
| Storage Slots | 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4), 2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4), 1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4) |
| Optane Memory Support | No |
| RAID Support | RAID 0, 1, 10 (M.2) |
| Expansion Slots | 2x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode) |
| Air Cooling | 2x 4-Pin CPU, 5x 4-Pin System, 1x Thermal Sensor |
| Liquid Cooling | 1x 4-Pin Pump |
| Power Connectors | 1x 24-Pin Mainboard, 2x 8-Pin ATX |
| Security | Chassis Intrusion |
| LED Header | 4x RGB |
| Diagnostics | CPU Overclock |
| Add-On | 1x Thunderbolt Header |
| ROM | 256 Mb |
| Front Panel I/O | AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2 |
| Audio Codec | SupremeFX ALC4080 (7.1-Channel) |
| DAC | Savitech SV3H712 |
| Wi-Fi | Wi-Fi 6E (802.11ax) with MU-MIMO Support |
| Bluetooth | 5.2 |
| OS Compatibility | Windows 10, Windows 11 |
| Form Factor | ATX |
| Dimensions | 9.6 x 12″ / 24.4 x 30.5 cm |
| Package Weight | 5.025 lb |
| Box Dimensions (LxWxH) | 13.5 x 11.2 x 3.1″ |
| Form Factor | ATX |
