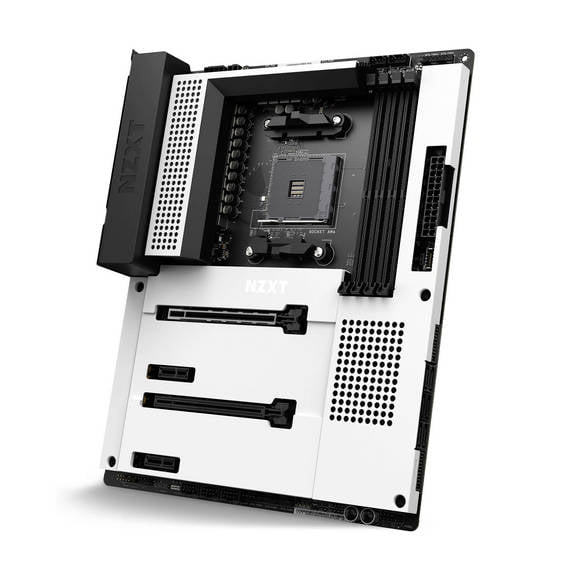

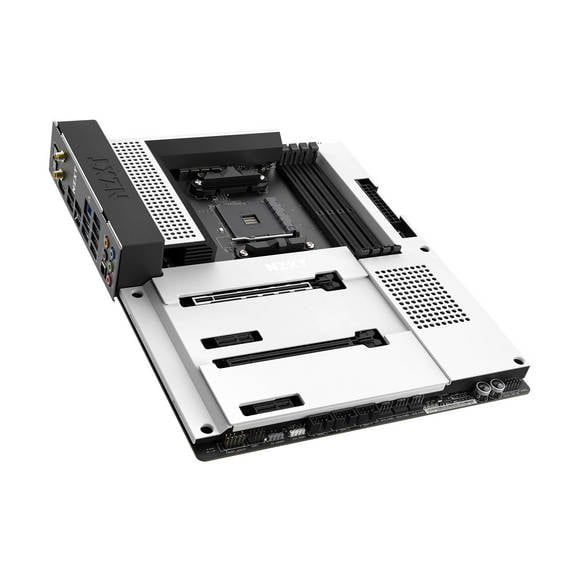

NZXT N7 B550 Gaming Wi-Fi AMD AM4 ATX Motherboard – Matte White
The NZXT N7 B550 Gaming Wi-Fi AMD AM4 ATX Motherboard in Matte White is a stylish foundation for your Ryzen build, featuring PCIe 4.0 support, integrated Wi-Fi 6E, and a 2.5G LAN port. With four DDR4 slots for up to 128GB, six SATA III ports, and dual M.2 slots, it offers ample storage and connectivity options for gaming and productivity.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 59,315
Description

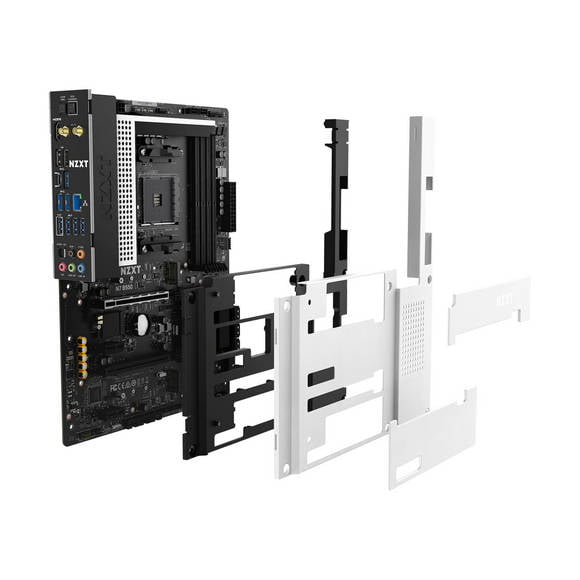

The NZXT N7 B550 Gaming Wi-Fi AMD AM4 ATX Motherboard in Matte White combines a clean aesthetic with solid performance for AMD Ryzen builds. Built on the B550 chipset, it supports AM4 processors and offers PCIe 4.0 on the primary M.2 slot and x16 slot, enabling fast storage and graphics.

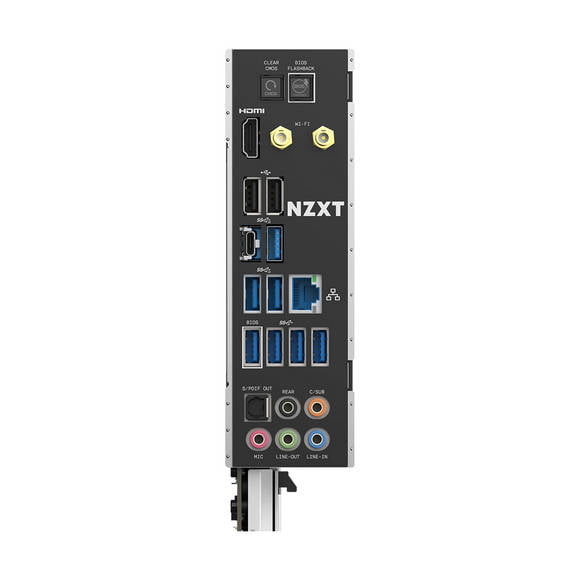

Connectivity includes Wi-Fi 6E and Bluetooth 5.2, a 2.5G LAN port, HDMI 2.1 output, and extensive USB options with a USB-C header. The board features a 12+2+2 phase power design, four DDR4 memory slots supporting up to 128GB, and six SATA III ports. Onboard audio is powered by a Realtek ALC1220 codec.
- AMD B550 chipset with AM4 socket for Ryzen 3000/5000 series processors
- PCIe 4.0 support on primary M.2 and x16 slot
- Wi-Fi 6E (802.11ax) and Bluetooth 5.2
- Realtek 2.5G Ethernet and HDMI 2.1 output
- Four DDR4 memory slots, up to 128GB capacity
- Six SATA III ports and two M.2 slots (one PCIe 4.0, one PCIe 3.0/SATA)

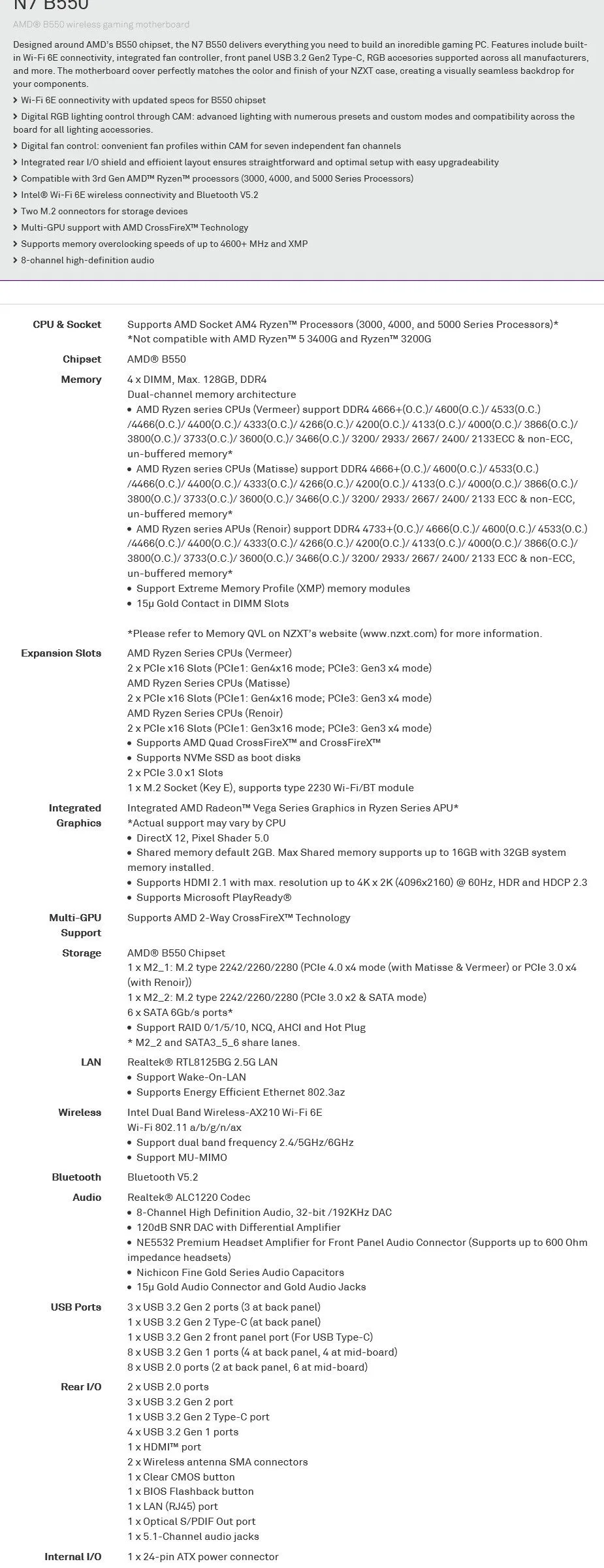

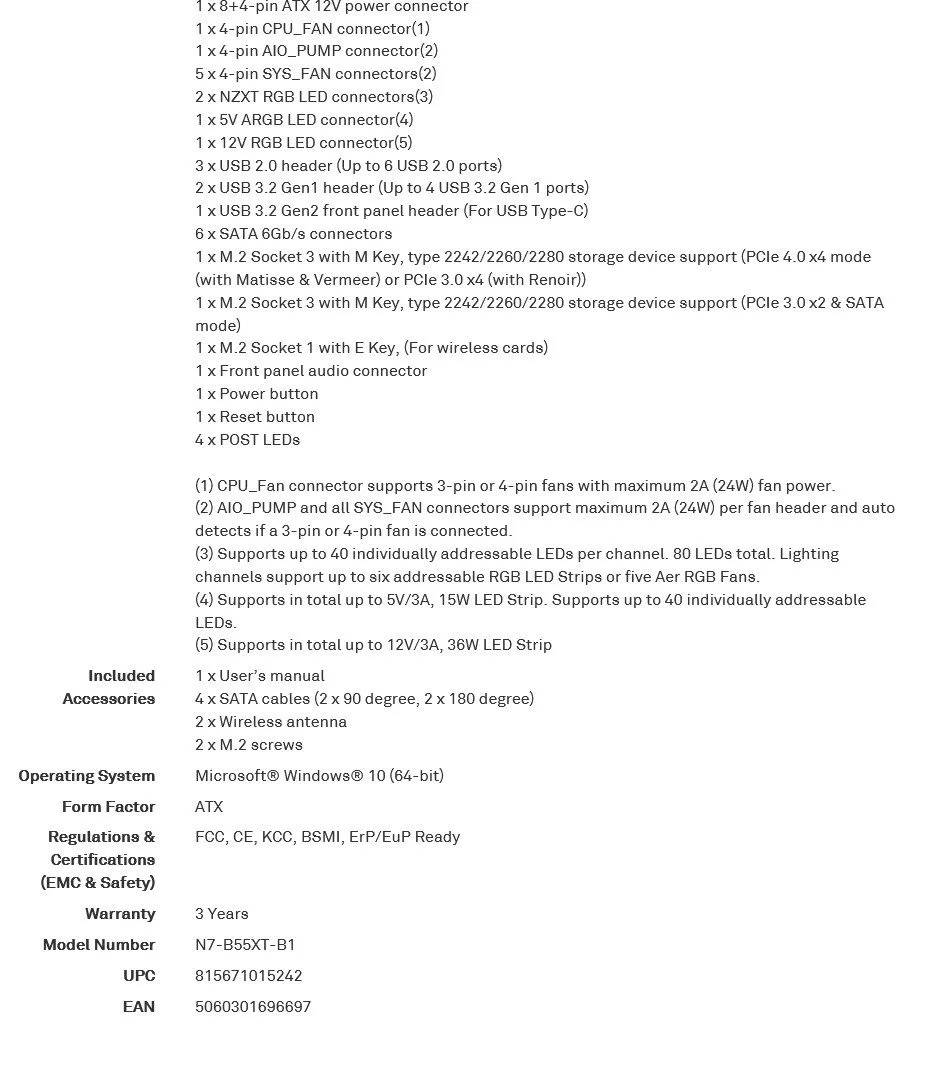

Specification
Overview
| Chipset | AMD B550 |
|---|---|
| CPU Socket | AM4 |
| USB | 1 x, USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port), 1 x, USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port), 3 x, USB 2.0 Header (Supports 6 USB Type-A Port) |
| Thunderbolt | None |
| Display | 1 x, HDMI 2.1 |
| Audio | None |
| Ethernet / Controller | 1 x, Realtek RTL8125BG 2.5Gigabit |
| Wi-Fi Antenna | 2 x, Connector |
| Buttons | BIOS Flashback, Clear CMOS |
| Memory Slots | 4 x, 288-Pin |
| Memory Support | DDR4 2133, 2400, 2667, 2933, 3200, 4666, 4733 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC Unbuffered |
| SATA | 6 x, SATA III |
| M.2 | 1 x, M Key 2242, 2260, 2280 (PCIe 4.0 x4), 1 x, M Key 2242, 2260, 2280 (PCIe 3.0 x2, SATA (Unspecified)) |
| U.2 | None |
| RAID Support | RAID 0, 1, 5, 10 |
| Expansion Slots | 1 x, PCIe 4.0 x16, 1 x, PCIe 3.0 x16 (x4 mode), 2 x, PCIe 3.0 x1 |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Air Cooling | 1 x, 4-Pin CPU, 5 x, 4-Pin System |
| Liquid Cooling | 1 x, 4-Pin Pump |
| Power Connectors | 1 x, 24-Pin Mainboard, 1 x, 8-Pin ATX, 1 x, 4-Pin ATX |
| LED Header | 4 x, RGB |
| Diagnostics | Power, Reset |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
| Audio Codec | Realtek ALC1220 (8-Channel) |
| Bluetooth | 5.2 |
| Wi-Fi | Wi-Fi 6E (802.11ax) (MU-MIMO) |
| Module Support | 1 E Key M.2 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Form Factor | ATX |
| Form Factor | ATX |
