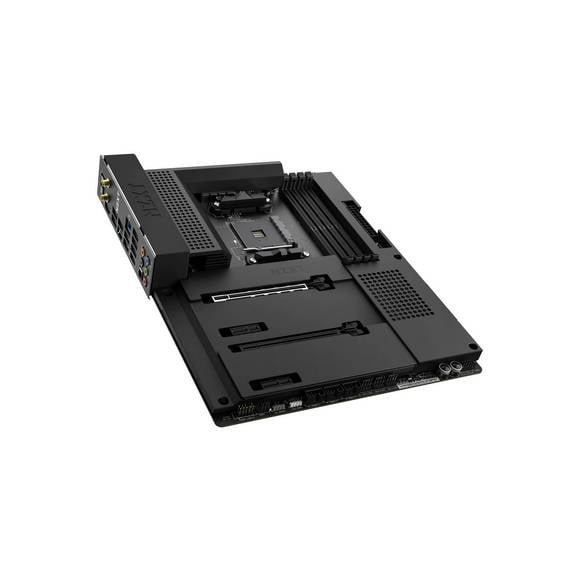

NZXT N7 B550 Gaming Wi-Fi AMD AM4 ATX Motherboard – Matte Black
The NZXT N7 B550 Gaming Wi-Fi AMD AM4 ATX Motherboard in Matte Black offers a clean aesthetic and robust performance for your PC build. It features AMD B550 chipset, supports DDR4 memory up to 4733 MHz, and includes Wi-Fi 6E, Bluetooth 5.2, and a 2.5Gigabit Ethernet for fast connectivity. With dual M.2 slots, six SATA ports, and 4 RGB headers, it’s ready for high-speed storage and customizable lighting. Available with nationwide delivery and cash-on-delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 59,315
Description
The NZXT N7 B550 Gaming Wi-Fi AMD AM4 ATX Motherboard in Matte Black combines a sleek, minimalist design with robust performance for your AMD build. Built on the AMD B550 chipset, it supports Ryzen processors with PCIe 4.0 capabilities, ensuring fast data transfers and future-ready graphics.
Connectivity is comprehensive, featuring Wi-Fi 6E, Bluetooth 5.2, and a 2.5Gigabit Ethernet controller for high-speed networking. The motherboard offers dual M.2 slots (one PCIe 4.0 x4 and one PCIe 3.0 x2/SATA), six SATA III ports, and ample USB options including a USB 3.2 Gen 2 Type-C header. With 4 DDR4 memory slots supporting up to 128GB and speeds up to 4733 MHz, it delivers excellent multitasking and overclocking potential.
- AMD B550 Chipset with AM4 socket for Ryzen processors
- Wi-Fi 6E (802.11ax) and Bluetooth 5.2 for cutting-edge wireless connectivity
- Dual M.2 slots: 1x PCIe 4.0 x4 and 1x PCIe 3.0 x2/SATA
- Realtek ALC1220 8-channel audio for immersive sound
- Supports 2-Way AMD CrossFireX multi-GPU setups
- BIOS Flashback and Clear CMOS buttons for easy troubleshooting

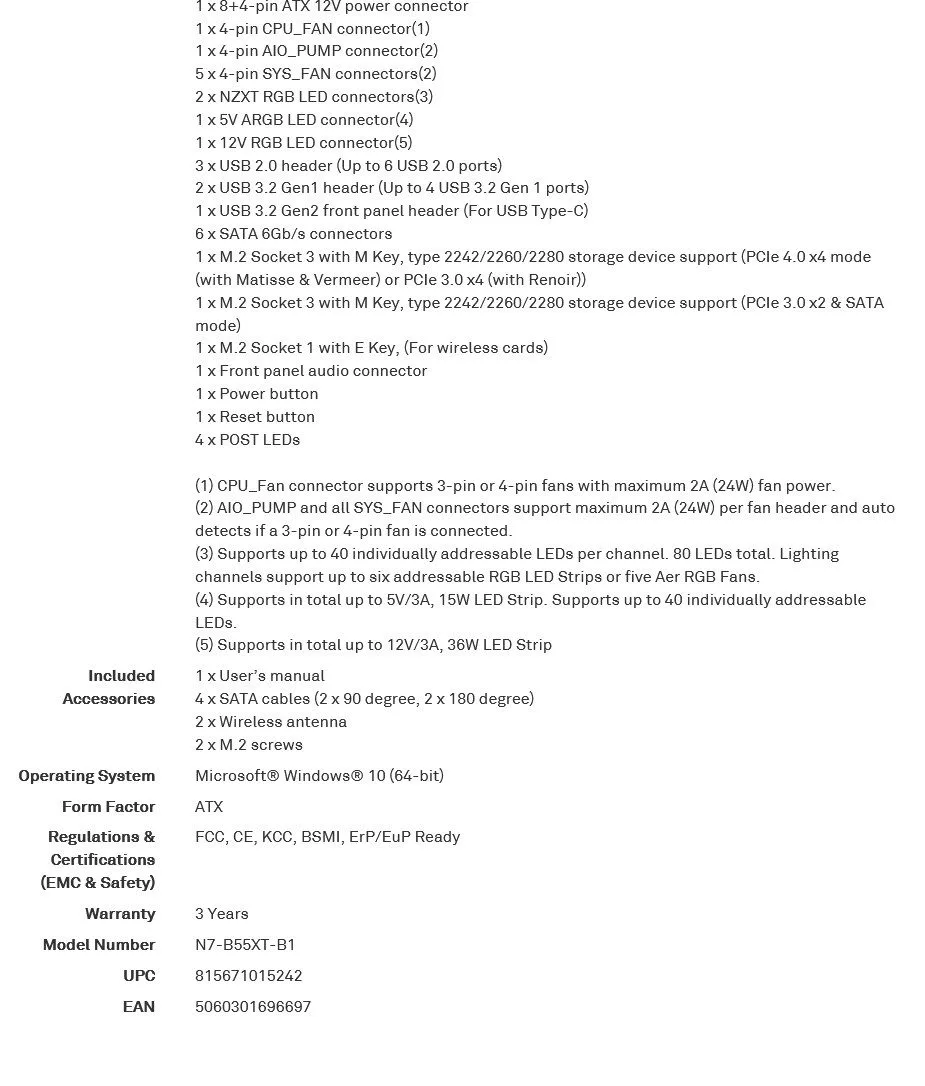

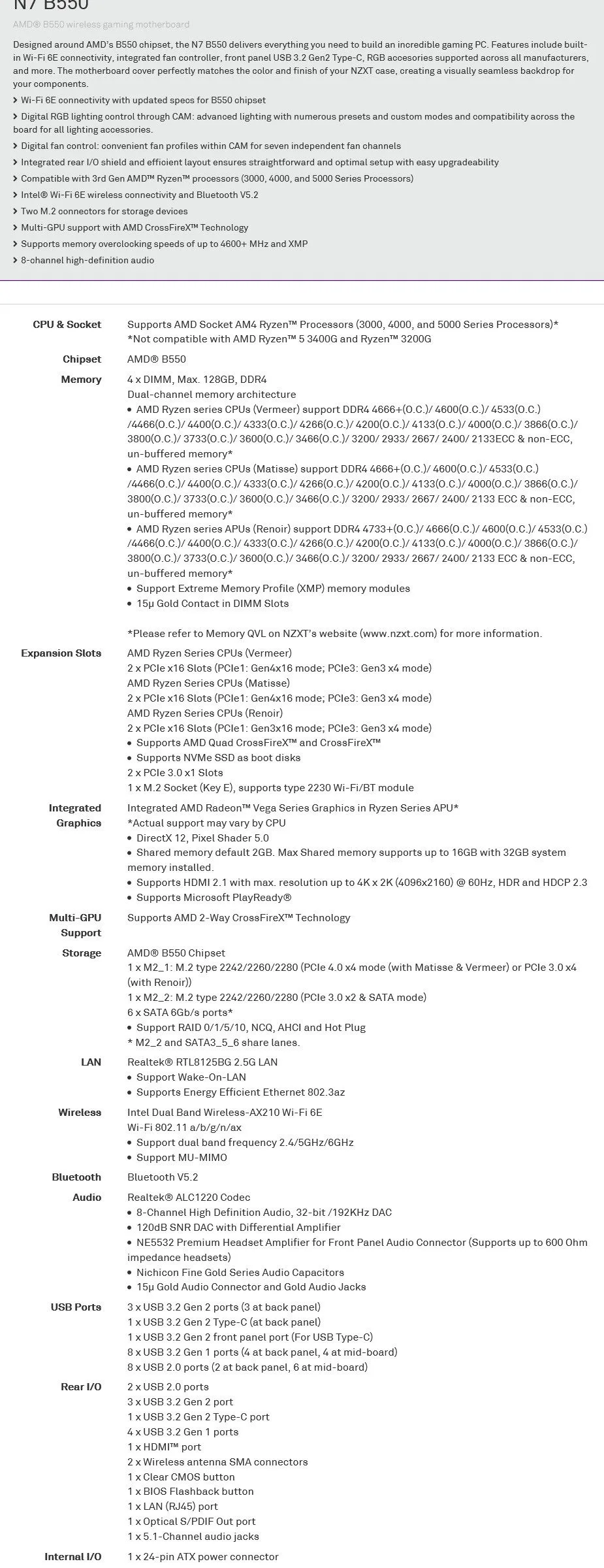

Specification
Overview
| Chipset | AMD B550 |
|---|---|
| CPU Socket | AM4 |
| USB | 1 x, USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port), 1 x, USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port), 3 x, USB 2.0 Header (Supports 6 USB Type-A Port) |
| Thunderbolt | None |
| Display | 1 x, HDMI 2.1 |
| Audio | None |
| Ethernet / Controller | 1 x, Realtek RTL8125BG 2.5Gigabit |
| Wi-Fi Antenna | 2 x, Connector |
| Buttons | BIOS Flashback, Clear CMOS |
| Memory Slots | 4 x, 288-Pin |
| Memory Support | DDR4 2133, 2400, 2667, 2933, 3200, 4666, 4733 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC Unbuffered |
| SATA | 6 x, SATA III |
| M.2 | 1 x, M Key 2242, 2260, 2280 (PCIe 4.0 x4), 1 x, M Key 2242, 2260, 2280 (PCIe 3.0 x2, SATA (Unspecified)) |
| U.2 | None |
| RAID Support | RAID 0, 1, 5, 10 |
| Expansion Slots | 1 x, PCIe 4.0 x16, 1 x, PCIe 3.0 x16 (x4 mode), 2 x, PCIe 3.0 x1 |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Air Cooling | 1 x, 4-Pin CPU, 5 x, 4-Pin System |
| Liquid Cooling | 1 x, 4-Pin Pump |
| Power Connectors | 1 x, 24-Pin Mainboard, 1 x, 8-Pin ATX, 1 x, 4-Pin ATX |
| LED Header | 4 x, RGB |
| Diagnostics | Power, Reset |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
| Audio Codec | Realtek ALC1220 (8-Channel) |
| Bluetooth | 5.2 |
| Wi-Fi | Wi-Fi 6E (802.11ax) (MU-MIMO) |
| Module Support | 1 E Key M.2 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Form Factor | ATX |
| Form Factor | ATX |
