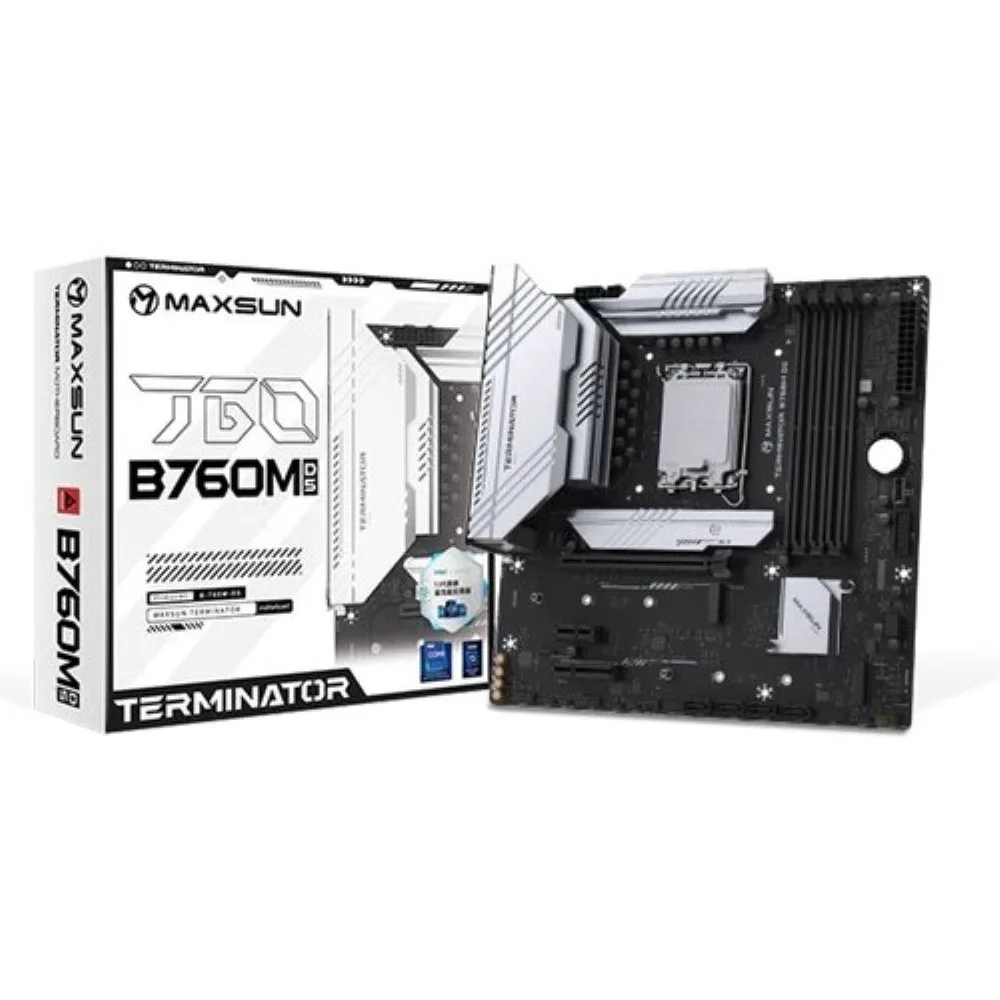

Maxsun Terminator B760M D5 V2 Intel 12/13/14th Gen microATX Motherboard
The Maxsun Terminator B760M D5 V2 is a microATX motherboard supporting Intel 12th, 13th, and 14th Gen processors. It features four DDR5 slots for up to 192 GB of memory, a PCIe 5.0 x16 slot, three M.2 slots, and 2.5G LAN. With HDMI 2.0 and DisplayPort outputs, it’s ideal for compact, high-performance builds. Available with nationwide delivery and cash-on-delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 44,799
Description

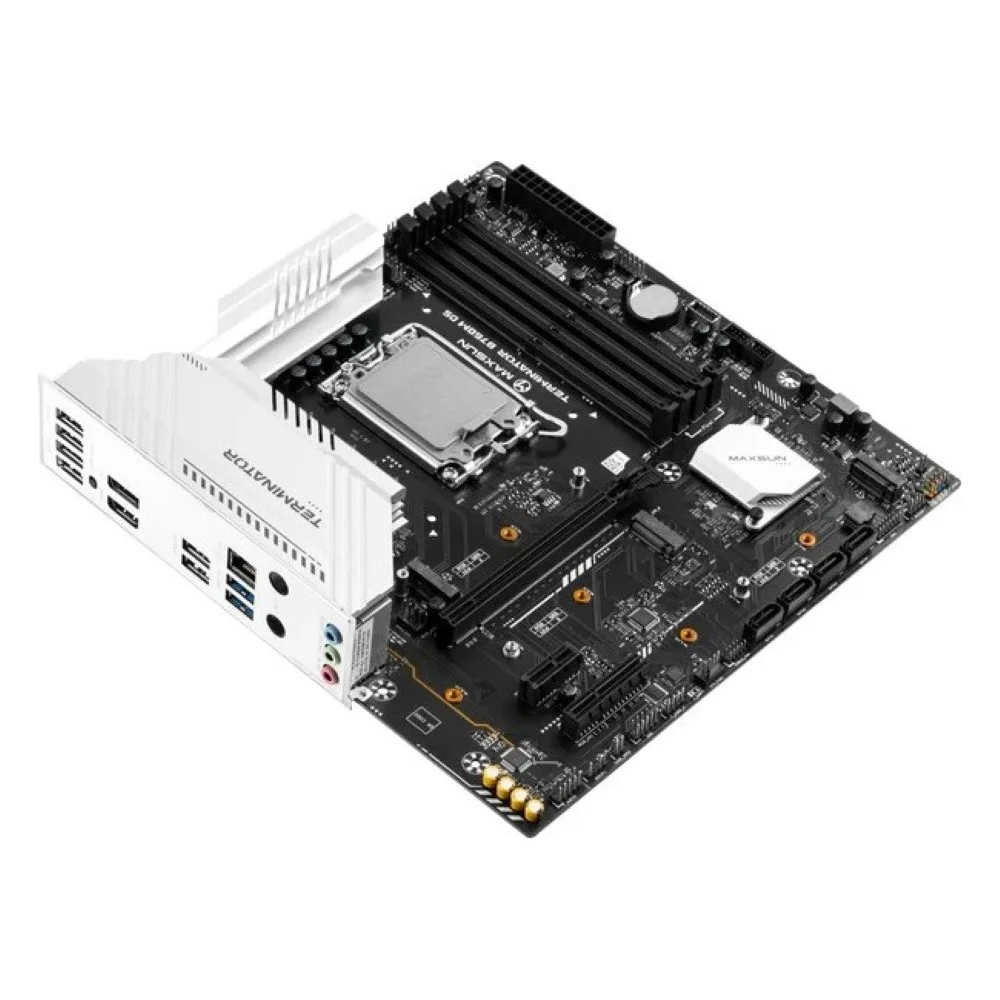

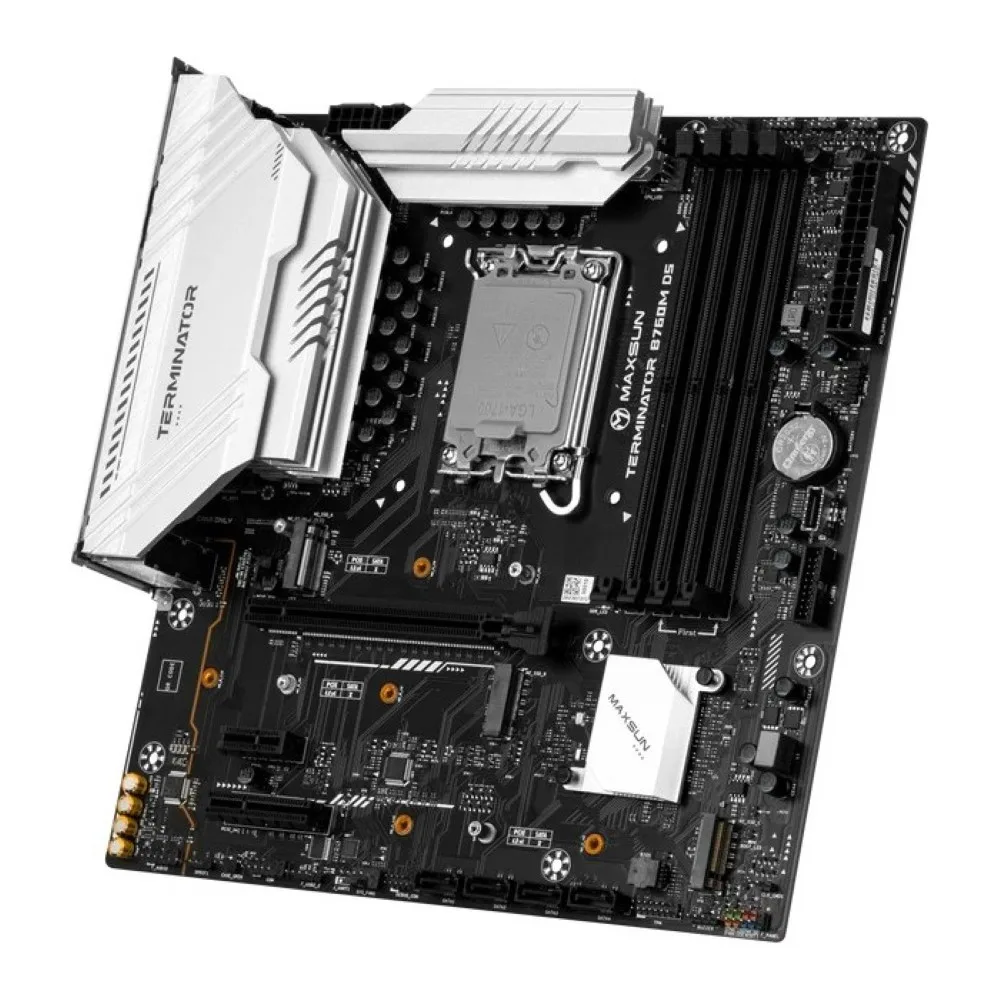

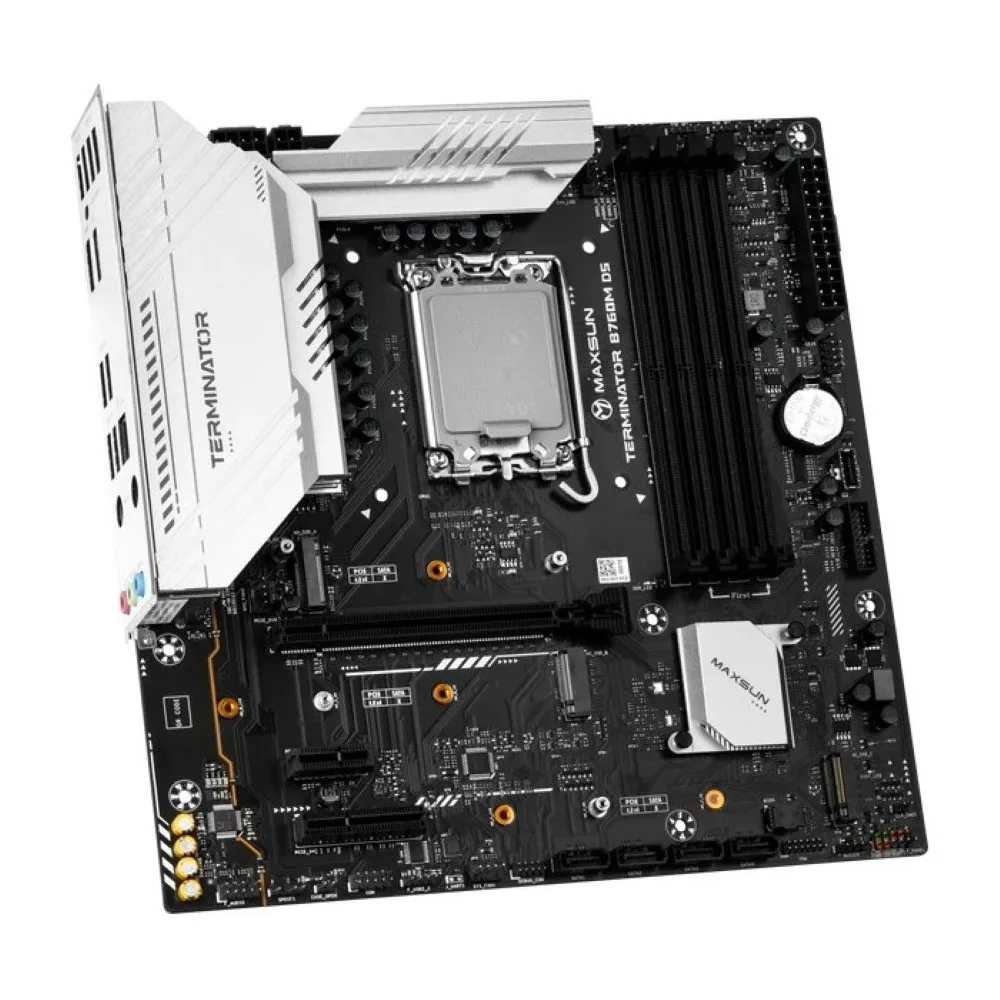

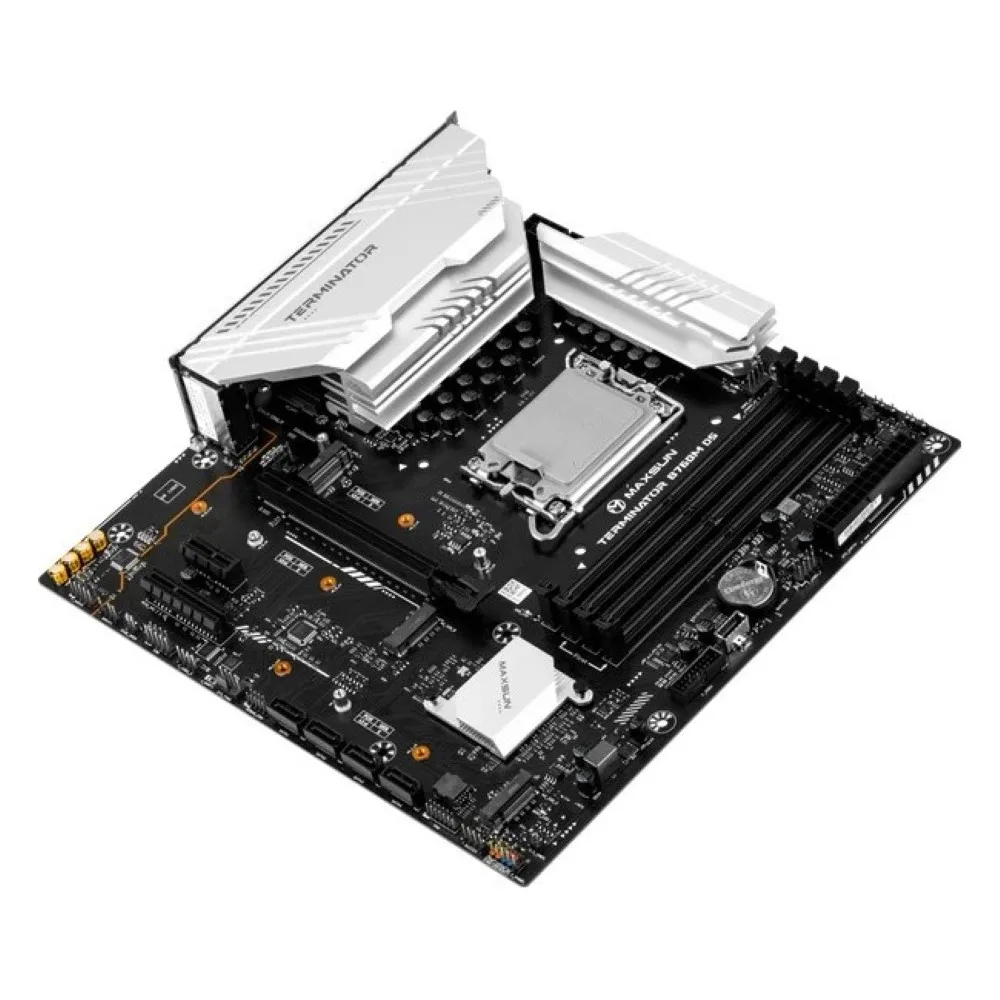

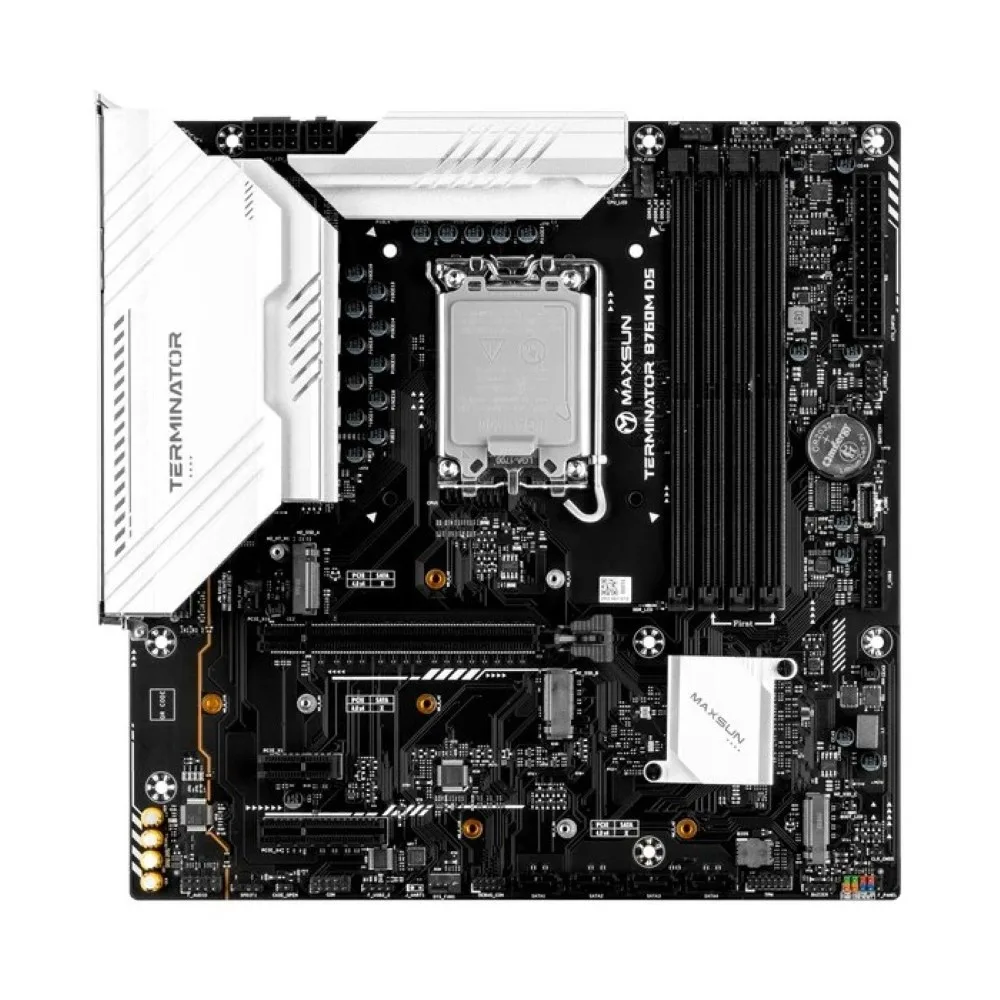

The Maxsun Terminator B760M D5 V2 is a microATX motherboard designed for Intel 12th, 13th, and 14th Gen processors (LGA 1700). It supports up to 192 GB of DDR5 memory with speeds up to 7600+ MHz (OC), ensuring fast multitasking and responsive performance. The board features a PCIe 5.0 x16 slot for next-gen graphics cards and three M.2 slots for high-speed storage.
Connectivity includes a 2.5G LAN port, multiple USB 3.2 Gen2 ports, and a USB-C header (Gen2x2). Display outputs include HDMI 2.0 and DisplayPort 1.4, supporting 4K at 60Hz. The motherboard also supports RAID 0, 1, 5, and 10 for data redundancy or speed. With a 2-year warranty, it’s a reliable choice for building a powerful yet compact system.
- Intel B760 chipset with LGA 1700 socket for 12th/13th/14th Gen CPUs
- 4× DDR5 slots, dual-channel, up to 192 GB and 7600+ MHz (OC)
- 1× PCIe 5.0 x16, 1× PCIe 3.0 x4, 3× M.2 slots
- Realtek RTL8125BG 2.5G LAN and Realtek ALC897 5.1-channel audio

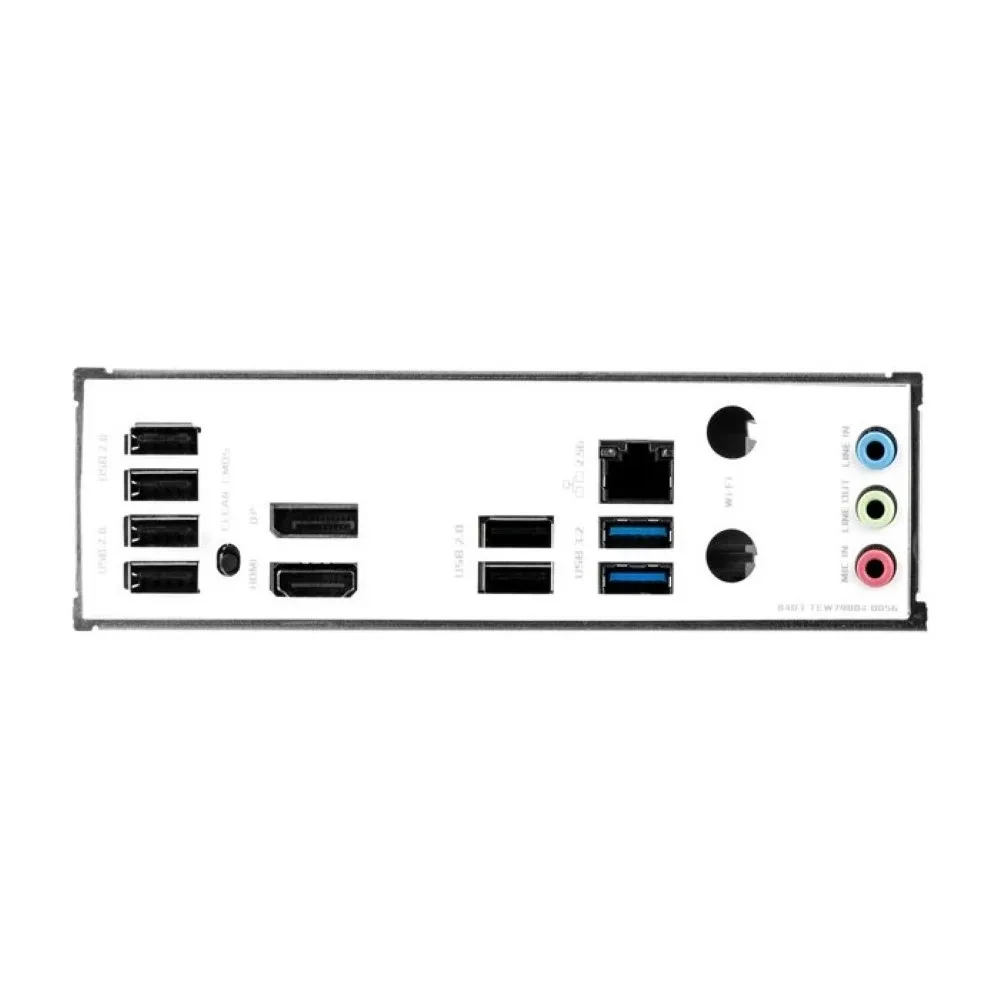

- Rear I/O: 2× USB 3.2 Gen2, 6× USB 2.0, HDMI 2.0, DisplayPort
- Micro-ATX form factor (245 mm × 245 mm) with 2-year warranty
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Chipset | Intel B760 |
| CPU Support | Intel Core Gen 12/13/14, Pentium Gold, Celeron |
| Socket | LGA 1700 |
| Memory Slots | 4× DDR5 |
| Max Memory | 192 GB |
| Memory Speed | 4800–5600 MHz (JEDEC), up to 7600+ MHz (OC) |
| Memory Mode | Dual-Channel |
| Graphics Output (Basic) | 1× DisplayPort 1.4, 1× HDMI (4K@30Hz) |
| Graphics Output (Advanced) | HDMI 2.0 (4K@60Hz), DP (4K@60Hz) |
| Expansion Slots | 1× PCIe 5.0 x16, 1× PCIe 3.0 x4 |
| M.2 Slots | 3× M.2 (PCIe x4/x2, 2242/2280) |
| SATA Ports | 4× SATA 3.0 |
| RAID Support | RAID 0, 1, 5, 10 |
| Rear USB Ports | 2× USB 3.2 Gen2, 6× USB 2.0 |
| Internal USB Headers | USB 2.0 headers, USB 3.2 Gen1 header, 1× USB-C (Gen2x2) |
| LAN | Realtek RTL8125BG 2.5G |
| Audio | Realtek ALC897, 5.1 Channel HD Audio |
| Display Support | HDMI 2.0 (4096×2160@60Hz), DP (4096×2160@60Hz) |
| Operating System | Windows 10/11 64-bit |
| Form Factor | Micro-ATX |
| Dimensions | 245 mm × 245 mm |
| Form Factor | Micro-ATX |
