Maxsun Terminator B760M D4 Wifi6E DDR4 Intel 12/13/14th Gen microATX Motherboard
The Maxsun Terminator B760M D4 Wifi6E is a microATX motherboard for Intel 12th, 13th, and 14th Gen CPUs. It features four DDR4 slots supporting up to 128GB and 5333 MHz (OC), three M.2 PCIe 4.0 slots, WiFi 6E, Bluetooth 5.3, and a 2.5G LAN port. With a 2-year warranty, it is available nationwide with cash on delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 46,799
Description
The Maxsun Terminator B760M D4 Wifi6E is a microATX motherboard built on the Intel B760 chipset, supporting Intel 12th, 13th, and 14th Gen processors (LGA 1700). It offers four DDR4 memory slots with dual-channel support, up to 128GB capacity, and speeds reaching 5333 MHz via overclocking. The board is equipped with PCIe 5.0 for the primary x16 slot, three PCIe 4.0 M.2 slots, and four SATA 6Gb/s ports with RAID 0/1/5/10 support.

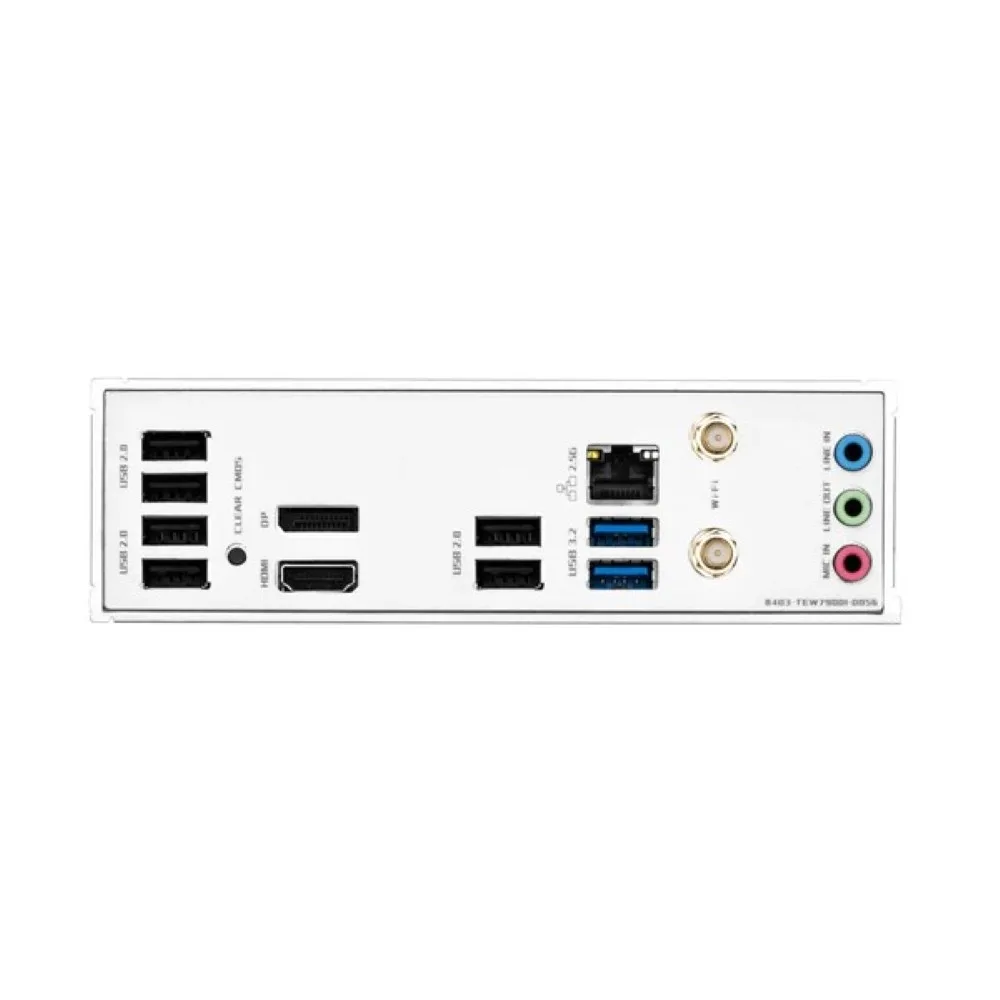

Connectivity includes WiFi 6E and Bluetooth 5.3, a 2.5G LAN port, and a comprehensive rear I/O with USB 3.2 Gen1 Type-A and USB 2.0 ports. The front panel features a USB 3.2 Gen2x2 Type-C header for fast data transfer. Debug LEDs and TPM 2.0 header are included for troubleshooting and security. The board measures 245mm x 245mm and requires a 24-pin ATX plus 8+4-pin CPU power.
- Intel B760 chipset with LGA 1700 socket for 12th/13th/14th Gen CPUs
- 4× DDR4 slots, dual-channel, up to 128GB and 5333 MHz (OC)
- 3× M.2 PCIe 4.0 x4 slots and 4× SATA 6Gb/s with RAID support
- Integrated WiFi 6E AX211 and Bluetooth 5.3
- 2.5G LAN (Realtek RTL8125BG) for high-speed networking
- PCIe 5.0 x16 slot for next-gen graphics cards
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Chipset | Intel B760 |
| CPU Support | Intel Core Gen 12/13, Pentium Gold, Celeron |
| Socket | LGA 1700 |
| Memory Slots | 4× DDR4 |
| Max Memory | 128 GB |
| Memory Speed | 2133–3200 MHz (JEDEC), up to 5333 MHz (OC) |
| XMP Support | Intel XMP 2.0 |
| Memory Mode | Dual-Channel |
| Graphics Output | 1× DisplayPort 1.4, 1× HDMI (4K@30Hz) |
| Expansion Slots | 1× PCIe 5.0 x16, 1× PCIe 3.0 x4 |
| M.2 Slots | 3× M.2 PCIe 4.0 x4 |
| SATA Ports | 4× SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| Front USB | 1× USB 3.2 Gen2x2 Type-C, 2× USB 3.2 Gen1 Type-A, 2× USB 2.0 |
| Rear USB | 2× USB 3.2 Gen1 Type-A, 6× USB 2.0 |
| LAN | Realtek RTL8125BG 2.5G |
| WiFi / Bluetooth | WiFi 6E AX211, Bluetooth 5.3 |
| Audio | Realtek ALC897, 5.1 Channel HD Audio |
| Power Connectors | 24-pin ATX, 8+4-pin CPU |
| Fan Headers | 1× CPU, 3× System |
| RGB Headers | 2× ARGB (5V), 1× RGB (12V) |
| Internal Headers | TPM 2.0, COM port, Front audio, Speaker |
| Debug Features | 4× Debug LEDs |
| Operating System | Windows 10/11 64-bit |
| Form Factor | Micro-ATX |
| Dimensions | 245 mm × 245 mm |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 |
