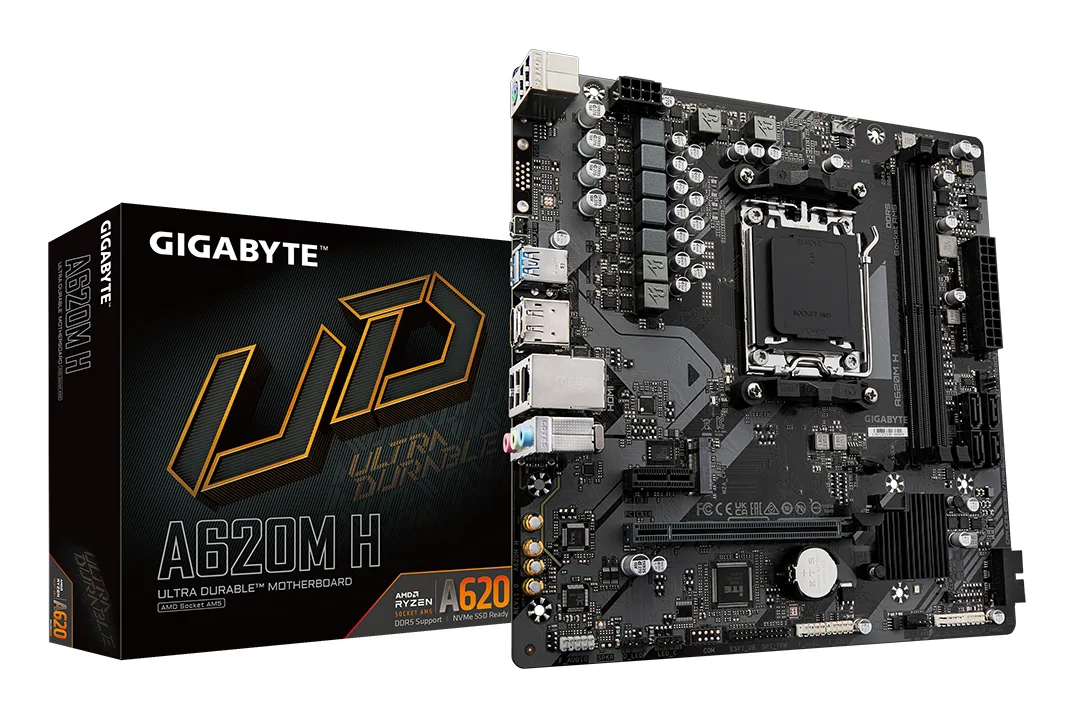

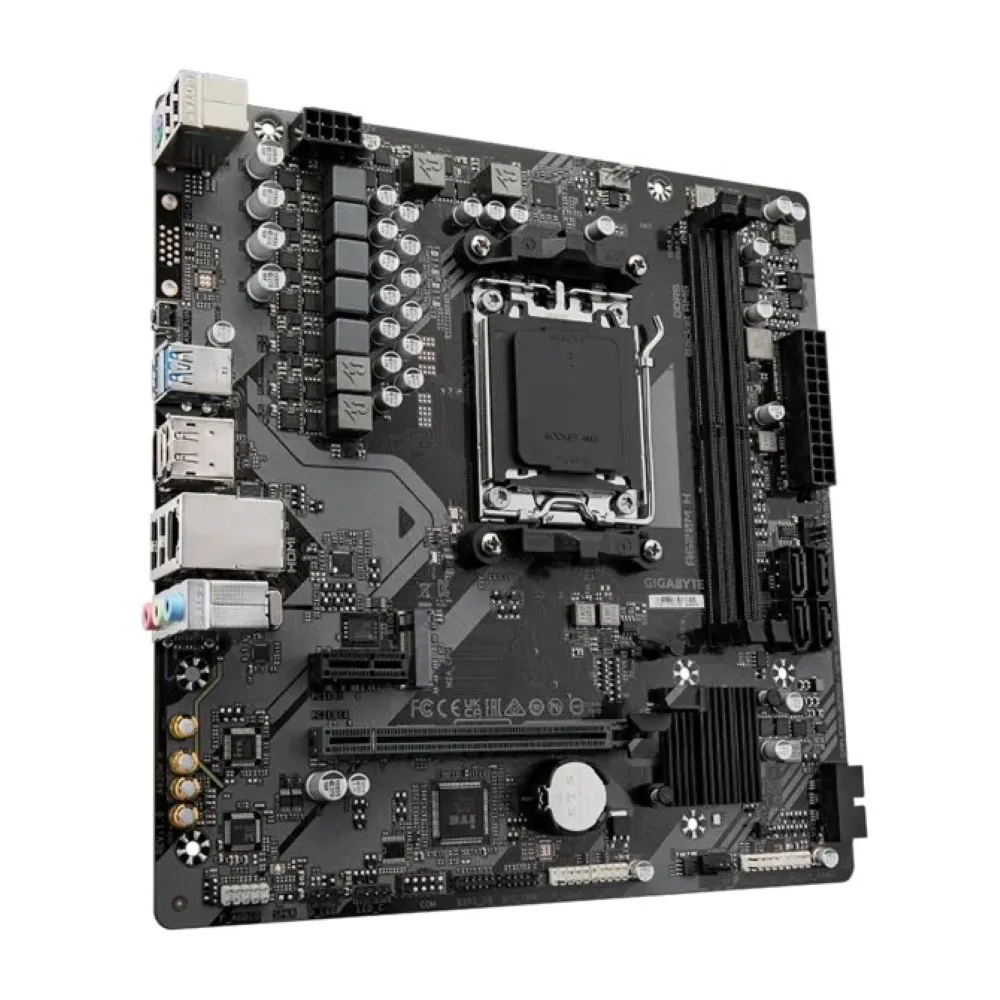

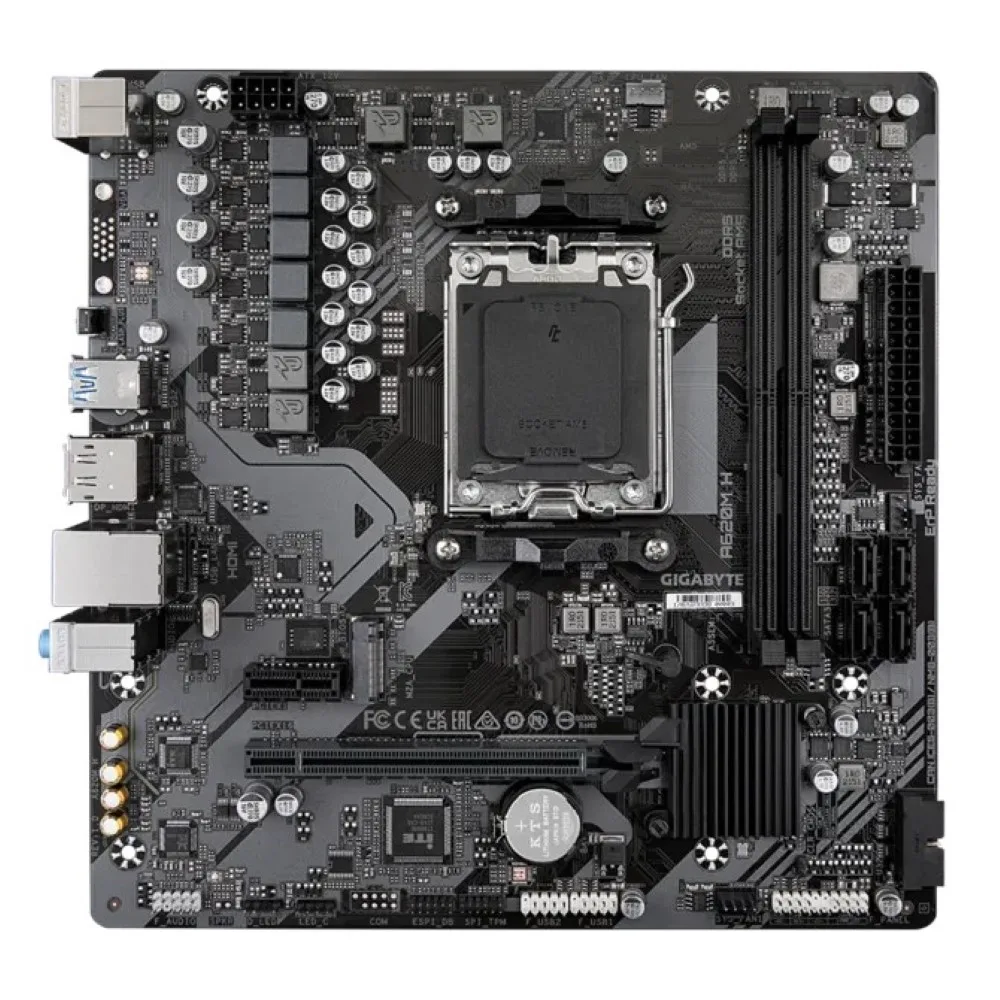

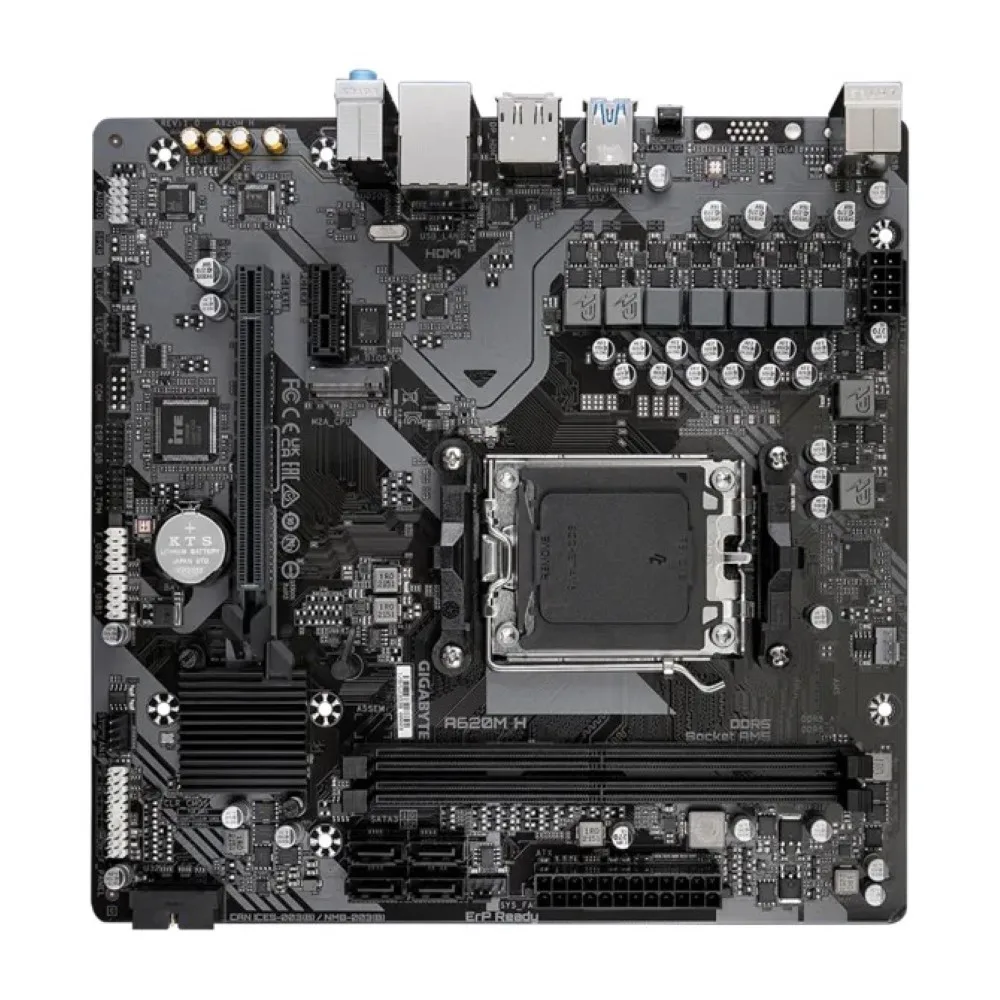

GIGABYTE A620M H AMD Socket AM5 Motherboard 2 SMD DIMMs PCIe x16 Micro ATX HDMI
The GIGABYTE A620M H is an AMD Socket AM5 Micro ATX motherboard designed for Ryzen 7000/8000/9000 series CPUs. It features 2 DDR5 DIMM slots, PCIe 4.0 x16, and an M.2 PCIe 4.0 slot for fast storage. With HDMI and DisplayPort outputs, Realtek Gigabit Ethernet, and Q-Flash Plus, it offers reliable performance for everyday computing.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 29,999
Description
The GIGABYTE A620M H is a Micro ATX motherboard built on the AMD Socket AM5 platform, supporting Ryzen 7000, 8000, and 9000 series processors. It features the AMD A620 chipset and two DDR5 DIMM slots for up to 128GB of memory, ensuring smooth multitasking and next-gen performance.
Equipped with a PCIe 4.0 x16 slot and one M.2 PCIe 4.0 NVMe slot, this motherboard delivers fast data transfer and graphics capabilities. It also includes HDMI and DisplayPort outputs for integrated graphics, Realtek Gigabit Ethernet, and high-definition audio with up to 7.1 channels.
- Supports AMD Ryzen 7000/8000/9000 series CPUs on Socket AM5
- 2× DDR5 DIMM slots, up to 128GB dual-channel memory
- 1× PCIe 4.0 x16 slot (depends on CPU) and 1× M.2 PCIe 4.0 NVMe storage
- DisplayPort (4K @ 144Hz) and HDMI outputs for iGPU
- Realtek Gigabit Ethernet and HD Audio (2/4/5.1/7.1 channels)
- Q-Flash and Q-Flash Plus for easy BIOS updates, GCC support
Specification
Overview
| Warranty | 2 Years |
|---|---|
| CPU | AMD Socket AM5 (Ryzen 7000 / 8000 / 9000 Series) |
| Chipset | AMD A620 |
| Memory | 2× DDR5 DIMM, up to 128GB |
| PS/2 combo port | |
| Graphics (iGPU) | 1× DisplayPort (4K @ 144Hz) |
| Audio | Realtek HD Audio (2/4/5.1/7.1 channels) |
| LAN | Realtek Gigabit Ethernet (1 Gbps) |
| Expansion Slots | 1× PCIe x16 (Gen4, depends on CPU) |
| Storage | 1× M.2 PCIe 4.0 (NVMe) |
| USB (Rear) | 2× USB 3.2 Gen1 |
| USB (Internal) | 2× USB 3.2 Gen1 headers |
| Internal Connectors | 24-pin ATX + 8-pin CPU power |

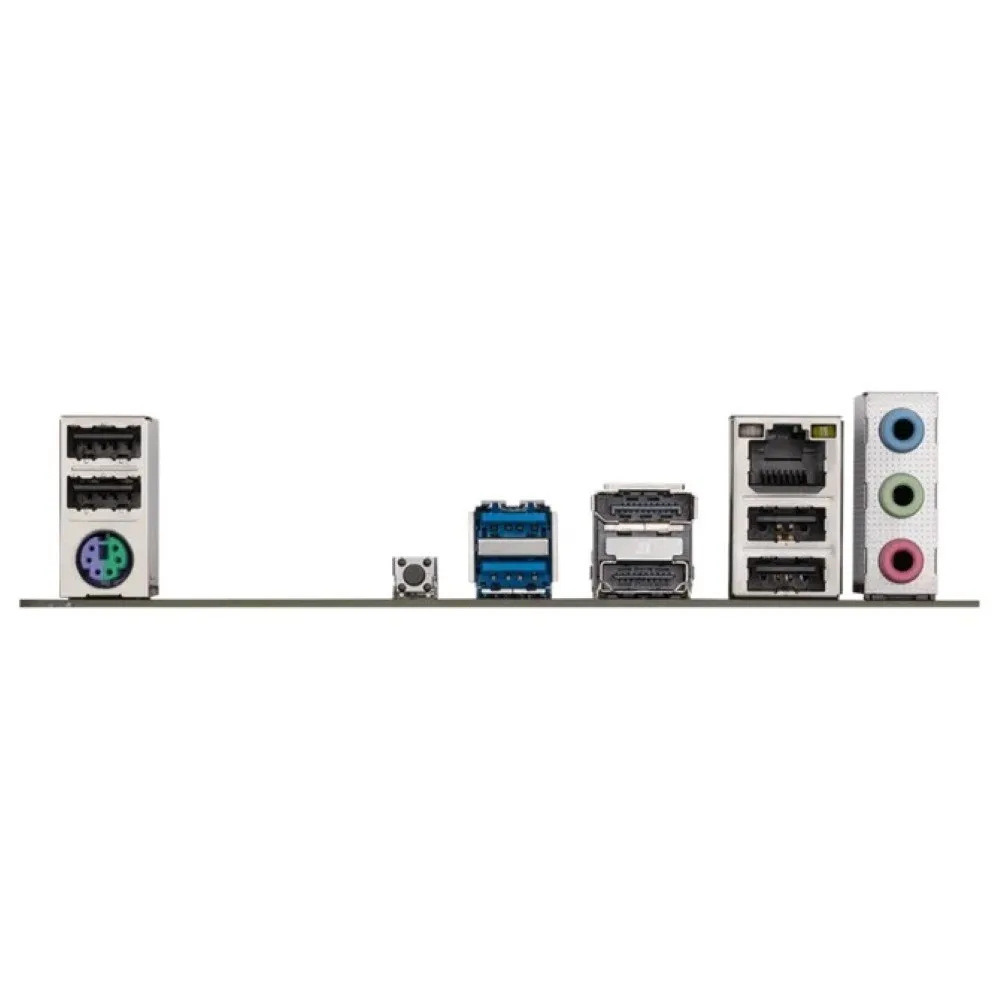

| Back Panel Ports | HDMI, DisplayPort |
| BIOS | 256 Mbit AMI UEFI BIOS |
| Special Features | Q-Flash, Q-Flash Plus, GCC support |
| OS Support | Windows 10 & 11 (64-bit) |
| Form Factor | Micro ATX (23.0 × 22.5 cm) |
| Form Factor | Micro-ATX |
