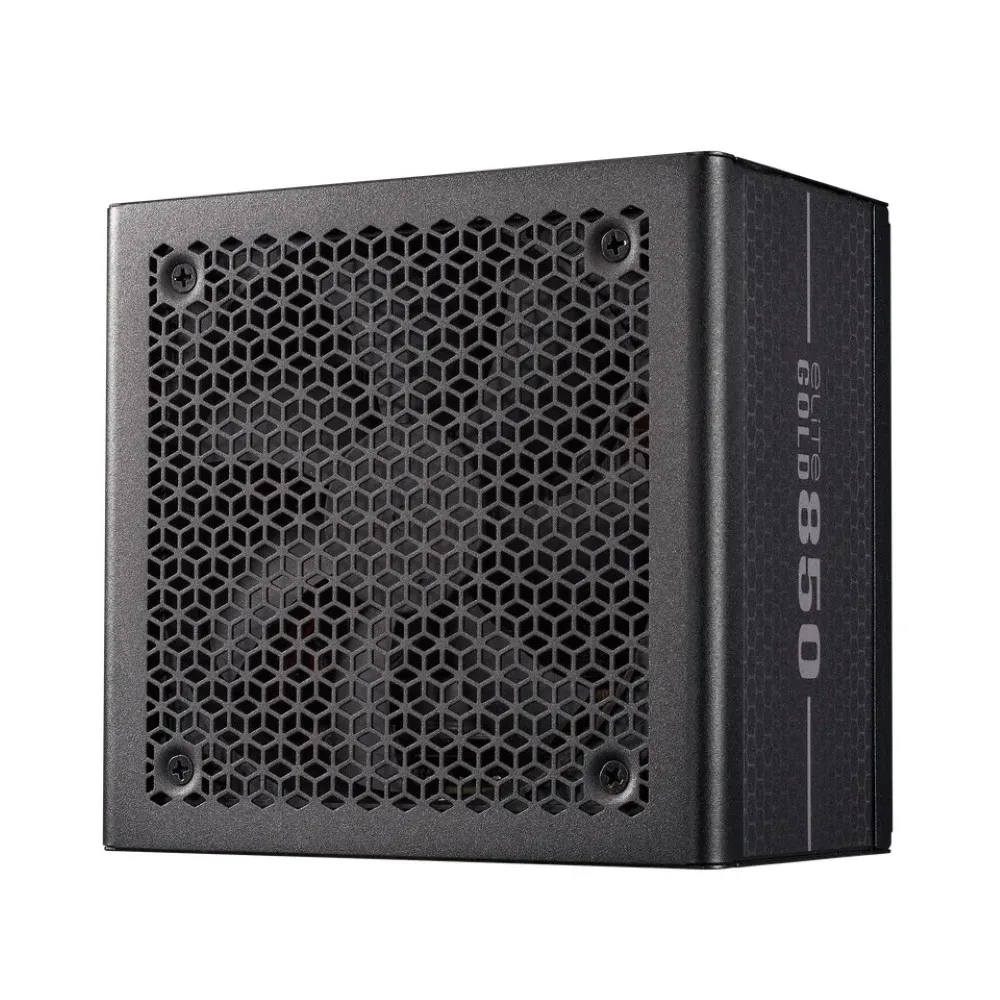

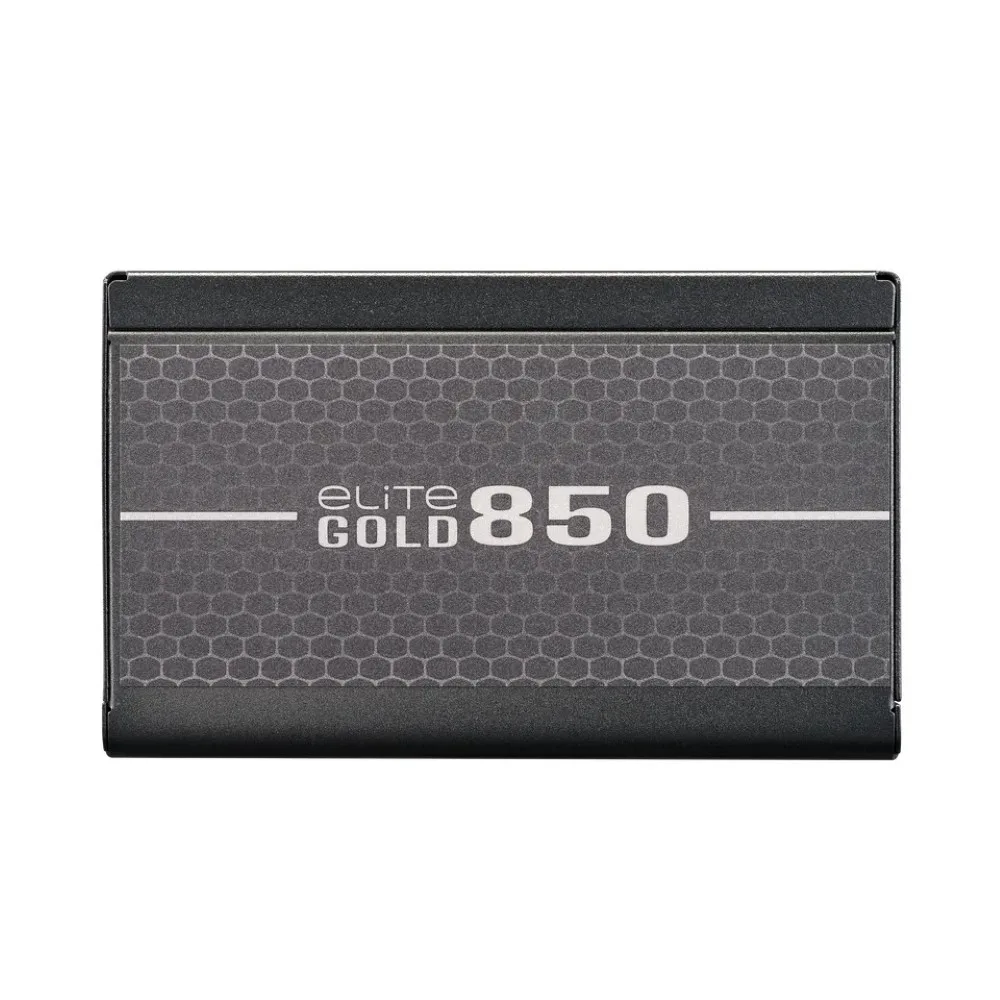

Cooler Master Elite Gold 850W 80+ Gold Fully Modular ATX 3.1 Power Supply – Black
The Cooler Master Elite Gold 850W is a fully modular ATX 3.1 power supply with 80+ Gold efficiency, delivering reliable and clean power for your PC. It features a native 12+4 pin connector for modern GPUs, quiet 120mm fan, and comprehensive protections. Available with nationwide delivery and cash-on-delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 31,310
Description
The Cooler Master Elite Gold 850W is a fully modular ATX 3.1 power supply designed for high-performance builds. With 80+ Gold efficiency (≥90% typical load), it delivers reliable power with reduced heat and energy waste. The 120mm rifle bearing fan ensures quiet operation and long life.
Supporting the latest ATX 3.1 standard, it includes a native 12+4 pin connector for next-gen GPUs. Full modularity simplifies cable management, while multiple protections (UVP, OVP, OPP, OTP, SCP) safeguard your components. Backed by a 2-year warranty, it’s a solid choice for gaming or workstation PCs.
- 850W fully modular design for clean cable routing
- 80+ Gold certified efficiency (≥90% typical load)
- ATX 3.1 compliant with native 12+4 pin (12VHPWR) connector
- 120mm rifle bearing fan for quiet and durable cooling
- Comprehensive protections: UVP, OVP, OPP, OTP, SCP
- Compact 140mm depth fits most cases
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Product Name | ELITE GOLD 850 |

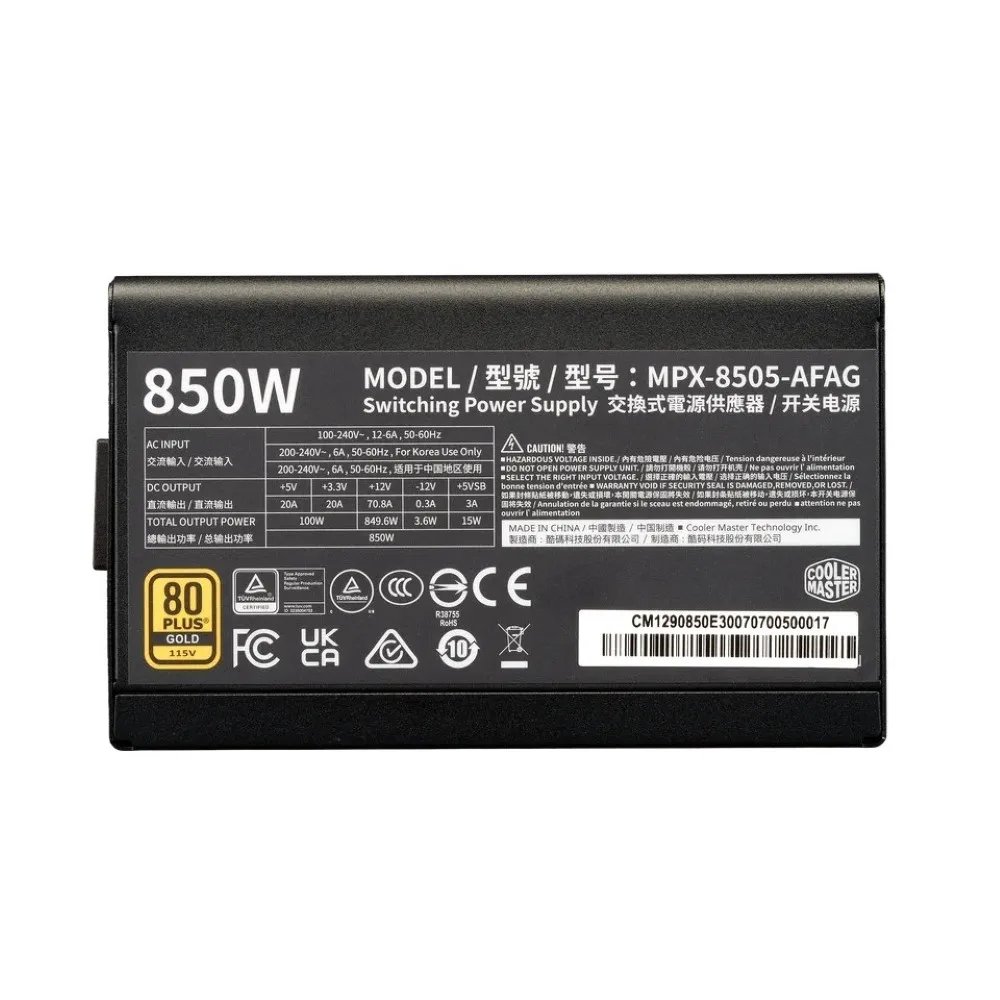

| Model | MPX-8505-AFAG |
| Series | Elite Series |
| Form Factor | ATX |
| ATX Version | ATX 12V Ver. 3.1 |
| Wattage | 850W |
| Modular | Fully Modular |
| PFC | Active PFC |
| Input Voltage | 100–240V |
| Input Current | 6 ~ 12A |
| Input Frequency | 50–60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | Rifle Bearing |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| 80 Plus Efficiency | Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0–40°C |
| Power Good Signal | 100 – 150 ms |
| Hold Up Time | ≥ 11 ms @ 100% Load |
| MTBF | >100,000 hours @ 25°C ambient |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory Certifications | cTUVus, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0 |
| ATX 24-Pin Connector | 1 × (550mm) |
| EPS 8 Pin Connector | 1 × (600mm) |
| eps-4-4-pin-connector | 1 × (600mm) |
| pci-e-6-2-pin-connectors | 2 × (500+120mm, 500mm) |
| 12-4-pin-connector | 1 × (650mm) |
| EPS 4+4 Pin Connector | 1 × |
| SATA & Peripheral Connectors | 2 sets [400 + 120 + 120 mm] |
| PCI-e 6+2 Pin Connectors | 2 × |
| 12+4 Pin Connector | 1 × |
