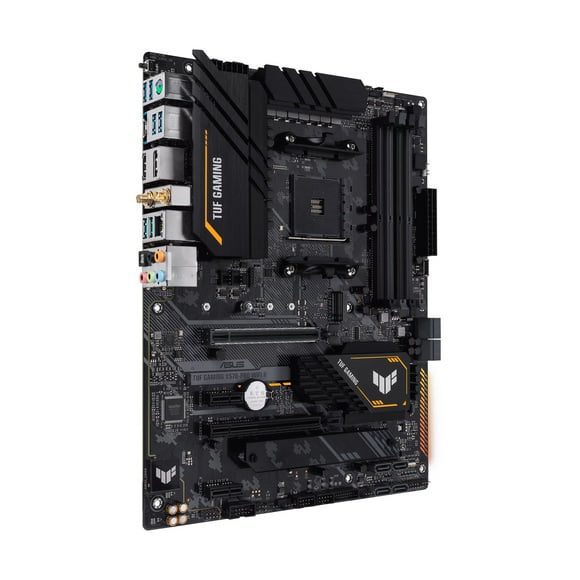

ASUS TUF Gaming X570-Pro WiFi II AM4 ATX Gaming Motherboard
The ASUS TUF Gaming X570-Pro WiFi II is an AM4 ATX motherboard built for AMD Ryzen 5000 series processors, featuring PCIe 4.0, dual M.2 slots, and Wi-Fi 6E. With robust TUF components, 2.5Gb Ethernet, and comprehensive cooling, it delivers reliable performance for gaming and multitasking. Available with nationwide delivery in Pakistan and cash-on-delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 87,000
Description

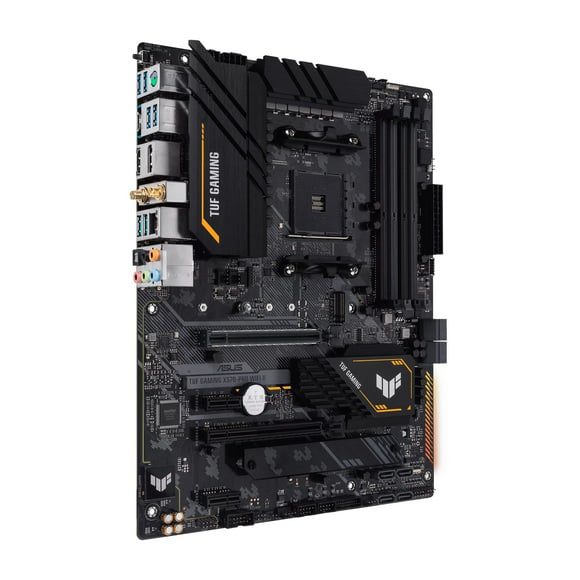

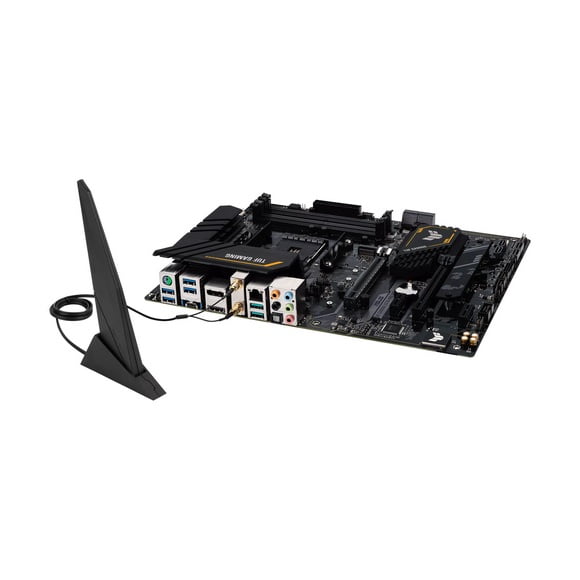

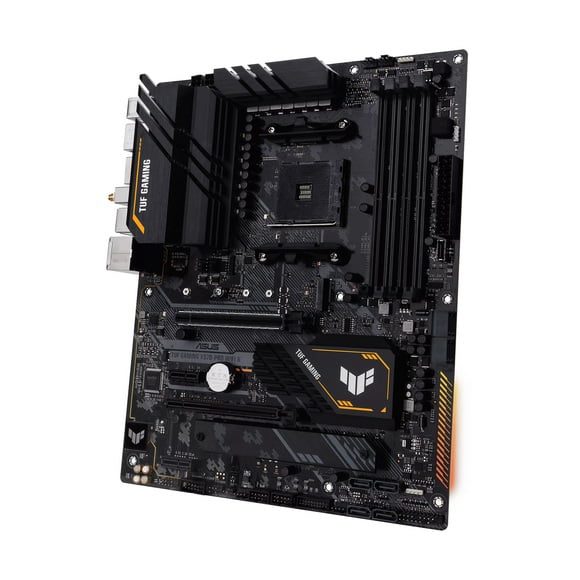

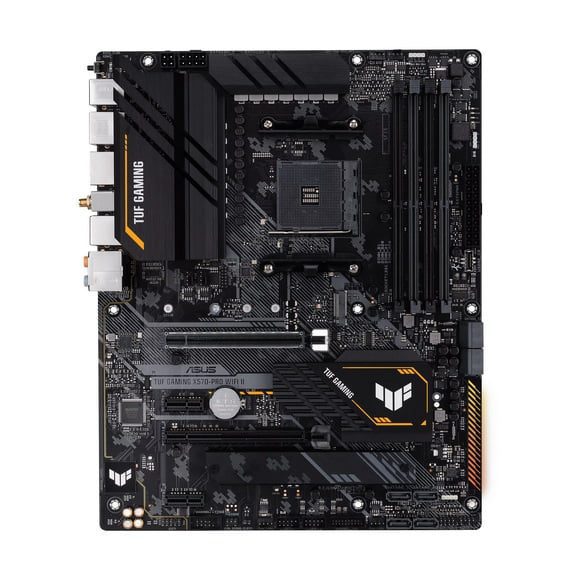

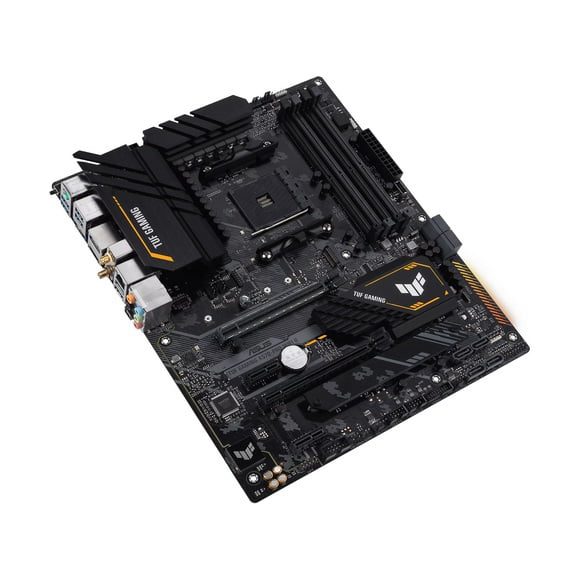

The ASUS TUF Gaming X570-Pro WiFi II is a robust ATX motherboard designed for AMD AM4 processors, including Ryzen 5000 series. Built with military-grade TUF components, it offers enhanced durability and stability for demanding gaming and productivity workloads. With PCIe 4.0 support, dual M.2 slots, and Wi-Fi 6E, this motherboard delivers high-speed connectivity and future-ready performance.
Featuring a comprehensive cooling solution with aluminum heatsinks and multiple fan headers, the X570-Pro WiFi II ensures optimal thermal management. The onboard Realtek audio codec with 7.1-channel output and DTS Custom for gaming headsets provides immersive sound. ASUS-exclusive software like Armoury Crate and AI Suite 3 offers easy system tuning and customization.
- Supports AMD Ryzen 5000/4000/3000/2000 series processors on AM4 socket with AMD X570 chipset
- Dual channel DDR4 memory up to 128GB, supporting speeds up to 5100MHz (OC)
- PCIe 4.0 x16 slot, PCIe 4.0 x4 slot, and two PCIe 4.0 x1 slots; 8x SATA 6Gb/s with RAID 0/1/10
- Dual M.2 slots (one PCIe 4.0 x4 & SATA, one PCIe 4.0 x4 & SATA) with heatsinks
- Intel 2.5Gb Ethernet, Wi-Fi 6E (802.11ax), Bluetooth 5.2
- Rear I/O: 3x USB 3.2 Gen 2 (2 Type-A, 1 Type-C), 4x USB 3.2 Gen 1, DisplayPort, HDMI, BIOS FlashBack, PS/2
Specification
Overview
| Brand | ASUS |
|---|---|
| Model | TUF GAMING X570-PRO WIFI II |
| CPU Socket Type | AM4 |
| CPU Type | Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors |
| Chipset | AMD X570 |
| Number of Memory Slots | 4×288pin (DDR4) |
| Memory Standard | DDR4 5100(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133*, * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., * The maximum memory frequency supported varies by processor. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | ECC Memory (ECC mode) support varies by CPU |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16*, 1 x PCIe 4.0 x16 (max. x4), * Actual support may vary by CPU. |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x16 | None |
| PCI Express x1 | 2 x PCIe 4.0 x1 |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
| M.2 | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors:, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), AMD Ryzen 5000 G-Series/ 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors:, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes), AMD X570 chipset:, M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Audio Chipset | Realtek Surround Sound High Definition Audio CODEC |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 2.5Gb Ethernet |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Wi-Fi 6E, 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

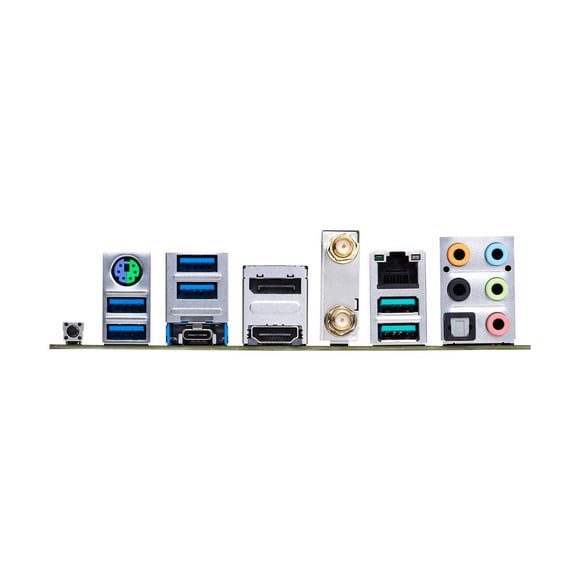

| Back I/O Ports | 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 port(s) (4 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x PS/2 Keyboard/Mouse combo port |
| HDMI | 1 x HDMI |
| USB 3.0 | 6 x USB 3.0 |
| Onboard USB | 1 x USB 3.2 Gen 2 Front Panel connector (support(s) USB Type-C), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Other Connectors | Fan and Cooling related, 1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 1 x 4-pin AIO Pump header(s), 3 x 4-pin Chassis Fan header(s), Miscellaneous, 1 x Addressable Gen 2 header(s), 2 x AURA RGB header(s), 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x SPI TPM header (14-1pin), 20-5 pin System Panel header |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector |
| Windows 11 | Supported |
| Features | Multi-GPU Support:, AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series/ Desktop Processors:, Supports AMD 2-Way CrossFireX Technology, Special Features:, ASUS TUF PROTECTION, – ASUS DIGI+ VRM (- Digital power design with Dr. MOS), – ASUS Enhanced DRAM Overcurrent Protection, – ASUS ESD Guards, – TUF LANGuard, – ASUS Overvoltage Protection, – ASUS SafeSlot, – ASUS Stainless-Steel Back I/O, ASUS Q-Design, – M.2 Q-Latch, – ASUS Q-DIMM, – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), – ASUS Q-Slot, ASUS Thermal Solution, – Aluminum M.2 heatsink, – Aluminum heatsink design, ASUS EZ DIY, – BIOS FlashBack button, – BIOS FlashBack LED, – Procool, AURA Sync, – AURA RGB header(s), – Addressable Gen 2 RGB header(s), Software Features:, ASUS Exclusive Software, Armoury Crate, – AURA Creator, – AURA Sync, – Two-Way AI Noise Cancelation, AI Suite 3, – Performance And Power Saving Utility, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4, EZ update, ASUS CPU-Z, AI Charger, DAEMON Tools, DTS Custom for GAMING Headsets, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS, ASUS EZ DIY, – ASUS CrashFree BIOS 3, – ASUS EZ Flash 3, – ASUS UEFI BIOS EZ Mode, BIOS:, 256 Mb Flash ROM, UEFI AMI BIOS, Manageability:, WOL by PME, PXE, Operating System:, Windows 11 64-bit, Windows 10 64-bit |

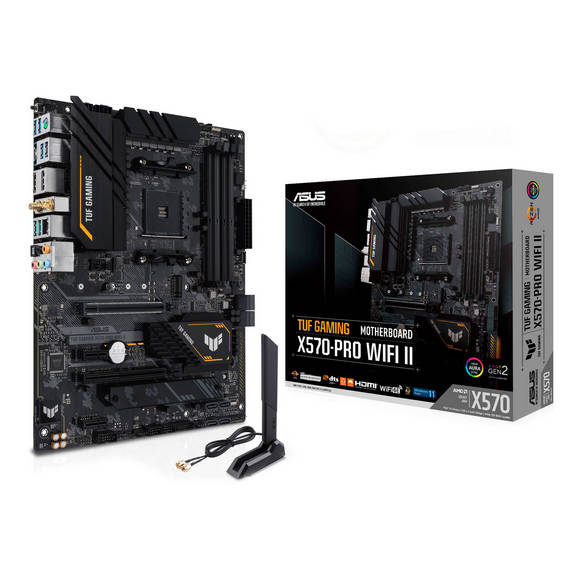

| Package Contents | Accessories:, Cables, 2 x SATA 6Gb/s cables, Miscellaneous, 1 x I/O Shield, 1 x M.2 Rubber Package(s), 1 x TUF Gaming sticker, 1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas, Installation Media, 1 x Support DVD, Documentation, 1 x TUF Certification card, 1 x User guide |
| Form Factor | ATX |
