ASUS PRIME Z690-P D4 DDR4 (LGA 1700) ATX Motherboard

Name: ASUS PRIME Z690-P D4 DDR4 (LGA 1700) ATX Motherboard
Brand: Asus
SKU: MC-MBD-ASU-0119
Price: 69000 PKR
Availability: InStock

SKU: MC-MBD-ASU-0119 Category: Intel Motherboards Brand: Asus

The ASUS PRIME Z690-P D4 is an ATX motherboard featuring the Intel Z690 chipset and LGA 1700 socket, supporting 12th Gen Intel Core processors. It offers four DDR4 slots with overclocking up to 5333MHz, PCIe 5.0 support, three M.2 slots, Realtek 2.5Gb Ethernet, and comprehensive USB connectivity including USB 3.2 Gen 2×2 Type-C. With ASUS 5X Protection III and AURA Sync RGB, it’s a solid foundation for a high-performance PC.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 69,000

Compare

Add to wishlist

Description

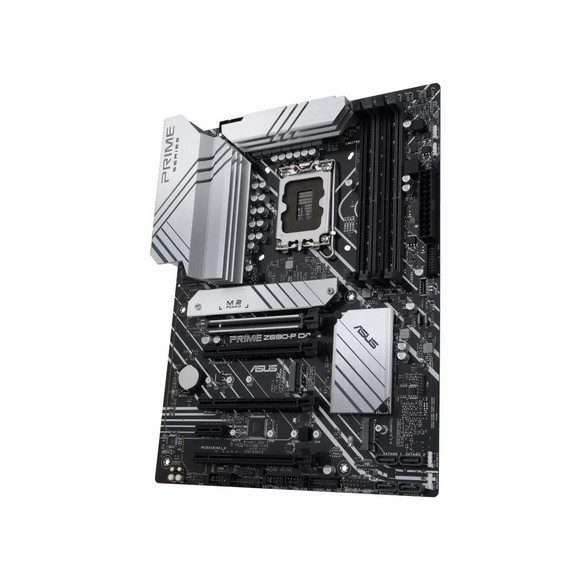

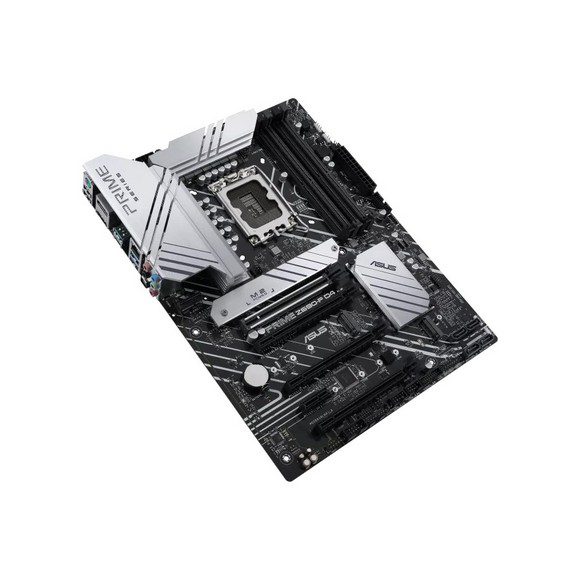

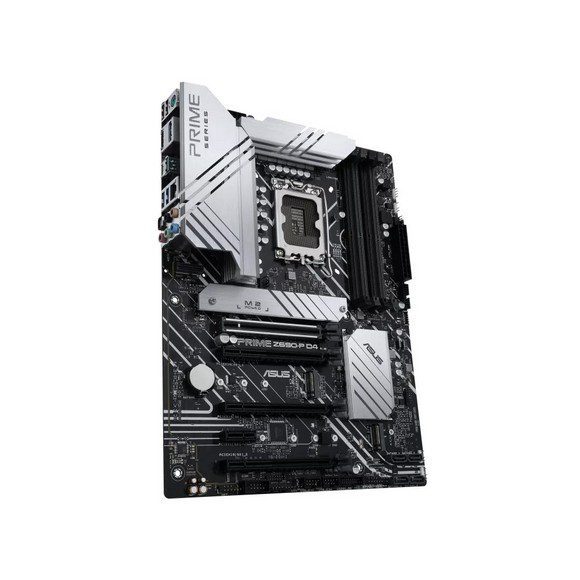

The ASUS PRIME Z690-P D4 is an ATX motherboard built on the Intel Z690 chipset, supporting 12th Gen Intel Core, Pentium Gold, and Celeron processors via the LGA 1700 socket. It features dual mounting holes compatible with both LGA1700 and LGA1200 cooling brackets, ensuring broad cooler compatibility. With four DDR4 memory slots, it supports up to 128GB of RAM and overclocked speeds up to DDR4 5333MHz, delivering robust performance for gaming and productivity.

This motherboard offers extensive connectivity options including PCIe 5.0 support for the latest graphics cards, three M.2 slots (one PCIe 4.0 x4 from CPU, two from chipset), and four SATA 6Gb/s ports. It also includes Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C, and HDMI/DisplayPort outputs for integrated graphics. ASUS 5X Protection III, ProCool power connectors, and comprehensive cooling headers ensure stability and durability.

Intel LGA 1700 socket with dual mounting holes for LGA1700 and LGA1200 coolers
4 x DDR4 DIMMs, max 128GB, overclocked support up to 5333MHz
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x16 (x4 mode), and 1 x PCIe 3.0 x1
3 x M.2 slots (PCIe 4.0 x4) and 4 x SATA 6Gb/s with RAID support
Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C, and AURA Sync RGB headers
ASUS 5X Protection III, ProCool power delivery, and comprehensive cooling with AIO pump header

Specification

Overview

Brand	ASUS
Model	PRIME Z690-P D4
Part Number	90MB18P0-M0AAY0
CPU Socket Type	LGA 1700, * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type	Supports 12th Gen Intel Core Processors, Supports Intel Pentium Gold / Celeron Processors, * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z690
Onboard Video Chipset	Supported only by CPU with integrated graphic
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133, * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
PCI Express 5.0 x16	1 x PCI Express 5.0 x16, * Actual support may vary by CPU., * Please check PCIe bifurcation table in support site.
PCI Express 4.0 x16	1 x PCI Express 4.0 x16, * Supports x4 mode.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16, * Support x4 mode.
PCI Express x1	1 x PCIe 3.0 x1
Other Slots	V-M.2 slot only (Key E, CNVi & PCIe), Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 12th Gen Processors:, M.2_1 slot (Key M), type 2242/2260/2280/22110, – Intel 12th Gen processors support PCIe 4.0 x4 mode., Intel Z690 Chipset:*, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10., ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10
Audio Channels	7.1 Channels
LAN Chipset	Realtek 2.5Gb Ethernet
Max LAN Speed	10/100/1000/2500Mbps

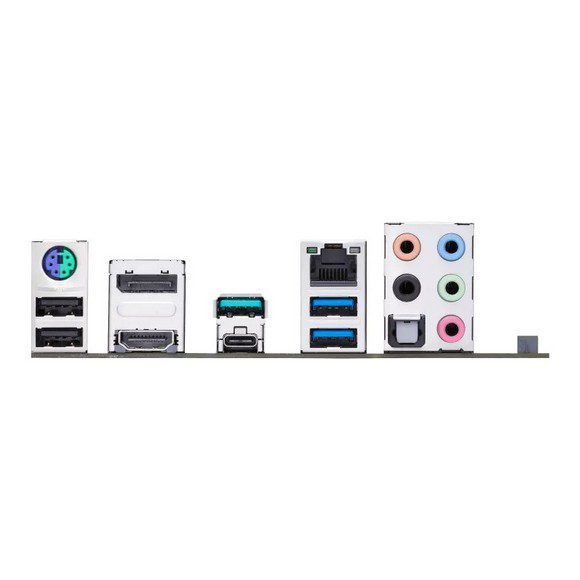

Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x V-M.2 slot (Key E), 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x PS/2 Keyboard/Mouse combo port
Onboard USB	1 x USB 3.2 Gen 1 connector (supports USB Type-C), 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x AURA RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x SPI TPM header (14-1pin), 1 x 20-5pin System Panel header, 1 x Thunderbolt header
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.2″
Power Pin	1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector
Windows 11	Ready
Features	Special Features:, ASUS 5X PROTECTION III, – DIGI+ VRM (- Digital power design with DrMOS), – LANGuard, – Overvoltage Protection, – SafeSlot, – Stainless-Steel Back I/O, ASUS Q-Design, – Q-DIMM, – Q-Slot, ASUS Thermal Solution, – Flexible M.2 heatsink, – VRM heatsink design, ASUS EZ DIY, – ProCool, AURA Sync, – AURA RGB headers, – Addressable Gen 2 headers, Software Features:, ASUS Exclusive Software, Armoury Crate, – AURA Sync, – Fan Xpert 4, AI Suite 3, – Performance And Power Saving Utility, TurboV EVO, EPU, DIGI+ VRM, ASUS CPU-Z, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS, ASUS EZ DIY, – ASUS CrashFree BIOS 3, – ASUS EZ Flash 3, – ASUS UEFI BIOS EZ Mode, BIOS:, 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, Manageability:, WOL by PME, PXE, Operating System:, Windows 11 64-bit, Windows 10 64-bit

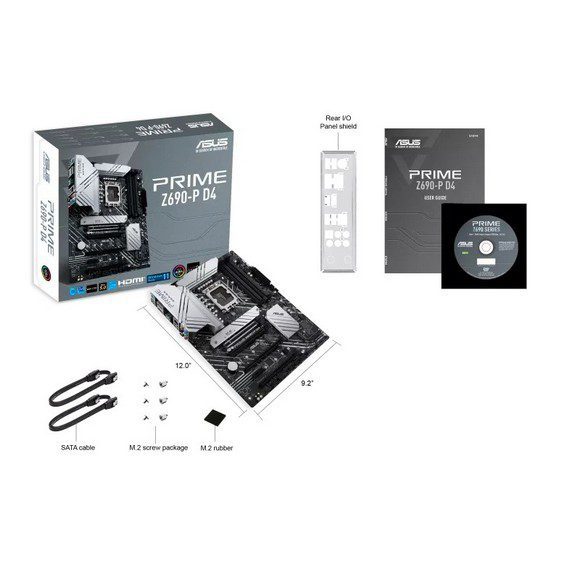

Package Contents	Accessories:, Cables, 2 x SATA 6Gb/s cables, Miscellaneous, 1 x I/O Shield, 1 x M.2 Rubber Package, 2 x M.2 SSD screw packages, Installation Media, 1 x Support DVD, Documentation, 1 x User guide
Form Factor	ATX
Memory Type	DDR4
