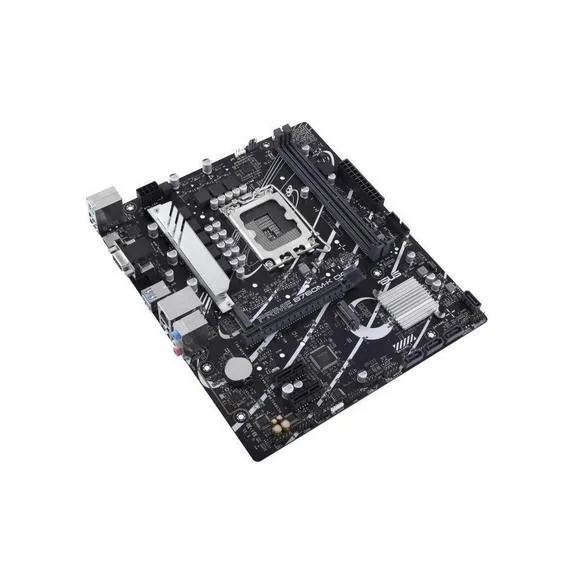

ASUS Prime B760M-K D5, LGA 1700 mATX Motherboard
The ASUS Prime B760M-K D5 is a Micro-ATX motherboard supporting Intel 12th and 13th Gen LGA 1700 processors. It features DDR5 memory, dual M.2 slots, PCIe 4.0, and 2.5Gb Ethernet, offering a solid foundation for a modern PC build. With ASUS 5X PROTECTION III and Aura Sync RGB, it combines durability and style.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 31,310
Description
The ASUS Prime B760M-K D5 is a Micro-ATX motherboard built for Intel 12th and 13th Gen processors on the LGA 1700 socket. It features the Intel B760 chipset and supports DDR5 memory, with two DIMM slots for up to 64GB. The board includes PCIe 4.0 slots, dual M.2 slots, and four SATA ports for flexible storage.
With ASUS 5X PROTECTION III, this motherboard offers enhanced durability and reliability. It also includes Aura Sync RGB headers, 2.5Gb Ethernet, and comprehensive rear I/O including USB 3.2 Gen 1 and HDMI. Ideal for building a compact yet powerful PC, it supports Windows 11 and comes with a 2-year warranty.
- LGA 1700 socket for Intel 12th/13th Gen CPUs
- DDR5 memory support, up to 64GB
- Dual M.2 slots with PCIe 4.0 x4
- 2.5Gb Ethernet for fast networking
- ASUS 5X PROTECTION III for reliability
- Micro-ATX form factor fits compact cases
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Brand | ASUS |
| Model | PRIME B760M-K D5 |
| CPU Socket Type | LGA 1700 |
| CPU Type | Celeron / Intel Core 12th Gen / Intel Core 13th Gen / Pentium Gold |
| Chipset | Intel B760 |
| Number of Memory Slots | 2x288pin |
| Memory Standard | DDR5 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| Memory Feature | DDR4, 5333/5066/5000/4800/4600/4400/4266/4000/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express x1 | 2 x PCI Express 4.0 x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | Intel 13th & 12th Gen Processors, M.2_1 slot, type 2242/2260/2280 |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC*, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
| Back I/O Ports | 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0 ports |
| Onboard USB | 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling related, 1 x 4-pin CPU Fan header |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 9.6″ x 8.3″ |
| Power Pin | 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector |
| Windows 11 | Supported |
| Features | ASUS 5X PROTECTION III, – DIGI+ VRM |
| Package Contents | Cables, 2 x SATA 6Gb/s cables |
| Form Factor | Micro-ATX |
